Indy14 Build Thread

Well, I guess its time to start my build thread. I'm Steve from Indiana and my Factory Five Mk 4 Roadster has arrived and is being built. I've waited 43 years for this type of car. I was lucky enough to meet a gentleman named Jeff that let me ride in his Factory Five Roadster and will help me build my car. I will create a website for my build because looking at others was the way I learned most of what I know about Factory Five Roadsters. Also just to be correct, Jeff will build the car. I may be able to hand him a tool or part when needed.
What prompted me to start a build thread was after I went out to help Jeff work on my car. He had installed the brake & fuel lines. He did an excellent job. Looks like it came from a factory.
Thanks for doing a great job.
See the website for progress.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Mk4 7276 Complete Kit; Delivered: June 28, 2011; Roller: November 30, 2010;
First Go-Kart: January 2, 2011; Licensed and on the road: June 21, 2011
Ford Racing 306 crate; Carb; Trans: T-5Z; 3-Link; Traction Lock rear end; 3.55; 15" Halibrand; PS/PB
Color:Mazda Miata "True Red" and GM "Arctic White"
indy14 is offline
Sponsored Links
Advertisement

post #2 of 94 (permalink) Old 08-23-2010, 04:03 PM
FFCobra Fanatic
FFCars Captain

5.8Cobra's Avatar

Join Date: Aug 2002
Location: CT
Posts: 5,195
Looks great Steve, I know you made the right choice with FFR and Jeff is doing a wonderful job so far. You are going to like the power steering and brakes. Keep us updated.

Mike


FFR 2166: 383Windsor, Vortech YS, TFS box intake,Dynod 652 rwhp , 9/11" Team III's 255/315 NT-05 Nittos, Vintage Autometers, PS, Power M2300K 13"/11.65" brakes, Tremec TKO midshift, SAI Mod, LEVY 5 Link, Gas-N pipes, Konis

FFR 3107 Built & Sold
FFR 1990 Built & Sold
FFR 7330 Built & Sold

FFR 4948 purchased 2013 incomplete, IRS planned 351W,Tremec,3.27's
5.8Cobra is offline
post #3 of 94 (permalink) Old 08-23-2010, 08:45 PM
Not a waxer

JKleiner's Avatar

Join Date: Apr 2002
Location: Bloomington, Indiana
Posts: 10,184
Well thanks for the kind words Steve!

I always enjoy the build threads and have been meaning to get one started for your car. This thread should motivate me to actually do it! I made a post last month with some early progress reports HERE then had a family emergency as well as some other obligations crop up and didn't keep the updates coming. I have a ton of pictures on my computer at home that need to be uploaded to photobucket so I can post them. Promise---I'll do it in the next couple of days then back up and add them to this post chronologically. Between Steve's website & photos and mine we should be able to document the build of #7276 pretty well.

Until then here a few teasers. First as Steve's car arrived and met it's older sibling #5946:



Here are some from the weekend before last:







Guess I better head home and get busy uploading pics!

Cheers,
Jeff

Mk3 #5946 build pics w/text

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Mk4 #7276 "indy14" Build thread

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Mk4 Bodywork thread

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
JKleiner is offline
post #4 of 94 (permalink) Old 08-24-2010, 12:07 AM
Junior Charter Member

letsgosteelers's Avatar

Join Date: Dec 2005
Location: Inland Empire, CA
Posts: 2,054
the build looks great guys!

what is the finish that you applied to the rear alum panels? did you just powdercoat the outside or is it something else....?

FFR 7058 - the madness begins...
Mk 3.1 base kit, 302 EFI, GT-40 Intake, T-5 (hopefully mid-shift), Manual Steering & Brakes, 8.8" Rear-End 3.27,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
, Frankeeski's F-Panels ...

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
letsgosteelers is offline
post #5 of 94 (permalink) Old 08-24-2010, 12:23 AM
Member

bhargis's Avatar

Join Date: Oct 2008
Location: Terre Haute, IN
Posts: 46
You two are doing a good job. Look looking clean and good

Bob

Build School May 2009
FFR #7006 Base Kit picked up 6/17/09
First Start and Go-kart 10/3/09
94 Donor 302 Carb 3 Link Rear
Home from paint 6/29/10
Tangerine Pearl with White Stripe
bhargis is offline
post #6 of 94 (permalink) Old 08-24-2010, 05:50 AM
Not a waxer

JKleiner's Avatar

Join Date: Apr 2002
Location: Bloomington, Indiana
Posts: 10,184
OK, got some photos loaded so lets go back to the beginning and first impressions.

Steve's car, #7276, was delivered to my house by Dennis and Jo, the same Stewart Transport team that delivered mine. Quite a contrast though with a temperature delta of greater than 100 degrees! Mine arrived the day after the Indianapolis Colts won the Superbowl, which was the coldest day of the year with a HIGH temperature for the day of -10. This time the temp was well above 90! Lots more boxes this time too. Steve opted for the complete kit:



Over the next few evenings I did inventory and got a look at the latest parts. First and most visible is the new Mk4 body of course. I'll admit to being skeptical when it was introduced but have to say that it truly does have some nice improvements. The parting lines are the first thing that most people look at. Personally I don't care how big the boogers are as long as they don't have voids and the panels align. Earlier bodies were hit and miss but if this sample of one is any indication they've improved this area:





No voids and alignment is spot on. As the reflection in the photo below illustrates the major body is pretty straight and slick, moreso than some of the earlier ones I've seen which had a lot of waves.



More in the next post.

Jeff

Mk3 #5946 build pics w/text

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Mk4 #7276 "indy14" Build thread

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Mk4 Bodywork thread

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
JKleiner is offline
post #7 of 94 (permalink) Old 08-24-2010, 06:20 AM
Not a waxer

JKleiner's Avatar

Join Date: Apr 2002
Location: Bloomington, Indiana
Posts: 10,184

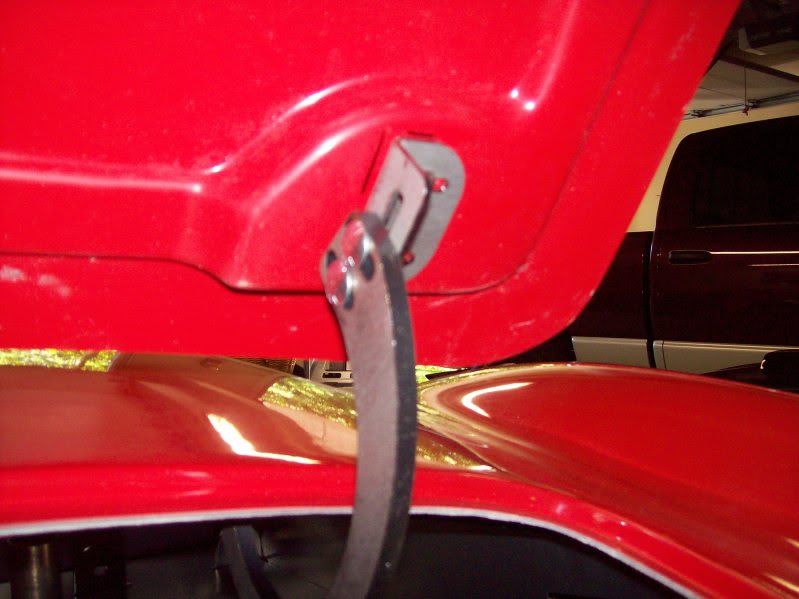

In addition to the revised shape of the Mk4 some of the changes are rolled cockpit & wheelwell edges, hidden body mounts and new trunk hinges. The trunk hinges are similar to the Breeze/"Convincor" units many of us have used and offer a wide range of adjustability:



Cockpit edges are now rolled from the factory. They will still require attention, particularly at the doors, but are much closer to finished than the previous bodies:



The wheelwell roll is a HUGE improvement over the ragged finish of earlier cars:



Finally a look at what I think is my favorite change---no more Frankenstein bolts for the side body mounts! (I didn't realize my helper was in the shot till after I had taken it!)



This will be so much nicer than dealing with the old method of shims, bolts and contrary speed nuts. I think I'll just cut some slots into the underside of the rocker panel then drill and tap the outer 2X2 rail. Slots will allow the body to be moved in or out to optimize fit at the doors; when it's right simply tighten the bolts and call it done!

That's all for the first look. After these photos were taken Steve and his son Sean came over and we removed the body. I'll add more tomorrow detailing the beginning of chassis assembly.

Oh, BTW,
Quote:
Originally Posted by letsgosteelers View Post
what is the finish that you applied to the rear alum panels?
3M ruberized undercoating. Rough the aluminum up good with 80 grit to give it some tooth then apply two or three coats.

Cheers,
Jeff

Mk3 #5946 build pics w/text

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Mk4 #7276 "indy14" Build thread

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Mk4 Bodywork thread

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
JKleiner is offline
post #8 of 94 (permalink) Old 08-25-2010, 04:45 PM
Not a waxer

JKleiner's Avatar

Join Date: Apr 2002
Location: Bloomington, Indiana
Posts: 10,184

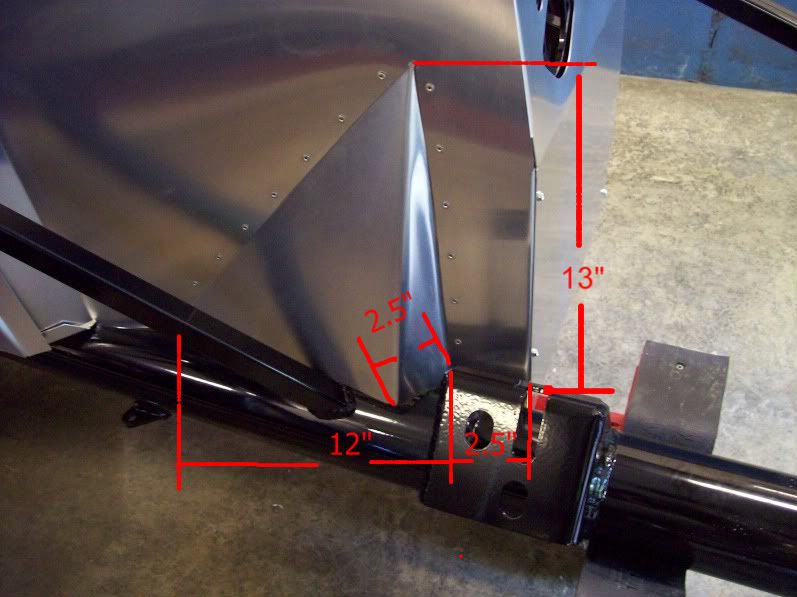

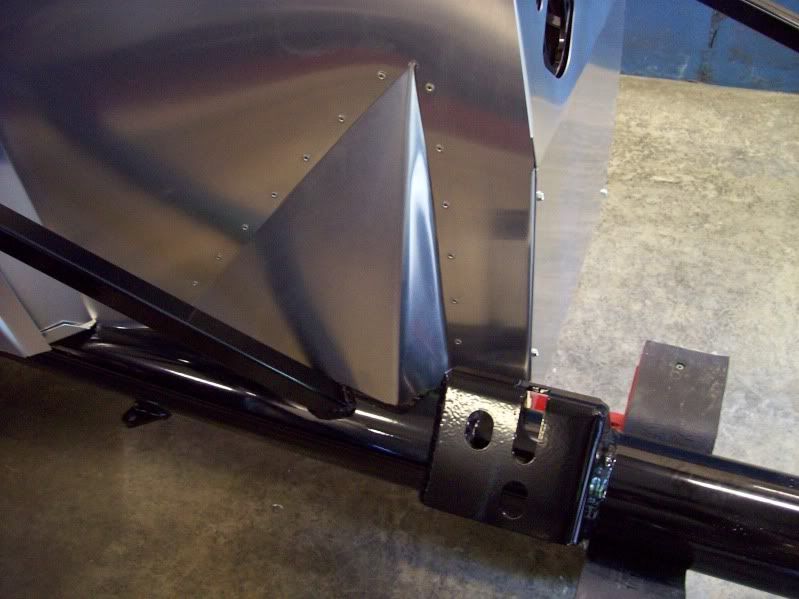

About a week after the car arrived Steve and his son Sean came by and we lifted the body off. I marked panels then started in with the first mod. Like many other Mk3 owners I made an extension to the left side of the driver's footbox in addition to doing the well documented dv/dt "Rod Mod" on the right side. With the Mk4 FFR took care of the left side by pushing it out as far as possible. The right side still leaves some wasted space when using a pushrod motor. Rather than bending the entire panel, which would have effectively made it shorter horizontally affecting it's fit at the tunnel horseshoe, I cut a triangle out of it and bent up "pyramid" to provide some extra room around the throttle pedal.

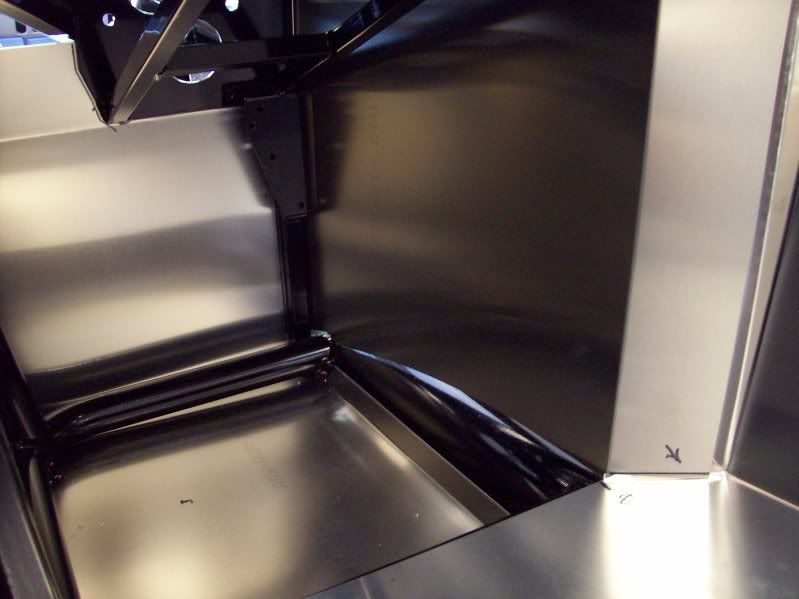

Before, with the flat panel:

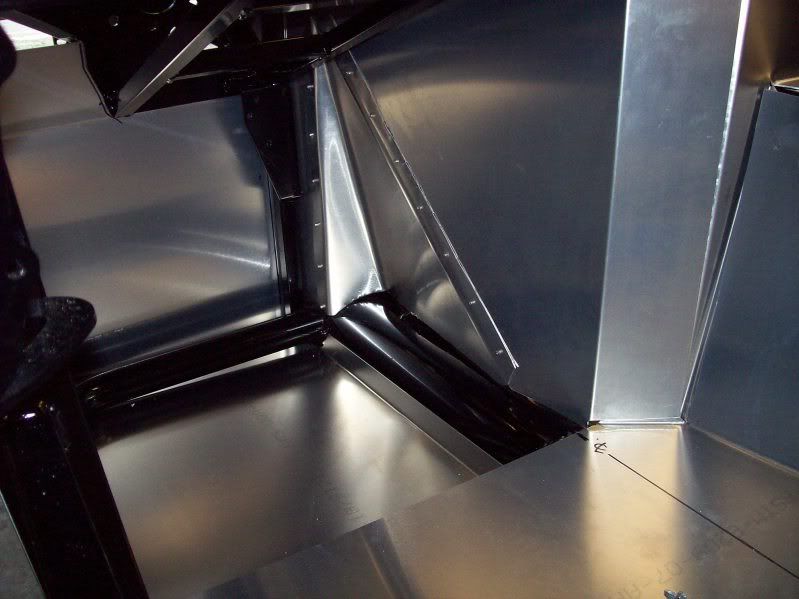

And after:





I think it's well worth the effort. My Mk3 with kickouts to both sides measures 16" wide across the pedal area. After the mod this one is 18"!

Jeff

Mk3 #5946 build pics w/text

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Mk4 #7276 "indy14" Build thread

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Mk4 Bodywork thread

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
JKleiner is offline
post #9 of 94 (permalink) Old 08-25-2010, 05:06 PM
Not a waxer

JKleiner's Avatar

Join Date: Apr 2002
Location: Bloomington, Indiana
Posts: 10,184
Here's the plan for Steve's car: #7276 is a Mk4 3 link complete kit. A couple of breaks from the complete kit recipe will be the addition of power brakes using a Fox pedal box and power steering. Engine will be a carbed Ford Racing 340HP X302 coupled to a new T5-Z. Rear end will have 3.55 gears. Steve is going for a traditional look with low back roadster seats, chrome bar, and classic guages all riding on a set of those great looking chunky sidewall 15" tires with Halibrands! I'll let him reveal his color scheme when he's ready!

Next order of business after the footbox was to install the power rack, steering shaft and pedal box, then make the frame mods necessary to accomodate the brake booster. Sorry, I failed to get a pic of the enlarged hole in the footbox front bulkhead. I used a 3 1/4" hole saw 'cause it was handy but 3" will do.

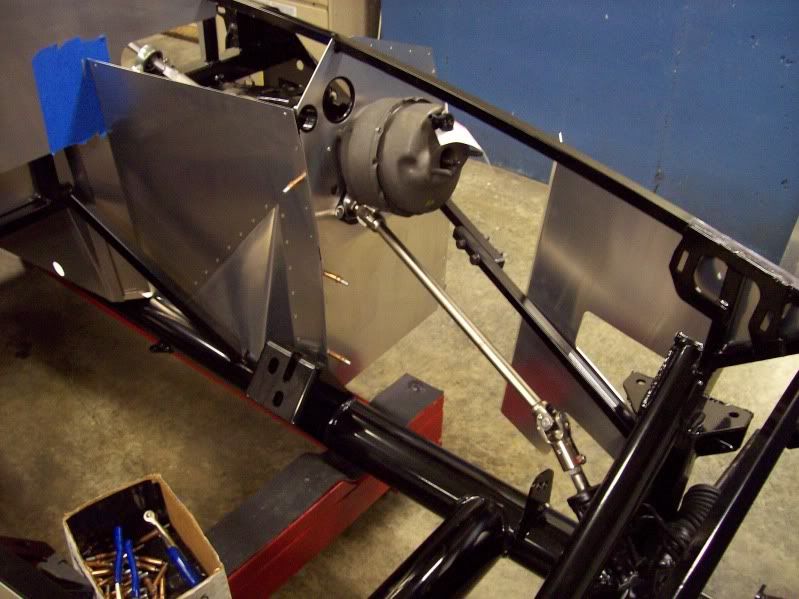

Photo below shows the rack installed along with the steering shaft. Fox body pedal box is in along with the booster. A Fox booster must be used; SN 95 units are larger diameter and will interfere with the steering shaft. You can see where the 3/4" tube was removed and replaced to the right of the booster. I did a similar mod when I built my car and on both used plugs of 5/8" key stock in the tubes so that the bolts clamp the tubing rather than crush it.



Here is another view.



Look at this shot below and you'll see that I used flanged bolts to space the booster away from the bulkhead about 3/8". The Mustang firewall is double wall sheetmetal with a spacer between the two layers. You must use a spacer of some sort when doing this mod to keep the pedal, pushrod and booster in the same relationship. Without it the pedal will come into contact with one of the tubes under the steering shaft in the pedal box. If you look closely you'll see that a piece of memory foam seals the opening between booster and bulkhead.

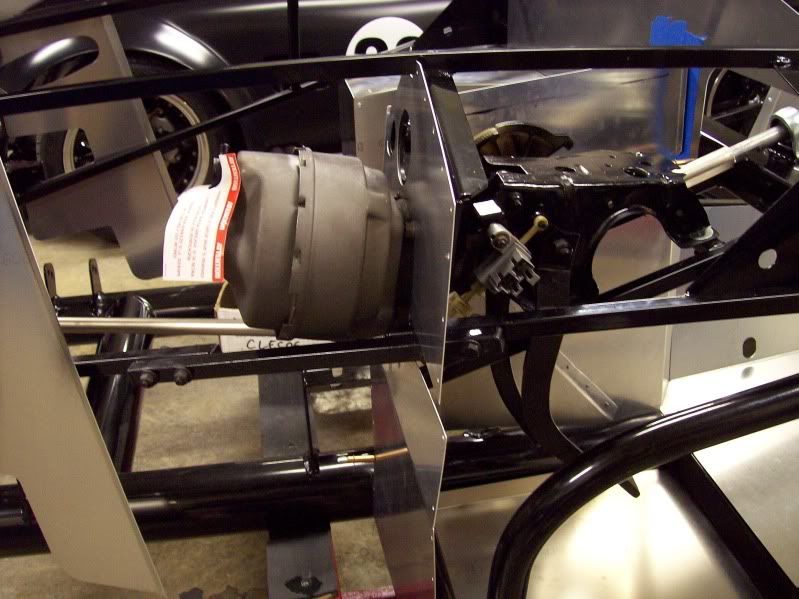

Finally a look below the booster. To provide clearance the flanged bearing must be installed inside the footbox with the collar and setscrews pointing rearward.



Since Steve will have rear discs we'll be using a SN95 master cylinder with 1.0" bore. The critical dimensions where it meets the booster are identical to the Fox body disc/drum master cylinder.

Coming next---rear axle rebuild and prep...

Jeff

Mk3 #5946 build pics w/text

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Mk4 #7276 "indy14" Build thread

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Mk4 Bodywork thread

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
JKleiner is offline
post #10 of 94 (permalink) Old 08-28-2010, 01:13 PM
Not a waxer

JKleiner's Avatar

Join Date: Apr 2002
Location: Bloomington, Indiana
Posts: 10,184
Since the complete kit no longer includes a rear axle we began a search for a suitable unit before the car arrived, locating one for a good price about 45 minutes from home. It is an 8.8 from an unknown vintage '94-'98 Mustang GT. In the end not much more than the housing and carrier will remain as it left the factory. Not much to look at (I pulled the cover and let it drain outside for a couple of days to keep that lovely friction modifier smell out of the shop



It got better though. Ready to install now with 3.55 gears, rebuilt trac-lock, Richard Oben/ North Racecars caliper brackets and Fox width axles. The FFR LCA brackets and "banana" are on as well as new calipers & rotors. Re: the banana bracket---it appears that after all these years they still haven't realized that the bolt they are shipping for that forward leg is too short! I did the caliper swap, mounting them to the front rather than the rear. Some have reported interference with the coilover when on the rear; it didn't look to be a problem to me but a nice benefit to the front mount is the ease of parking brake cable routing. Rear mount requires an "S" while the front mounting only needs a gentle "U". I cut off the no longer needed quad shock mounts and ground the welds smooth to allow the factory anti-moan braces to be used (they have to swap with the calipers as well).



Thanks to the Mk4 bolt in panhard bar mount installing the rear is much easier than on earlier cars that required some wrestling to get it through the tubing. One of two items missing after inventory was the LCA to chassis mounting hardware. I put in place with some temporary bolts then changed over to the permanent fasteners when they arrived.



Next up is moving to the front to go as far as possible while waiting for he backordered lower control arms to be delivered...

Jeff


Mk3 #5946 build pics w/text

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Mk4 #7276 "indy14" Build thread

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Mk4 Bodywork thread

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
JKleiner is offline
post #11 of 94 (permalink) Old 08-29-2010, 01:52 PM
Not a waxer

JKleiner's Avatar

Join Date: Apr 2002
Location: Bloomington, Indiana
Posts: 10,184
While awaiting the front lower control arms I began assembling the rest of the front end. We've heard the occasional reports of the upper ball joint backing out of the UCA. Some guys give them a tack weld to lock them in. On my car they were super tight threading in but I used still used Locktite. They haven't budged and I don't think they will. With Steve's car the joints threaded in by hand. I gave them a dose of Locktite and torqued them tight. For some extra assurace I drilled thru the UCA into the joint and added a 1/8" spring pin to mechanically lock it in place. If the joint should ever need to be removed the pin can be pulled out. No worries about interference internally; it is well above the ball:

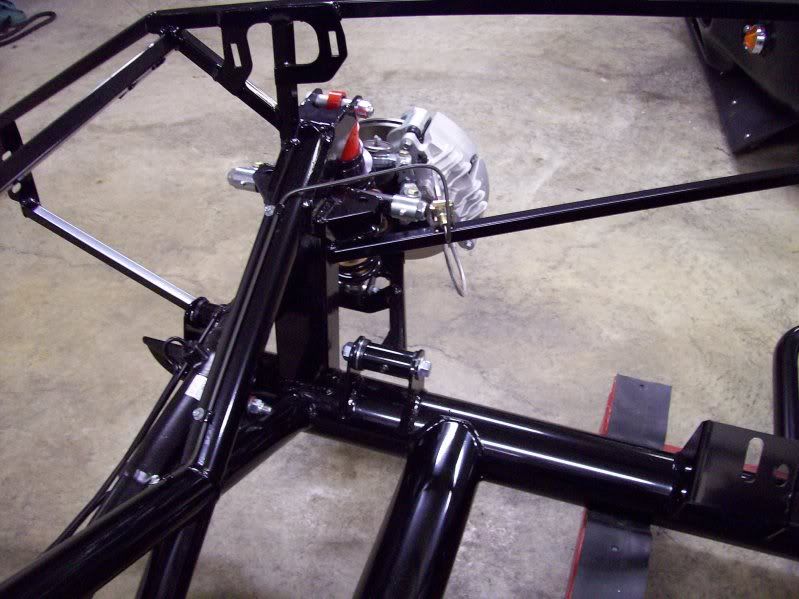

The LCAs eventually arrived so I assembled the rest of the suspension. I can't stand to see the front pointing all wonky so the springs were set for an approximate 4.5" ride height and I put my guages on to loosely adjust caster, camber and toe:

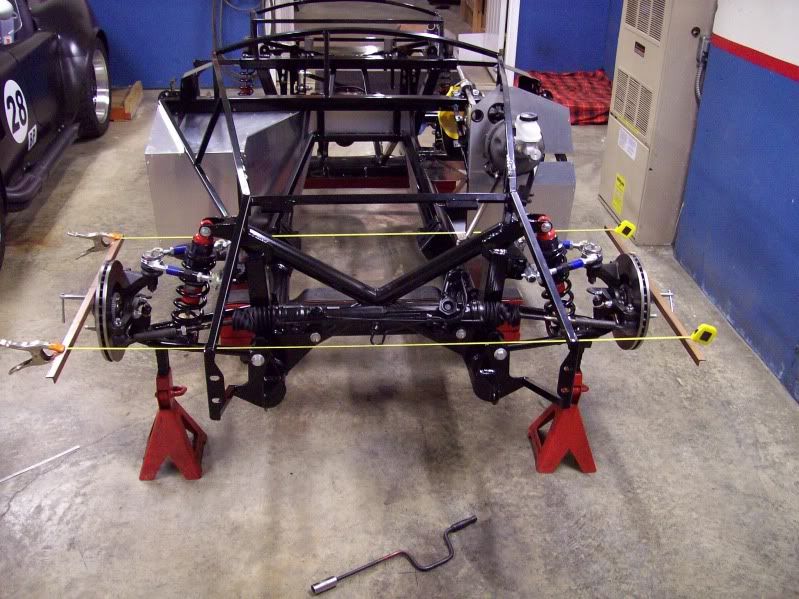

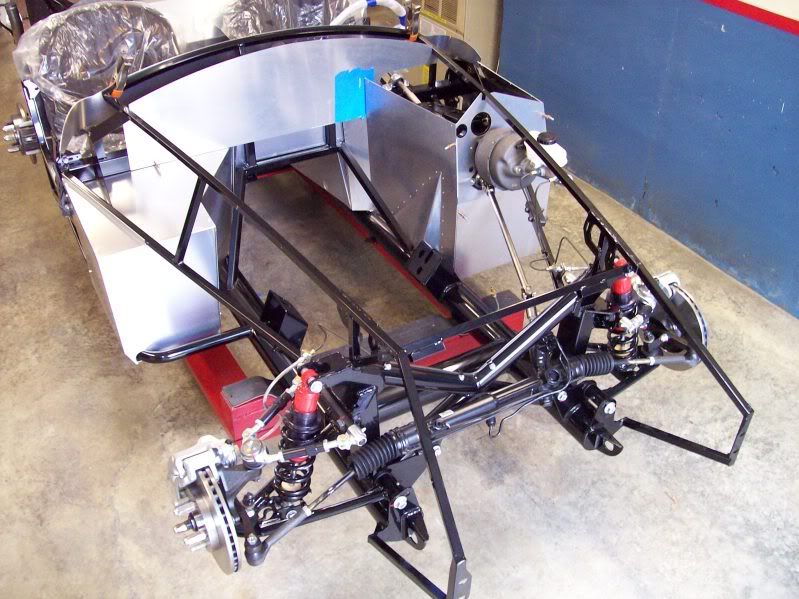

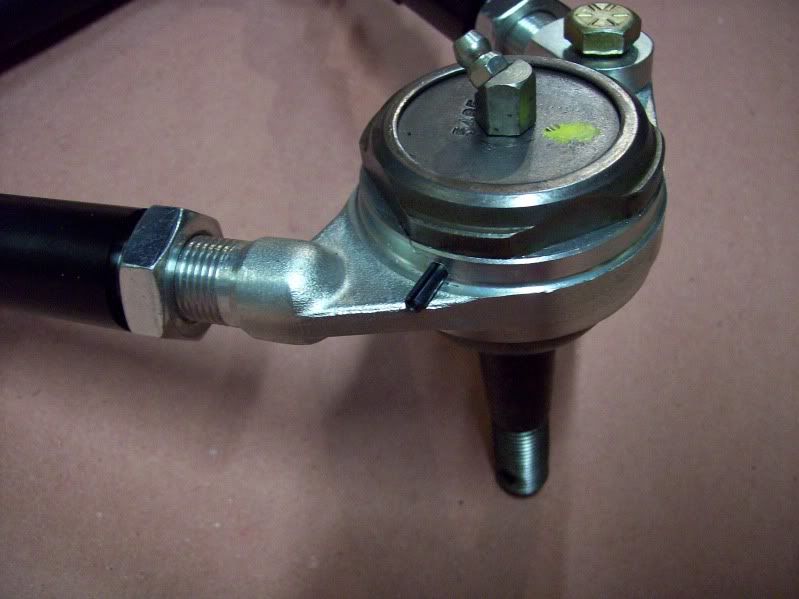

With the new FFR spindles and UCA mounting points the geometry looks pretty good:

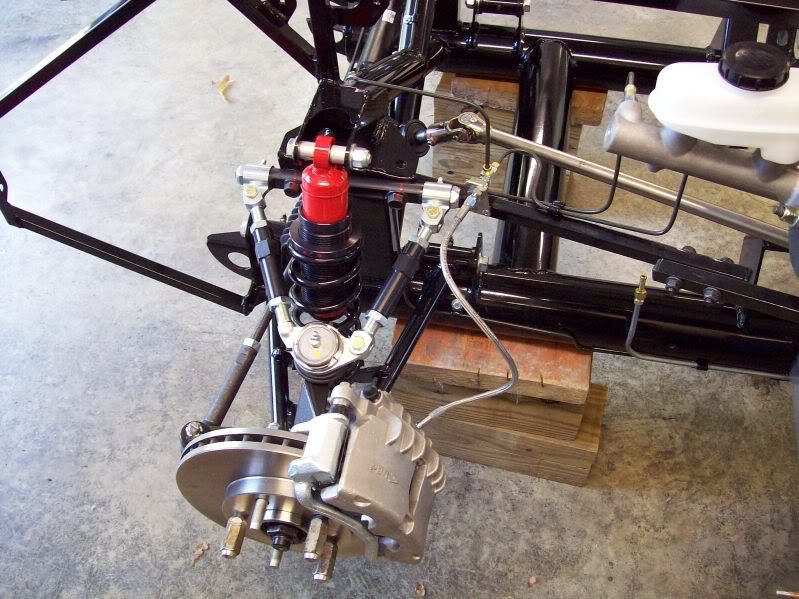

Brakes were installed and lines were run:



At this point I was ready to put a "done" stamp on the suspension... then the news broke about some failures of the bolts that secure the steering arm to the spindle. It will have to get partially torn down again to replace those, so this was a practice run!

Jeff

Mk3 #5946 build pics w/text

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Mk4 #7276 "indy14" Build thread

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Mk4 Bodywork thread

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
JKleiner is offline
post #12 of 94 (permalink) Old 08-29-2010, 02:23 PM
Not a waxer

JKleiner's Avatar

Join Date: Apr 2002
Location: Bloomington, Indiana
Posts: 10,184

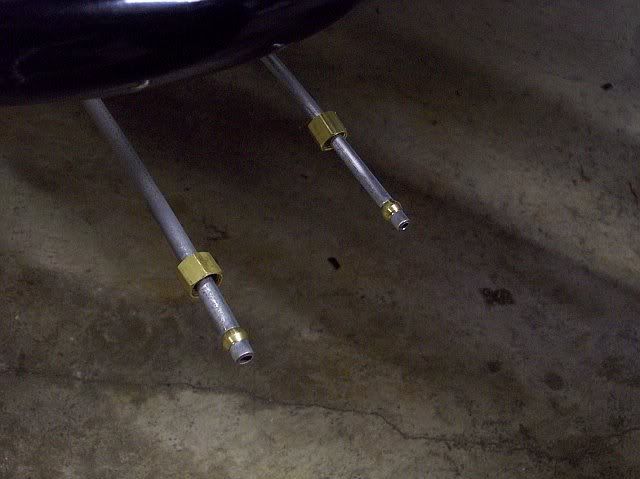

Brake lines are one of those things that truly are "builder's choice" with no two being identical. For the front I crossed on top of the "X" member. The rear line comes forward, down the 2" X 3" then along the 4" round tube to the back:

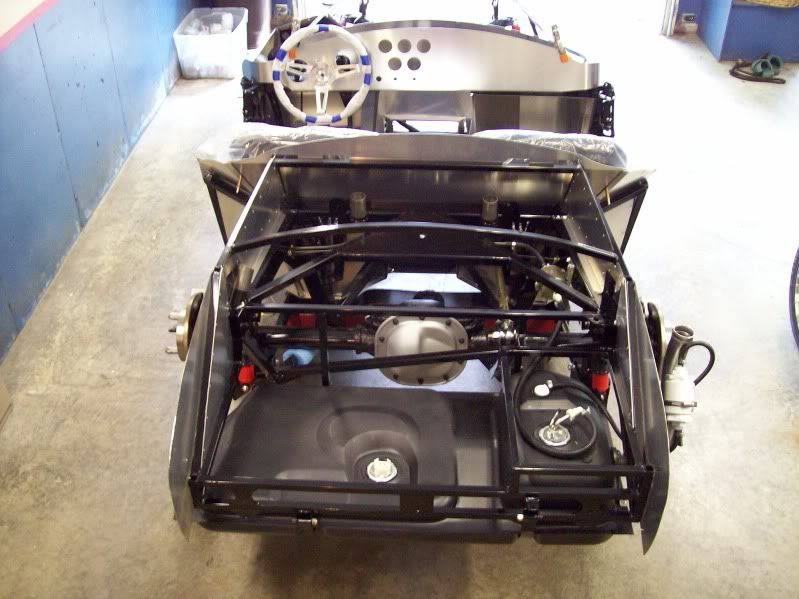

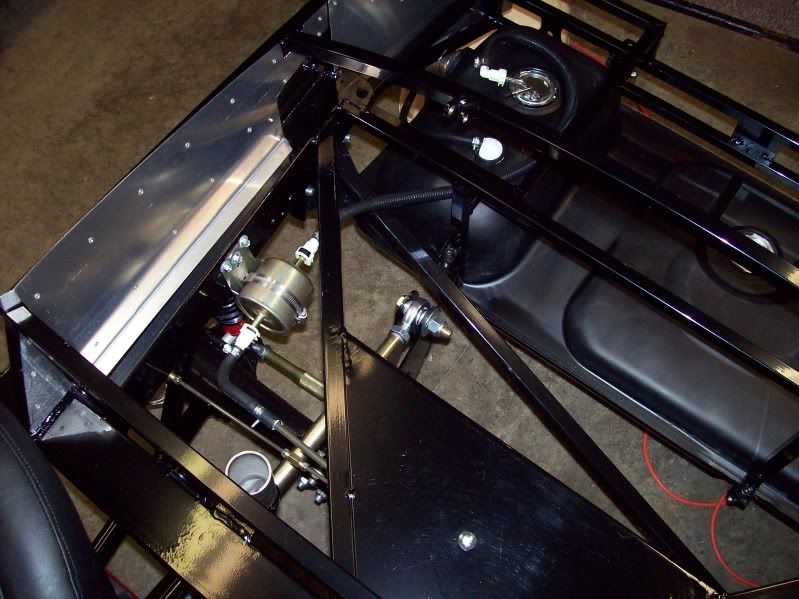

Installed the gas tank so that I could work the fuel line in at the same time. The car will use a mechanical pump so no return is needed. It crosses at the rear after the filter then comes up the outside of the 4" round tube along side the rear brake line:



To complete the tank/line installation I made up a home brewed charcoal canister for the vent using a combination of PVC pipe, barbed fittings and activated charcoal intended for aquariums. I made one like it when I did my car and it works well to assure that there is no gas odor; believe me, if there was my wife would let me know about it!



Steve was here and helped me put it together. He was totally intrigued and asked where I got the idea---I told him it was our genius forum brothers who came up with it, not me. Thanks guys!

Next we start getting Steve fitted to his car...

Jeff

Mk3 #5946 build pics w/text

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Mk4 #7276 "indy14" Build thread

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Mk4 Bodywork thread

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
JKleiner is offline
post #13 of 94 (permalink) Old 08-29-2010, 04:03 PM
Not a waxer

JKleiner's Avatar

Join Date: Apr 2002
Location: Bloomington, Indiana
Posts: 10,184
Last Saturday Steve came over so we could start getting the car set up for him (my wife teased him that it was like going for a prom dress fitting). Earlier he had decided to add an adjustable seat track for his low back driver's seat. The slider needs to be parallel to the tunnel so that the seat remains equidistant from it when moved for and aft. If the track is set in straight ahead the seat will collide with the tunnel when moved forward. The challenge is getting it in a position where it can mount to the steel plate under the floor or chassis tubes, and not just floor aluminum. After some swearing and 're-engineering" a workable location was found and it was bolted it in:

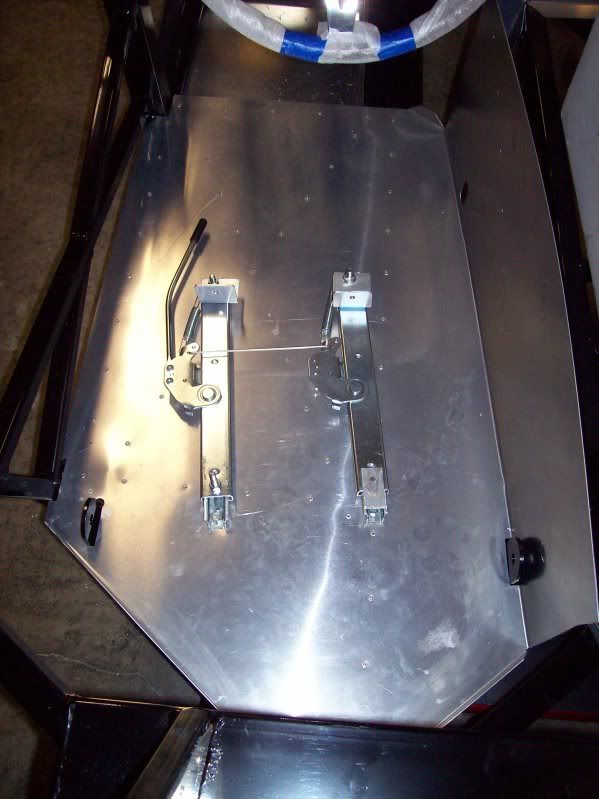

Steve was most comfortable with the seat turned just a bit to be parallel with the steering wheel. I made some simple brackets to attach the seat to the adjuster. Here is the seat all the way back:



And all the way forward:



Notice how it is the same distance from the tunnel in both positions.
The passenger seat is fixed, set at the same angle and mounted on 1" square aluminum tubing to match the driver's seat height.

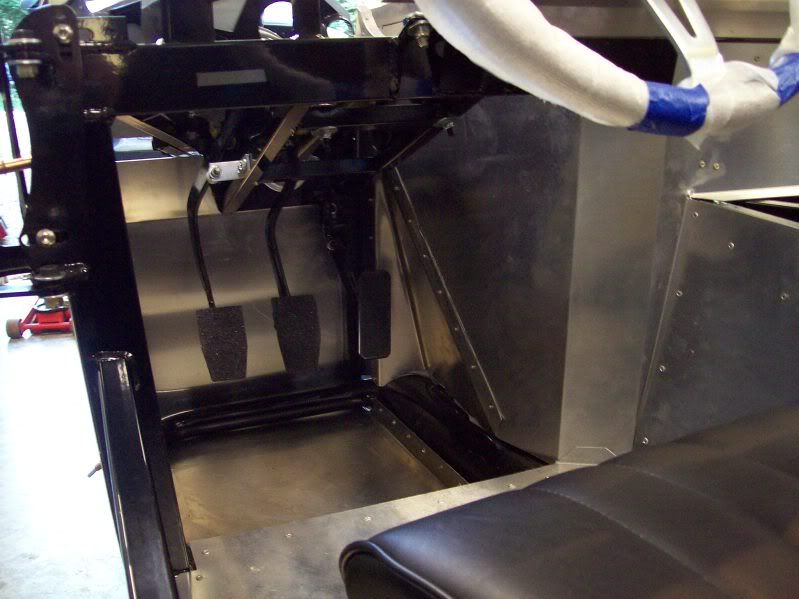

With the seat location set we determined pedal placement. The gas pedal is the one provided with the complete kit. The pedal pad is spring loaded and kind of funky---without a foot on it the thing springs toward the driver with it's top out farther than the bottom. I redrilled the pivot point and ground a flat on the arm to make lay back. Odd...??? With that in place we made note of how much adjustment was needed for the brake and clutch, removed them and made bends using my vise and big pipe wrench. After getting them where we wanted I made some pedal pads and covered them with the same black anti-skid material as the gas pedal. With the Mk4's newly designed and expanded LH footbox panel and the added kickout to the right there is a good bit of room:

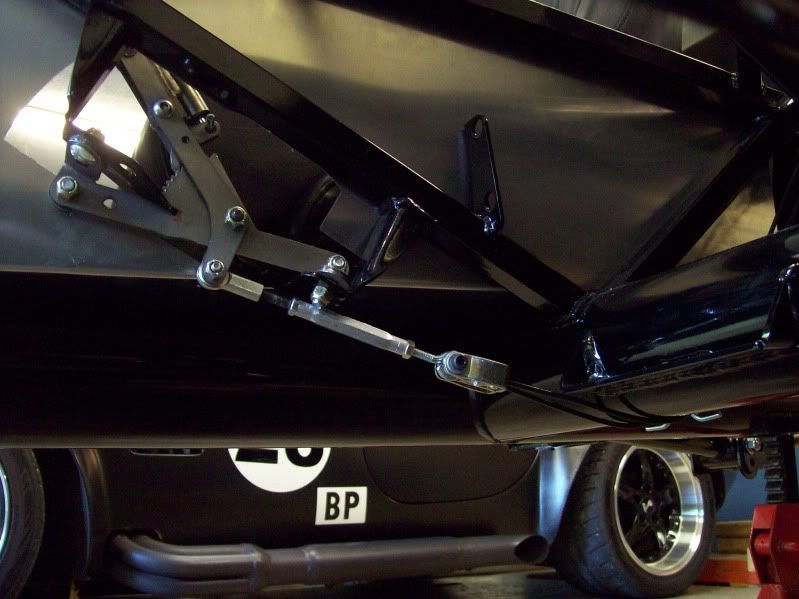

When Steve came for his "fitting" he brought the backordered parking brake lever so that will be the next order of business...

Jeff

Mk3 #5946 build pics w/text

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Mk4 #7276 "indy14" Build thread

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Mk4 Bodywork thread

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
JKleiner is offline
post #14 of 94 (permalink) Old 08-29-2010, 06:24 PM Thread Starter
Senior Member

indy14's Avatar

Join Date: Apr 2010
Location: Bloomington, Indiana
Posts: 187
Thanks

Wow. I love your posts. Even though I have been there when "we" work on the car, it great to see your pictures and explanations.
Thanks for doing such a great build.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Mk4 7276 Complete Kit; Delivered: June 28, 2011; Roller: November 30, 2010;
First Go-Kart: January 2, 2011; Licensed and on the road: June 21, 2011
Ford Racing 306 crate; Carb; Trans: T-5Z; 3-Link; Traction Lock rear end; 3.55; 15" Halibrand; PS/PB
Color:Mazda Miata "True Red" and GM "Arctic White"
indy14 is offline
post #15 of 94 (permalink) Old 08-30-2010, 07:41 PM
Not a waxer

JKleiner's Avatar

Join Date: Apr 2002
Location: Bloomington, Indiana
Posts: 10,184
While awaiting the back ordered e-brake lever Steve debated whether to go with tunnel top or side mount. When it arrived it was decision time---he chose side mount. Based on the manual and backorder list I was expecting a spring tensioned OEM Ford lever with the "T" cable. Nope, not even close. The FFR instructions included with the unassembled lever have a revision date of 7/21/10 so I think they have recently gone to an in-house design that works differently. It required some rework of cables and the lever linkage but will work fine.

The hole in the tunnel aluminum had to be opened up and reshaped for clearance:



As delivered the lever does not provide a means to adjust slack out of the cables without disassembling the linkage to thread in or out the male & female rod ends. I picked up a hardware store turnbuckle and installed it between the two:





The manual states that you can use cables for the year of the rear end...True, but not straight from the box! This lever wants to pull the cables from under the 4" cross tube, with the sheath attached a few inches above. The inner cable is only 6-7" longer than the outer sheath---not enough. I cut the end off of the inner and pulled it out. Mocked up the sheath from the wheels to the anchor point and determined that they needed to be shortened by ~20". Pulled the end off, cut the sheath, reinstalled the end and fed the cables back thru. With that done I could now route the cables and determine where to swedge on new ends to meet the links at the turnbuckle. Like so much with these cars you sometimes have to make it up as you go! Here is a look at the cables crossing under the 4" cross tube. I screwed 1/4" long tubular nylon spacers to the crossmember to keep them separated:



Continued>>>

Mk3 #5946 build pics w/text

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Mk4 #7276 "indy14" Build thread

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Mk4 Bodywork thread

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Last edited by JKleiner; 09-20-2014 at 12:36 PM.
JKleiner is offline
post #16 of 94 (permalink) Old 08-30-2010, 08:01 PM
Not a waxer

JKleiner's Avatar

Join Date: Apr 2002
Location: Bloomington, Indiana
Posts: 10,184
Like I did with my own car, to secure the cables I routed them through the unused upper 4 link ears on the rear axle. I found tapered rubber stoppers of the proper diameter, drilled a hole in the center for the cables to pass through and used black silicone to hold 'em in place:



As mentioned earlier, the e-brake cables make a nice sweeping "U" turn when the calipers are mounted ahead of the axle:



Steve talked with Patti at FFR last week checking status of his backordered 15" Halibrand replicas---looks like another 2-3 weeks. As soon as they arrive #7276 will become a roller! While waiting it's time to start stringing wires...

Jeff

Mk3 #5946 build pics w/text

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Mk4 #7276 "indy14" Build thread

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Mk4 Bodywork thread

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Last edited by JKleiner; 08-30-2010 at 08:08 PM.
JKleiner is offline
post #17 of 94 (permalink) Old 09-02-2010, 07:32 PM Thread Starter
Senior Member

indy14's Avatar

Join Date: Apr 2010
Location: Bloomington, Indiana
Posts: 187
Exciting News

Just ordered the Ford M-6007 x302 engine.
Can't wait to get that.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Mk4 7276 Complete Kit; Delivered: June 28, 2011; Roller: November 30, 2010;
First Go-Kart: January 2, 2011; Licensed and on the road: June 21, 2011
Ford Racing 306 crate; Carb; Trans: T-5Z; 3-Link; Traction Lock rear end; 3.55; 15" Halibrand; PS/PB
Color:Mazda Miata "True Red" and GM "Arctic White"
indy14 is offline
post #18 of 94 (permalink) Old 09-18-2010, 02:49 PM
Senior Member

DamnYankee's Avatar

Join Date: Nov 2009
Location: Mechanicsville, VA
Posts: 267
Jeff,
Would you be able to share more details about the footbox box near the gas pedal?
Thanks, Ron

Ron
Mk4 Base Kit delivered March 2010.
Graduated July 2013.
-Rock On-
Graduation post:
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
DamnYankee is offline
post #19 of 94 (permalink) Old 09-18-2010, 06:32 PM
Not a waxer

JKleiner's Avatar

Join Date: Apr 2002
Location: Bloomington, Indiana
Posts: 10,184
Maybe this will help.



And the original thread.

Mk4 DS footbox mod

Cheers,
Jeff

Mk3 #5946 build pics w/text

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Mk4 #7276 "indy14" Build thread

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Mk4 Bodywork thread

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
JKleiner is offline
post #20 of 94 (permalink) Old 09-18-2010, 11:38 PM
Senior Member
FFCars Master Craftsman

3KCarbon's Avatar

Join Date: Nov 2009
Posts: 1,821
Quote:
Originally Posted by indy14 View Post
Just ordered the Ford M-6007 x302 engine.
Can't wait to get that.
There were 200 on B/O when I ordered mine. Somehow It arrived almost exactly the day they targeted which was about 5 weeks. They have been in high demand since they were released.

FFR 7216 MK 4 Non Donor
3 Link Ford Racing 3.73 8.8 Posi with Yukon Axles. 4 wheel discs Brembo rotors and Hawk HP plus pads.
Ford Racing 302 340 HP T5Z 5 Speed Stainless Headers and Side Pipes. Holley 670 Street Avenger on Edelbrock Performer RPM. MSD Pro-Billet Distributor
Delivered 04/11/10 7:30 pm Roller 05/08/10
Engine installed 08/07/10 First Start 02/19/11
Street Legal 06/13/11 at 4:30 pm! Graduation 1/1/12


Back up my hard drive? How do I put it in reverse?
3KCarbon is offline
post #21 of 94 (permalink) Old 09-19-2010, 12:09 AM
Senior Member

mydream's Avatar

Join Date: Jul 2007
Location: Canada Quebec Vaudreuil (Montreal-area)
Posts: 1,406
Looking good boyz!!
Eh!
T

Like Mater would say in the movie cars: "I think she likes me for my Body"

F5R1006366RD, 2000 mustang gt 5 speed donor, Team 3 Halibrand

Graduation Thread

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
mydream is offline
post #22 of 94 (permalink) Old 09-19-2010, 01:26 AM
Not a waxer

JKleiner's Avatar

Join Date: Apr 2002
Location: Bloomington, Indiana
Posts: 10,184
Quote:
Originally Posted by 3KCarbon View Post
There were 200 on B/O when I ordered mine. Somehow It arrived almost exactly the day they targeted which was about 5 weeks. They have been in high demand since they were released.
Just brought it home last night and hung it on the stand to "get dressed". Wiring's about 90% complete. If the backordered wheels don't arrive soon we'll have to borrow them from my car to go cart in a couple of weeks!

Jeff

Mk3 #5946 build pics w/text

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Mk4 #7276 "indy14" Build thread

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Mk4 Bodywork thread

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
JKleiner is offline
post #23 of 94 (permalink) Old 09-19-2010, 03:02 AM
Rob
FFCobra Craftsman
FFCars Captain

Rob's Avatar

Join Date: Jan 2002
Location: Southern, CT
Posts: 4,241
e-brake

Nice documentation of the build. I don't know about your state. But if We in Connecticut run the e-brake cables under the 4 inch tube.. We would fail! Just a heads up!

Respect is measured in craftsmanship!! **Meticulous**
Rob is offline
post #24 of 94 (permalink) Old 09-19-2010, 01:39 PM
Senior Member

DamnYankee's Avatar

Join Date: Nov 2009
Location: Mechanicsville, VA
Posts: 267
Thanks Jeff, perfect.

Ron
Mk4 Base Kit delivered March 2010.
Graduated July 2013.
-Rock On-
Graduation post:
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
DamnYankee is offline
post #25 of 94 (permalink) Old 09-19-2010, 01:47 PM
Not a waxer

JKleiner's Avatar

Join Date: Apr 2002
Location: Bloomington, Indiana
Posts: 10,184
Rob,
Here in Indiana before we can get a VIN and register we only need to have a police officer sign off on two seperate documents. The first is verifying that major components such as engine, trans. and rear end don't have "hot" numbers. The second one is to confirm that the state issued VIN is affixed to the vehicle.

No safety inspections; personally I have mixed feelings on that. On one hand it makes it easy. The flip side though is that there isn't any safeguard to keep someone from putting a poorly constructed bucket of $h!t on the road.

Jeff

Mk3 #5946 build pics w/text

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Mk4 #7276 "indy14" Build thread

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Mk4 Bodywork thread

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
JKleiner is offline
post #26 of 94 (permalink) Old 09-19-2010, 08:15 PM
Ohio C-car Club
FFCars Captain

STL-Scott's Avatar

Join Date: Mar 2008
Location: Dublin, Ohio formerly St. Louis
Posts: 3,686
Garage
Hey Jeff,

Don't know how I missed this thread but you and Steve seem to be making nice progress!

Scott

MK3.1 #6583RD, Complete Kit - 4.6L DOHC, delivered 5/03/08,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


SOLD to new owner 12/9/11


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
STL-Scott is offline
post #27 of 94 (permalink) Old 09-19-2010, 09:06 PM
Senior Member

mick40's Avatar

Join Date: Mar 2002
Location: Mass
Posts: 580
How did you transition from the fuel filter to the hard line?

Nice progress!

Mick

MKIII, Arrival date: June 25, 2005 Irs, Pindrive, Vintage 17 inch, Dual chrome roll bars. P/S, P/B. 302, E-cam, Powerjection and ISIS wiring.
mick40 is offline
post #28 of 94 (permalink) Old 09-19-2010, 09:28 PM
Senior Member

raceral's Avatar

Join Date: Jan 2002
Location: Stoneville NC
Posts: 9,967
Garage
Great build site.. And hooking up with Jeff K was a bonus.. People like you with the great pictures really help other folks better then you will ever know. I lived and died by these type sites.

Thanks,
AL Adkins
Stoneville NC.

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
raceral is offline
post #29 of 94 (permalink) Old 09-20-2010, 11:30 AM
Not a waxer

JKleiner's Avatar

Join Date: Apr 2002
Location: Bloomington, Indiana
Posts: 10,184
Mick,
Below is a cut & paste of my post answering that question some years ago when I built my car. Difference being mine is EFI while this one is using a mechanical pump, so the line at the rear will be under suction rather than pressure.

Quote:
Originally Posted by JKleiner View Post
Here is my method for mating hard to soft fuel lines.

Rather than making half a flare per FFR's recommendation I used 5/16" and 1/4" compression fittings to create some homemade "barbs" on the steel lines.

Install and tighten a compression fitting as if you were going to use it conventionally, then remove the coupling. What we're doing is swedging the ferrule onto the steel line:



Next cut the compression nut off of the hard line (I used a Dremel with a cut off wheel):



Now push the EFI rated hose well past the ferrule. It takes some effort (a touch of white lube helps) but we want that resistance between hard and soft lines:



Finally install the clamp:



As you can see, with the clamp in place and tight it becomes nearly impossible for the hose to move over the larger diameter created by the ferrule swedged onto the hard line.
After posting the photos of how I routed the line in Steve's car I uncovered some information revealing that a mechanical diaphram fuel pump would rather push through a filter rather than pull through so I removed the one at the rear and revised the lines. I'll add one in line between the pump and carb.

Hey Al!,
While building my car I took lots of photos but didn't post much. As I said above, I always enjoy seeing other's builds come together and wanted to do a better job of documenting this one. Hopefully some of my pics and comments will be useful, or at least fun to see! Old dogs like you and me remember some of the very first FFR builds to be chronicled via the internet on the original Cobraforum; guys like Avi, Wade C. and Wade L., Dino's infamous 2 day build... We've come a long way, eh?

Cheers,
Jeff

Mk3 #5946 build pics w/text

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Mk4 #7276 "indy14" Build thread

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Mk4 Bodywork thread

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
JKleiner is offline
post #30 of 94 (permalink) Old 09-20-2010, 12:23 PM
Senior Member

mick40's Avatar

Join Date: Mar 2002
Location: Mass
Posts: 580
Jeff, thanks for the tip! I was unsure if flaring the end of the fuel line was an acceptable method for an EFI system and you have confirmed it with ferrule trick. I looked at all you build pictures, nice job and beautiful car.

Thanks,
Mick

MKIII, Arrival date: June 25, 2005 Irs, Pindrive, Vintage 17 inch, Dual chrome roll bars. P/S, P/B. 302, E-cam, Powerjection and ISIS wiring.
mick40 is offline
Sponsored Links
Advertisement

Reply

Bookmarks

Quick Reply
Message:
Options

Register Now



In order to be able to post messages on the FFCars.com : Factory Five Racing Discussion Forum forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.

User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.

Password:


Confirm Password:
Email Address
Please enter a valid email address for yourself.

Email Address:
OR

Log-in









Human Verification

In order to verify that you are a human and not a spam bot, please enter the answer into the following box below based on the instructions contained in the graphic.




Currently Active Users Viewing This Thread: 1 (0 members and 1 guests)

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page
Display Modes
Linear Mode Linear Mode



Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


For the best viewing experience please update your browser to Google Chrome



Welcome to FFCars! The representations expressed are the representations and opinions of the FFCars.com forum members and do not necessarily reflect the opinions and viewpoints of the site owners, moderators, Factory Five Racing, Inc. or Ford Motor Company. This website has been planned and developed by FFCars.com and its forum members and should not be construed as being endorsed by Factory Five Racing, Inc. or Ford Motor Company for any purpose. "FFR", "Factory Five", "Factory Five Racing", and the Factory Five Racing logo are registered trademarks of Factory Five Racing, Inc. FFCars.com forum members agree not to post any copyrighted material unless the copyrighted material is owned by you. Although we do not and cannot review the messages posted and are not responsible for the content of any of these messages, we reserve the right to delete any message for any reason whatsoever. You remain solely responsible for the content of your messages, and you agree to indemnify and hold us harmless with respect to any claim based upon transmission of your message(s). Thank you for visiting the FFCars.com Forum dedicated to Factory Five.
