Hi

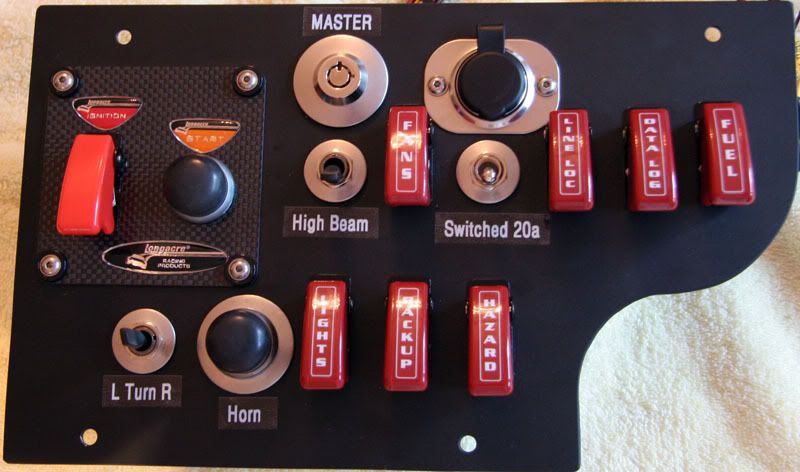

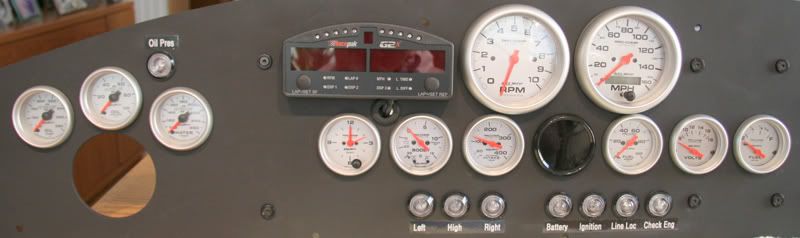

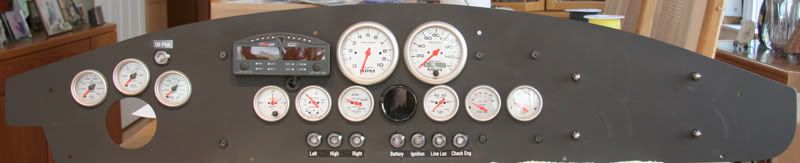

My project for the long weekend get the dash wired - here is a before and my switch panel which I did last weekend. This is obviously not a street layout.

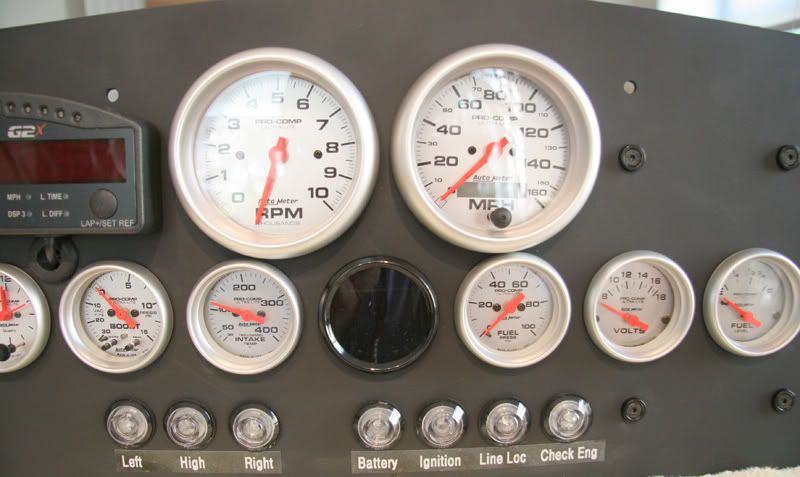

Guess what the blacked out gage is?

Charlie








[ May 28, 2007, 05:51 PM: Message edited by: chucktoo ]


·
Senior Member
Joined
·
1,672 Posts
Discussion Starter · #3 ·
Good guess Mike but sorry not it . Look at gages next to it there is sort of logic to the organization atleast to me.

Charlie


·
Junior Charter Member
Joined
·
3,131 Posts
EGT?


·
FFCobra Fanatic
Joined
·
1,456 Posts
NOS
?


·
Senior Charter Member
Joined
·
820 Posts
AIR FUEL RATIO


·
Senior Member
Joined
·
2,860 Posts
Outstanding job...perfect! Is the gauge one of those things you see at the 'check-out-counter' that measures MONEY
spent? :D What did I win?
Guess I won nothing... :(


·
Senior Charter Member
Joined
·
820 Posts
nice looking gauge


·
Senior Member
Joined
·
1,672 Posts
Discussion Starter · #11 ·

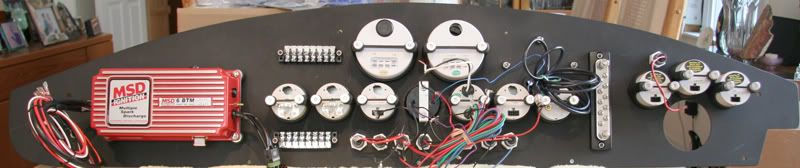

Long weekend but this is what they are for - dash is basically done time to wire it into the car next weekend.

MSD is not wired into dash power to keep the electrical noise down for the gages.



Charlie


·
Premium Member
Joined
·
2,513 Posts
Good Lord what a set-up!

Very impressive wiring.


·
Registered
Joined
·
621 Posts
WOW! nice job...


·
Charter Member
Joined
·
4,001 Posts
NASA could use you.
Great wiring job!!
Paul M.


·
Senior Member
Joined
·
1,672 Posts
Discussion Starter · #15 ·
Thanks guys.

It helps to be old enough to have built a bunch of Heath kits with Tubes in your youth, lots of point to point wiring.

I don't know where kids learn to solder these days or if they even do.

Charlie


·
Senior Member
Joined
·
1,771 Posts
Hi, Charlie: looks awesome. Wondered if you'd email me close-ups photos of the dash wiring. I'm doing the same now but don't have your touch. Heath kits were cool - they still sell them at Radio Shack.

Regards, Mike


·
Senior Member
Joined
·
1,672 Posts
Discussion Starter · #20 ·

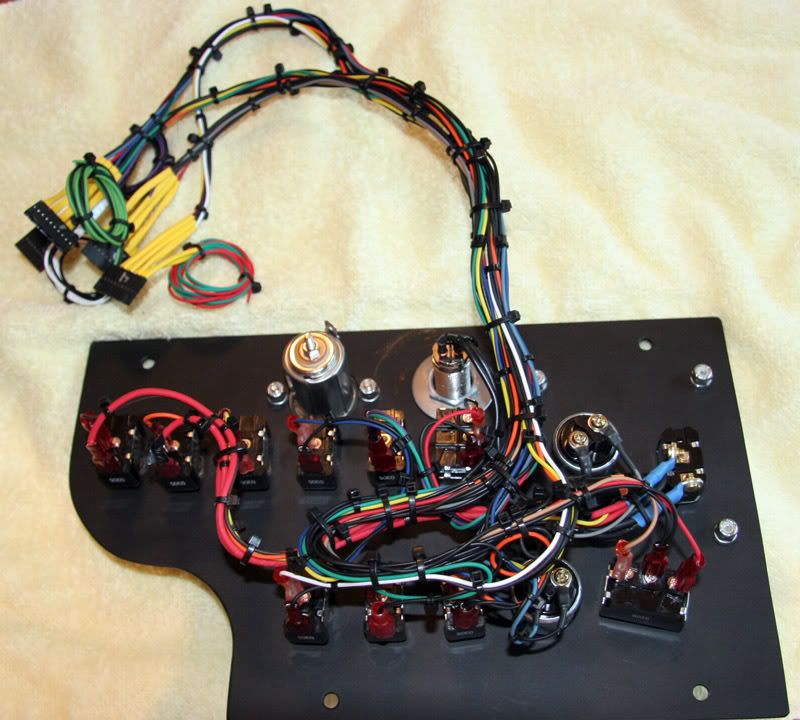

Closeups - coiled up wires run to engine compartment - I might put connectors on them .

Charlie
