post #1 of 26 (permalink) Old 06-24-2006, 10:38 PM Thread Starter
Senior Member

dv/dt's Avatar

Join Date: Aug 2003
Location: Ottawa, Canada
Posts: 15,991
Post

Back in May one of the guys (forth.rock) had asked for suggestions for a turn signal switch. Amongst the regular responses was one by Puddy mentioning the RX-7/Probe switch. One of the other guys in Ottawa (thebicman) picked up on this and sent him a PM asking for more details. In response he was given a link to the following site:

http://mywebpage.netscape.com/mike63...nal/index.html

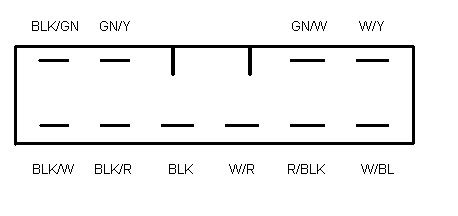

Great info there including a couple of install pics and wiring diagrams. The wiring diagram for the Probe switch and flasher unit is the one I used and was bang on. At the end of the day I solved my turn signal, headlight dimmer, hazard flasher and horn requirements.

I’m not sure if that is Puddy’s site or one that he used as a reference. Hope the owner will pipe in here.

Since RX-7’s are pretty scarce in the scrap yards around here I decided to check out a Probe at the local yard. Bingo!! Here are a couple of pics of the Probe switch. Note that it has white lettering vs. the red on the RX-7 and the lettering area is flush (the RX-7 one looks like the lettered area is proud of the surface a bit).





The switch has turn signals and a spring-loaded pull to toggle the high/low beams. The lettered area lights up with the dash lights (if you wire it that way) and comes with a green cover on the bulb.

One cool thing is that the handle comes off to leave just a small shaft sticking out. If you wanted you could machine up a billet handle for it.



Here is a picture of the turn signal cancelling ring that sends an electronic signal to the switch.



Here are a couple of pics showing the bracket I made up for the cancelling ring as well as a drawing for it.









[ July 14, 2006, 03:26 PM: Message edited by: dv/dt ]


"Can you imagine?!"

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Last edited by dv/dt; 10-04-2013 at 11:25 PM.
dv/dt is online now
Sponsored Links
Advertisement

post #2 of 26 (permalink) Old 06-24-2006, 10:38 PM Thread Starter
Senior Member

dv/dt's Avatar

Join Date: Aug 2003
Location: Ottawa, Canada
Posts: 15,991
Post

You can see in this pic that I had to elongate the mounting holes in the bracket and shift it to the right to center the shaft in the switch. For some reason my shaft was not centered between teh mounting bolts so the bearing retainer must be a bit off.









In order to turn the sleeve on the cancelling ring I got creative and found that the old rubber bushing I removed from my clutch cable to install the firewall adjuster fit perfect. Itís on the left below and on the right is the slip ring for the horn (more on that later). Note that I cut off the small tab on the steel ring around the bushing. The bushing is fairly tight on the shaft so you can slide it into postion but it shouldn't move under normal use. If I find that it does slip a drop of crazy glue should fix it.





Just drill a couple of holes in the bushing that line up with the pins on the removable drive sleeve from the cancelling ring.



Here it is assembled.



[ June 24, 2006, 07:06 PM: Message edited by: dv/dt ]


"Can you imagine?!"

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
dv/dt is online now
post #3 of 26 (permalink) Old 06-24-2006, 10:39 PM Thread Starter
Senior Member

dv/dt's Avatar

Join Date: Aug 2003
Location: Ottawa, Canada
Posts: 15,991
Post

Here it is on the shaft and hooked up to the cancelling switch.



You can see the horn slip ring in the previous pictures. In this picture you can see the brush for the horn on the cancelling switch. It was to short to reach the slip ring so I extended it by cutting it and then soldering in a section of tubing. The brush come of the switch body by pulling of the wire lead and popping of an e-clip on the end that acts as a retainer (donít loose it). I got the thin wall tubing from an old extendable antenna off a phone ground station (hey, whatever works). Got a longer spring from a retractable pen (once again, whatever works).











Worked perfect and I now have a brush/slip ring for my steering wheel mounted horn switch. Note that the stock horn relay is activated by completing a ground to the relay so only one return wire is required since the steering shaft can provide the ground.





[ June 24, 2006, 09:48 PM: Message edited by: dv/dt ]

"Can you imagine?!"

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
dv/dt is online now
Sponsored Links
Advertisement

post #4 of 26 (permalink) Old 06-24-2006, 10:40 PM Thread Starter
Senior Member

dv/dt's Avatar

Join Date: Aug 2003
Location: Ottawa, Canada
Posts: 15,991
Post

Here is a picture of the flasher unit (does both signals as well as hazards).



On the í89 Probe this was located with several other components on the firewall just to the left of the steering shaft (mounted so that the connector end pointed into the firewall. From what I understand this particular unit may have only been available on the Ď89ís. I think Mazda 626ís also may have used them.

Here's a mock up of the horn buttons. In the final version they will be mounted futher out towards the rim.



I will post more pics once I mount it in the dash. For now here is a pic from the link I posted at the top:



Cheers, Rod

[ June 24, 2006, 06:52 PM: Message edited by: dv/dt ]

"Can you imagine?!"

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
dv/dt is online now
post #5 of 26 (permalink) Old 06-25-2006, 01:10 AM
Junior Charter Member
FFCars Captain

Radar Pete's Avatar

Join Date: Nov 2004
Location: Collierville, TN
Posts: 3,089
Post

You Da Man!!!Great fabricating. Pete

FMS 302,GT40 Alum heads,Cobra intake,70mm MAS/TB,24lb injtrs, 8.8w/3.55,WC T5,Srt Perf Seats, donor build except eng/tranny, Hummer Yellow w/o stripes
Radar Pete is offline
post #6 of 26 (permalink) Old 06-25-2006, 02:51 AM
Master Builder
FFCars Craftsman

Join Date: Mar 2006
Location: Holbrook ,N.Y.
Posts: 1,243
Post

Nice job !
first time builder is offline
post #7 of 26 (permalink) Old 06-25-2006, 03:21 AM
FFCobra Fanatic
FFCars Craftsman

Join Date: Jun 2004
Location: franksville, wi
Posts: 985
Post

Did you ever think of writing an assembly manual? As usual a great job of putting pictures and print with an idea. Nice work! Again thanks for a great job.

MK II, 5.0 EFI, 3-link, Brodix heads. Picked up Aug \'04, completion TBD.
gumbo al is offline
post #8 of 26 (permalink) Old 06-25-2006, 04:03 AM
Senior Charter Member

J Bordenave's Avatar

Join Date: May 2005
Posts: 202
Post

Man,

Is there a prize for "Best procedure presentation"??? Great photos and directions! BTW, I had an RX7 with this switch and never had problems with it.

KUDOS
J Bordenave is offline
post #9 of 26 (permalink) Old 06-25-2006, 04:52 AM
FFCobra Craftsman
FFCars Captain

Join Date: Feb 2002
Location: Pickerington, Ohio
Posts: 3,806
Post

I'm impressed!!! Very, very nice work.

Paul Burchett
\"Nothing is foolproof because fools are so ingenious.\"
paul burchett is offline
post #10 of 26 (permalink) Old 06-25-2006, 06:01 PM
Senior Member
FFCars Craftsman

65_427_COBRA's Avatar

Join Date: Oct 2004
Location: Southern California
Posts: 764
Garage
Post

This just solved My turnsignal problem!!!!

Thanks alot for sharing!!!!!

Steve


Dad, can I drive it????... Ever!!

FFR1467K 5.0L, Mass-Flo, T5, Trigo Wheels, Lexus Spectra Mica Blue, Phantom stripes and Smiths Gauges.......
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
65_427_COBRA is offline
post #11 of 26 (permalink) Old 06-25-2006, 08:14 PM Thread Starter
Senior Member

dv/dt's Avatar

Join Date: Aug 2003
Location: Ottawa, Canada
Posts: 15,991
Post

Thanks guys, glad you like it!! But the real credit goes to the guy who originally came up with this and whoever made those great wiring diagrams. I did a little more searching and found some more info on the flasher module. You can get it (just the module, not the switch) off the following cars:

'89 Ford Probe
'94-'96 Ford Escort
'94-'96 Mercury Tracer

It is $70 new so a scrap yard is the way to go. We picked up a couple of units for $20 each for the whole setup (removed ourselves).

Cheers, Rod

"Can you imagine?!"

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
dv/dt is online now
post #12 of 26 (permalink) Old 06-26-2006, 08:11 PM Thread Starter
Senior Member

dv/dt's Avatar

Join Date: Aug 2003
Location: Ottawa, Canada
Posts: 15,991
Post

Just for info, the switch is apparently no longer available from Ford (and was in the $200 range) so the scrap yard is your choice for it as well.

Cheers, Rod

"Can you imagine?!"

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
dv/dt is online now
post #13 of 26 (permalink) Old 06-30-2006, 07:42 PM Thread Starter
Senior Member

dv/dt's Avatar

Join Date: Aug 2003
Location: Ottawa, Canada
Posts: 15,991
Post

Hey guys,
Just got back from the scrap yard and thought I would let you know that I confirmed that the flasher unit is the same on the '94-'96 Escorts. It is actually a better source since, on the Escort, the flasher is connected by a connector and harness which you can splice into your existing harness. On the Probe it plugged into some sort of block so, as you can see above, you have to use 1/4" female spade connectors to hook it up. I will be swapping out mine to put in the connector from the Escort.

Cheers, Rod

"Can you imagine?!"

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
dv/dt is online now
post #14 of 26 (permalink) Old 07-02-2006, 03:51 AM
Junior Charter Member

Join Date: May 2006
Location: S. Central PA
Posts: 39
Post

Rod, Your not only the man, Your the myth, and soon to be the legend with this one, You dug through the trenches to find it, AND shared the LUUUVV! SCREW dash originality, One up for practicality! Great Job Partner!!

1nce Bitn, Never shy, Punch it to the floor, Let it Fly! The wife says: BUY IT, BUILD IT, SO WE CAN DRIVE IT!!!
1NCE BITN is offline
post #15 of 26 (permalink) Old 07-03-2006, 02:25 AM
4.6 Terminator Trailblazer
FFCars Master Craftsman

PhysicsGeek's Avatar

Join Date: Mar 2004
Location: NW Philly Burbs
Posts: 1,743
Send a message via AIM to PhysicsGeek
Post

Hey Rod, good write up, I was planning this turn signal too since I opted for breezes removable steering hub. I'm sure this will come in handy, already bookmarked. Later, Joe

If you guys need a good source, go to www.probetalk.com and search the classifieds for people parting out 1Gen. Probes. I have a '97 GTS Probe, so I've been on the the probetalk forum for quite awhile.

FFR1004379RD Progress Here:

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

-----------------------

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

----------------
PhysicsGeek is offline
post #16 of 26 (permalink) Old 07-14-2006, 06:23 PM Thread Starter
Senior Member

dv/dt's Avatar

Join Date: Aug 2003
Location: Ottawa, Canada
Posts: 15,991
Post

Hey Joe, glad it helped!

Here's a picture of the horn buttons in their final location.



Here is the back side. I need to find a small rubber/vinyl cap for the back of the switch. The wires will be covered with aluminum tape (quick experiment here and won't be very visible) and then go into a groove I cut in the hub.



Into the center of the hub and out the back.





Where they connect to the copper ring.



Cheers, Rod

"Can you imagine?!"

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
dv/dt is online now
post #17 of 26 (permalink) Old 07-14-2006, 11:52 PM
Senior Member

bchaulk's Avatar

Join Date: May 2005
Location: Cape Cod MA
Posts: 1,648
Post

Say
didn't you use to build cars for that Jim Bond
guy ? And the buttons on the steering wheel, great job "Q"

If people concentrated on the really important things in life, there'd be a shortage of fishing poles.
bchaulk is offline
post #18 of 26 (permalink) Old 07-15-2006, 08:25 PM
Charter Member

Join Date: Jun 2005
Location: Keene New Hampshire
Posts: 64
Post

Looks good Rod! I've got all the parts from ebay, now I have to wire it. I've got the pinout for the flasher module from link at the top of post. I got at Probe switch, but didn't see a pinout diagram for it. Anyone have access to one or maybe post a picture of the back of the switch, with plug and short wires, so I can relate it to the current wiring diagrams. This setup looks great. I just don't want to screw up the switch wiring and let the smoke out, I hear they don't make the refills anymore [img]smile.gif[/img]
petri is offline
post #19 of 26 (permalink) Old 07-15-2006, 08:36 PM Thread Starter
Senior Member

dv/dt's Avatar

Join Date: Aug 2003
Location: Ottawa, Canada
Posts: 15,991
Post

Hi petri,
The link in my first post has the diagram for the Probe switch/flasher (4th diagram). That one was an exact match for my switch and flasher. OR are you saying you don't have the connector so you need to match the pins to the wiring colors shown? If so I can do up a diagram.

Cheers, Rod

"Can you imagine?!"

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
dv/dt is online now
post #20 of 26 (permalink) Old 07-15-2006, 10:03 PM
Charter Member

Join Date: Jun 2005
Location: Keene New Hampshire
Posts: 64
Post

Rod, I don't have the connector, need to match pin location to wire colors, thanks!
petri is offline
post #21 of 26 (permalink) Old 07-15-2006, 10:54 PM Thread Starter
Senior Member

dv/dt's Avatar

Join Date: Aug 2003
Location: Ottawa, Canada
Posts: 15,991
Post

Here you go. Looking at the back of the switch.



And here's the connector.



Cheers, Rod

"Can you imagine?!"

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
dv/dt is online now
post #22 of 26 (permalink) Old 07-16-2006, 12:32 AM
Charter Member

Join Date: Jun 2005
Location: Keene New Hampshire
Posts: 64
Post

Awesome, Rod, many thanks!
petri is offline
post #23 of 26 (permalink) Old 08-04-2006, 08:13 PM
Going nowhere fast.

Michael Stora's Avatar

Join Date: Feb 2005
Location: Maricopa, AZ
Posts: 19,728
Post

Wow! This is slick. I can't beleive I missed it the first time around. I'd probably do it with a more period looking handle and hide the plastic at the base. Can you describe all of the degrees of freedom of the switch? Does it do 4 modes for the lights (off, park, low high)? How do you activate the flashers?

Mike

This space for rent.
Michael Stora is offline
post #24 of 26 (permalink) Old 08-04-2006, 08:56 PM Thread Starter
Senior Member

dv/dt's Avatar

Join Date: Aug 2003
Location: Ottawa, Canada
Posts: 15,991
Post

Mike,
The switch only does high/low beam. It's a simple pull to toggle between high and low (as opposed to forward is high and aft is low). For flashers you simply push up or down on the end of the handle same as any other flasher switch. The action is very easy and natural compared to modern day cars. It would be very easy to make up a more period correct arm and mount it so only the arm comes through a small slot in the dash. It would have to be a bit of a slot due to the high beam function which causes the arm to move in/outboard.

For turning the lights on/off I used a Taurus light switch which hooks right up to the Mustang harness with a simple pinout and connector swap. See the link in my sig line for more info on that.

Cheers, Rod

"Can you imagine?!"

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
dv/dt is online now
post #25 of 26 (permalink) Old 08-04-2006, 09:48 PM
Going nowhere fast.

Michael Stora's Avatar

Join Date: Feb 2005
Location: Maricopa, AZ
Posts: 19,728
Post

Thanks Rod. I should have said hazard flashers. I see from the diagram that you can add a switch to ground for that. I see a wire for flash to pass in one of the diagrams. Any clue how to hook that one up?

Mike

[ August 04, 2006, 06:04 PM: Message edited by: Michael Stora ]

This space for rent.
Michael Stora is offline
post #26 of 26 (permalink) Old 08-04-2006, 09:58 PM Thread Starter
Senior Member

dv/dt's Avatar

Join Date: Aug 2003
Location: Ottawa, Canada
Posts: 15,991
Post

Yes, the hazards are activated by grounding one of the wires on the flasher unit. A dash toggle or rocker switch is all that's required. Works like a charm.

As for the flash-to-pass, I tried to figure that on out and fried one of the switches. So no I don't know how it would hook up and I don't plan on trying again. I always run with my head lights on anyway for safety (even more so with this car) and a simple pull will toggle the high/low anyway. I assume that feature was for if you had your lights in the off position and pulled for flash to pass.

Cheers, Rod

"Can you imagine?!"

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
dv/dt is online now
Sponsored Links
Advertisement



Bookmarks

Quick Reply
Message:
Options

Register Now



In order to be able to post messages on the FFCars.com : Factory Five Racing Discussion Forum forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.

User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.

Password:


Confirm Password:
Email Address
Please enter a valid email address for yourself.

Email Address:
OR

Log-in











Currently Active Users Viewing This Thread: 2 (1 members and 1 guests)
4.6 litre
Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page
Display Modes
Linear Mode Linear Mode



Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


For the best viewing experience please update your browser to Google Chrome



Welcome to FFCars! The representations expressed are the representations and opinions of the FFCars.com forum members and do not necessarily reflect the opinions and viewpoints of the site owners, moderators, Factory Five Racing, Inc. or Ford Motor Company. This website has been planned and developed by FFCars.com and its forum members and should not be construed as being endorsed by Factory Five Racing, Inc. or Ford Motor Company for any purpose. "FFR", "Factory Five", "Factory Five Racing", and the Factory Five Racing logo are registered trademarks of Factory Five Racing, Inc. FFCars.com forum members agree not to post any copyrighted material unless the copyrighted material is owned by you. Although we do not and cannot review the messages posted and are not responsible for the content of any of these messages, we reserve the right to delete any message for any reason whatsoever. You remain solely responsible for the content of your messages, and you agree to indemnify and hold us harmless with respect to any claim based upon transmission of your message(s). Thank you for visiting the FFCars.com Forum dedicated to Factory Five.
