Did my driver side foot box mod last night. Kind of a modified Feddersen approach.









First the existing fold is reversed and then the other to folds are made. The new folds extend from the same point at the top as the original bend down to the two lower corners. If done like this the front, top and rear attachment points will stay exactly as they were intended. All of the rivet holes and screws still lined up the same after the mod. Only a small amount had to be trimmed off the lower edge to clear the 4" frame tube.







The ruler shows approximately where the original position was.



If you have a larger engine you can check if this mod will work by running a string from the top bend point to the front lower corner (forward red line in the fifth picture). If the headers, etc. are forward of this line then the mod would work since the position of this portion of the wall is unchanged.

Cheers, Rod


"Can you imagine?!"

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
dv/dt is offline
Sponsored Links
Advertisement

post #2 of 23 (permalink) Old 05-07-2005, 12:38 AM
USAF Lifer (Retired)
FFCars Craftsman

Tim Burns's Avatar

Join Date: Jan 2003
Location: South Glens Falls, NY
Posts: 1,221
Post

How do you plan on sealing the bottom edge?


"In the year of our Lord 1314, patriots of Scotland, starving and outnumbered charged the fields of Bannockburn. They fought like warrior poets, they fought like Scotsman and won their freedom"
Tim Burns is offline
post #3 of 23 (permalink) Old 05-07-2005, 12:52 AM
Moderator

forrest1's Avatar

Join Date: Jan 2002
Location: Sunny San Diego
Posts: 3,886
Post

Excellent! Thanks for posting the photos! This makes it very clear.

Forrest

Former Owner/Builder FFR 2433
forrest1 is offline
Sponsored Links
Advertisement

post #4 of 23 (permalink) Old 05-07-2005, 01:08 AM
Moderator Ad Nauseum

NAGA's Avatar

Join Date: Sep 2002
Location: Wichita, KS
Posts: 18,585
Post

Great mod Rod!
Looks very easy. Looks like one of those builder-inspired mods FFR should adopt for future kits.

Anything that gets more foot-room is good.

d



100% free webcam site! | Awesome chicks and it is absolutely free! | Watch free live sex cam - easy as 1-2-3

Donald Rogus
3733k Stock 5.0, 3:55 gears, 15" Halibrands, '91 donor, Tremec 3550. "Arrest Me" Yellow / Black Stripes.

My car: a lightweight, precision-guided, sledgehammer.
NAGA is offline
post #5 of 23 (permalink) Old 05-07-2005, 01:12 AM Thread Starter
Senior Member

dv/dt's Avatar

Join Date: Aug 2003
Location: Ottawa, Canada
Posts: 15,988
Post

Tim, I'll make up a 90° filler piece that will go from the 4" tube over to the wall. The upright leg will follow the angle of the wall. That, and a bit of silicone, will seal it right up. I'll post a pic once I've made it up.

Forrest, thanks!

Cheers, Rod

"Can you imagine?!"

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
dv/dt is offline
post #6 of 23 (permalink) Old 05-07-2005, 01:19 AM Thread Starter
Senior Member

dv/dt's Avatar

Join Date: Aug 2003
Location: Ottawa, Canada
Posts: 15,988
Post

Naga, I don't know if this will work with a big block or Mod engine. Perhaps Sergio could do the check I describe and let us know if it would work on the Mods. FFR might be able to supply it with different bends depending on what engine you plan to use since that part (nor any others) does not change shape or attachments. All that would be left is a little trimming if you got this version and a template would be easy enough to make.

Thanks and cheers, Rod

"Can you imagine?!"

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
dv/dt is offline
post #7 of 23 (permalink) Old 05-07-2005, 01:20 AM
Member
FFCars Master Craftsman

Join Date: Apr 2005
Location: Lake Tahoe, California
Posts: 1,569
Thumbs down

As the emoticon is titled "EEK!"

Why don't you just make a new side piece that follows the brace all the way to the firewall?


(my first negative post)

Still spending...

License plate \"HAR2(hand)DL\"
Mods out the butt
Kit arrived on 6/10/05
Paint done 3/27/06

post #8 of 23 (permalink) Old 05-07-2005, 01:42 AM Thread Starter
Senior Member

dv/dt's Avatar

Join Date: Aug 2003
Location: Ottawa, Canada
Posts: 15,988
Post

A few reasons:

1. It would require a lot more work and fitting.

2. It would require $'s not only for the aluminium but also my time to run out and get it.

3. My feet are not that big.

4. This way there is a chance (won't know unless someone checks) that the BB and Mod guys could also do it.

5. Because I could.

Cheers, Rod

"Can you imagine?!"

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
dv/dt is offline
post #9 of 23 (permalink) Old 05-07-2005, 02:18 AM
FFCobra Fanatic
FFCars Craftsman

Join Date: Mar 2005
Location: Cornwall, Ontario
Posts: 738
Post

"Because I could"

the other four don't count!

Good answer , Rod

The Leader of the Opposition and Minister of Finance says it won\'t happen till house reno\'s are done .. 2008 maybe! Damn!!
Duper is offline
post #10 of 23 (permalink) Old 05-07-2005, 03:11 AM Thread Starter
Senior Member

dv/dt's Avatar

Join Date: Aug 2003
Location: Ottawa, Canada
Posts: 15,988
Post

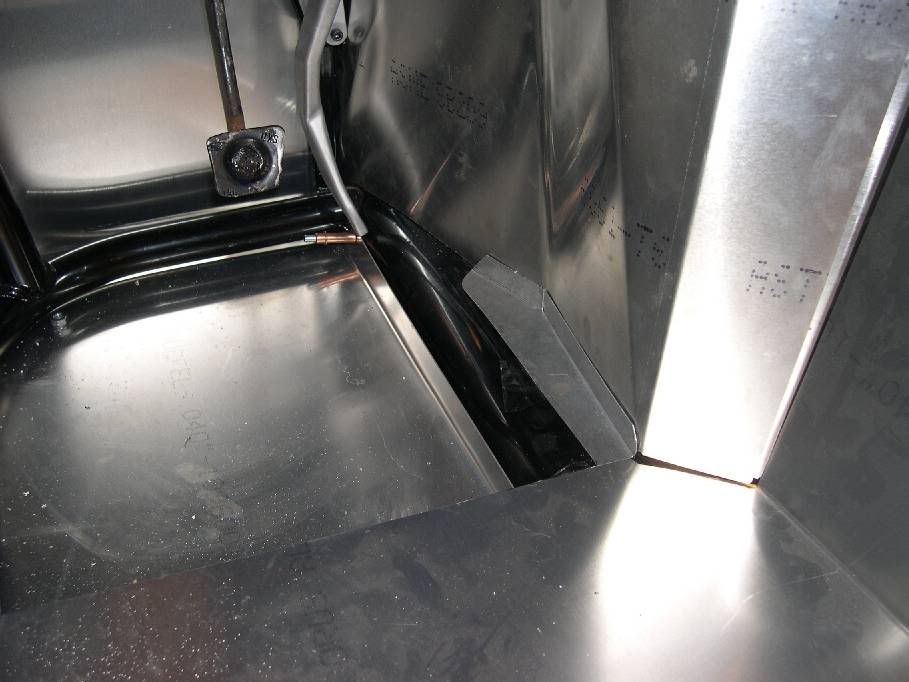

Tim, here are the pics of the piece to fill the gap. I cut off the small extension on the floor panel. I won't final fit/drill it until all the other panels are riveted in place. Will also make a small piece to fill in the small remaining gap at the rear.
