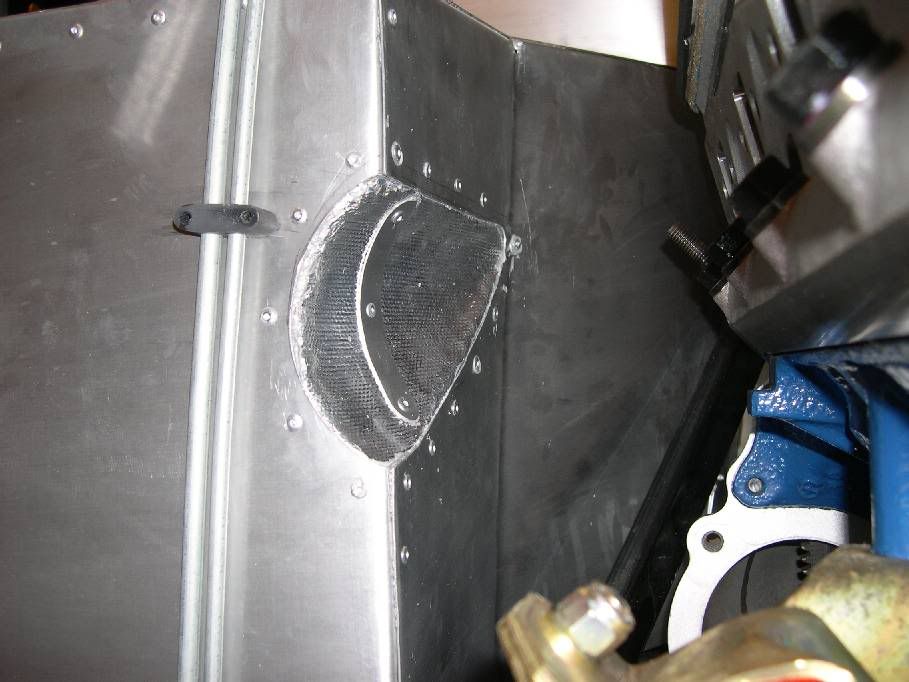

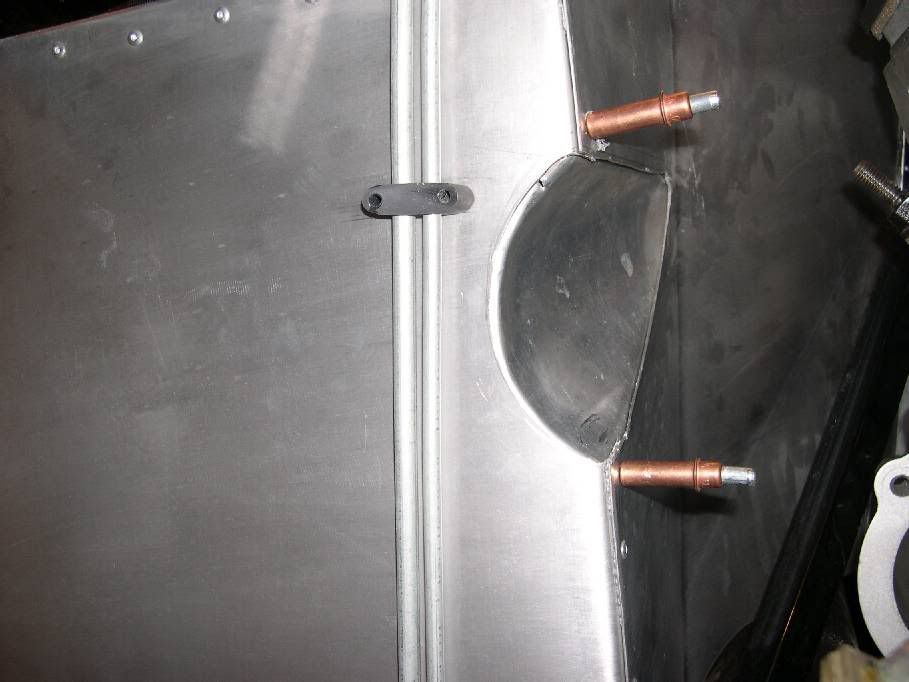

UPDATE 2 - See pics further down for my header interference fix.

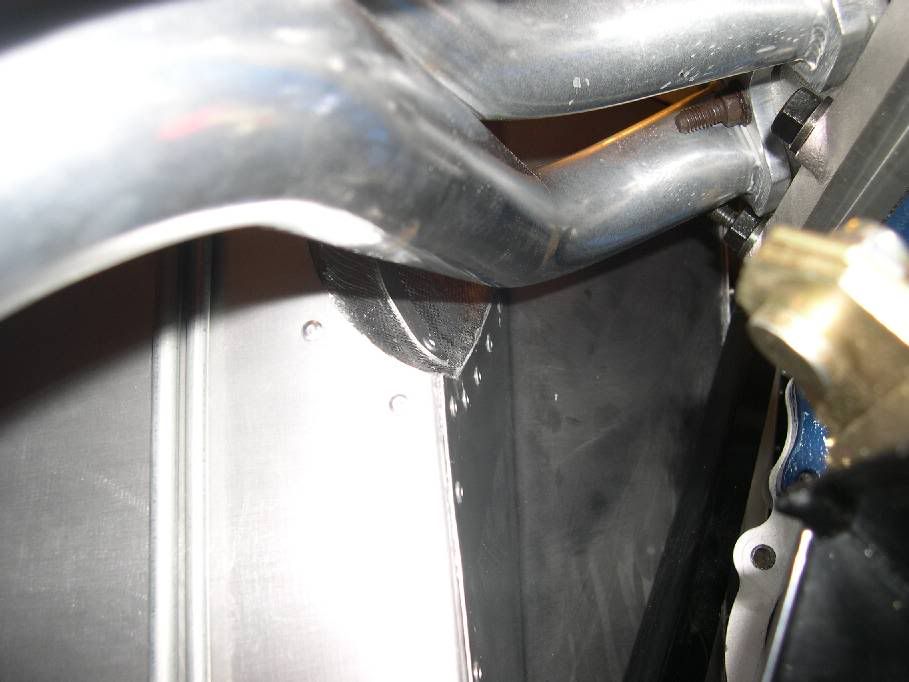

UPDATE - I installed my engine/tranny to check for clearance today and the 4-into-4's do hit the footbox. No big deal since I thought they might. I'll post my fix as soon as I get it done. I can't say if the normal Mustang headers would also hit or not.

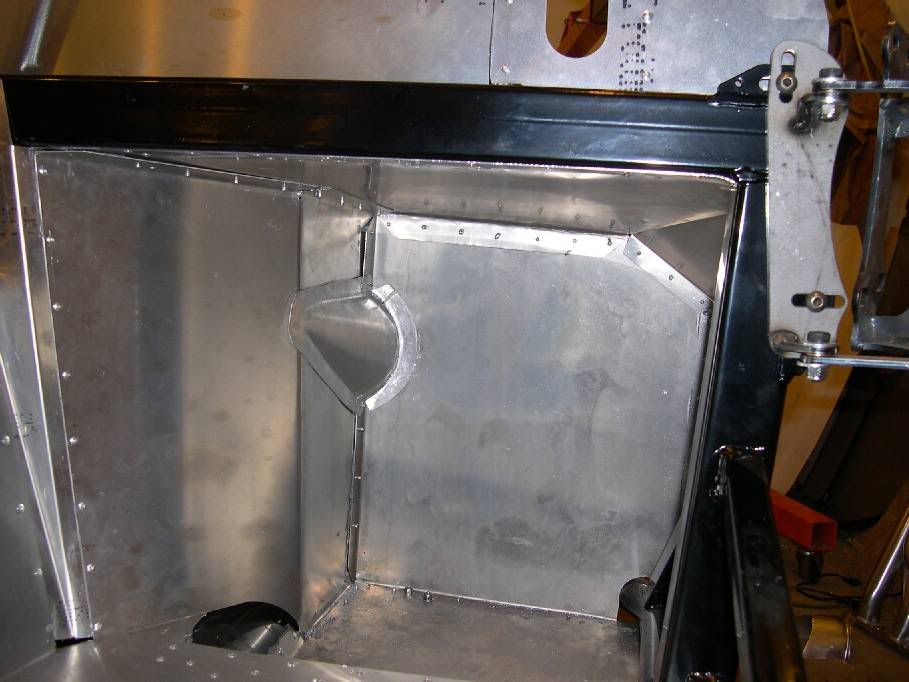

Just finished doing up the sheet metal for my passenger footbox mod. Made new top, bottom and front panels. Modified original inboard panel. Will check for clearance issues with the 4-into-4's when I install the engine. If there is any problem I will make a scalloped insert (something like the reverse of the Mark II steering covers).











Cheers, Rod

[ July 13, 2005, 07:49 PM: Message edited by: dv/dt ]


"Can you imagine?!"

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
dv/dt is offline
Sponsored Links
Advertisement

post #2 of 27 (permalink) Old 06-04-2005, 05:19 AM
SuperCobra 1

Sergio's Avatar

Join Date: Mar 2002
Location: San Diego, CA.
Posts: 14,690
Post

Looks great Rod !!

too bad this mod won't work for the 4.6 builds.

are you almost done?





SuperCobra 1

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
|
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
|
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
|
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Powered by 03 SVT Cobra Terminator
Sergio is offline
post #3 of 27 (permalink) Old 06-04-2005, 06:12 AM Thread Starter
Senior Member

dv/dt's Avatar

Join Date: Aug 2003
Location: Ottawa, Canada
Posts: 15,992
Post

Thanks Sergio! Trying to get all my planned mods out of the way first. Only one left is to drop the trunk down and then the rest should go relatively quickly. Also have a bit to finish up on my E-brake mod and then I'll post pics. That one is turning out really well (at least I think so)! Lots of drilling left to do.

Those 4.6's eat up a lot of space don't they. From the looks of your video the other day I'd say that, in your case, the trade off is worth it! Only took 45 minutes to download that one at 54K!

Cheers, Rod

"Can you imagine?!"

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
dv/dt is offline
Sponsored Links
Advertisement

post #4 of 27 (permalink) Old 06-04-2005, 11:06 AM
Senior Charter Member

Wantdat's Avatar

Join Date: Jul 2004
Location: Logan, Ohio
Posts: 574
Post

Hey DV, nice pc of work, copied it down for "work to do" list. Seems as though there is decent space in drivers side (for my feet anyway) but sure don't want anything more for the wife to complain about (I didn't get her a roll bar).

Mk III 4845 arrived 5/15/05 @ midnite. Warmed & carb\'d 302, Go-cart 10/05, Bodywork 7/07 Street legal (never done) 10/26/07,\"Live Long, Die Young\"!
Wantdat is offline
post #5 of 27 (permalink) Old 06-04-2005, 11:41 AM
FFCobra Master Craftsman

TonyTiger's Avatar

Join Date: Aug 2003
Location: Woodruff, SC
Posts: 1,123
Post

That's a big foot box. Looks good.

"Stealth 427" w/ Mass-Flo EFI, IRS, Tremec 3550, Goodyear Eagle Blue Streaks, Non-donor build
-
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
|
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
|
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
-

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
TonyTiger is offline
post #6 of 27 (permalink) Old 06-04-2005, 02:08 PM
Senior Member

colcarlmiss's Avatar

Join Date: Nov 2004
Location: Columbus, Mississippi
Posts: 126
Post

Rod,
It's a great mod! I have been looking at the footbox for a long time and trying to figure out how actually to do a mod.
Please describe what tools you used and how you did it.
I have been thinking to extend the foobox to same length as the driver's, do you see any problem with that?
Arne
colcarlmiss is offline
post #7 of 27 (permalink) Old 06-04-2005, 02:10 PM
Senior Member

colcarlmiss's Avatar

Join Date: Nov 2004
Location: Columbus, Mississippi
Posts: 126
Post

Rod,
It's a great mod! I have been looking at my footbox for a long time and trying to figure out how actually to do a mod.
Please describe what tools you used and how you did it.
I have been thinking to extend the foobox to same length as the driver's, do you see any problem with that?
Arne
colcarlmiss is offline
post #8 of 27 (permalink) Old 06-04-2005, 03:04 PM
FFCobra Craftsman
FFCars Master Craftsman

Champ's Avatar

Join Date: May 2004
Location: Carlsbad, CA
Posts: 1,594
Send a message via AIM to Champ
Post

Great mod Rod. Looks like you have access to a break. Wish I did. Makes the bends look so much better. Also, kudos for just replacing the pieces rather than splicing like I did. Makes the overall job look so much better.
Paul

Mk III Roadster: (Del 7/11/04; Finished 4/05; Sold 12/06), FMS Crate (351W, Trick Flow, Air Gap, Custom Cam), Mighty Demon 650, TKO 500, Dual chrome rollbars, Lexus Spectra Blue w/ white stripes

Ultima GTR: (Kit rec'd 1/07; Finished 3/08, Sold 10/09) LS7, G50-52 transaxle, Black

Mazda Miata: (Purch 11/09; Ready to Race 10/10) Converted to Spec Miata, Black

1968 Camaro SS: (Bought 11/10, never selling, ok, well maybe... I do dream of building another Cobra :-)
Champ is offline
post #9 of 27 (permalink) Old 06-05-2005, 01:20 AM Thread Starter
Senior Member

dv/dt's Avatar

Join Date: Aug 2003
Location: Ottawa, Canada
Posts: 15,992
Post

Wantdat, Thanks! Since your using a 302 you might be interested in my free driver's side footbox mod as well.

TonyTiger, Thanks!

colcarlmiss, I'll try and post some drwaings of the new panels in the next couple of days. I don't know if you could extend it further forward and this far inboard without hitting the pipes. I doubt it. Others have done a forward extension (but narrower) so do a search on "passenger footbox mod" and you should find some info. I'm not even sure I won't have some interference as it is.

Champ, Wish I had a metal brake! All the bends were done by clamping a 3' x 3" x 1/8" steel bar to the piece and then pounding it over with a rubber mallet. Long cuts were done using the same piece of steel as a straight edge and cutting it with a pneumatic nibbler.

Off to work on the car.

Cheers, Rod

"Can you imagine?!"

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
dv/dt is offline
post #10 of 27 (permalink) Old 06-05-2005, 02:20 AM
Senior Member

colcarlmiss's Avatar

Join Date: Nov 2004
Location: Columbus, Mississippi
Posts: 126
Post

dv/dt,Thanks!
Great information! I have been looking at different bending brakes, but they are pretty pricy for one foot box mod.
I already have a nibbler and I will buy the steel bar right away. I have not bought my engine yet, but I will get a small block 302/351 and a Mass-Flo fuel injection. I presume the engine then will by symmetrical, so the passenger foot box can have the same length as the driver, but I am not sure.
Maybe somebody futher along in the build can advise.
Arne

colcarlmiss is offline
post #11 of 27 (permalink) Old 06-05-2005, 02:54 AM Thread Starter
Senior Member

dv/dt's Avatar

Join Date: Aug 2003
Location: Ottawa, Canada
Posts: 15,992
Post

Hi Arne,
The drive train is offset to the passenger side a bit which is why I am not sure if I will have enough clearance. If not I will have a bit more work ahead of my but nothing major. When you get the steel bar you wil notice that one edge is sharper and the other is rounded a bit because of how they are cut with a shear. You want to bend using the more rounded edge as 6061-T6 can crack if bend to sharply. The nibbler is a great little tool but has a mind of it's own if you don't use an guide to run it against.

Cheers, Rod

[ June 05, 2005, 02:08 AM: Message edited by: dv/dt ]

"Can you imagine?!"

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
dv/dt is offline
post #12 of 27 (permalink) Old 06-05-2005, 03:40 AM Thread Starter
Senior Member

dv/dt's Avatar

Join Date: Aug 2003
Location: Ottawa, Canada
Posts: 15,992
Post

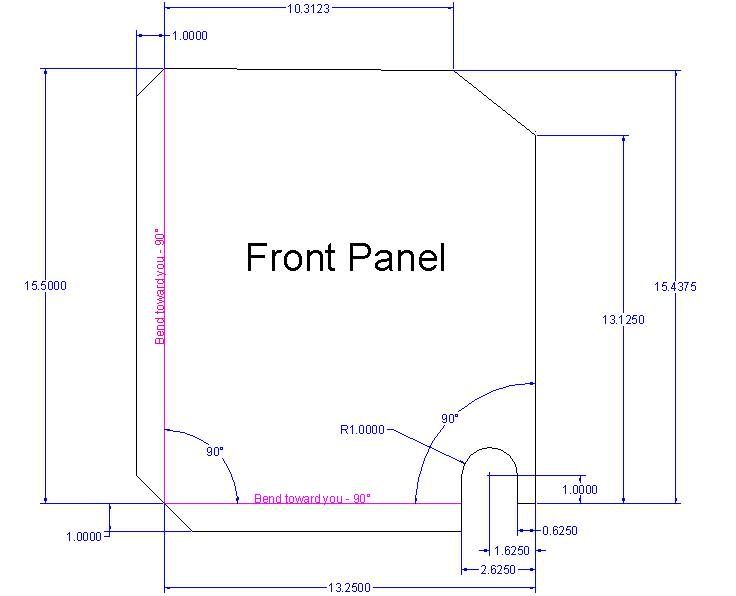

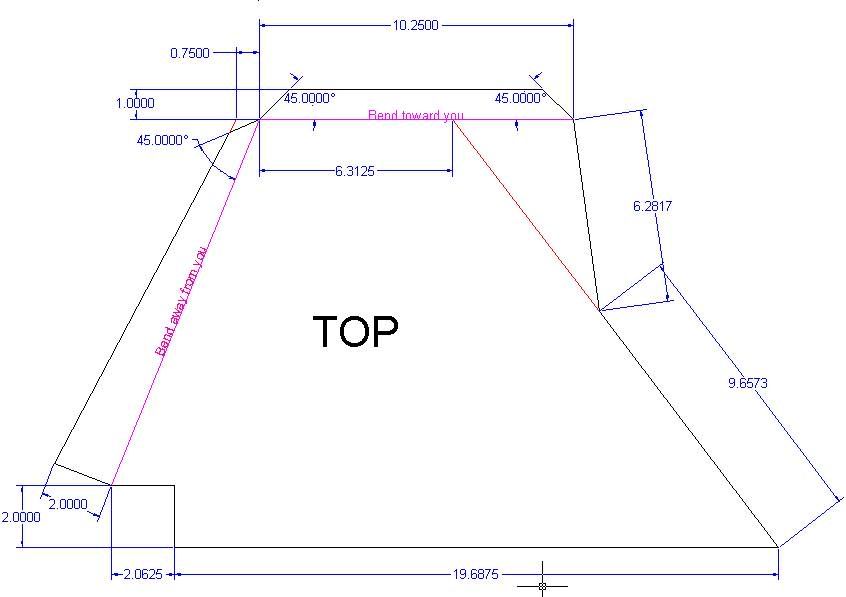

Here are the drawings for the panels I made.

Black lines are the outline (cut).
Red/brown lines are construction lines (no bend or cut)
Magenta lines are bend lines (note carefully which way to bend).







For the inboard side panel cut the top flange to match the bend in the new top panel. Bend on a line from that cut to the begining of the cutout for the 4" tube at the bottom. Once bent mock everything up and then mark the front edge of the inboard panel to match the front of the new box shape.

Cheers, Rod

"Can you imagine?!"

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
dv/dt is offline
post #13 of 27 (permalink) Old 06-05-2005, 04:04 AM
Senior Member

colcarlmiss's Avatar

Join Date: Nov 2004
Location: Columbus, Mississippi
Posts: 126
Post

Man,What a service!

Now y'all can use it, I will.

dv/dt Many Thanks!

Arne
colcarlmiss is offline
post #14 of 27 (permalink) Old 06-05-2005, 05:05 AM
Senior Member
FFCars Craftsman

Join Date: Jul 2003
Location: Orange County, CA
Posts: 934
Post

Nice job on this Rod! This is the ONLY thing I wished I'd changed on my build.

Wished I had your drawings 6 months ago

Great work,
Jeff

FFR4584, 302, E303, AFR165's, Perf RPM, Holley 570, 3.55's
Jeff U is offline
post #15 of 27 (permalink) Old 06-06-2005, 01:27 PM Thread Starter
Senior Member

dv/dt's Avatar

Join Date: Aug 2003
Location: Ottawa, Canada
Posts: 15,992
Post

colcarlmiss, your welcome! For the bottom I copied the FFR piece and extended the front inboard corner which results in a non-square corners. Not sure why they do it that way but you could probably square it up. Looks OK as is though.

Jeff, I know what you mean, I am currently trying to do all the mods that I might regret not doing later. Dropped trunk mod is next.

Cheers, Rod

"Can you imagine?!"

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
dv/dt is offline
post #16 of 27 (permalink) Old 06-06-2005, 08:57 PM
FFCobra Fanatic
FFCars Craftsman

Join Date: Mar 2005
Location: Cornwall, Ontario
Posts: 738
Post

Rod,

Nice work, great work, awesome work ... saved already on my HD, for the future! Do the same for the trunk, too.

Gotta get up to see you and the build soon. will call you.

BHill

The Leader of the Opposition and Minister of Finance says it won\'t happen till house reno\'s are done .. 2008 maybe! Damn!!
Duper is offline
post #17 of 27 (permalink) Old 06-07-2005, 02:27 PM
Senior Member

Perl's Avatar

Join Date: Apr 2004
Location: Long Beach, CA
Posts: 2,990
Post

Sergio:

I made the same footbox mod on my 4.6 SOHC. Here are a couple of pictures. The only thing is I am using the stock headers and I think it would work with the shorty headers but I don't know about the 4 into 4's. Also you have to leave about 3/4 of an inch between the 4 inch frame tube and the inside aluminum wall. Here are some pictures.




Jeff

"Share your knowledge. It's a way to achieve immortality." (Dalai Lama)
FFR MKIII - 1999 GT 4.6 SOHC Full Donor build - Licensed and on the road
Perl is offline
post #18 of 27 (permalink) Old 07-03-2005, 03:57 AM Thread Starter
Senior Member

dv/dt's Avatar

Join Date: Aug 2003
Location: Ottawa, Canada
Posts: 15,992
Post

UPDATE - I installed my engine/tranny to check for clearance today and the 4-into-4's do hit the footbox. No big deal since I thought they might. I'll post my fix as soon as I get it done. I can't say if the normal Mustang headers would also hit or not.

Cheers, Rod

"Can you imagine?!"

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
dv/dt is offline
post #19 of 27 (permalink) Old 07-13-2005, 11:42 PM Thread Starter
Senior Member

dv/dt's Avatar

Join Date: Aug 2003
Location: Ottawa, Canada
Posts: 15,992
Post

Here are the pics of my fix for the header interference.

Formed this out of 0.040" aluminium. I'm not sure of the spec since it was a piece I had lying around but it was not 6061_T6 which could not have been formed like this.


Interior shot showing thet the fix did not take away very much from the space added by the original mod.


This is the finished patch with some heat shield installed.




Some pics showing the header clearance.








Cheers, Rod

"Can you imagine?!"

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
dv/dt is offline
post #20 of 27 (permalink) Old 07-14-2005, 01:22 AM
Member

Join Date: Jun 2005
Location: Felton, CA
Posts: 77
Post

Thats a nice mod for the headers. You can find an old stump, hollow it out for a dish, then heat up the aluminum with a weed torch or torch, then use a wooden mallet to form the piece as you want it. When heated up any metal can be shaped to a desired profile, just make sure that it's not zink coated because the zink becomes toxic when it gases off from the heat. You can form press metal when heated as well with dies, hammers, swedges and whatnot!

Nice work!

I've got a large space between my ears... it's called a universe!
Bannon is offline
post #21 of 27 (permalink) Old 07-14-2005, 03:24 AM
FFCobra Master Craftsman

TonyTiger's Avatar

Join Date: Aug 2003
Location: Woodruff, SC
Posts: 1,123
Post

Rod,

Excellent job, this mod gets better the more I look at it. You are really cruising on your build. Keep it up, man!

Tony

"Stealth 427" w/ Mass-Flo EFI, IRS, Tremec 3550, Goodyear Eagle Blue Streaks, Non-donor build
-
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
|
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
|
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
-

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
TonyTiger is offline
post #22 of 27 (permalink) Old 07-14-2005, 01:36 PM
Senior Charter Member

Wantdat's Avatar

Join Date: Jul 2004
Location: Logan, Ohio
Posts: 574
Post

Thanks for the detail drawings, you will make me a "hero" when my wife sees this mod!!!!! She may even be able to get into the drivers "tunnel" so I'm not sure I want to do that..

Mk III 4845 arrived 5/15/05 @ midnite. Warmed & carb\'d 302, Go-cart 10/05, Bodywork 7/07 Street legal (never done) 10/26/07,\"Live Long, Die Young\"!
Wantdat is offline
post #23 of 27 (permalink) Old 07-14-2005, 05:15 PM
FFCobra Craftsman

CraigS's Avatar

Join Date: Feb 2005
Location: Manassas, Va
Posts: 21,539
Post

VERY nice work.I dropped the floor on the drivers side of my MkI and will be looking at the psgr side this winter.You car is a later version but still helps me figure how to do it.My wife is 6ft but I'm 5'10" so there is usually some comment or at least exagerated body english from her when she's the psgr.Thanks for the info

FFR 5353K, 408W, TKO 500, 2015 IRS w/ 315 gear, Breeze QA1 DA coilovers front and rear, APE hardtop, Forte front swaybar
CraigS is online now
post #24 of 27 (permalink) Old 07-15-2005, 12:19 AM Thread Starter
Senior Member

dv/dt's Avatar

Join Date: Aug 2003
Location: Ottawa, Canada
Posts: 15,992
Post

Thanks and your welcome!

Rod

"Can you imagine?!"

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
dv/dt is offline
post #25 of 27 (permalink) Old 11-25-2005, 01:13 AM
Junior Charter Member

jdl902's Avatar

Join Date: Jun 2005
Location: Ottawa, Canada
Posts: 478
Post

Hey Rod,

could you give some dimensions from the face of the exhaust ports on the head to the modified footbox? I've got shorty headers (insert manhood joke here) and want to figure out what sort of clearance I'd have going with this mod.

You've got to wonder if it would cost FFR that much extra to have two footbox options so us righteous small block dudes wouldn't have to put up with the mod engine compromises.

If you have anymore mods in mind let me know, we have a sheet metal shop at work we could spend a weekend in.

Jason

Mk III 5035, 3-link with 302. Ottawa, ON
jdl902 is offline
post #26 of 27 (permalink) Old 11-25-2005, 02:00 AM Thread Starter
Senior Member

dv/dt's Avatar

Join Date: Aug 2003
Location: Ottawa, Canada
Posts: 15,992
Post

Jason,
Here you go:



Ruler is backwards so 5" from the header surface to the footbox at the 3rd port.

An actual metal shop! You mean I wouldn't have to bend stuff over a piece of angle iron on my lap? I'd be spoiled!! May take you up on that.

Cheers, Rod

"Can you imagine?!"

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
,
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
dv/dt is offline
post #27 of 27 (permalink) Old 11-25-2005, 12:18 PM
Junior Charter Member

jdl902's Avatar

Join Date: Jun 2005
Location: Ottawa, Canada
Posts: 478
Post

I'll supply the sheet metal tools and aluminum as long as you make two of everything! Thanks for the pic, I think the shorties might fit without mods, I'll double check tonight.

Mk III 5035, 3-link with 302. Ottawa, ON
jdl902 is offline
Sponsored Links
Advertisement



Bookmarks

Quick Reply
Message:
Options

Register Now



In order to be able to post messages on the FFCars.com : Factory Five Racing Discussion Forum forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.

User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.

Password:


Confirm Password:
Email Address
Please enter a valid email address for yourself.

Email Address:
OR

Log-in











Currently Active Users Viewing This Thread: 1 (0 members and 1 guests)

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page
Display Modes
Linear Mode Linear Mode



Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


For the best viewing experience please update your browser to Google Chrome



Welcome to FFCars! The representations expressed are the representations and opinions of the FFCars.com forum members and do not necessarily reflect the opinions and viewpoints of the site owners, moderators, Factory Five Racing, Inc. or Ford Motor Company. This website has been planned and developed by FFCars.com and its forum members and should not be construed as being endorsed by Factory Five Racing, Inc. or Ford Motor Company for any purpose. "FFR", "Factory Five", "Factory Five Racing", and the Factory Five Racing logo are registered trademarks of Factory Five Racing, Inc. FFCars.com forum members agree not to post any copyrighted material unless the copyrighted material is owned by you. Although we do not and cannot review the messages posted and are not responsible for the content of any of these messages, we reserve the right to delete any message for any reason whatsoever. You remain solely responsible for the content of your messages, and you agree to indemnify and hold us harmless with respect to any claim based upon transmission of your message(s). Thank you for visiting the FFCars.com Forum dedicated to Factory Five.
