2015 Donor Mk4 Roadster w/IRS, First Build - Input Welcome, Many Questions. - Page 2 - FFCars.com : Factory Five Racing Discussion Forum
 27Thanks
Reply

LinkBack Thread Tools Display Modes
post #31 of 258 (permalink) Old 02-12-2019, 02:29 PM Thread Starter
First Time Builder

IsaacW's Avatar

Join Date: Dec 2018
Location: Vancouver, WA
Posts: 210

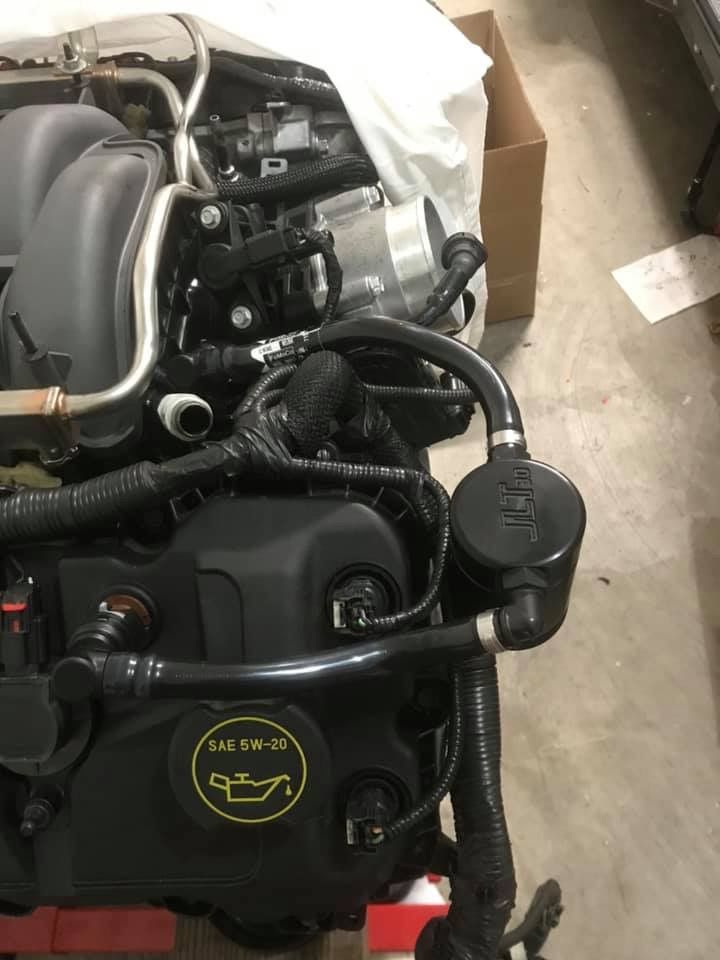

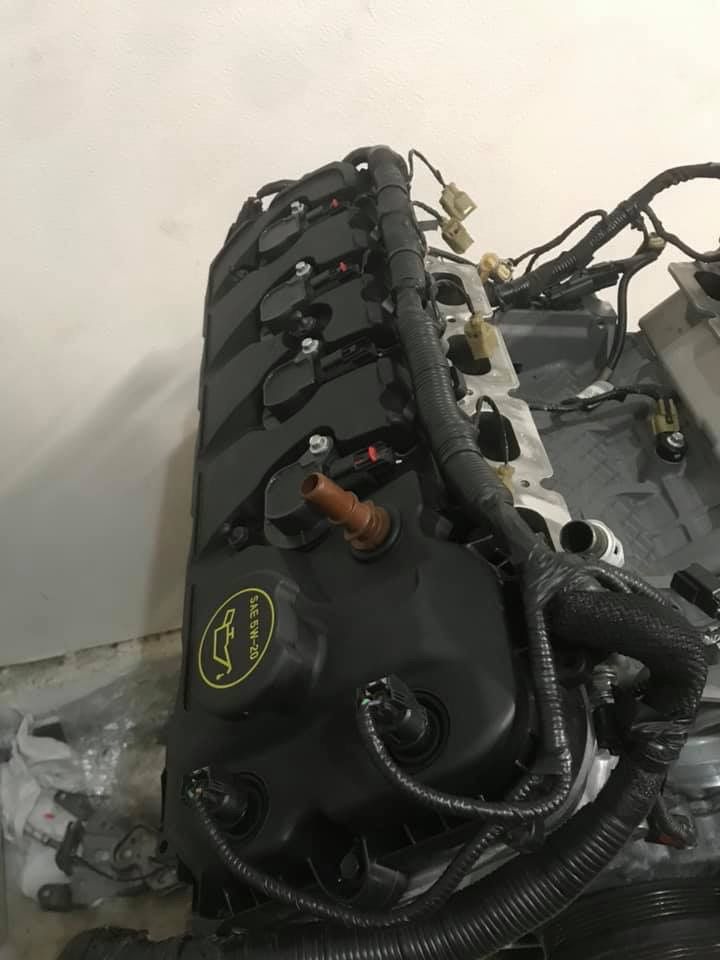

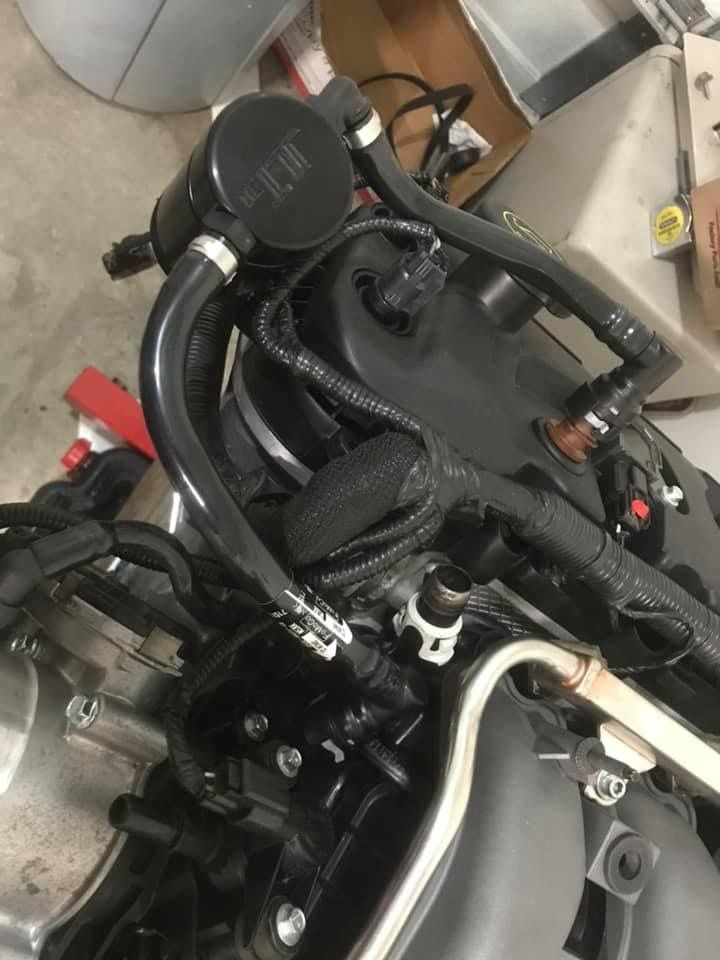

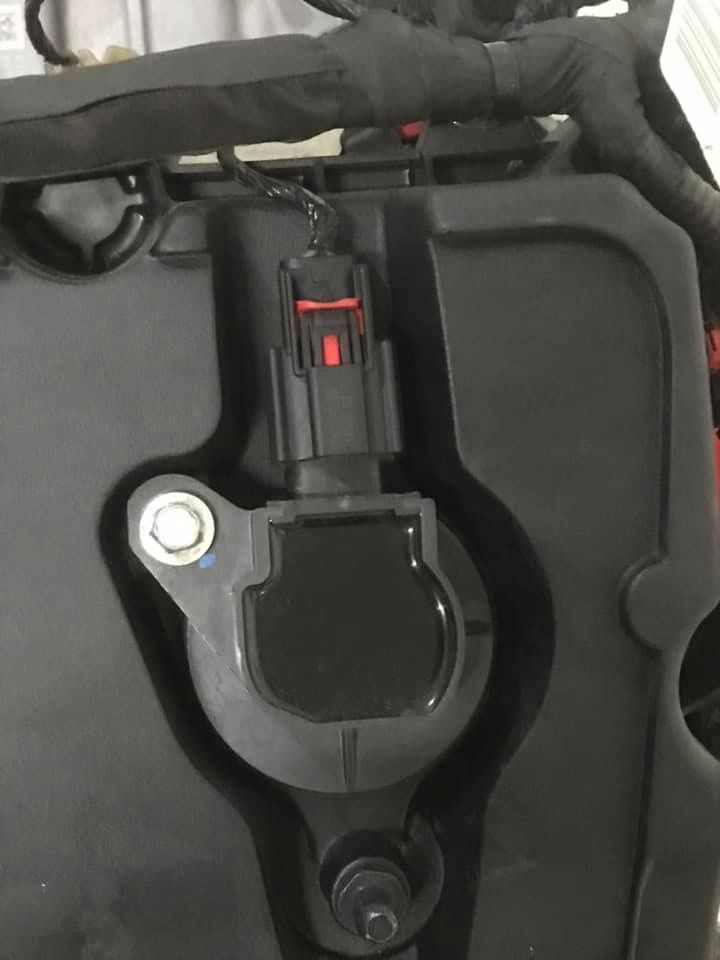

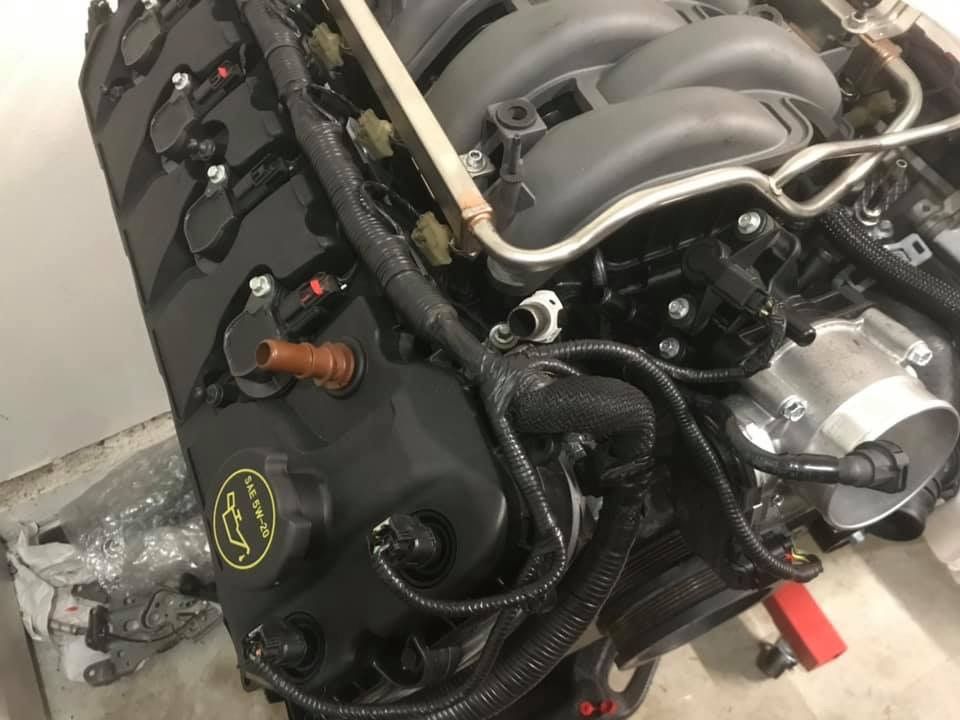

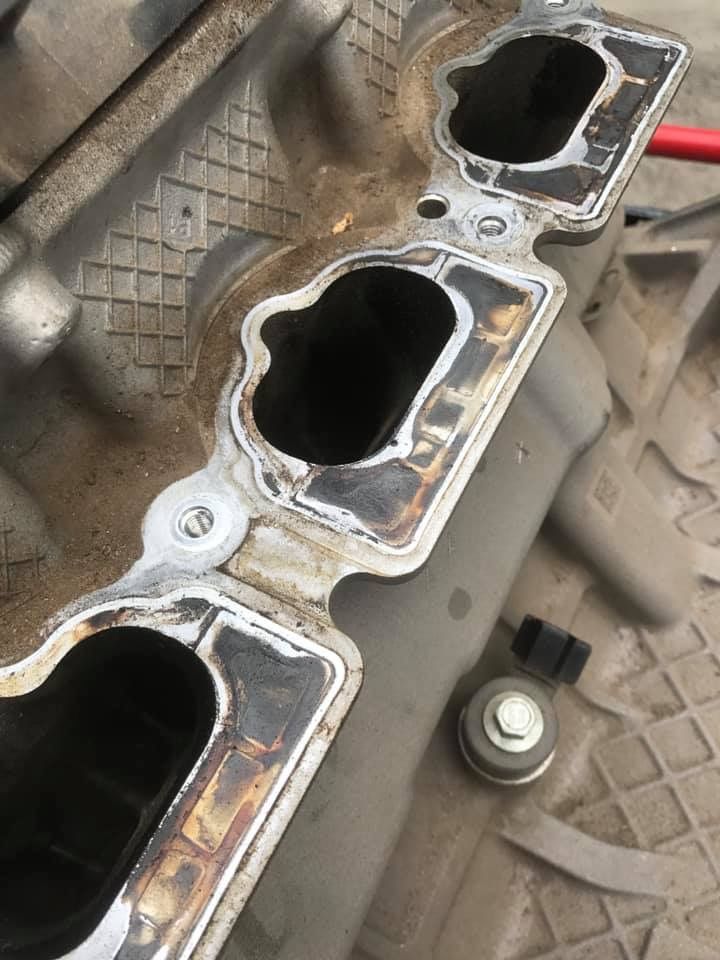

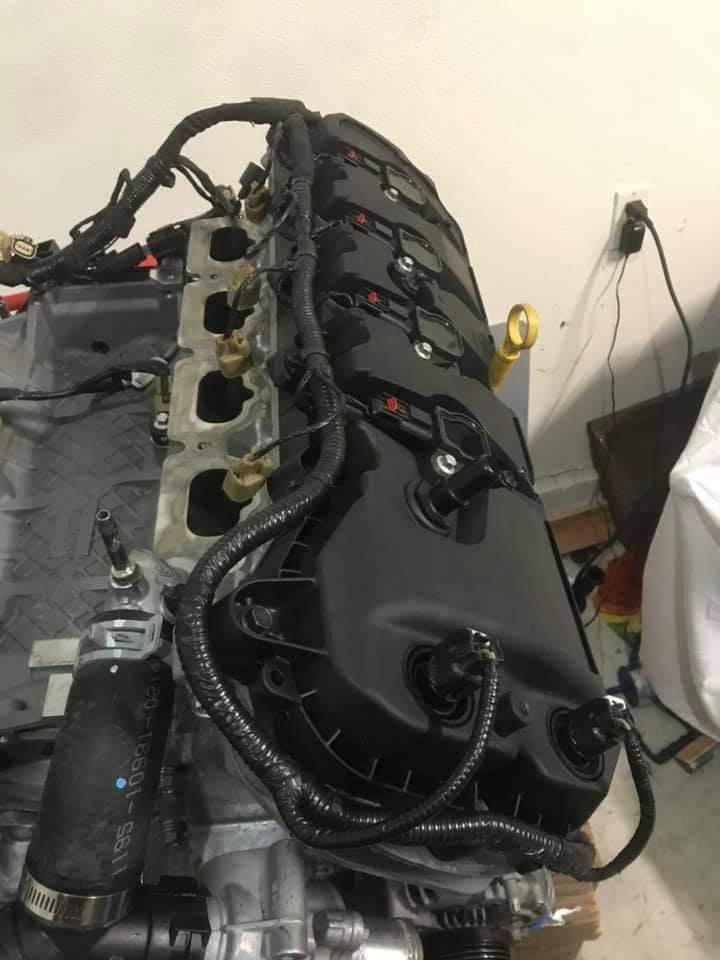

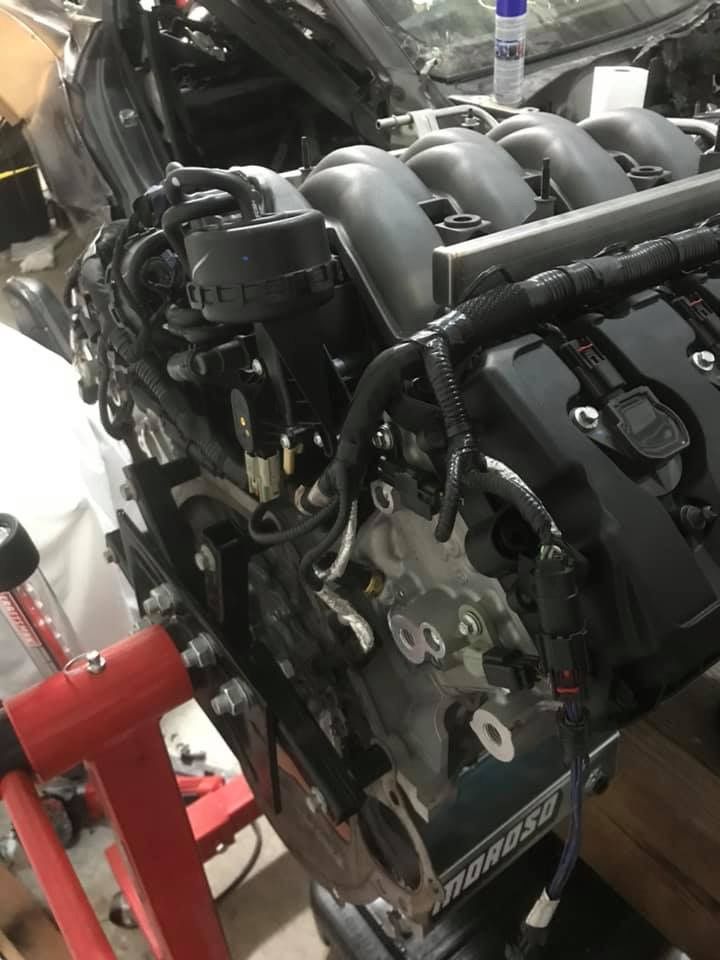

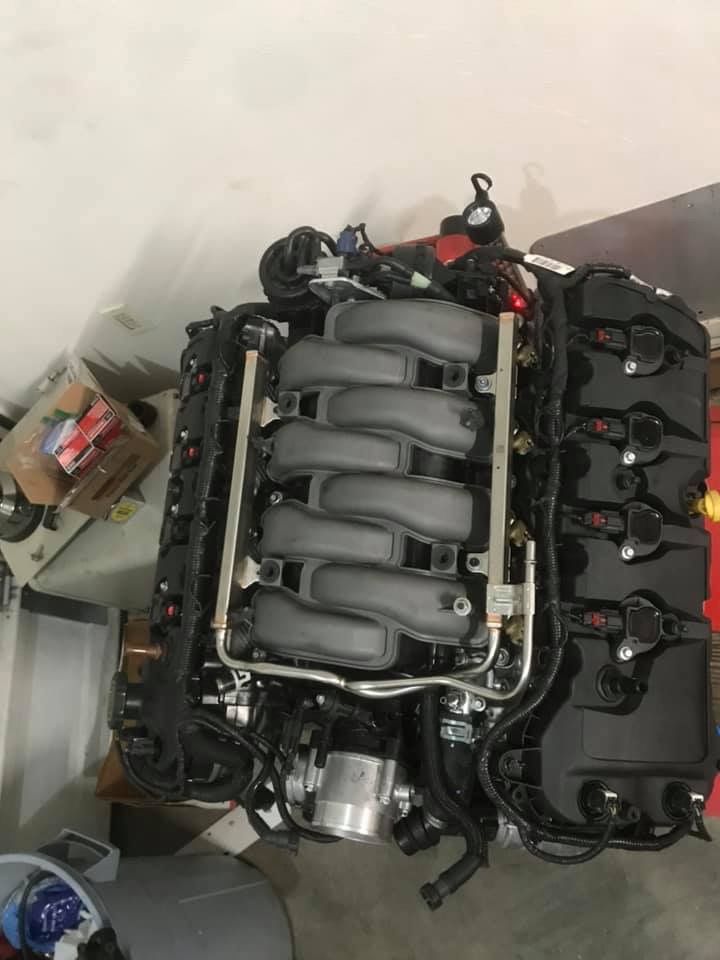

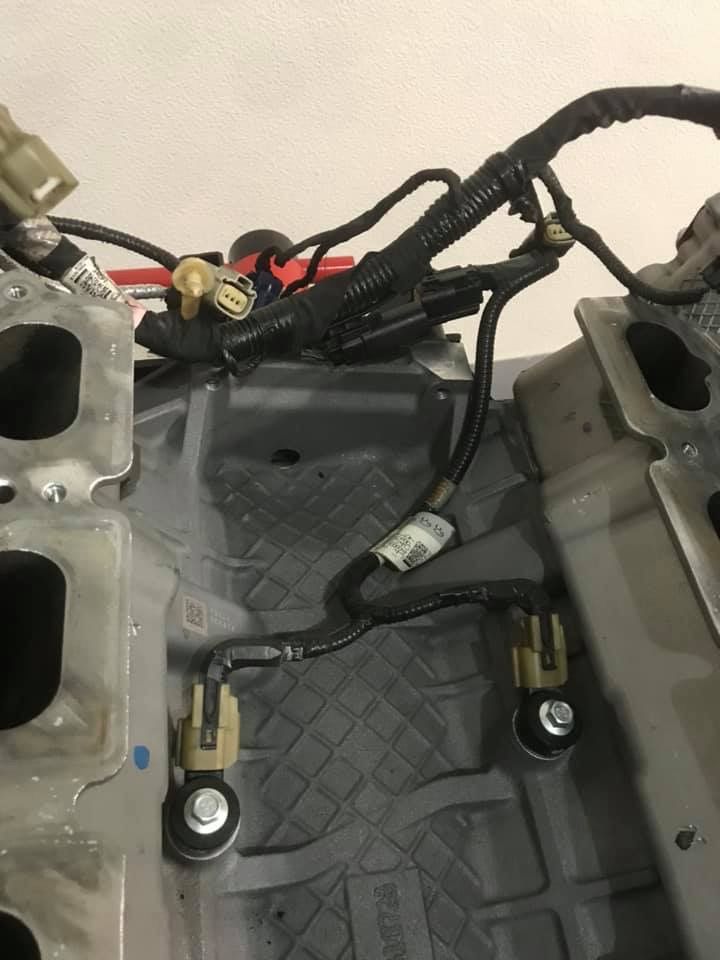

Back to the Engine. Following cleanup comes reassembly. The Coilpacks go back into the new Cam Covers easily, the pulleys, alternator, and belt go back on the front. The replacement intake manifold bolts into place, along with the fuel rail complete with injectors, and everything is ready for the wiring harness to be reattached. I was unable to find zip-ties that have the one-way barbed anchors on the end, so I ended up re-using the original zip-ties that I had left on the wiring assembly when I removed it. Good thing I didnít cut them off of the wiring harness. Probably the most time-consuming part of the re-assembly was the wiring harness. .....




















Sent from my iPhone using Tapatalk


Isaac Wilson
Vancouver, WA

Factory Five Roadster # 9513
2015 Mustang GT Performance Pack Donor
5.0L Coyote Engine (Gen2)
Tremec TKO500
2015 Mustang IRS
Wilwood Brakes
18" Halibrand w/BFG Rival S
LED Lights
IsaacW is offline
Sponsored Links
Advertisement

post #32 of 258 (permalink) Old 02-12-2019, 02:38 PM Thread Starter
First Time Builder

IsaacW's Avatar

Join Date: Dec 2018
Location: Vancouver, WA
Posts: 210

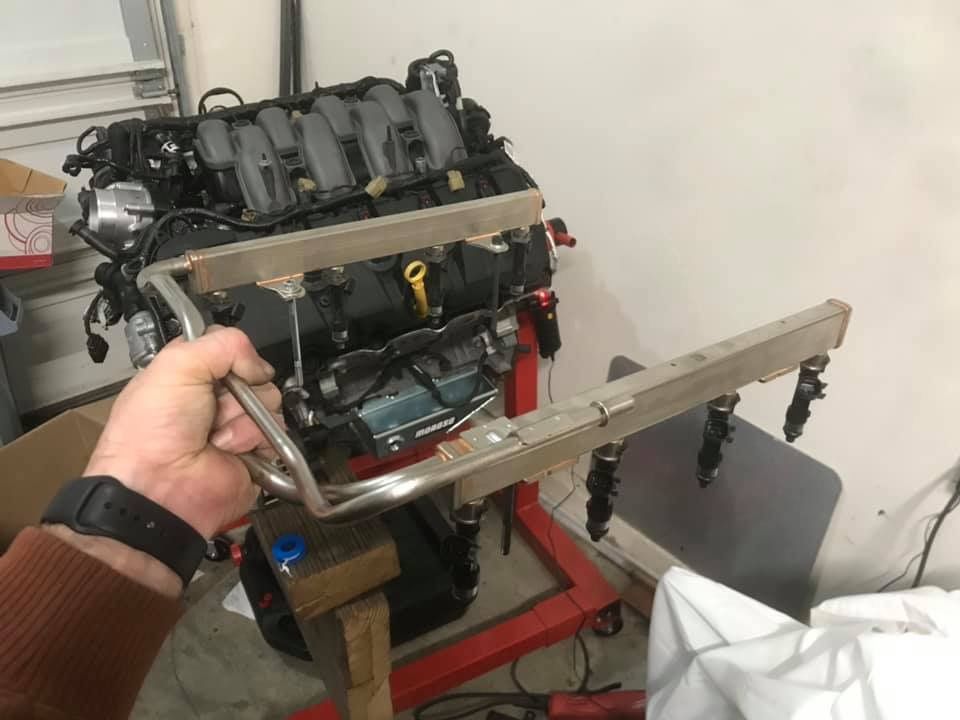

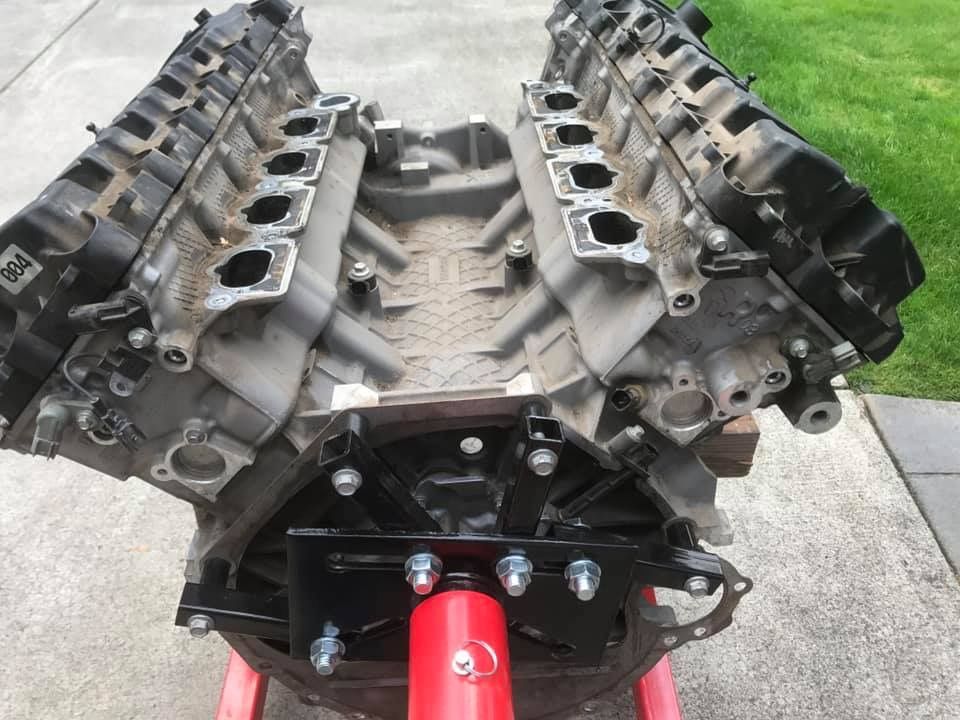

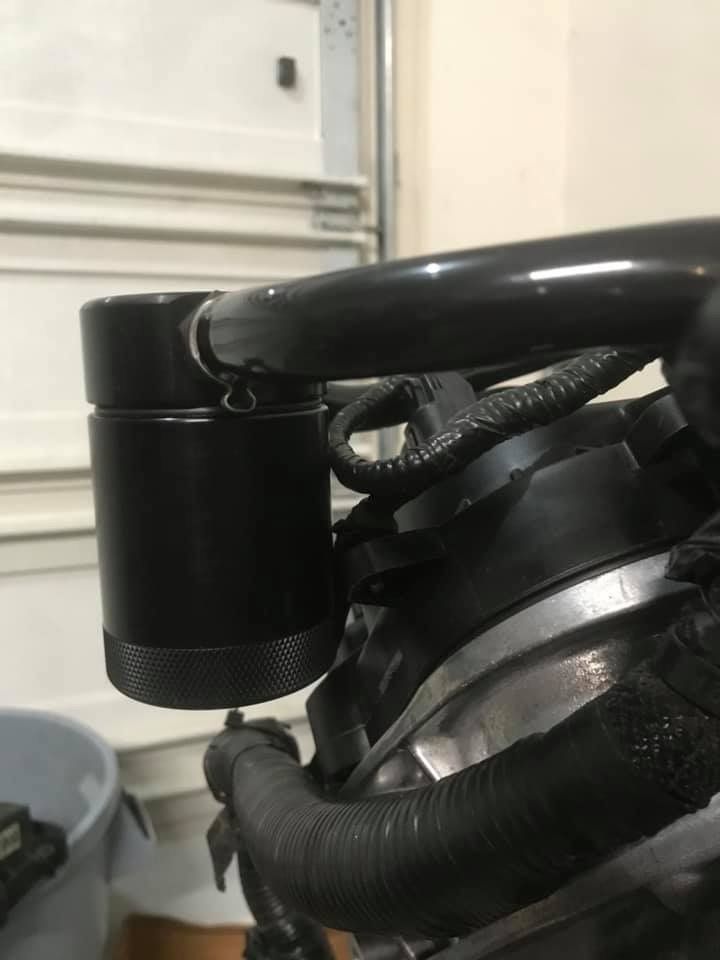

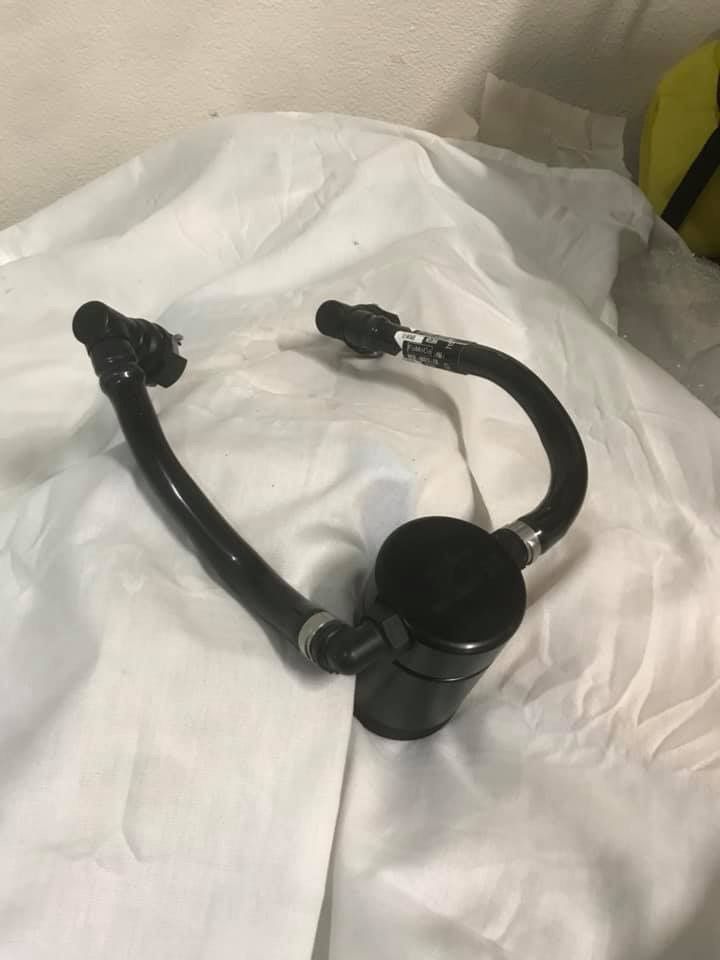

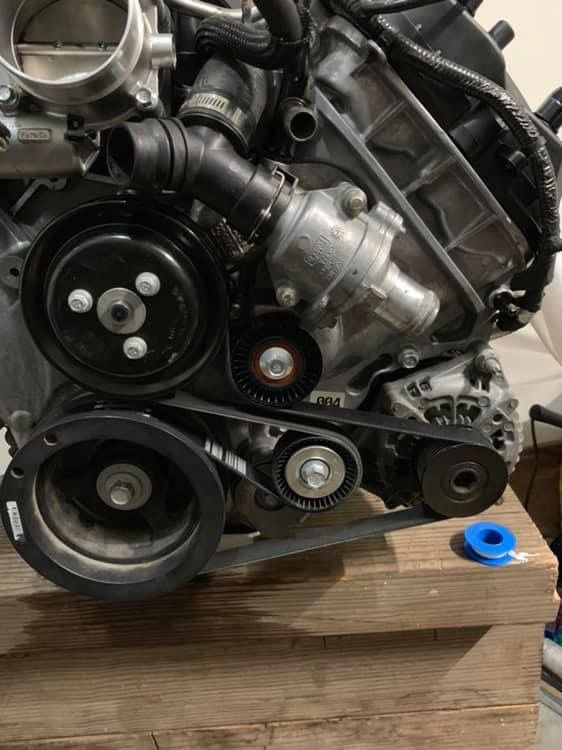

Getting towards the end of the engine prep, and one of the last items is a JLT oil separator. Removing the old Intake Manifold revealed an oily film on the inside of the Manifold, resulting in an oily deposit on the bottom of the Manifold. There also were oil deposits on the Intake Ports on the engine block. To remediate this, I am adding an Oil Separator in-line with the EGR line that returns air from the Passenger-side Valve Cover to the Throttle Body. That make it easy to install with lines that click right into place. The only thing I would add is a mount or clip to secure it, as it mainly just hangs on the hoses. Doesnít seem like a huge sin, though. I guess we will see once the car is assembled and running.


















Sent from my iPhone using Tapatalk


Isaac Wilson
Vancouver, WA

Factory Five Roadster # 9513
2015 Mustang GT Performance Pack Donor
5.0L Coyote Engine (Gen2)
Tremec TKO500
2015 Mustang IRS
Wilwood Brakes
18" Halibrand w/BFG Rival S
LED Lights
IsaacW is offline
post #33 of 258 (permalink) Old 02-12-2019, 02:41 PM Thread Starter
First Time Builder

IsaacW's Avatar

Join Date: Dec 2018
Location: Vancouver, WA
Posts: 210

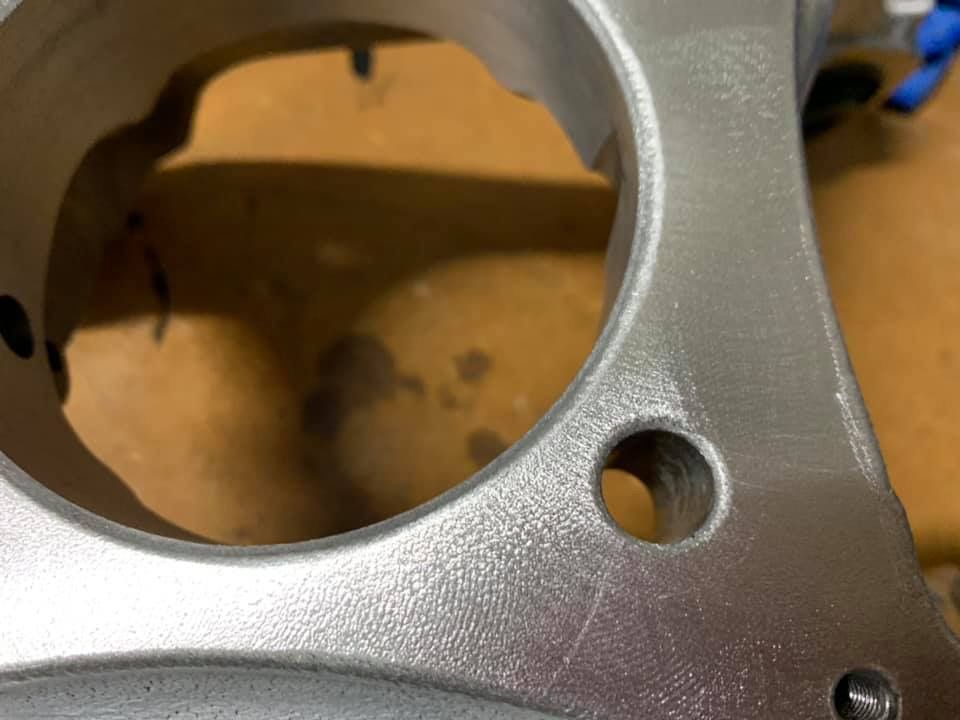

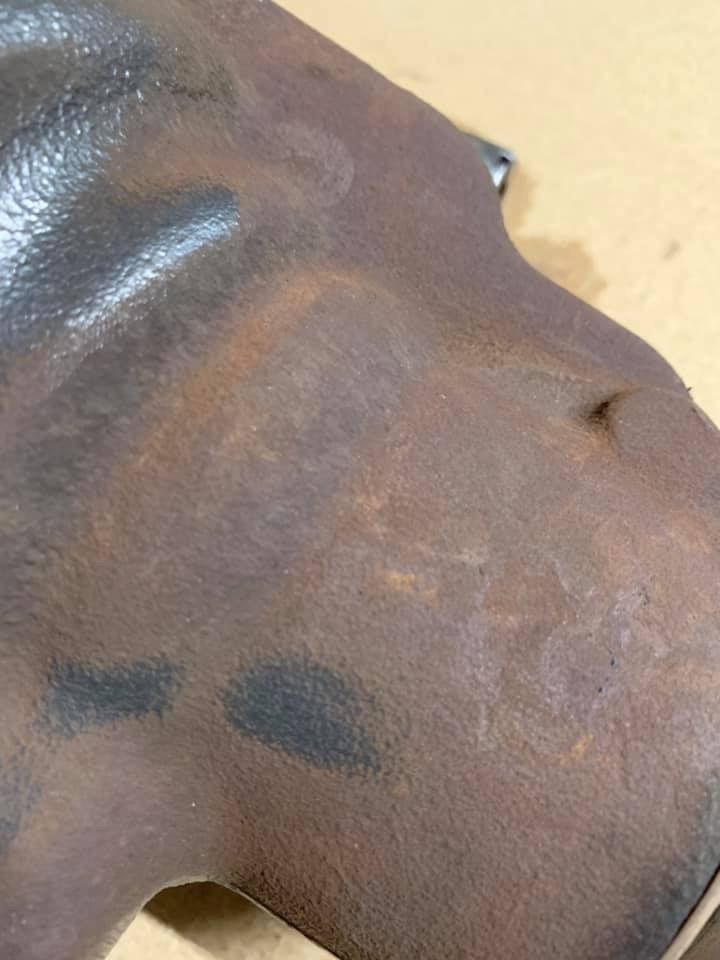

Speaking of the engine... the OEM mounts were a one-piece cast aluminum part that I can't really re-use in the build... and Tasca parts just lists that same part. Any direction on finding the Engine Mounts that would work with the F5 adaptors as intended?


Sent from my iPhone using Tapatalk

Isaac Wilson
Vancouver, WA

Factory Five Roadster # 9513
2015 Mustang GT Performance Pack Donor
5.0L Coyote Engine (Gen2)
Tremec TKO500
2015 Mustang IRS
Wilwood Brakes
18" Halibrand w/BFG Rival S
LED Lights

Last edited by IsaacW; 02-12-2019 at 05:06 PM. Reason: Misspelled can't as 'can'. How incompetent of me.
IsaacW is offline
Sponsored Links
Advertisement

post #34 of 258 (permalink) Old 02-12-2019, 02:52 PM
Senior Member
FFCars Captain

edwardb's Avatar

Join Date: Sep 2009
Location: Lake Orion, MI
Posts: 5,669
Quote:
Originally Posted by IsaacW View Post
Speaking of the engine... the OEM mounts were a one-piece cast aluminum part that I can really re-use in the build... and Tasca parts just lists that same part. Any direction on finding the Engine Mounts that would work with the F5 adaptors as intended?
Best choice by far is to use the Energy Suspension engine and transmission mounts. Energy Suspension Mustang Motor Mounts 4.1127G and Energy Suspension Transmission Mount 4.1104G. Available from Factory Five, or the usual places like Summit or Jegs. These are what come with a complete kit when Coyote is specified. They bolt right to the block. Three bolts per side. So you don't need the donor motor mounts. Factory Five also provides a spacer to sandwich into the motor mounts to put the Coyote up at the right height. Available separately, or part of their Coyote installation kit. The transmission mount works with the kit provided chassis mount and Tremec transmissions.

You're doing some nice work there. That engine took a beating in addition to the car.
IsaacW thanked this.

Build 1: Mk3 #5125. Sold 11/08/2014.
Build 2: Mk4 Roadster #7750. Sold 04/10/2017.
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Build 3: Mk4 Roadster 20th Anniversary #8674. 03 of 20. 2015 crate Coyote, 2015 IRS. Legal 04/18/2017.
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Build 4: Gen 3 Type 65 Coupe #59. Gen 3 crate Coyote. Delivered 12/2/2017.
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
edwardb is online now
post #35 of 258 (permalink) Old 02-12-2019, 04:13 PM Thread Starter
First Time Builder

IsaacW's Avatar

Join Date: Dec 2018
Location: Vancouver, WA
Posts: 210
Transmission

Edward;

Thanks for your input on the motor mounts, I will pursue that. It's so valuable having access to veterans who can point me in the right direction and I appreciate you filling that role. I do have the motor mount spacers, they came in my Base Kit, and I'll order the motor mounts online.

I'm not quite up to date on my posts, but I'll ask another questions anyway, on the transmission. I've read your opinion on the TKO and the T56, and I have two thoughts. The TKO is about $1000 less than the T56, and F5 does not make a driveshaft that will connect the T56 to the manual adaptor plate for the Rear Diff, nor will any of them be the correct length (according to them). I have also read your warnings about the TKO and the 50/50 chance of leaking. I'm not into tranny leaks, but I want something that will work pretty much as a bolt-on .... do you have thoughts on this particular application?
IsaacW is offline
post #36 of 258 (permalink) Old 02-12-2019, 04:32 PM
Senior Member
FFCars Captain

edwardb's Avatar

Join Date: Sep 2009
Location: Lake Orion, MI
Posts: 5,669
Quote:
Originally Posted by IsaacW View Post
I'm not quite up to date on my posts, but I'll ask another questions anyway, on the transmission. I've read your opinion on the TKO and the T56, and I have two thoughts. The TKO is about $1000 less than the T56, and F5 does not make a driveshaft that will connect the T56 to the manual adaptor plate for the Rear Diff, nor will any of them be the correct length (according to them). I have also read your warnings about the TKO and the 50/50 chance of leaking. I'm not into tranny leaks, but I want something that will work pretty much as a bolt-on .... do you have thoughts on this particular application?
A T-56 will fit in your application with the Coyote (a bit shorter than other engine choices) and IRS. That being said, it does require some mods and likely a custom driveshaft. Many have done it. The T-56 does shift better than the TKO, although I find the TKO shifts OK and so do many others. The T-56 also has two overdrives, so there's that. The solenoid lockout it has for reverse is nice too. The T-56 will require you to use a QuickTime bell housing. There aren't any OE style aluminum bells like for the TKO if that's what your planning. So bottom line the T-56 is more expensive to buy and has some added expense. You'll just have to decide if it's worth it to you.

I'm not one that's said 50% of TKO's leak. Others have said that, and maybe it's true. I don't know. I've had two and neither leaked.
IsaacW thanked this.

Build 1: Mk3 #5125. Sold 11/08/2014.
Build 2: Mk4 Roadster #7750. Sold 04/10/2017.
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Build 3: Mk4 Roadster 20th Anniversary #8674. 03 of 20. 2015 crate Coyote, 2015 IRS. Legal 04/18/2017.
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Build 4: Gen 3 Type 65 Coupe #59. Gen 3 crate Coyote. Delivered 12/2/2017.
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
edwardb is online now
post #37 of 258 (permalink) Old 02-12-2019, 05:04 PM Thread Starter
First Time Builder

IsaacW's Avatar

Join Date: Dec 2018
Location: Vancouver, WA
Posts: 210
Do you recall the spec on the Driveshaft I would use with the TKO600? Or is that something I am going to have to measure myself once the Engine is mounted? Im leaning TKO600, and I assume that a Tremec shop locally would have the correct bellhousing to mate the Coyote to the Tranny. I guess I'll find out when I visit the local Tremec shop.

Isaac Wilson
Vancouver, WA

Factory Five Roadster # 9513
2015 Mustang GT Performance Pack Donor
5.0L Coyote Engine (Gen2)
Tremec TKO500
2015 Mustang IRS
Wilwood Brakes
18" Halibrand w/BFG Rival S
LED Lights

Last edited by IsaacW; 02-12-2019 at 05:57 PM.
IsaacW is offline
post #38 of 258 (permalink) Old 02-12-2019, 05:21 PM Thread Starter
First Time Builder

IsaacW's Avatar

Join Date: Dec 2018
Location: Vancouver, WA
Posts: 210

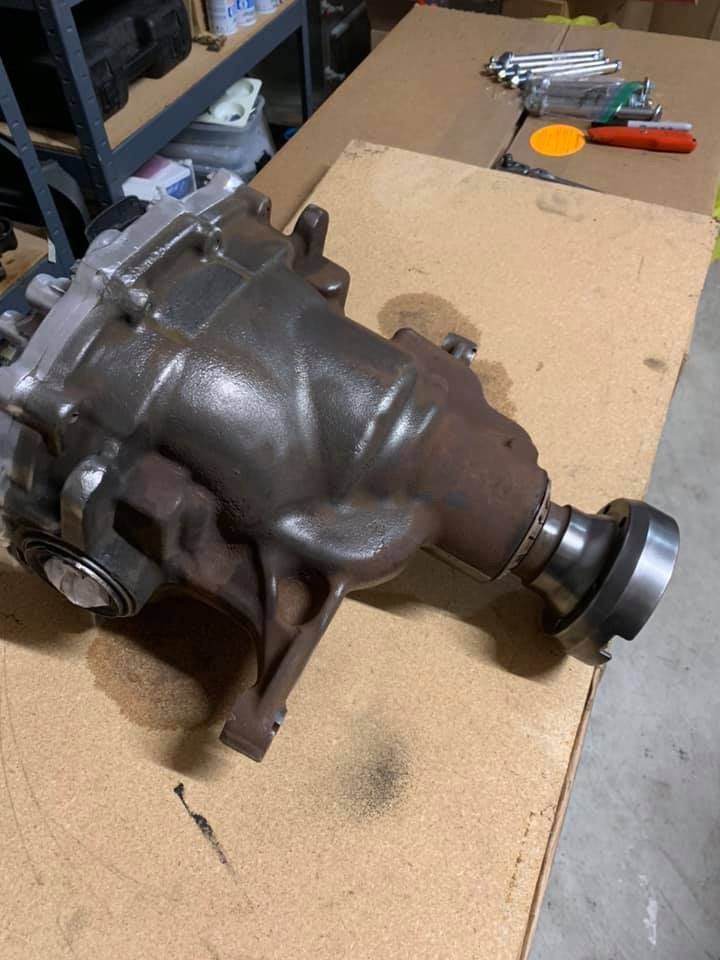

I believe the Rear Brakes will be Bolt-On ready, as I am using the Factory Spindle, Rotor, and Hub. So no issue in the Rear Calipers. The Fronts will be more of a Challenge, as I am planning on using a pair of SN95 Front Spindles and Hubs, and would like to use the Front 6-Piston Brembos that are the Performance Pack brakes along with the Front OE Rotors. I may have to come up with an adaptor plate for the Front Calipers.

Also, I see that Wilwoods are the favorite, and I like the separate E-brake Caliper, but that's not the direction I am going. What's the thoughts on a Hydraulic E-brake Valve? I see Breeze offers one, and that seems intriguing as an alternative. I think the Factory Brakes use an integrated e-brake on the rear rotors, and a Hydraulic Brake Valve would operate basically the same way.

Isaac Wilson
Vancouver, WA

Factory Five Roadster # 9513
2015 Mustang GT Performance Pack Donor
5.0L Coyote Engine (Gen2)
Tremec TKO500
2015 Mustang IRS
Wilwood Brakes
18" Halibrand w/BFG Rival S
LED Lights
IsaacW is offline
post #39 of 258 (permalink) Old 02-12-2019, 06:29 PM
Member

Join Date: Sep 2007
Location: South Lyon, MI
Posts: 42
Driveshaft

It may not be relevant if you decide to go with one of the aftermarket transmissions with the slip yoke tail housing but i will let you know my plan. I am using the 2015 IRS with a coyote and a GT500 TR6060 which has a fixed flange on the back similar to the MT82. Based on my initial fitment of the main driveline parts, it looks like I need about a 12.25" long drive shaft. My plan is to shorten the original S550 driveshaft and utilize the original CV joint that the factory uses to mate to the differential flange. This joint has a little more than an inch of total compression/ expansion travel which should be more than sufficient for installation and way more than is needed for operation.

So far I have disassembled the two piece drive shaft. I need to purchase the correct front flange to mate to the TR6060. That flange will accept the original size U-joint. At that point, all I need to do is cut it down and weld it back together at the new length. I have not fount any snags with the plan yet. It looks like 10" is about the shortest I could make this driveshaft combination with the CV joint length and the length of the front U-joint assembly. So it looks like I will only have about 2" of actual tube in the drive shaft.

I was lucky enough to find a used TR6060 for $1000 which I think is a steal. I like the idea of the double overdrive and have done some analysis on my ratios. I think it's a good combination for me.

Whatever route you choose, good luck.
IsaacW thanked this.
matthewb is offline
post #40 of 258 (permalink) Old 02-12-2019, 07:23 PM
Not a waxer

JKleiner's Avatar

Join Date: Apr 2002
Location: Bloomington, Indiana
Posts: 11,366
Quote:
Originally Posted by IsaacW View Post

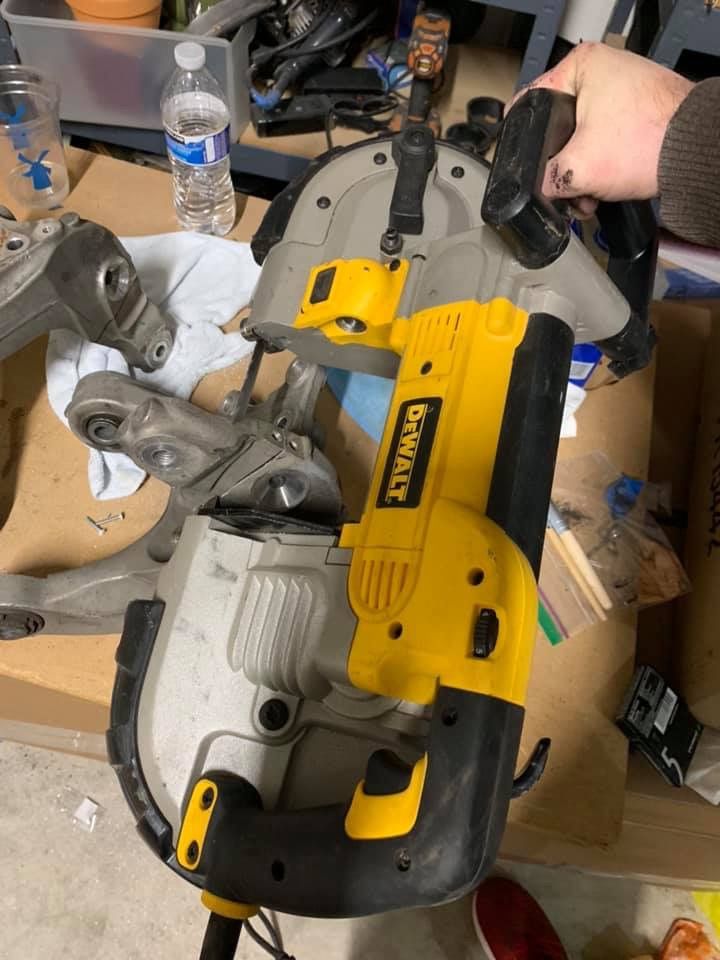

...I am planning on using a pair of SN95 Front Spindles and Hubs, and would like to use the Front 6-Piston Brembos that are the Performance Pack brakes along with the Front OE Rotors. I may have to come up with an adaptor plate for the Front Calipers...
I strongly advise you to reconsider and use the proprietary spindles from Factory Five. Much better geometry for steering axis, camber curve and bump steer. You're dumping a ton of cash into this build; don't shortcut here. If you intend to use the 6 piston PP calipers you'll have to do some fabrication for either the SN95 or FFR spindles.

Jeff


Mk3 #5946 build pics w/text

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Mk4 #7276 "indy14" Build thread

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Mk4 Bodywork thread

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
JKleiner is online now
post #41 of 258 (permalink) Old 02-12-2019, 07:28 PM
Senior Member
FFCars Captain

edwardb's Avatar

Join Date: Sep 2009
Location: Lake Orion, MI
Posts: 5,669
Quote:
Originally Posted by JKleiner View Post
I strongly advise you to reconsider and use the proprietary spindles from Factory Five. Much better geometry for steering axis, camber curve and bump steer. You're dumping a ton of cash into this build; don't shortcut here. If you intend to use the 6 piston PP calipers you'll have to do some fabrication for either the SN95 or FFR spindles.

Jeff
X2. Said the same thing in an earlier post. I've had and driven both. The difference is significant and I'm always a little disappointed to see builds that don't use the FF 2-piece spindles. There was a time that making the donor spindles work was the only option. No more. Find some savings somewhere and make it happen.

Build 1: Mk3 #5125. Sold 11/08/2014.
Build 2: Mk4 Roadster #7750. Sold 04/10/2017.
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Build 3: Mk4 Roadster 20th Anniversary #8674. 03 of 20. 2015 crate Coyote, 2015 IRS. Legal 04/18/2017.
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Build 4: Gen 3 Type 65 Coupe #59. Gen 3 crate Coyote. Delivered 12/2/2017.
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
edwardb is online now
post #42 of 258 (permalink) Old 02-12-2019, 07:37 PM
Senior Member
FFCars Captain

edwardb's Avatar

Join Date: Sep 2009
Location: Lake Orion, MI
Posts: 5,669
Quote:
Originally Posted by IsaacW View Post
Do you recall the spec on the Driveshaft I would use with the TKO600? Or is that something I am going to have to measure myself once the Engine is mounted? Im leaning TKO600, and I assume that a Tremec shop locally would have the correct bellhousing to mate the Coyote to the Tranny. I guess I'll find out when I visit the local Tremec shop.
My Coyote/TKO/IRS Mk4 Roadster build has a 10.625" 31 spline driveshaft from Factory Five. Fit perfectly. I assume you're aware the 2015+ IRS diff requires an adapter. Factory Five provides those as well.

Quote:
Originally Posted by IsaacW View Post
Also, I see that Wilwoods are the favorite, and I like the separate E-brake Caliper, but that's not the direction I am going. What's the thoughts on a Hydraulic E-brake Valve? I see Breeze offers one, and that seems intriguing as an alternative. I think the Factory Brakes use an integrated e-brake on the rear rotors, and a Hydraulic Brake Valve would operate basically the same way.
Whether you can go all hydraulic may/may not be a regulatory issue. Depends on your locality, technical requirements, inspection, etc. Calipers with an integral e-brake are typically mechanically actuated. So is the separate caliper on the Wilwood brakes.

Build 1: Mk3 #5125. Sold 11/08/2014.
Build 2: Mk4 Roadster #7750. Sold 04/10/2017.
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Build 3: Mk4 Roadster 20th Anniversary #8674. 03 of 20. 2015 crate Coyote, 2015 IRS. Legal 04/18/2017.
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Build 4: Gen 3 Type 65 Coupe #59. Gen 3 crate Coyote. Delivered 12/2/2017.
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Last edited by edwardb; 02-12-2019 at 11:33 PM.
edwardb is online now
post #43 of 258 (permalink) Old 02-12-2019, 08:06 PM Thread Starter
First Time Builder

IsaacW's Avatar

Join Date: Dec 2018
Location: Vancouver, WA
Posts: 210
I appreciate and respect the advice from the veterans, thank you for the input to date. Keep it coming.


Sent from my iPhone using Tapatalk

Isaac Wilson
Vancouver, WA

Factory Five Roadster # 9513
2015 Mustang GT Performance Pack Donor
5.0L Coyote Engine (Gen2)
Tremec TKO500
2015 Mustang IRS
Wilwood Brakes
18" Halibrand w/BFG Rival S
LED Lights
IsaacW is offline
post #44 of 258 (permalink) Old 02-12-2019, 08:10 PM Thread Starter
First Time Builder

IsaacW's Avatar

Join Date: Dec 2018
Location: Vancouver, WA
Posts: 210
Quote:
Originally Posted by edwardb View Post
My Coyote/TKO/IRS Mk4 Roadster build has a 10.625" 31 spline driveshaft from Factory Five. Fit perfectly. I assume you're aware the 2015+ IRS diff requires an adapter. Factory Five provides those as well.







Whether you can go all hydrualic may/may not be a regulatory issue. Depends on your locality, technical requirements, inspection, etc. Calipers with an integral e-brake are typically mechanically actuated. So is the separate caliper on the Wilwood brakes.


I have the Adaptor Plate in the garage right now, just waiting on wheels or brakes to be mounted before I install that.

On the Hydraulic E-brake, Iíll check with WA state on the regs for mech vs hydr. Better make a choice that will stay in Compliance. That aside, would you put hydraulic e-brakes on your Roadster?


Sent from my iPhone using Tapatalk

Isaac Wilson
Vancouver, WA

Factory Five Roadster # 9513
2015 Mustang GT Performance Pack Donor
5.0L Coyote Engine (Gen2)
Tremec TKO500
2015 Mustang IRS
Wilwood Brakes
18" Halibrand w/BFG Rival S
LED Lights
IsaacW is offline
post #45 of 258 (permalink) Old 02-13-2019, 12:14 AM Thread Starter
First Time Builder

IsaacW's Avatar

Join Date: Dec 2018
Location: Vancouver, WA
Posts: 210
So the engine is complete ... for now. The parts I am short will probably come in the kit; the parts to bypass the Coolant Tubes that normally go to the heater core, the intake hose to connect the Cold Air Intake to the Intake Manifold and the Oil Filter relocation parts. The engine will go under the sheet until the kit and/or the transmission get here.






Sent from my iPhone using Tapatalk

Isaac Wilson
Vancouver, WA

Factory Five Roadster # 9513
2015 Mustang GT Performance Pack Donor
5.0L Coyote Engine (Gen2)
Tremec TKO500
2015 Mustang IRS
Wilwood Brakes
18" Halibrand w/BFG Rival S
LED Lights
IsaacW is offline
post #46 of 258 (permalink) Old 02-13-2019, 12:17 AM Thread Starter
First Time Builder

IsaacW's Avatar

Join Date: Dec 2018
Location: Vancouver, WA
Posts: 210
Opting to go with Stewart Transportation was a wise choice. They have communicated at each step; when the car was picked up from the Factory, when the car was about 3 days out (in the Midwest), when Warren was in Walla Walla about 1 day out to discuss proposed time of arrival. Then, day of arrival, with excitement building, I get the call that he is about 35 minutes out. Right on schedule. Good thing I have the flexibility to leave whenever I need to....




Sent from my iPhone using Tapatalk

Isaac Wilson
Vancouver, WA

Factory Five Roadster # 9513
2015 Mustang GT Performance Pack Donor
5.0L Coyote Engine (Gen2)
Tremec TKO500
2015 Mustang IRS
Wilwood Brakes
18" Halibrand w/BFG Rival S
LED Lights
IsaacW is offline
post #47 of 258 (permalink) Old 02-13-2019, 12:25 AM Thread Starter
First Time Builder

IsaacW's Avatar

Join Date: Dec 2018
Location: Vancouver, WA
Posts: 210

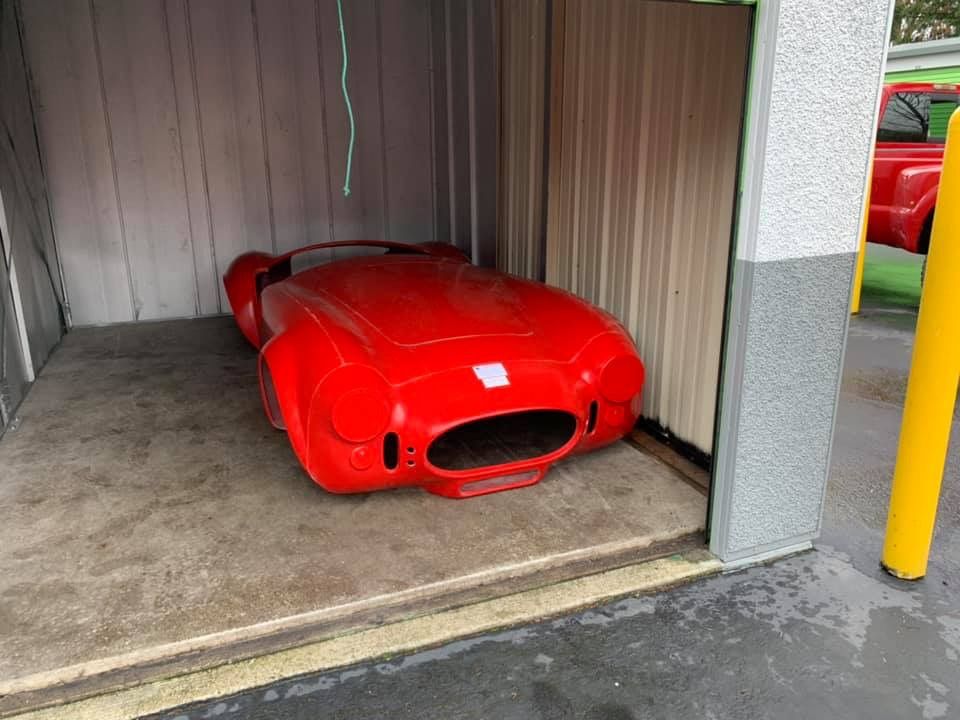

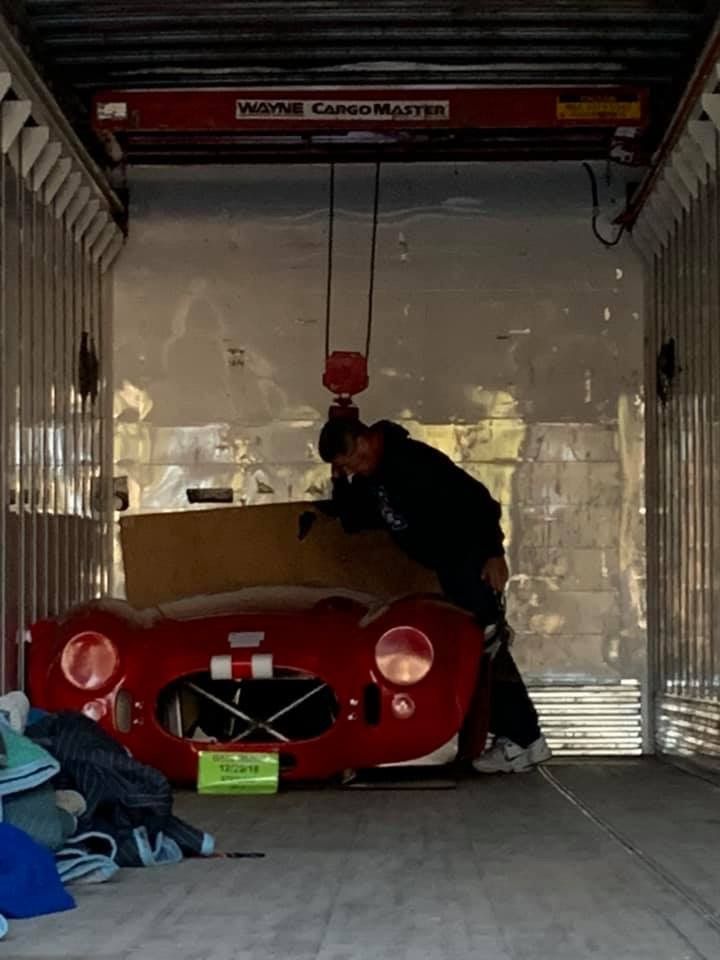

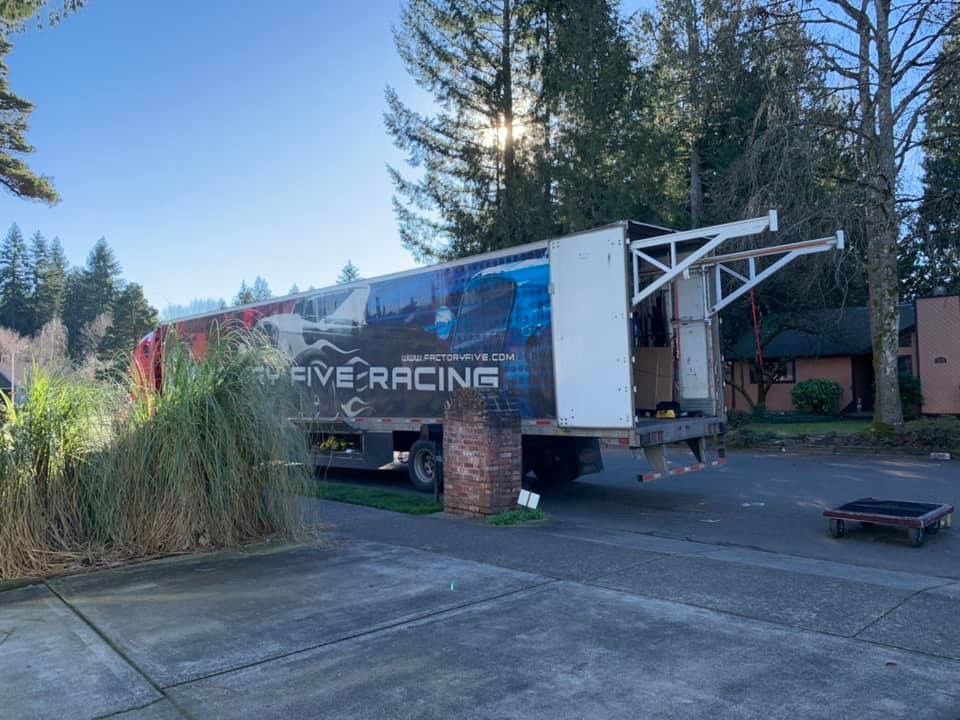

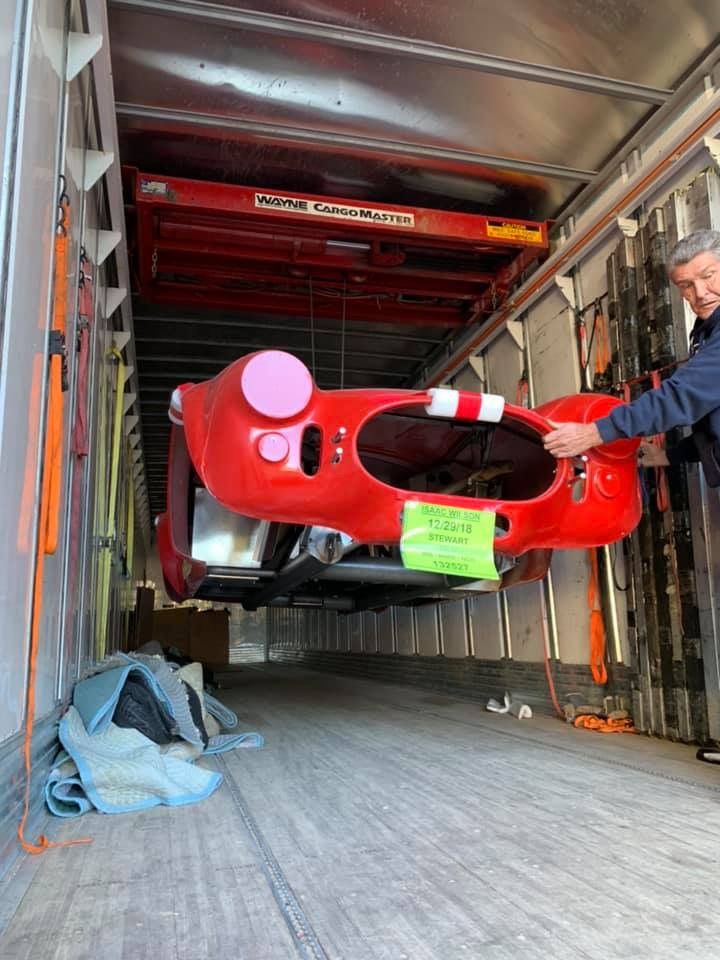

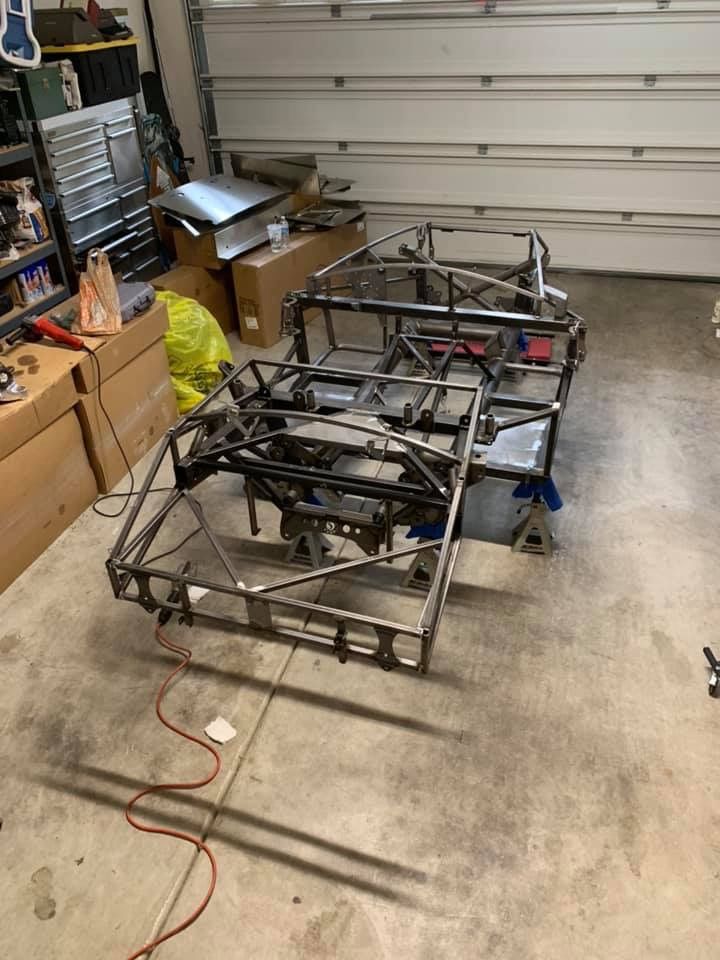

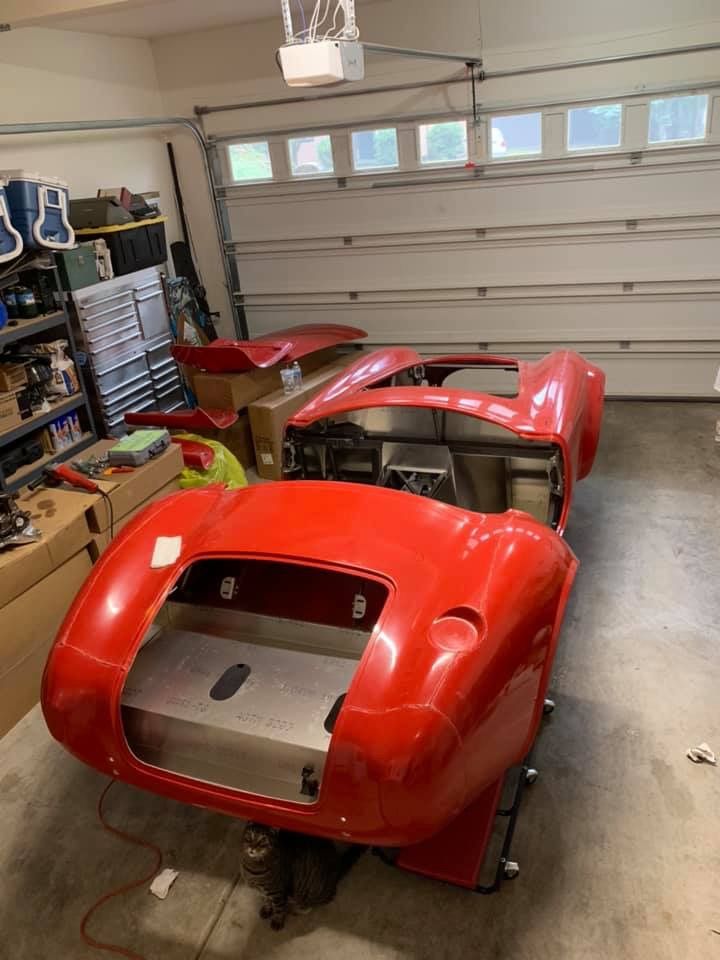

Delivery Day! Smooth offload of 17 boxes, 4 rims and a frame with body mounted! Warren was smooth and professional, and offloaded in no time. He took great care to make sure everything was done carefully and completely. Excited to unpack! Too many exclamation points? This is like Christmas, except you have to unpack 17 boxes and double-check all the contents.......

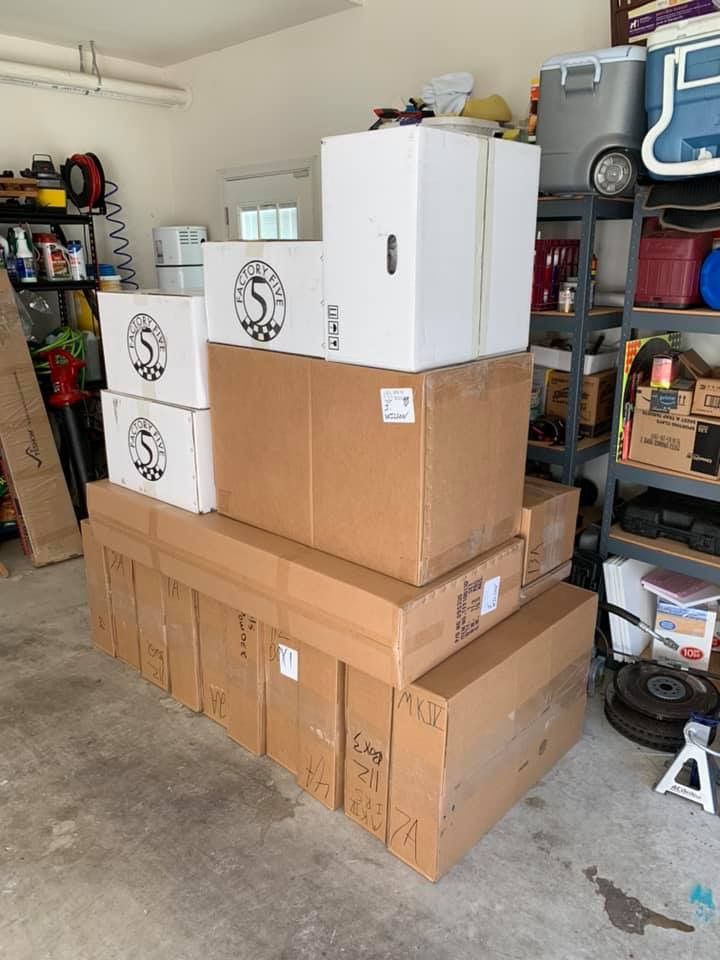

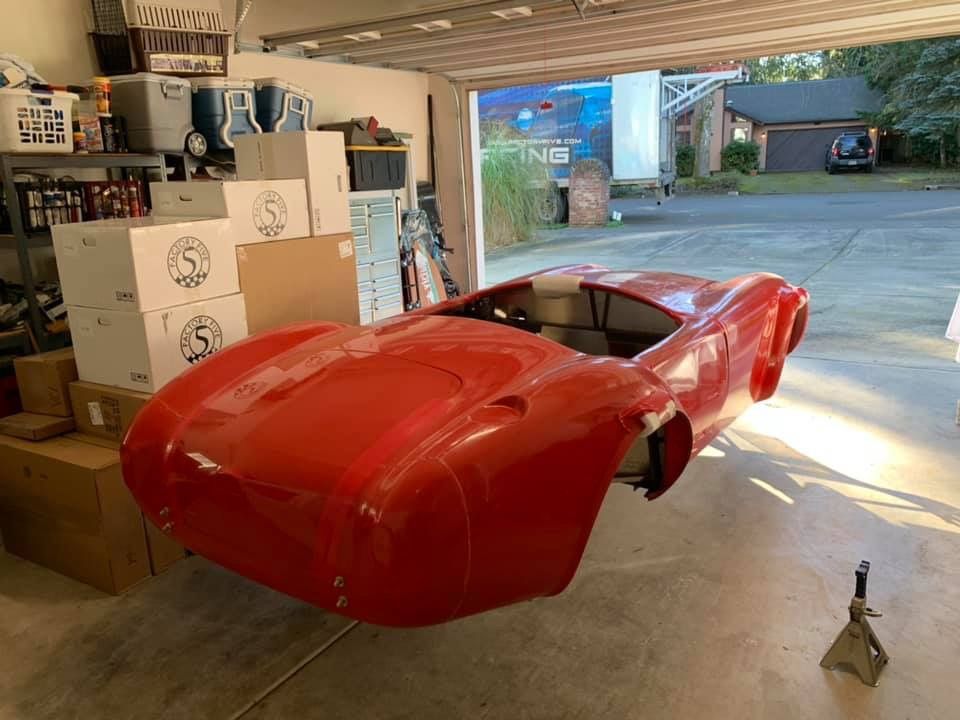

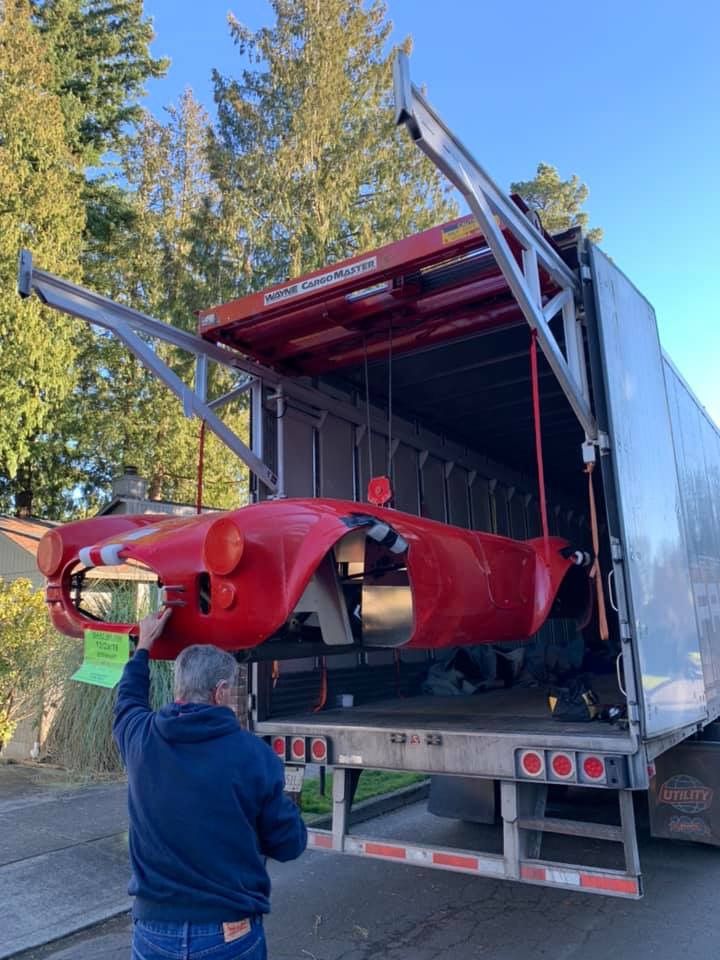

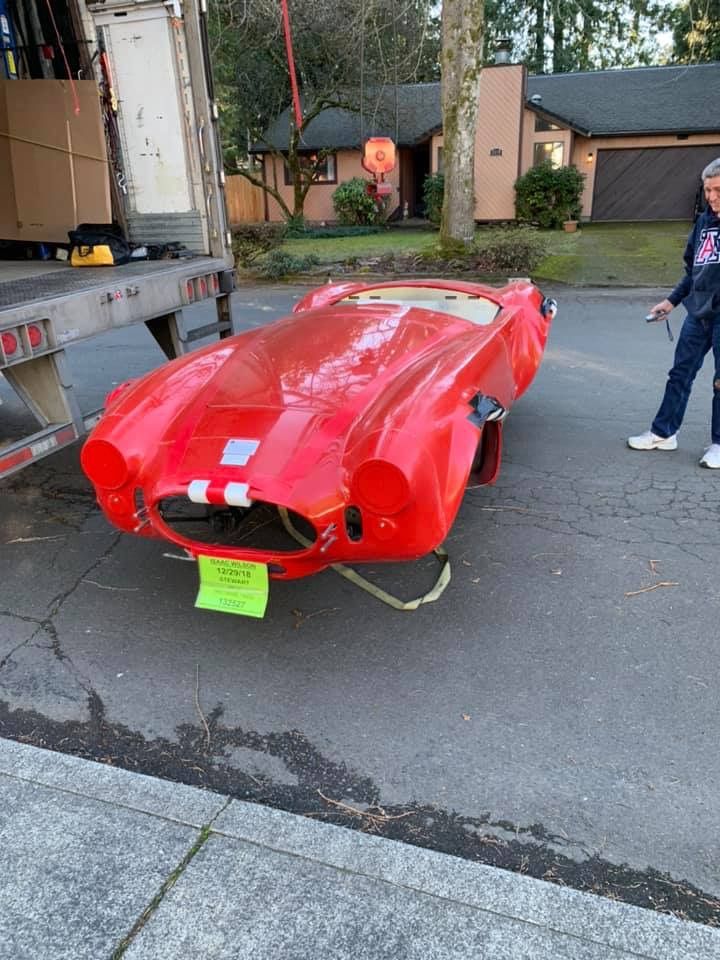

Pictures of the offload and the kit sitting safely in the garage. It was a nice day, thank God.




















Sent from my iPhone using Tapatalk

Isaac Wilson
Vancouver, WA

Factory Five Roadster # 9513
2015 Mustang GT Performance Pack Donor
5.0L Coyote Engine (Gen2)
Tremec TKO500
2015 Mustang IRS
Wilwood Brakes
18" Halibrand w/BFG Rival S
LED Lights
IsaacW is offline
post #48 of 258 (permalink) Old 02-13-2019, 12:34 AM Thread Starter
First Time Builder

IsaacW's Avatar

Join Date: Dec 2018
Location: Vancouver, WA
Posts: 210

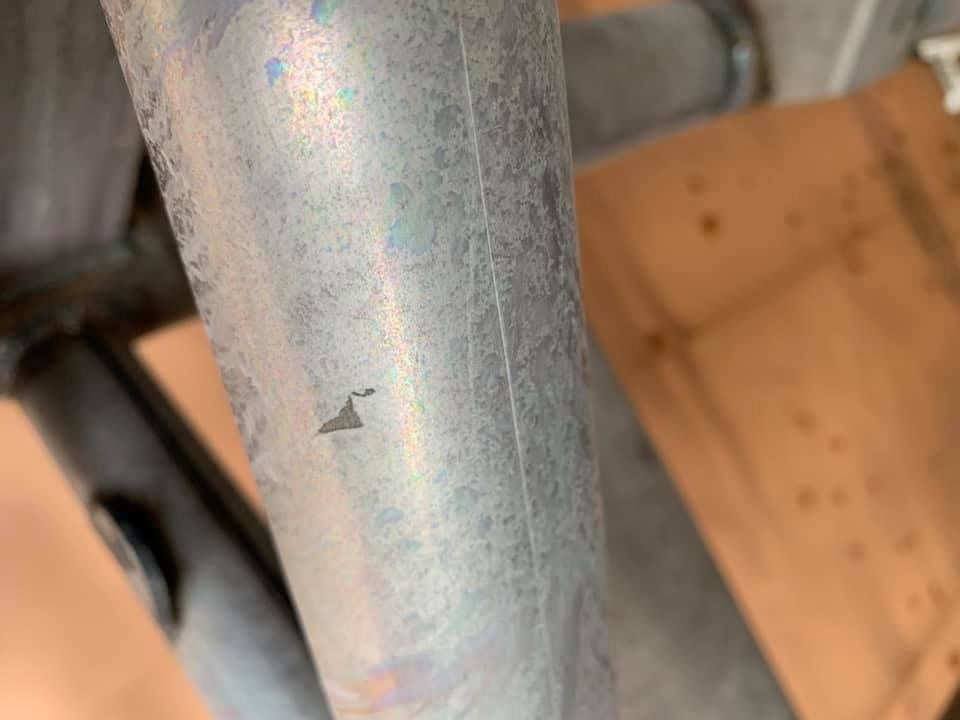

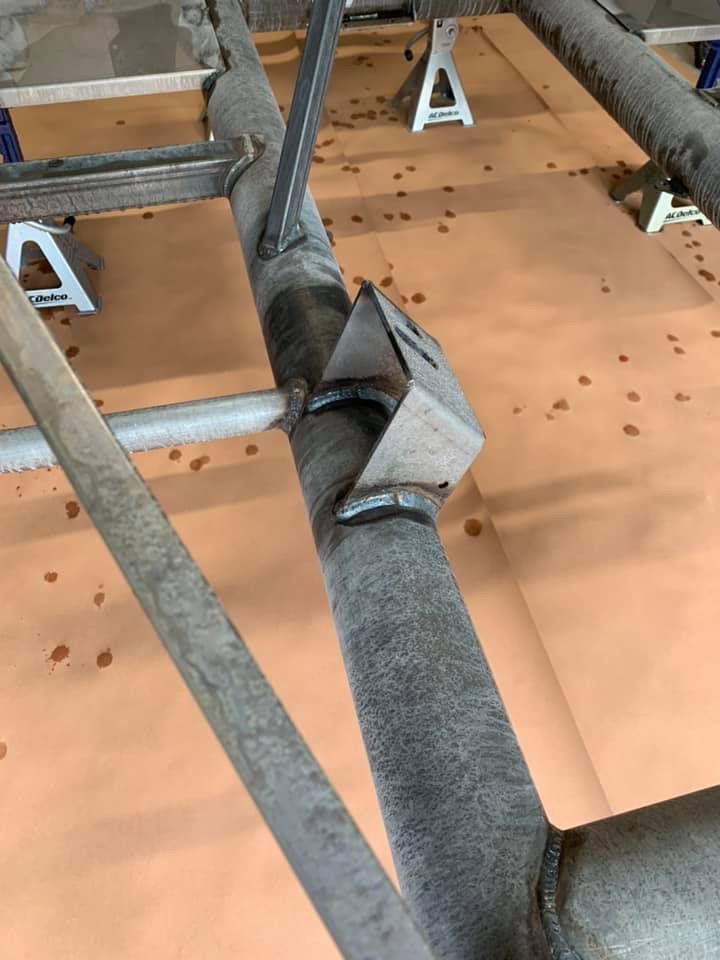

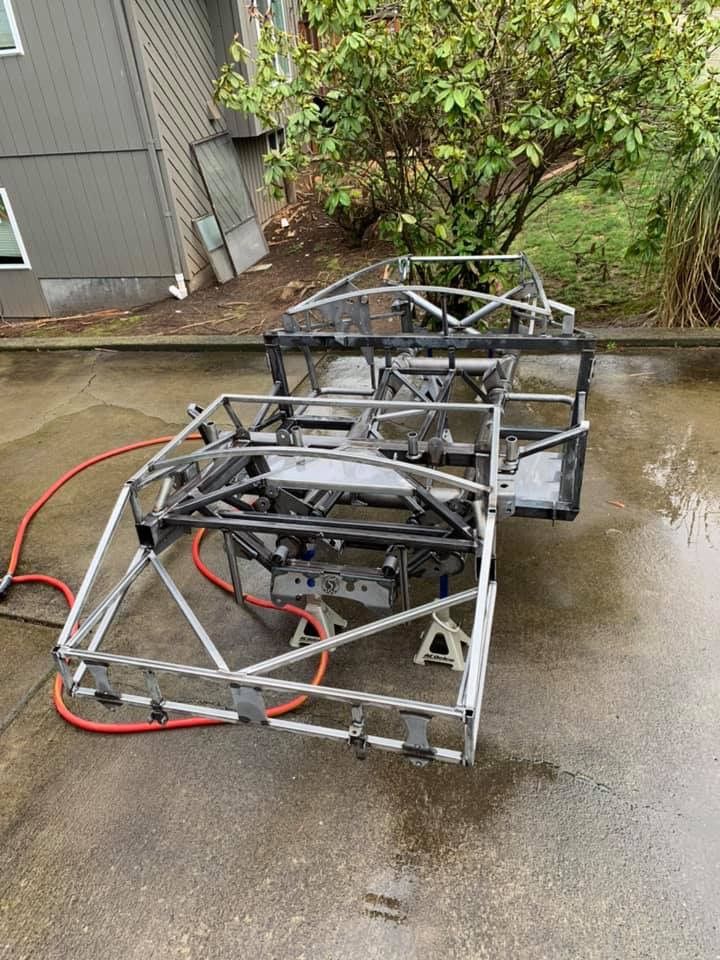

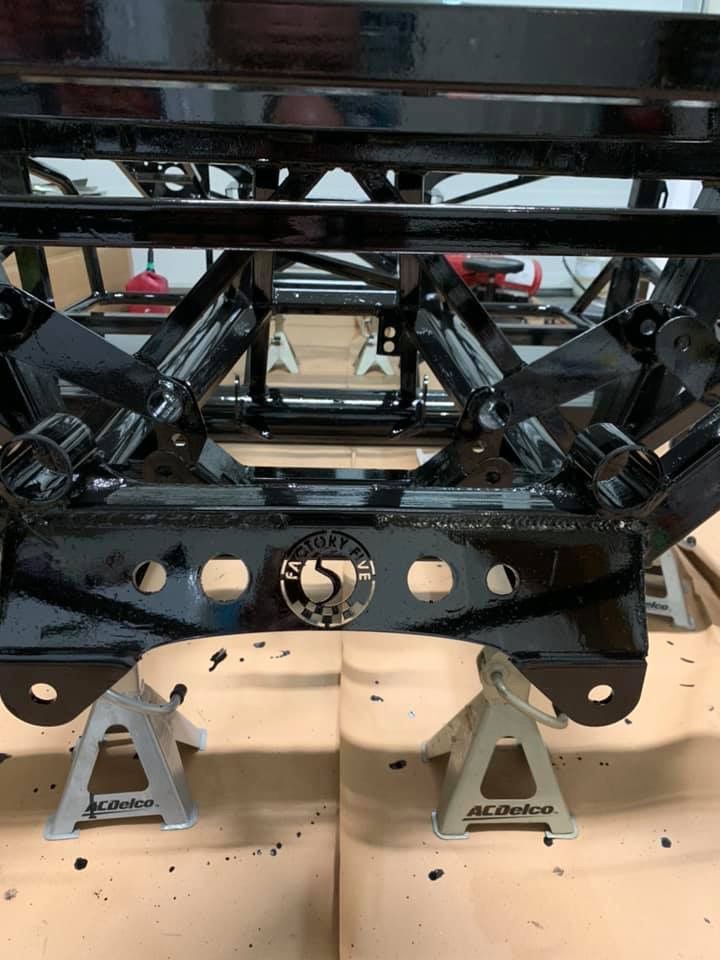

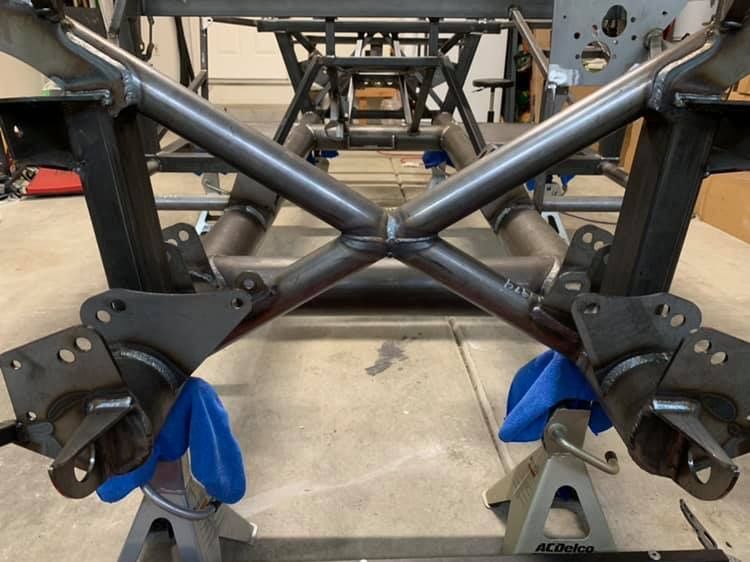

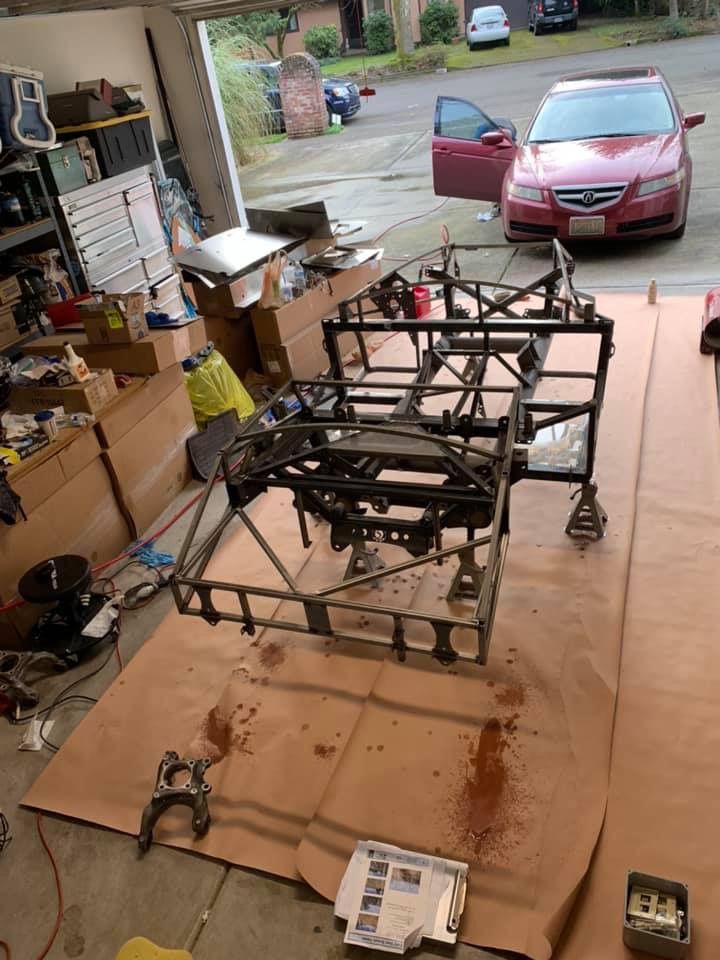

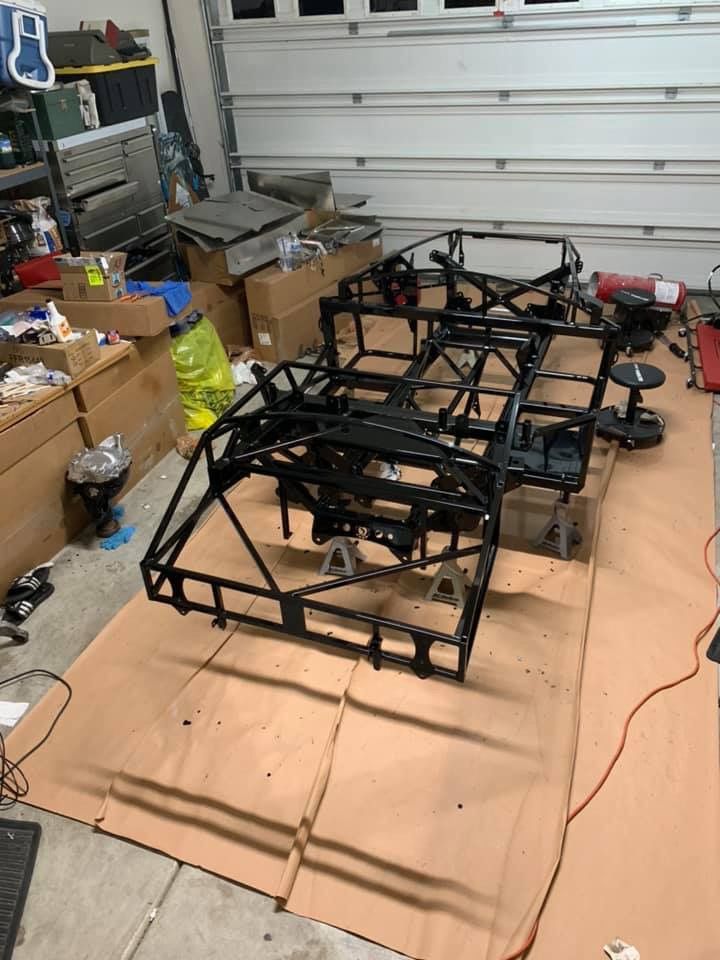

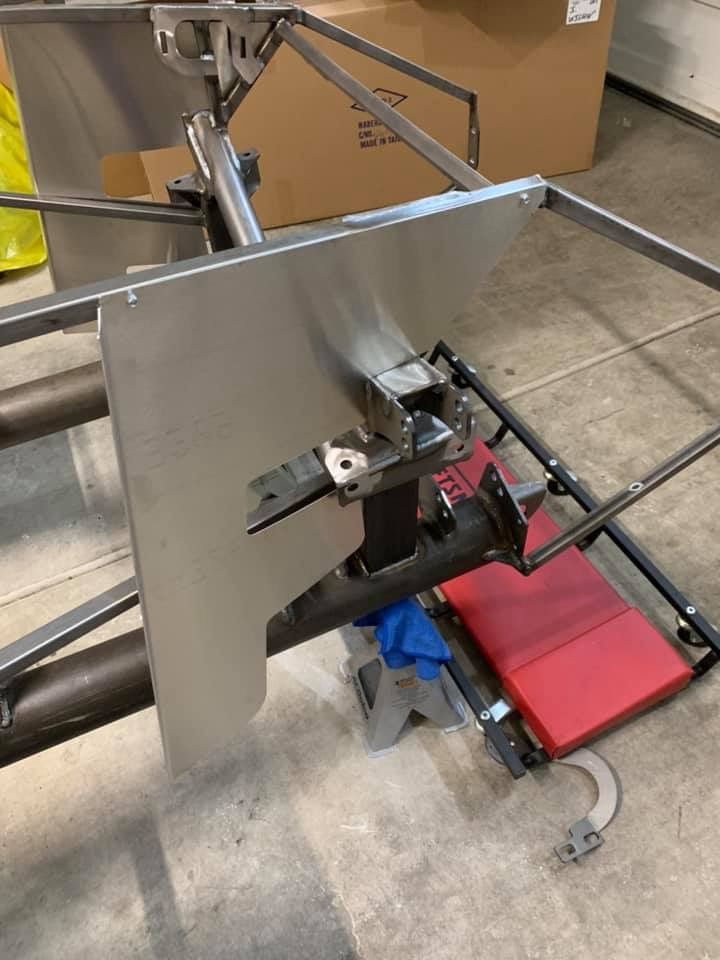

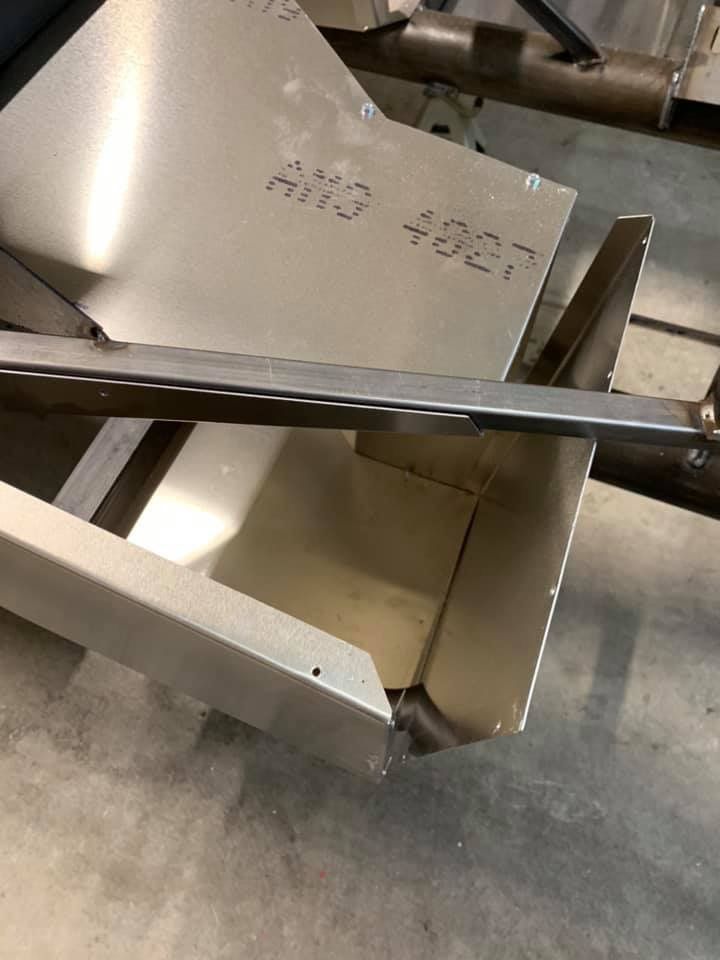

When I ordered the kit, I opted for the non-powder-coated frame, and in retrospect I might change that decision. I donít want an unprotected frame rusting in the elements (even though this is a Ďsunny days onlyí car. Instead of powder-coating, I am cleaning and treating the frame and then using POR-15 rust-proof paint to protect the frame and blend it with the black undercoat I will be using on the underside of the body. For practice, I am going to start on the Rear Differential. Pulling it out of a Mustang with miles on it has left a patina of rust and some grease on the Diff, and so I cleaned it with some Industrial Cleaner and used the wire wheel on the angle grinder to remove the surface rust. No matter how POR-15 claims you can paint right over rust, I am still removing everything I can. Following wire wheel, I dust the Differential off, and tape off the parts I wonít be painting. Due to the temperature being lower than recommended range, I am leaving the paint to cure for longer than the recommended time. Then I will remove the masking tape and hit the rear cover with the wire wheel before spraying the whole thing with clear Engine Paint by Dupli-Color. I will say, POR-15 is very thin, and a little goes a long way. The paint itself is a beautiful thing, almost self-leveling.... it covers a multitude of brushing sins. Just donít skimp on the prep. I am using less than half of a 4-ounce can for 2 coats on the whole differential.













Sent from my iPhone using Tapatalk

Isaac Wilson
Vancouver, WA

Factory Five Roadster # 9513
2015 Mustang GT Performance Pack Donor
5.0L Coyote Engine (Gen2)
Tremec TKO500
2015 Mustang IRS
Wilwood Brakes
18" Halibrand w/BFG Rival S
LED Lights
IsaacW is offline
post #49 of 258 (permalink) Old 02-13-2019, 12:36 AM Thread Starter
First Time Builder

IsaacW's Avatar

Join Date: Dec 2018
Location: Vancouver, WA
Posts: 210
2015 Donor Mk4 Roadster w/IRS, First Build - Input Welcome, Many Questions.

Did I mention what a great workbench you can make out of two stacked pieces of plywood on top of 3 boxes on edge? :-)


Sent from my iPhone using Tapatalk

Isaac Wilson
Vancouver, WA

Factory Five Roadster # 9513
2015 Mustang GT Performance Pack Donor
5.0L Coyote Engine (Gen2)
Tremec TKO500
2015 Mustang IRS
Wilwood Brakes
18" Halibrand w/BFG Rival S
LED Lights
IsaacW is offline
post #50 of 258 (permalink) Old 02-13-2019, 02:08 AM
Member

Join Date: Sep 2007
Location: South Lyon, MI
Posts: 42
I just looked back at one of the previous posts and saw that you got the performance pack donor car with the Torsen and 3.73. I found a GT350 rear suspension for my donor parts that also has the torsen and 3.73 but I opted to relocate the guts into an aluminum case. I was able to pick up a 3.15 ratio aluminum differential from the junk yard for $150 and swapped the internals. Obviously there is some time investment, but I didn't think the $150 was too bad for a 21 lbs weight save. I know some might say the aluminum case has risk of breaking but I think in such a light car, if I don't go around dumping the clutch all of the time, the risk of breaking the mounting ears is low.

I also have a chance still to sell the cast iron 3.15 and make some money back. Although, I don't think it's a very desirable ratio for someone to swap to.
matthewb is offline
post #51 of 258 (permalink) Old 02-13-2019, 03:57 AM
Senior Member
FFCars Captain

edwardb's Avatar

Join Date: Sep 2009
Location: Lake Orion, MI
Posts: 5,669
Quote:
Originally Posted by IsaacW View Post
...the Oil Filter relocation parts...
Unless you're doing something unusual, a Coyote fits in the Roadster frame without an oil filter relocation setup. It's just something else to leak and adds unneeded complexity. Numerous choices for oil filters that fit into the available space. I'm assuming you removed the OE oil cooler from the block. It's not needed either and won't fit anyway.

Build 1: Mk3 #5125. Sold 11/08/2014.
Build 2: Mk4 Roadster #7750. Sold 04/10/2017.
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Build 3: Mk4 Roadster 20th Anniversary #8674. 03 of 20. 2015 crate Coyote, 2015 IRS. Legal 04/18/2017.
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Build 4: Gen 3 Type 65 Coupe #59. Gen 3 crate Coyote. Delivered 12/2/2017.
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Last edited by edwardb; 02-13-2019 at 10:44 AM.
edwardb is online now
post #52 of 258 (permalink) Old 02-13-2019, 04:58 AM Thread Starter
First Time Builder

IsaacW's Avatar

Join Date: Dec 2018
Location: Vancouver, WA
Posts: 210
Reading the manual I see the first build steps are actually disassembly. First you have to remove the Body. Reading the forums, many people build a body buck for storage of the body while they are building, usually on-site. Since I have a small two-car garage, the only storage direction for me would be up, above the frame. I donít really like that idea, just because of the possible repercussions if it should happen to fall. No, Iím more comfortable with it on a buck or on the ground. I take the body off with the help of my wife and two younger kids, and we load it onto the bed of my pickup. F450 pickups have large long beds. We put the body in a storage unit, safe and sound until Iím ready for it.
















Sent from my iPhone using Tapatalk

Isaac Wilson
Vancouver, WA

Factory Five Roadster # 9513
2015 Mustang GT Performance Pack Donor
5.0L Coyote Engine (Gen2)
Tremec TKO500
2015 Mustang IRS
Wilwood Brakes
18" Halibrand w/BFG Rival S
LED Lights
IsaacW is offline
post #53 of 258 (permalink) Old 02-13-2019, 05:07 AM Thread Starter
First Time Builder

IsaacW's Avatar

Join Date: Dec 2018
Location: Vancouver, WA
Posts: 210
2015 Donor Mk4 Roadster w/IRS, First Build - Input Welcome, Many Questions.

Quote:
Originally Posted by edwardb View Post
Unless you're doing something unusual, a Coyote fits in the Roadster frame without an oil filter relocation setup. It's just something else to leak and adds unneeded complexity. Numerous choices for oil filters that fit into the available space. I'm assuming you removed the OI oil cooler from the block. It's not needed either and won't fit anyway.


I did remove the old oil cooler. It was too bent to use, dirty, and useless, so I already took it off. I havenít made up my mind on the final solution, and I donít feel the pressure to make up my mind yet, as it will be a little while before the Coyote goes in.


Sent from my iPhone using Tapatalk

Isaac Wilson
Vancouver, WA

Factory Five Roadster # 9513
2015 Mustang GT Performance Pack Donor
5.0L Coyote Engine (Gen2)
Tremec TKO500
2015 Mustang IRS
Wilwood Brakes
18" Halibrand w/BFG Rival S
LED Lights
IsaacW is offline
post #54 of 258 (permalink) Old 02-13-2019, 05:34 AM Thread Starter
First Time Builder

IsaacW's Avatar

Join Date: Dec 2018
Location: Vancouver, WA
Posts: 210

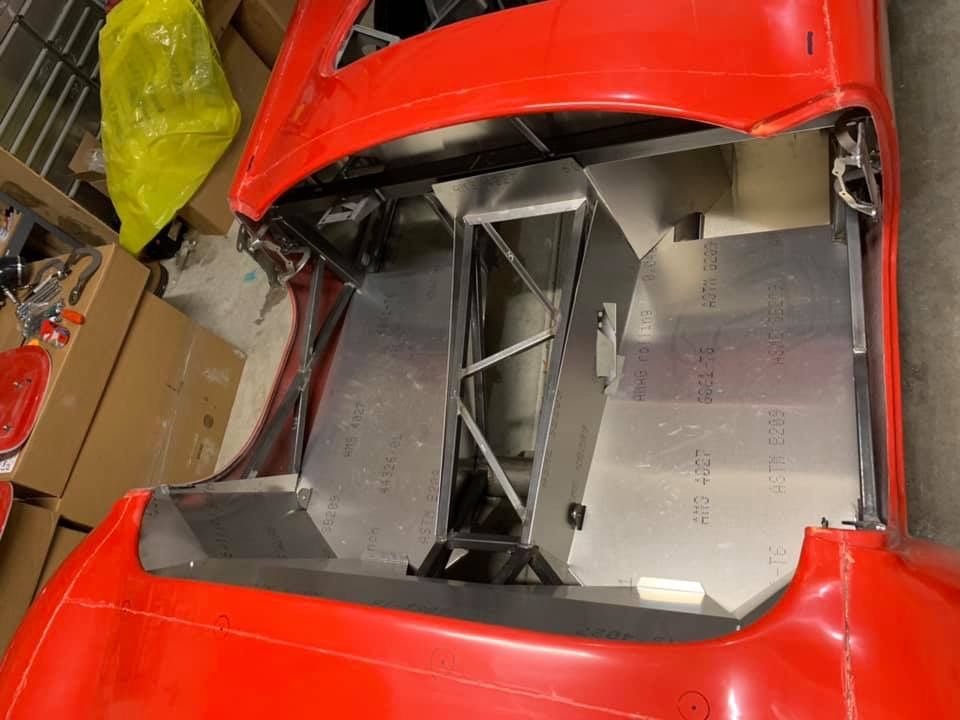

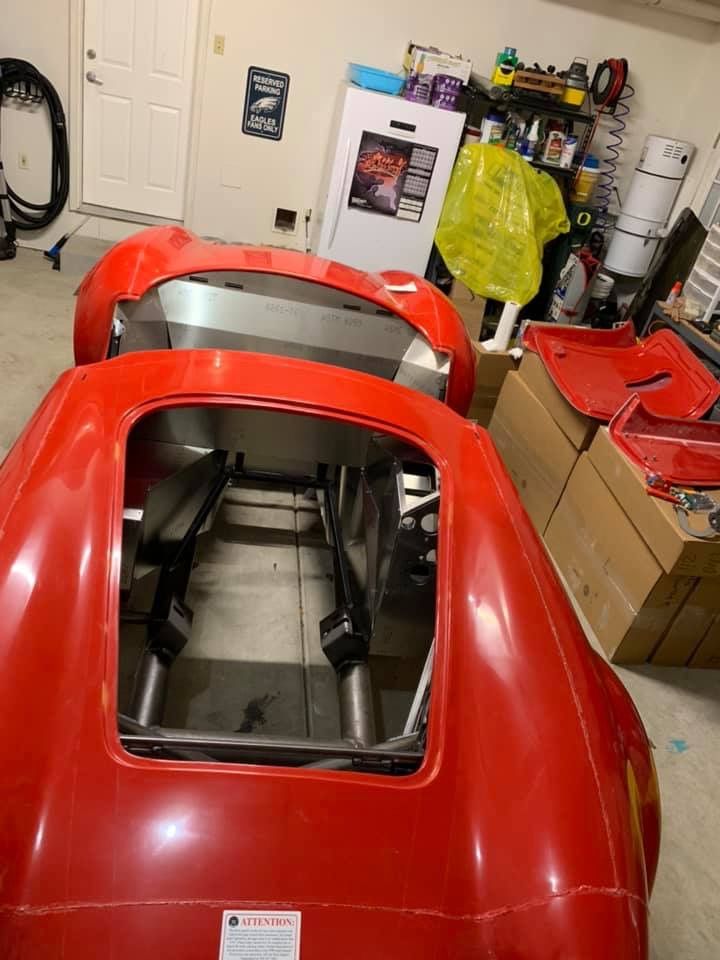

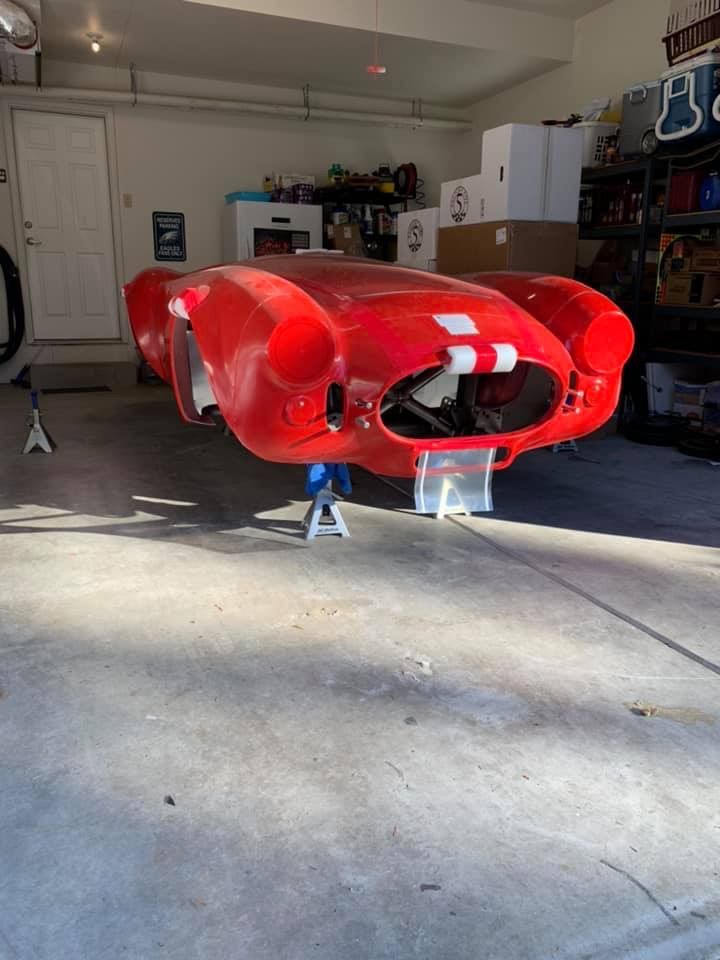

Following removal of the body, there are quite a few aluminum body panels that are mounted to the body and each other by 1/4Ē hex head self-tapping screws, approximately two per edge. These are the aluminum panels that are too large or inefficient to ship separately from the frame. Time to take these off and get down to the body, so that I can prep for body paint.












Sent from my iPhone using Tapatalk

Isaac Wilson
Vancouver, WA

Factory Five Roadster # 9513
2015 Mustang GT Performance Pack Donor
5.0L Coyote Engine (Gen2)
Tremec TKO500
2015 Mustang IRS
Wilwood Brakes
18" Halibrand w/BFG Rival S
LED Lights
IsaacW is offline
post #55 of 258 (permalink) Old 02-13-2019, 05:51 AM Thread Starter
First Time Builder

IsaacW's Avatar

Join Date: Dec 2018
Location: Vancouver, WA
Posts: 210

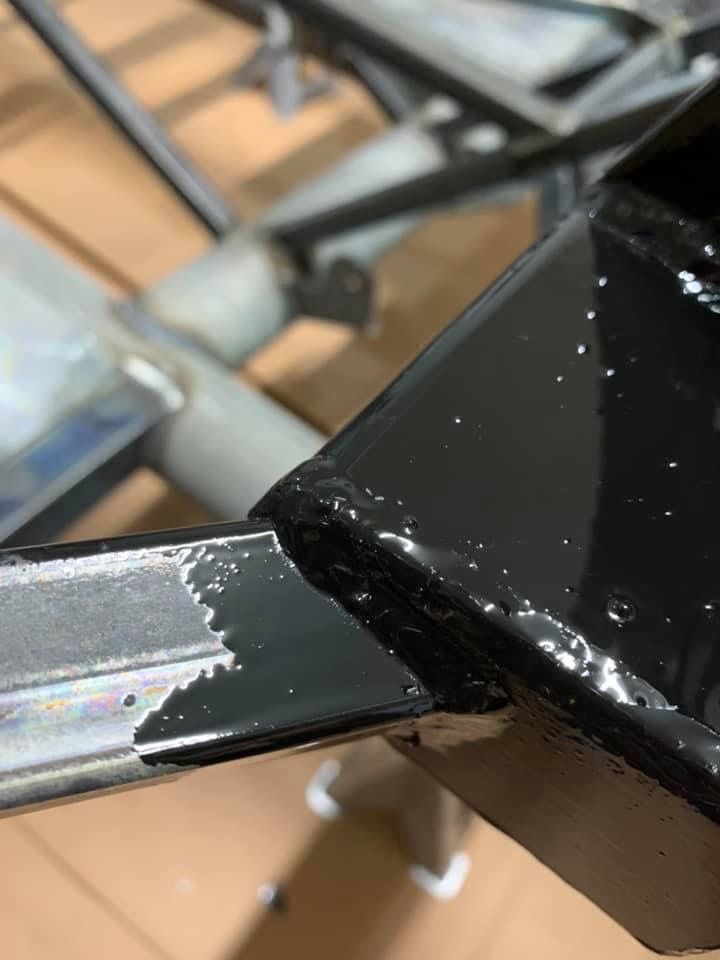

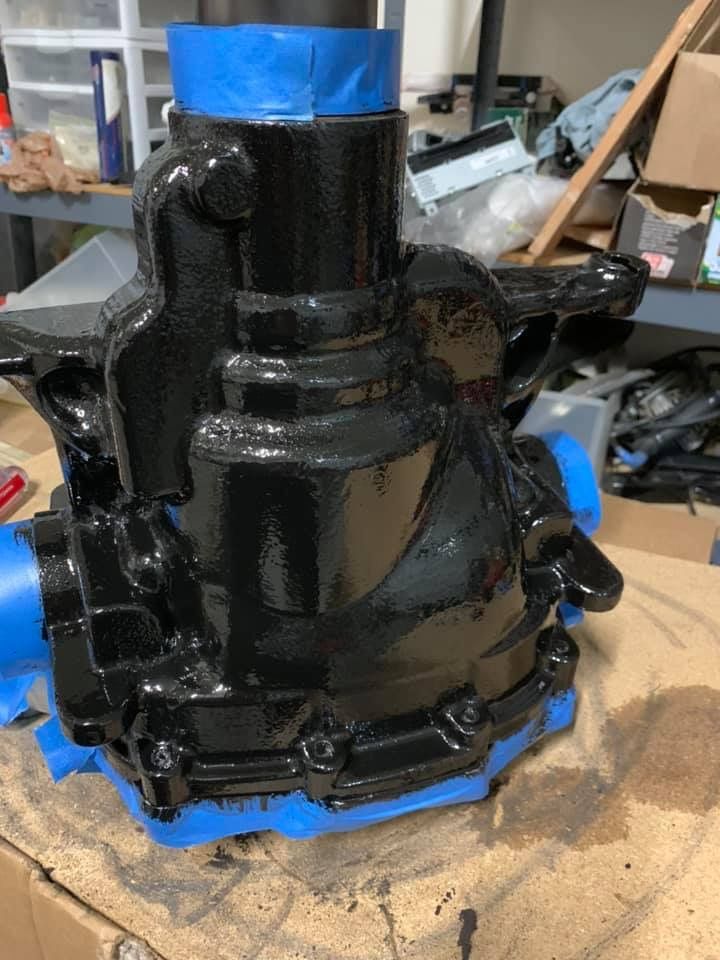

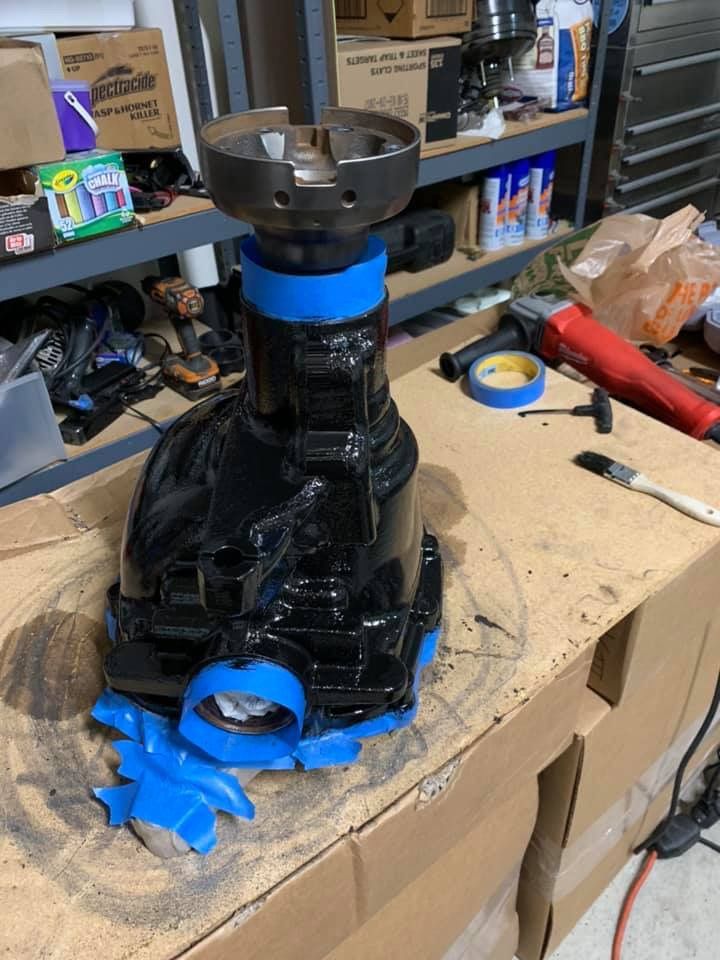

The frame painting process is a 3-step process starting with Industrial-strength cleaner, then spraying on Metal Prep Treatment, and then painting POR-15 Gloss Black rust preventative coating on the frame. Iím sure some will disagree with this choice, but with the care that has to be taken with powder-coated paint on metal, I feel POR-15 will be tougher and thicker with less vulnerability to chipping or cracking, if done right. Time will tell.
This is where having a family comes in handy. My three children (22,18, and 16) and I are able to move the frame out to the driveway where we put it up on jack stands. After strategically placing the jack stands to minimize the area the jack stands would interfere with the treatment, we rinse the frame down. The temperature outside was about 40 degrees at 3PM, with overcast and no sun, typical Northwest weather in the middle of the winter doldrums. The industrial cleaner takes 3 spray bottles-worth of water/cleaner mix to completely wash the frame down, and I used the whole bottle of Metal Prep rather quickly. I should have had another bottle of it, but I am able to coat the whole frame with the Metal Prep and keep it relatively wet for about 20 minutes. Follow that up with a rinse, and we put some gloves on and move the frame back into the garage to dry off. The Metal Prep chemical is some nasty stuff, and you donít want to get it on your hands or in your eyes. Using my freestanding propane jet heater, the frame dried off in less than an hour. By now itís 7 PM, and with the recommendation of the POR-15 folks to have the frame bone-dry when you paint it, I decide to wait for tomorrow to start painting. Tough decision, as the suspension is calling my name and Iím itching to get moving on it. The darker pictures are before the cleaning and coating and you can see in the later pictures that the coating looks like a white stain.












Sent from my iPhone using Tapatalk

Isaac Wilson
Vancouver, WA

Factory Five Roadster # 9513
2015 Mustang GT Performance Pack Donor
5.0L Coyote Engine (Gen2)
Tremec TKO500
2015 Mustang IRS
Wilwood Brakes
18" Halibrand w/BFG Rival S
LED Lights
IsaacW is offline
post #56 of 258 (permalink) Old 02-13-2019, 06:04 AM Thread Starter
First Time Builder

IsaacW's Avatar

Join Date: Dec 2018
Location: Vancouver, WA
Posts: 210
2015 Donor Mk4 Roadster w/IRS, First Build - Input Welcome, Many Questions.

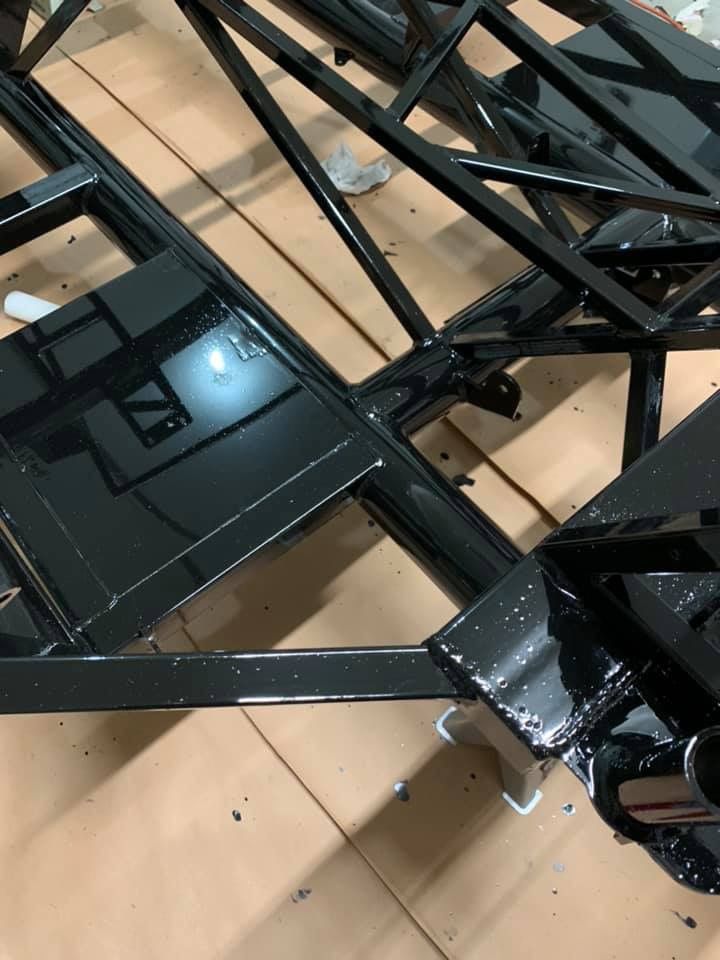

The first coat took about 8 hours, and Iím not sure if I was being too careful or if Iím getting slower. POR-15 is a great paint, and it coats very well when the surface is prepped properly. I didnít have quite enough metal prep to keep the metal wet for a full 1/2 hour per the instructions, but the coating came out just fine. After letting it dry in the garage and turning the floor jet heater on a few times, it was plenty dry and warm to put the first coat on. After the first coat, life circumstances dictated that I let the first coat cure. So this Saturday my daughter and I scuff the first coat per the directions, and then give it a second coat. This is where the uncertainty about my efficiency comes in. By myself it took me 8 hours, and I missed a few spots. With my daughter the second coat took about 3 and a half hours and it didnít seem that she was moving faster than me. Regardless, the second coat is finished and I feel good about the coating. I am not sure about the efficiency of my choice, if it was just made on efficiency alone, I think the powder coating would have been a deal at $495. It would be hard to pay me to paint a frame for someone else for that price. My inexperienced opinion is that this coating will be better long-term, but only time will tell how happy I am with it.

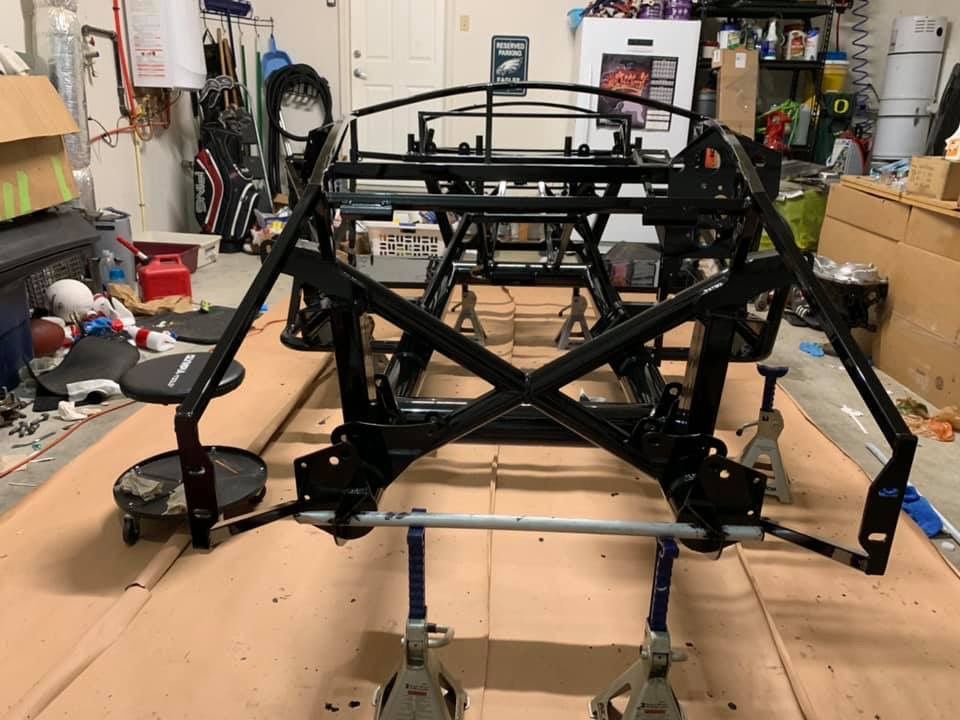

Note the jack stand locations I chose to support the frame while painting it. The 2x3 frame member penetrates the 4Ē frame tube at the rear end of the tube and exits out the bottom, which creates an straight edge that minimizes the surface area the jack stand interferes with. Using a piece of pipe crossways through the front frame ear holes means the only surface area interferes with are the top insides of the two frame ear holes. Iíll catch these two tiny areas later when the build achieves ĎRollerí status.












Sent from my iPhone using Tapatalk

Isaac Wilson
Vancouver, WA

Factory Five Roadster # 9513
2015 Mustang GT Performance Pack Donor
5.0L Coyote Engine (Gen2)
Tremec TKO500
2015 Mustang IRS
Wilwood Brakes
18" Halibrand w/BFG Rival S
LED Lights

Last edited by IsaacW; 02-13-2019 at 06:25 AM.
IsaacW is offline
post #57 of 258 (permalink) Old 02-13-2019, 06:18 AM Thread Starter
First Time Builder

IsaacW's Avatar

Join Date: Dec 2018
Location: Vancouver, WA
Posts: 210
Quote:
Originally Posted by edwardb View Post
Unless you're doing something unusual, a Coyote fits in the Roadster frame without an oil filter relocation setup. It's just something else to leak and adds unneeded complexity. Numerous choices for oil filters that fit into the available space. I'm assuming you removed the OI oil cooler from the block. It's not needed either and won't fit anyway.


Edward... no ill effects from eliminating the oil cooling? Did I read that you installed an oil temp gauge in your build, or was that another builder? How does the oil run temp-wise without the additional cooling?


Sent from my iPhone using Tapatalk

Isaac Wilson
Vancouver, WA

Factory Five Roadster # 9513
2015 Mustang GT Performance Pack Donor
5.0L Coyote Engine (Gen2)
Tremec TKO500
2015 Mustang IRS
Wilwood Brakes
18" Halibrand w/BFG Rival S
LED Lights
IsaacW is offline
post #58 of 258 (permalink) Old 02-13-2019, 06:21 AM Thread Starter
First Time Builder

IsaacW's Avatar

Join Date: Dec 2018
Location: Vancouver, WA
Posts: 210
Quote:
Originally Posted by matthewb View Post
I just looked back at one of the previous posts and saw that you got the performance pack donor car with the Torsen and 3.73. I found a GT350 rear suspension for my donor parts that also has the torsen and 3.73 but I opted to relocate the guts into an aluminum case. I was able to pick up a 3.15 ratio aluminum differential from the junk yard for $150 and swapped the internals. Obviously there is some time investment, but I didn't think the $150 was too bad for a 21 lbs weight save. I know some might say the aluminum case has risk of breaking but I think in such a light car, if I don't go around dumping the clutch all of the time, the risk of breaking the mounting ears is low.



I also have a chance still to sell the cast iron 3.15 and make some money back. Although, I don't think it's a very desirable ratio for someone to swap to.


Matthew, did the Gear ratio impact your choice of transmission? Iím still in the decision phase with the tranny.


Sent from my iPhone using Tapatalk

Isaac Wilson
Vancouver, WA

Factory Five Roadster # 9513
2015 Mustang GT Performance Pack Donor
5.0L Coyote Engine (Gen2)
Tremec TKO500
2015 Mustang IRS
Wilwood Brakes
18" Halibrand w/BFG Rival S
LED Lights
IsaacW is offline
post #59 of 258 (permalink) Old 02-13-2019, 07:06 AM Thread Starter
First Time Builder

IsaacW's Avatar

Join Date: Dec 2018
Location: Vancouver, WA
Posts: 210
2015 Donor Mk4 Roadster w/IRS, First Build - Input Welcome, Many Questions.

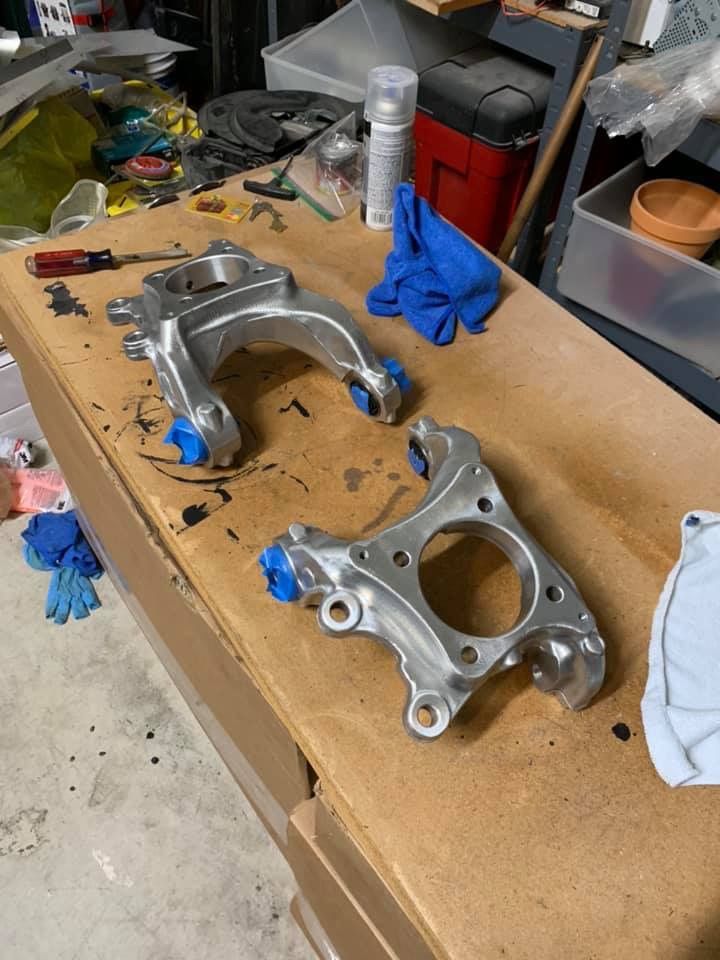

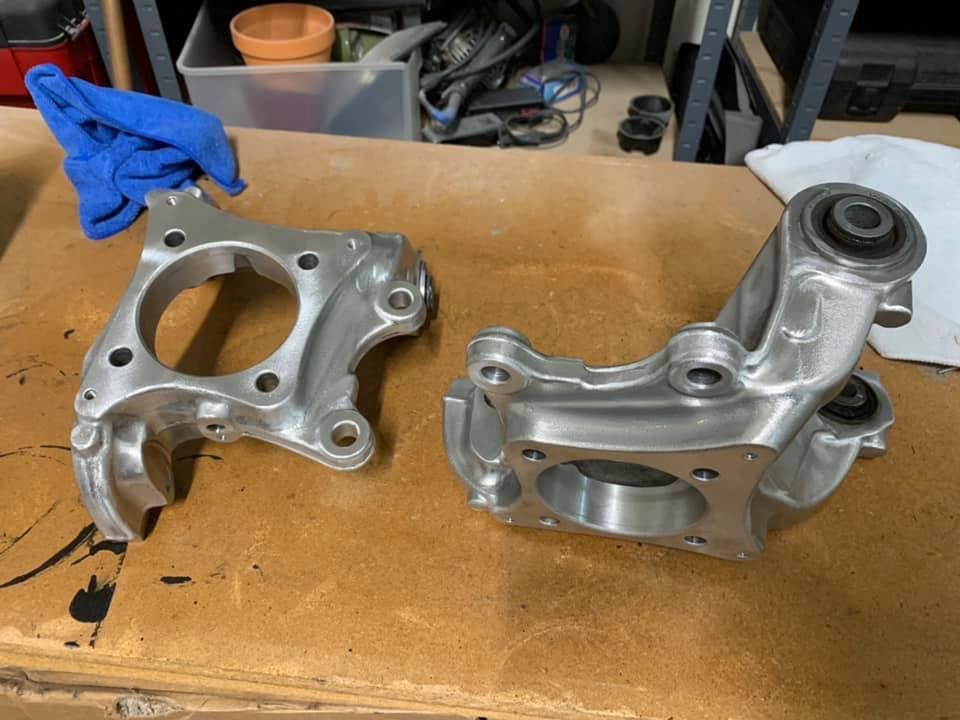

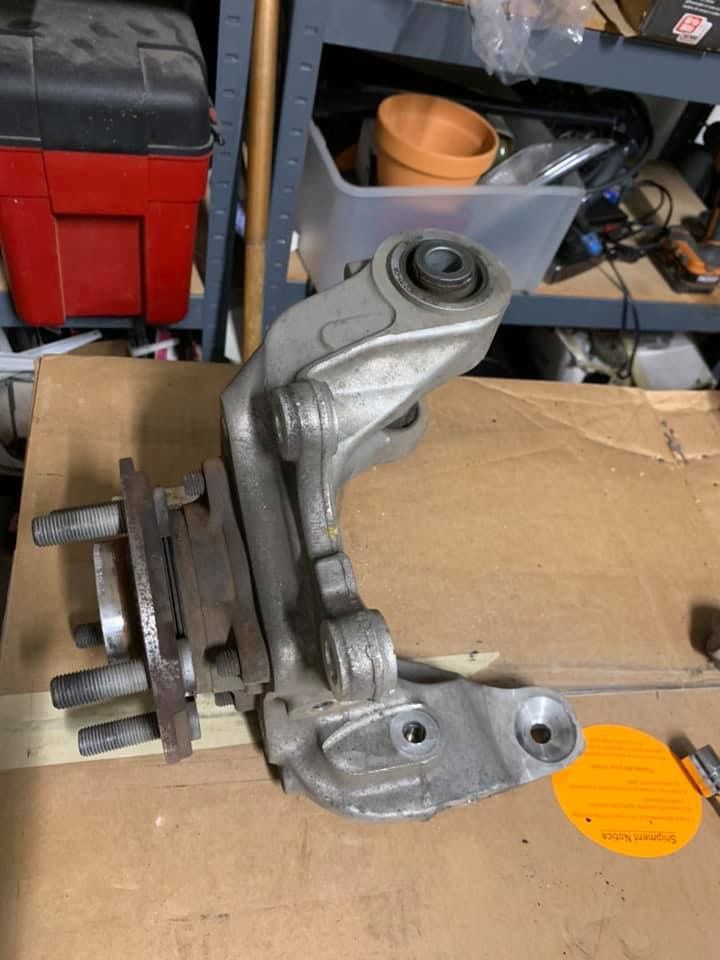

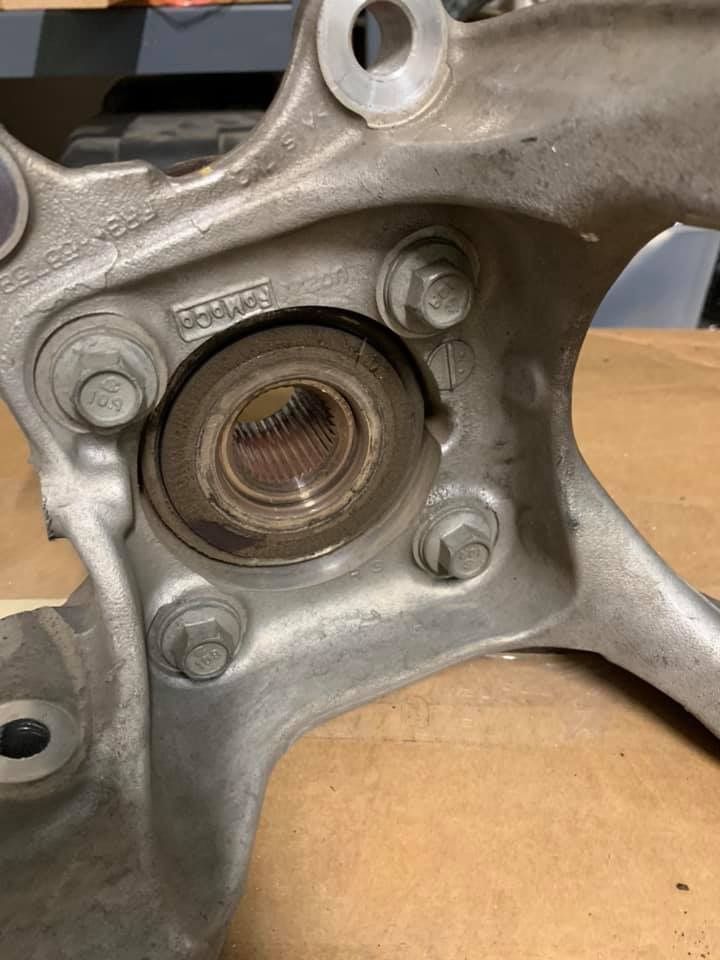

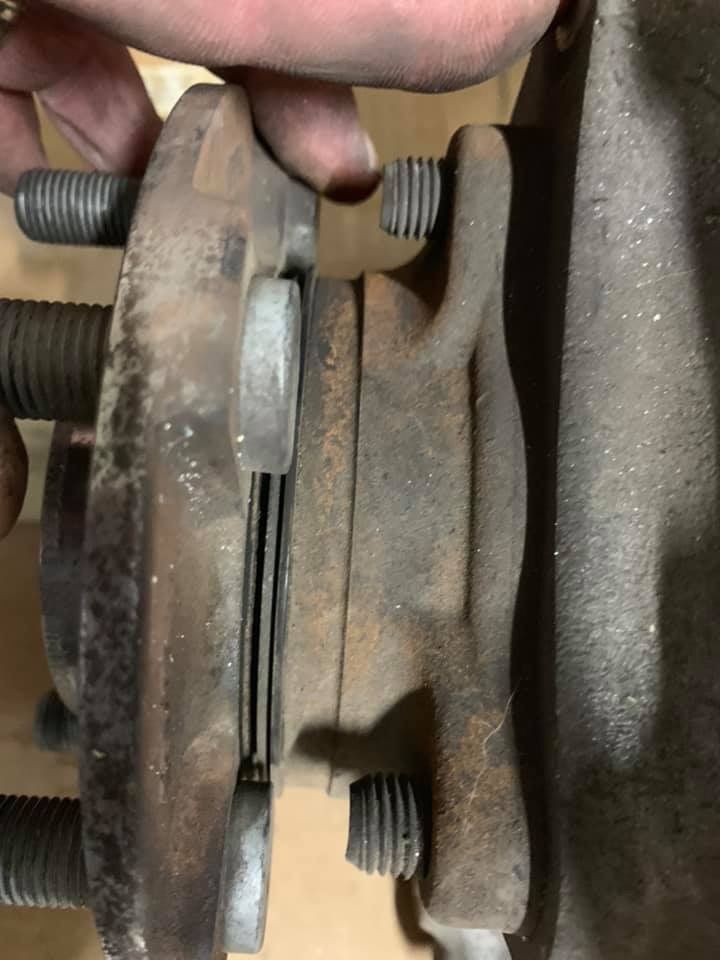

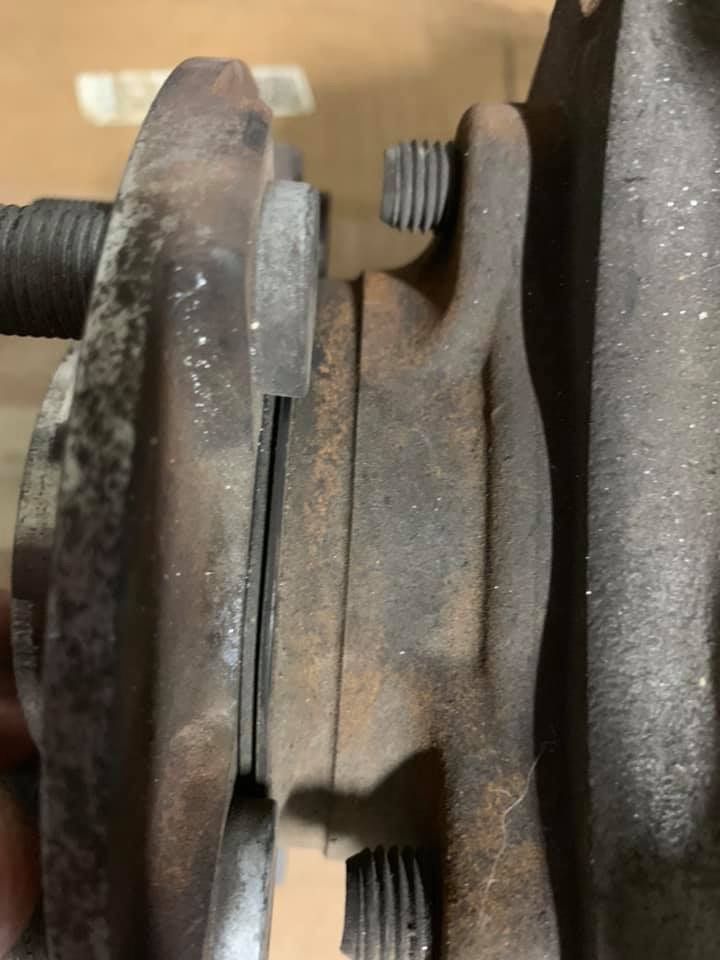

While the second coat cures, we take the time to prep the rear spindles, or knuckles, for future installation. First step is removing the Wheel Hubs. In the process of removing those, it becomes apparent that while one of the hubs is nice and tight, the other must have a bearing on its way to going out, as there is a little inward-outward play in the bearing. About an 8th of an inch, which for me is outside reasonable tolerance. This is a high-powered vehicle that I will test the limits of.... someone could be hurt or killed. Tasca Parts website for two new hubs; no use replacing one without the other. ĎOnlyí $112 each...........

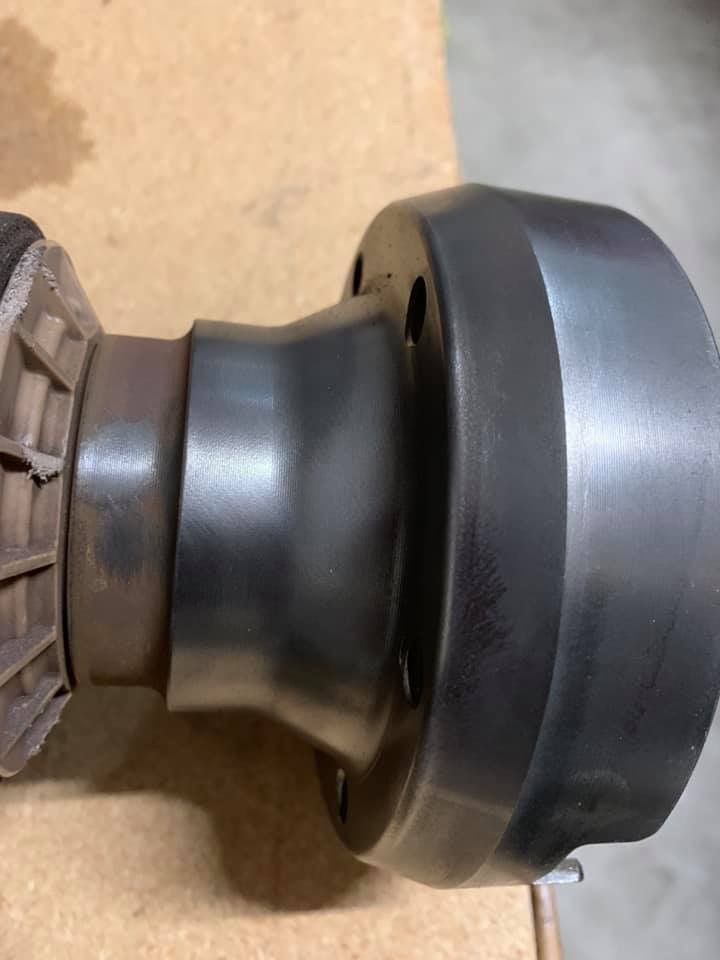

Per the F5 instructions we trim an ear from the appropriate arms, then use the grinding wheel to bring the trimmed surface back to smooth and even, with a rounded edge. This is where having a band saw comes in handy. Then the wire wheel cleans the patina and junk off the surface, and we are ready to give it a nice gloss with some Dupli-Color Clear Engine Paint. Two Light coats followed by a Medium wet coat per the instructions.

Nice and shiny when done.
























Sent from my iPhone using Tapatalk

Isaac Wilson
Vancouver, WA

Factory Five Roadster # 9513
2015 Mustang GT Performance Pack Donor
5.0L Coyote Engine (Gen2)
Tremec TKO500
2015 Mustang IRS
Wilwood Brakes
18" Halibrand w/BFG Rival S
LED Lights
IsaacW is offline
post #60 of 258 (permalink) Old 02-13-2019, 10:57 AM
Senior Member
FFCars Captain

edwardb's Avatar

Join Date: Sep 2009
Location: Lake Orion, MI
Posts: 5,669
Quote:
Originally Posted by IsaacW View Post
Edward... no ill effects from eliminating the oil cooling? Did I read that you installed an oil temp gauge in your build, or was that another builder? How does the oil run temp-wise without the additional cooling?
First of all, not eliminating the OE oil cooler isn't an option because it won't fit. It needs to be removed and the long filter adapter replaced with a short one. Ford part number AL3Z-6890-A. Then a regular oil filter spins directly onto the block. Some have installed an oil cooler in the original Cobra location below the radiator opening. But many times not plumbed (or at least with a thermostatic shutoff) because the Coyote in general is a cool running engine. Unless you're building a track car, where things typically get a lot more exotic with dry sump etc., nothing special is required for the Coyote installation. Two seasons driving mine with on oil filter on the block and nothing else and I watch the gauges carefully. It rarely gets above 200 degrees water temp. Includes hot weather, stop and go, etc. I don't have an oil temp gauge on mine. I do watch the water temp closely, and if you stream data from the ODB2 port, you can also monitor cylinder head temp. BTW, if you do decide to use a remote oil filter setup, by itself or with a remote oil cooler, be very careful. There was a builder on here a couple years ago that had the wrong oil filter adapter on his Coyote and cooked the engine in about two minutes of running. Yes, it happens.
IsaacW thanked this.

Build 1: Mk3 #5125. Sold 11/08/2014.
Build 2: Mk4 Roadster #7750. Sold 04/10/2017.
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Build 3: Mk4 Roadster 20th Anniversary #8674. 03 of 20. 2015 crate Coyote, 2015 IRS. Legal 04/18/2017.
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Build 4: Gen 3 Type 65 Coupe #59. Gen 3 crate Coyote. Delivered 12/2/2017.
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
edwardb is online now
Sponsored Links
Advertisement

Reply

Bookmarks

Quick Reply
Message:
Options

Register Now



In order to be able to post messages on the FFCars.com : Factory Five Racing Discussion Forum forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.

User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.

Password:


Confirm Password:
Email Address
Please enter a valid email address for yourself.

Email Address:
OR

Log-in











Currently Active Users Viewing This Thread: 1 (0 members and 1 guests)

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page
Display Modes
Linear Mode Linear Mode



Similar Threads
Thread Thread Starter Forum Replies Last Post
FFR 9457 Roadster build thread sdonnel Factory Five Roadsters 23 05-31-2019 02:10 PM
new roadster build egchewy New Member Introductions 6 01-29-2019 10:56 AM
FFR 9439 Roadster Build Status dwleo Factory Five Roadsters 0 12-18-2018 03:40 PM

Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


For the best viewing experience please update your browser to Google Chrome



Welcome to FFCars! The representations expressed are the representations and opinions of the FFCars.com forum members and do not necessarily reflect the opinions and viewpoints of the site owners, moderators, Factory Five Racing, Inc. or Ford Motor Company. This website has been planned and developed by FFCars.com and its forum members and should not be construed as being endorsed by Factory Five Racing, Inc. or Ford Motor Company for any purpose. "FFR", "Factory Five", "Factory Five Racing", and the Factory Five Racing logo are registered trademarks of Factory Five Racing, Inc. FFCars.com forum members agree not to post any copyrighted material unless the copyrighted material is owned by you. Although we do not and cannot review the messages posted and are not responsible for the content of any of these messages, we reserve the right to delete any message for any reason whatsoever. You remain solely responsible for the content of your messages, and you agree to indemnify and hold us harmless with respect to any claim based upon transmission of your message(s). Thank you for visiting the FFCars.com Forum dedicated to Factory Five.
