Do I have the correct Water pump rotation?

I'm in the process of swapping my old water pump with a brand new Edelbrock 8840.
It's on a 351W, running "outside" the serpentine belt, so I believe Counter Clockwise.

When looking at the impeller, the old one seems CCW, but looking at the Edelbrock 8840, the impeller seems to be CW.
The 8840 is supposed to be CCW, but I have doubts... impeller design seems counter intuitive to me.
It's difficult to see on the 8840, the the blade seems to "catch" the water CW...

Attached Images
File Type: jpg IMG_7031.jpg (20.8 KB, 59 views)
File Type: jpg IMG_7041.jpg (11.3 KB, 46 views)
File Type: jpg IMG_7033.jpg (10.6 KB, 44 views)
Francky77 is offline
Sponsored Links
Advertisement

post #2 of 10 (permalink) Old 01-14-2019, 11:34 PM
FFCobra Fanatic
FFCars Captain

5.8Cobra's Avatar

Join Date: Aug 2002
Location: CT
Posts: 5,399
See if the bolt pattern of the pulley matches up with the Edelbrock water pump. The CW rotation have a different bolt pattern for the pulley to stop you from just bolting it on. The notes on Summits website for that part number are as follows:

Notes: 5.750 in. hub height. Gaskets included. Fits all 1986-93 5.0L V8s using a serpentine accessory drive belt. Reverse rotation. Not for early model 289-302 V8s. Has heavy-duty 3/4 in. ball/roller bearing. Dimension from block surface to hub: 5-3/4 in. Inlet diameter 1.78 in.

That would lead me to believe you are all set, spin it with the back of the belt and it will turn the correct way. Hope this helps!

Mike


FFR 2166: 383Windsor, Vortech YS, TFS box intake,Dynod 652 rwhp , 9/11" Team III's 255/315 NT-05 Nittos, Vintage Autometers, PS, Power M2300K 13"/11.65" brakes, Tremec TKO midshift, SAI Mod, LEVY 5 Link, Gas-N pipes, Konis

FFR 3107 Built & Sold
FFR 1990 Built & Sold
FFR 7330 Built & Sold

FFR 4948 purchased 2013 incomplete, IRS planned 351W,Tremec,3.27's
5.8Cobra is offline
post #3 of 10 (permalink) Old 01-15-2019, 12:08 AM
Senior Member

Join Date: Sep 2014
Location: Columbia SC
Posts: 153
Based on the coolant paths out to the two sides of the block the two pumps are the same. If you google sbf water pumps you will see the difference in the path.

Rick
RickGT40 is offline
Sponsored Links
Advertisement

post #4 of 10 (permalink) Old 01-15-2019, 02:43 AM
Senior Member
FFCars Major

rich grsc's Avatar

Join Date: Aug 2007
Location: O'Fallon, Mo
Posts: 7,359
ALL water pumps flow from the center to the outside, doesn't make any difference which way they turn. If the fins are angled in the same direction then they turn in the same direction. The old pump is counter-clockwise, can't make out the fin angle on the new pump. Now the twist is some performance pumps have fins that aren't angled and can rotate in either direction. But judging by the discharge shape of the ports they are the same.
rich grsc is offline
post #5 of 10 (permalink) Old 01-15-2019, 03:02 AM
Senior Member

Join Date: Jan 2002
Location: 7 Crestview Avenue, Medway, MA 02053
Posts: 2,431
Both impellers have blades at similar angles. The cast impeller appears to have curved blades,
Both are CCW and should fit the smooth pulley.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
2005 FFR Mk3 Roadster, 302/340hp, MassFlo EFI, Breeze Pulleys, T5, Aluminum Flywheel, 3-link rear with Torsen Diff and 3.27:1 gears, Power Steering, Breeze Front Sway Bar, SN-95 Spindles with outboard SAI Mod, Breeze Battery Mount, QA1 Externally Adjustable Shocks, Quick Release Steering Wheel, Vintage Race seats, GM Arctic White, Sky Blue Scoop, Hidden Hinges, Billet Aluminum Side-view Mirrors, 2,183lbs wet. 1967 Mustang Fastback, Dark Moss Green, black interior, '67 14" styled steel wheels, 2000 Explorer 302 w 5.0 Cam, Quickfuel 450 CFM, 289 Hi-Po Dual exhaust, C4, lowering springs w Shelby drop.
Mark Reynolds is online now
post #6 of 10 (permalink) Old 01-15-2019, 03:28 AM Thread Starter
Member

Join Date: May 2018
Location: Boyds, MD
Posts: 66
Quote:
Originally Posted by RickGT40 View Post
Based on the coolant paths out to the two sides of the block the two pumps are the same. If you google sbf water pumps you will see the difference in the path.

Rick
Thanks Rick, yes the path are definitely the same. Even the back plate has the same 2 round "universal" holes.

Quote:
Originally Posted by rich grsc View Post
ALL water pumps flow from the center to the outside, doesn't make any difference which way they turn. If the fins are angled in the same direction then they turn in the same direction. The old pump is counter-clockwise, can't make out the fin angle on the new pump. Now the twist is some performance pumps have fins that aren't angled and can rotate in either direction. But judging by the discharge shape of the ports they are the same.
Thanks Rich, yes it's difficult to see the fins and even worst trying to get a picture of those

Quote:
Originally Posted by 5.8Cobra View Post
See if the bolt pattern of the pulley matches up with the Edelbrock water pump. The CW rotation have a different bolt pattern for the pulley to stop you from just bolting it on. The notes on Summits website for that part number are as follows:

Notes: 5.750 in. hub height. Gaskets included. Fits all 1986-93 5.0L V8s using a serpentine accessory drive belt. Reverse rotation. Not for early model 289-302 V8s. Has heavy-duty 3/4 in. ball/roller bearing. Dimension from block surface to hub: 5-3/4 in. Inlet diameter 1.78 in.

That would lead me to believe you are all set, spin it with the back of the belt and it will turn the correct way. Hope this helps!

Mike
Thanks Mike, I didn't notice the pattern difference between the CW and CCW but yep, it does match

Quote:
Originally Posted by Mark Reynolds View Post
Both impellers have blades at similar angles. The cast impeller appears to have curved blades,
Both are CCW and should fit the smooth pulley.
Thanks Mark, that's those curves which got me suspicious, they seemed to be designed for CW, but I guess it's designed to expel the water out to the inlet ports.

I need now to mount and test, but no rush, have to wait for the snow to melt...
Francky77 is offline
post #7 of 10 (permalink) Old 01-15-2019, 12:15 PM
FFCobra Craftsman

CraigS's Avatar

Join Date: Feb 2005
Location: Blacksburg, Va
Posts: 22,062
What is funny to me is that my 408, built on an 84 351 block, has the style water pump that has the sheet metal back cover.

FFR 5353K, 408W, TKO 500, 2015 IRS w/ 315 gear, Breeze QA1 DA coilovers front and rear, APE hardtop, Forte front swaybar
CraigS is online now
post #8 of 10 (permalink) Old 01-15-2019, 12:38 PM Thread Starter
Member

Join Date: May 2018
Location: Boyds, MD
Posts: 66
Quote:
Originally Posted by CraigS View Post
What is funny to me is that my 408, built on an 84 351 block, has the style water pump that has the sheet metal back cover.
It’s not on the picture but actually both my old and the new pump also have a sheet metal back cover with the 2 holes matching the coolant ports on the block.
I just had to remove them to expose the impellers.
And also to apply some RTV on both side of each gasket.
Francky77 is offline
post #9 of 10 (permalink) Old 01-15-2019, 07:36 PM
Official OLD GUY
FFCars Captain

Big Blocker's Avatar

Join Date: Jan 2004
Location: Lost Wages, Nevada
Posts: 3,715

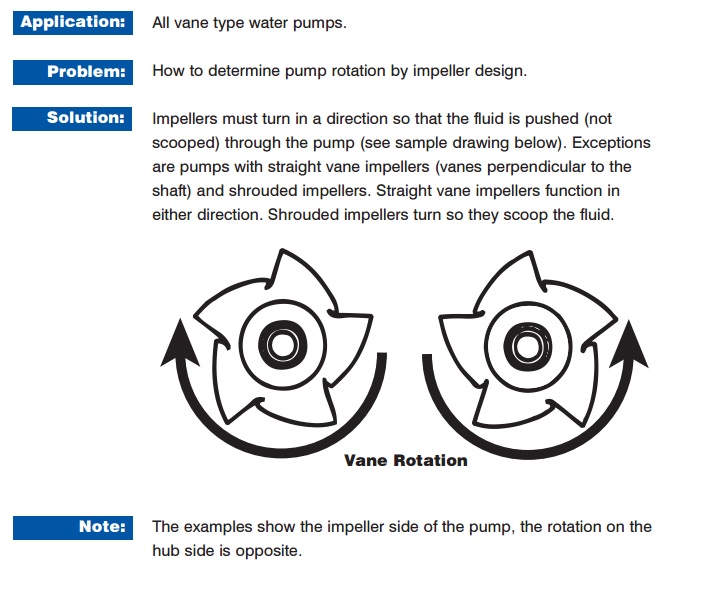

Rotation basics

This chart might help . . .

Remembering that the pump must be looked at from its back side - all references to orientation are from the drivers seat.



"Normal" rotation for SBF's is the image on the right, counter-clockwise. "Reverse rotation" pumps are the ones used on serpentine belt systems.

IF your pump spins in the same direction as your crank, it's "standard" rotation.

HTH

Doc

little block, BIG BLOCK . . .
HUMMMMMMM?
FFR3712K (POPSDRM) in Lost Wages, NV.
MKII, 5.0, "Tubular" GT40-EFI, E-303, T5, 17" 5-Lug Chrome Cobra "R's", Nitto 275/315's, PBR 4 wheel Disks, Full Tubular/Coil-Over suspension, 20:1 Flaming River, 3.73's, 3-Link, Drop Butt mod, Dash forward mod, Custom Footbox Air vents, Extended PS footbox, Custom Turn Signals, Custom 4-into-4 headers, Non-Donor build, Ford Royal Blue Pearl w/ Arctic White stripes.
Big Blocker is offline
post #10 of 10 (permalink) Old 01-16-2019, 01:35 AM Thread Starter
Member

Join Date: May 2018
Location: Boyds, MD
Posts: 66
Hi Doc,

My water pump is definitely running with a Serpentine belt, and being driven "outside" of the belt loop, the pump is definitely Counter Clock Wise.

Your drawing explains it clearly, I was under the impression that the blade were supposed to "scoop" the water, but I was wrong, it's supposed to "push" it out ;-)
We learn everyday! Thanks!
