Radiator opening grill fitment

I took a fairly large rock to my radiator today. It bent up some fins and also bent a couple water passages. I feel lucky that the radiator held. I think I need to put a grill on the opening to give myself some protection. I'm looking at Breeze's aluminum grill and it says that you need to take off the lower radiator shroud and then reinstall it after the grill is in. I actually got the radiator from Breeze a while back and it sits more in the center of the opening, so the Factory Five shrouds did not fit. I made new ones and decided not to drill into the body. I was able to attach the lower shroud to the bottom of the radiator lip and I used some bulb seal where it tucks under the body. It wound up being very sturdy, but I don't think I would be able to put it back in with the grill in the way. Does anyone know if I would be able to get the grill in and secure it without taking that shroud out? I was thinking maybe I could do something from around the top of the radiator from the engine compartment. I'm going to give Mark a call, but any help would be great.




Fred


FFR7812 351w, TKO 600, IRS 3.55
Ordered: 5/25/2012
Delivered: 6/21/2012
Go kart: 5/16/2014
Street Legal: 7/10/2015
Graduation: 3/26/2016
Freddyfroo is offline
Sponsored Links
Advertisement

post #2 of 18 (permalink) Old 05-25-2016, 12:13 AM
Junior Charter Member
FFCars Master Craftsman

Purple Venom's Avatar

Join Date: May 2006
Location: St. Charles, MO.
Posts: 1,712
A friend of mine turned me on to this - Honeycomb Radiator Protector, 19 x 26 Inch

I just cut it to size, set it in and it worked great this past weekend. Apparently circle track racers use it on the dirt.

Freddyfroo thanked this.

MKII, 460, Edelbrock Torker II Intake(Port Matched), Quick Fuel 750 Carb, Tremec 5 speed, Bridgestone Potenza R760 Tires - 432 Rwhp; 460 Rwtq

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Purple Venom is offline
post #3 of 18 (permalink) Old 05-25-2016, 12:49 AM
Senior Member
FFCars Captain

edwardb's Avatar

Join Date: Sep 2009
Location: Lake Orion, MI
Posts: 5,748
Quote:
Originally Posted by Purple Venom View Post
A friend of mine turned me on to this - Honeycomb Radiator Protector, 19 x 26 Inch

I just cut it to size, set it in and it worked great this past weekend. Apparently circle track racers use it on the dirt.
I used this same Nomex honeycomb piece on my Mk3. It's a good product and I also recommend it as a quick easy solution. It's pretty stout, and would slow down the hit you took. But I'm not sure would completely stop it. For my Mk4 build, I went up a notch to some SS mesh from Pegasus Racing. Their part number 3641-24X36. I mounted it in a frame and then mounted on the radiator surround. It was possible to do everything through the front opening.
Purple Venom thanked this.

Build 1: Mk3 #5125. Sold 11/08/2014.
Build 2: Mk4 Roadster #7750. Sold 04/10/2017.
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Build 3: Mk4 Roadster 20th Anniversary #8674. 03 of 20. 2015 crate Coyote, 2015 IRS. Legal 04/18/2017.
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
and
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Build 4: Gen 3 Type 65 Coupe #59. Gen 3 crate Coyote. Delivered 12/2/2017.
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
edwardb is online now
Sponsored Links
Advertisement

post #4 of 18 (permalink) Old 05-25-2016, 01:14 AM
Senior Member
FFCars Craftsman

mikew's Avatar

Join Date: Feb 2012
Location: Bridgewater, NJ
Posts: 1,096
X3 on the honeycomb radiator protector!
Freddyfroo thanked this.

Mk-3 FFR 5558, 351W, Comp Xtreme Energy Cam, Aluminum Heads, Roller Rockers, Mallory Comp S/S 42 Distributor, Edelbrock RPM Performer, 670 Holley Street Avenger, T-5, 3:08 Posi, 15" Team III Wheels, BF Goodrich T/A 225/60R-15, 275/50R-15, 4-wheel disc brakes, Electric Blue/White Stripes.
mikew is offline
post #5 of 18 (permalink) Old 05-25-2016, 11:52 AM
FFCobra Craftsman

CraigS's Avatar

Join Date: Feb 2005
Location: Blacksburg, Va
Posts: 21,973
Obviously a protector can't hurt but is it worth the trouble. That damage can be 90% fixed in 5-10 minutes w/ a small screwdriver. It's not a leak so no big deal.

FFR 5353K, 408W, TKO 500, 2015 IRS w/ 315 gear, Breeze QA1 DA coilovers front and rear, APE hardtop, Forte front swaybar
CraigS is online now
post #6 of 18 (permalink) Old 05-25-2016, 12:15 PM
Senior Member
FFCars Master Craftsman

Real time recon's Avatar

Join Date: Nov 2015
Location: Smith Mt. lake Virginia
Posts: 1,501
Nomex here >> http://static.rcgroups.net/forums/at...07-113-011.jpg
The Outlaws use it.Lasts a whole season of racing in mud & Rocks >>> http://allamericanoutlaws.com/index.html
Real time recon is online now
post #7 of 18 (permalink) Old 05-25-2016, 12:24 PM
FFCobra Fanatic
FFCars Captain

Butch B's Avatar

Join Date: Jan 2004
Location: Oregon City OR
Posts: 4,033
Quote:
Originally Posted by CraigS View Post
Obviously a protector can't hurt but is it worth the trouble. That damage can be 90% fixed in 5-10 minutes w/ a small screwdriver. It's not a leak so no big deal.
Wish Mel & I had a "radiator protector" a few summers back when we were in Idaho with the Utah cobras and 600 mi. from home. Yup, took a rock in the rad(leak) out in the middle of no where. Just saying--(It does happen)lol
Butch

This ain't no circus--and I don't need any clowns!

MKI #1437, EFI 347, Astro T-5, 3:55 8.8rr, and other upgrades--

Last edited by Butch B; 05-25-2016 at 12:42 PM.
Butch B is offline
post #8 of 18 (permalink) Old 05-25-2016, 01:09 PM
Senior Charter Member
FFCars Craftsman

MCathcart's Avatar

Join Date: Jan 2002
Location: North Myrtle Beach
Posts: 1,244
Between 2 cars I've clocked almost 20k and haven't gotten major damage (LEAK!) yet but I'm also thinking I'll do something.

The stuff MikeW is showing does not look like the Honeycomb stuff I've seen. Naturally there's a thread here and some people have painted the Honeycomb protector Black (it looks like a light red?).

I've studied it in the Speedway catalog.
MCathcart is offline
post #9 of 18 (permalink) Old 05-25-2016, 02:30 PM
Senior Member
FFCars Craftsman

mikew's Avatar

Join Date: Feb 2012
Location: Bridgewater, NJ
Posts: 1,096
Quote:
Originally Posted by MCathcart View Post
Between 2 cars I've clocked almost 20k and haven't gotten major damage (LEAK!) yet but I'm also thinking I'll do something.

The stuff MikeW is showing does not look like the Honeycomb stuff I've seen. Naturally there's a thread here and some people have painted the Honeycomb protector Black (it looks like a light red?).

I've studied it in the Speedway catalog.
Yes it is the honeycomb product that is sold by Speedway. I painted it silver before I installed it to make it less obvious.
MCathcart and Freddyfroo thanked this.

Mk-3 FFR 5558, 351W, Comp Xtreme Energy Cam, Aluminum Heads, Roller Rockers, Mallory Comp S/S 42 Distributor, Edelbrock RPM Performer, 670 Holley Street Avenger, T-5, 3:08 Posi, 15" Team III Wheels, BF Goodrich T/A 225/60R-15, 275/50R-15, 4-wheel disc brakes, Electric Blue/White Stripes.
mikew is offline
post #10 of 18 (permalink) Old 05-25-2016, 02:47 PM
Senior Member
FFCars Captain

MPTech's Avatar

Join Date: Jan 2009
Location: StL, MO
Posts: 4,738
Garage
I use the same honeycomb material that Tim mentioned.
I spray-painted mine black (takes about a full can for good coverage).
I laid it in, then used 3 small zip-ties, inserted like pins (not zipped), through the Honeycomb and through the radiator slots, just to hold it from sliding. The zip-ties can be inserted and removed easily for cleaning (catches a LOT of bugs). Hose it off and hit it with a soft bristle brush, cleans up well.


May not stop a big rock completely, but should prevent fatal damage, and MUCH better than unprotected.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
F5R #7446: MK4, 302, T5 midshift, 3.55 Posi IRS, 17" Halibrands
Delivered 4/4/11, First start 9/29/12, Licensed 4/24/13, PAINTED 4/17/14!! Wahoo!
MPTech is offline
post #11 of 18 (permalink) Old 05-25-2016, 03:01 PM
Senior Member
FFCars Craftsman

2yrproject's Avatar

Join Date: Mar 2008
Location: SoCal
Posts: 1,384

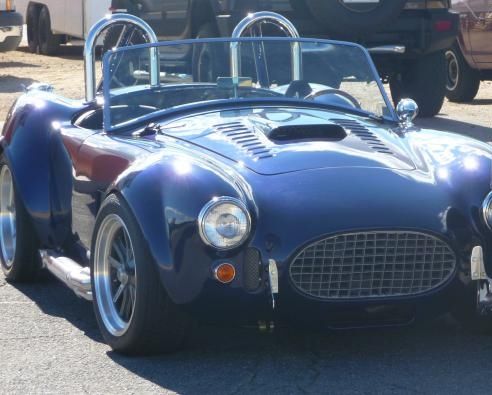

I made an egg carton grille for my roadster. I had it mounted for a few months and ultimately decided I didn't like the look, plus the thin 1/8" aluminum flexed a bit. Another option.


Build School 10/08
MK3 Kit Ordered 08/05/08 ; Delivered 09/26/08
First Start 10/05/10 ; First Drive 08/31/11, License Plates 10/05/11
Picked up from the Batcave 10/19/13

Levy Stage 4 (347) & Levy T5 /Mass-flo EFI / Wilwood Brakes / Paint by J. Miller (Lexus Indigo Ink) / Custom hood louvers with aluminum plating by Metal-Morphous / Engine turned dash bezels.

"You can't build a reputation on what you're going to do." -- Henry Ford
2yrproject is offline
post #12 of 18 (permalink) Old 05-26-2016, 02:38 AM
Member

Join Date: Feb 2008
Location: Edmond, Oklahoma
Posts: 66
I went with the Pegasus expanded stainless mesh, surrounded it with an aluminum angle and flat piece, had it powdercoated black, I think it will work well. Car not on the road yet.
OSU Cowboy is offline
post #13 of 18 (permalink) Old 05-26-2016, 08:47 PM Thread Starter
Member

Join Date: Aug 2011
Location: Flat Rock, MI
Posts: 77
Quote:
Originally Posted by mikew View Post
Yes it is the honeycomb product that is sold by Speedway. I painted it silver before I installed it to make it less obvious.
Mike,

How hard was it to paint? My radiator came with a blue AFCO on it. I was able to remove most of it, but wound up having to paint it to get it to look right.

FFR7812 351w, TKO 600, IRS 3.55
Ordered: 5/25/2012
Delivered: 6/21/2012
Go kart: 5/16/2014
Street Legal: 7/10/2015
Graduation: 3/26/2016
Freddyfroo is offline
post #14 of 18 (permalink) Old 05-27-2016, 01:42 AM
Senior Member
FFCars Craftsman

mikew's Avatar

Join Date: Feb 2012
Location: Bridgewater, NJ
Posts: 1,096
Quote:
Originally Posted by Freddyfroo View Post
Mike,

How hard was it to paint? My radiator came with a blue AFCO on it. I was able to remove most of it, but wound up having to paint it to get it to look right.
I fit and trimmed it with a sharp utility knife to fit exactly between the tanks on the radiator. I then spray painted it with Hi-Temp silver paint (used nearly the entire can to get complete coverage). I then layed it over the radiator. I used an aluminum "Z" shape that I purchased from McMaster Carr on the lower end to prevent air from getting under it and pulling it out of place. I used the same lower screws that hold the bottom of the radiator to the lower aluminum piece. Works great and has stayed in place perfectly. No increase in engine temp either!

Mk-3 FFR 5558, 351W, Comp Xtreme Energy Cam, Aluminum Heads, Roller Rockers, Mallory Comp S/S 42 Distributor, Edelbrock RPM Performer, 670 Holley Street Avenger, T-5, 3:08 Posi, 15" Team III Wheels, BF Goodrich T/A 225/60R-15, 275/50R-15, 4-wheel disc brakes, Electric Blue/White Stripes.
mikew is offline
post #15 of 18 (permalink) Old 05-27-2016, 05:11 PM
Senior Member
FFCars Master Craftsman

cwrandolph's Avatar

Join Date: Jan 2007
Location: Sidney, Ohio
Posts: 1,993

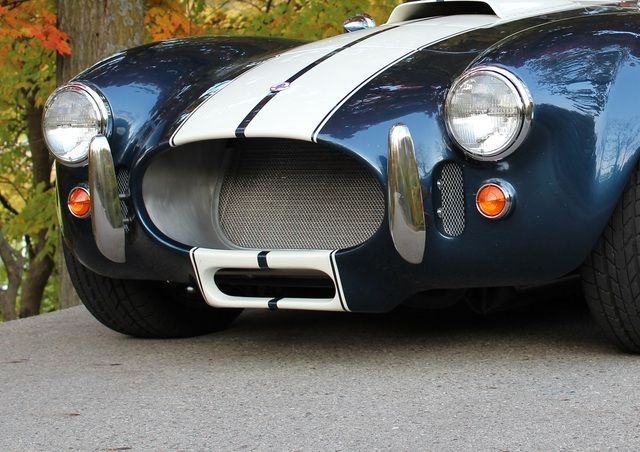

This is stainless steel mesh from Pegasus Racing (Medium Mesh Stainless, #6 x .035 Wire) along with Mike Everson's radiator aluminum.

Chas Randolph Sidney, Ohio FFR 6113, '91 5.0 EFI, TFS heads, Comp cam, GT40 Tubular intake, 24lb injectors T5Z w/midshift, 3-link, SAI Mod, TurboCoupe rear 3:55's, 17" Team III's, Picked up @ FFR on 5/5/07, First start 10/5/08, Go Cart 9/27/09, Licensed & Legal 9/30/10. Painted 6/3/12. Graduation 8/21/12. Engine rebuilt & pumped up May '13. Breeze/QA1 External single adjustable Coil-Over shocks May '17
cwrandolph is offline
post #16 of 18 (permalink) Old 05-27-2016, 06:03 PM
Senior Member
FFCars Captain

edwardb's Avatar

Join Date: Sep 2009
Location: Lake Orion, MI
Posts: 5,748
Since everyone is showing they're completed products, here's what I did with Mk4 #7750. Planning to duplicate with the current Anniversary build.

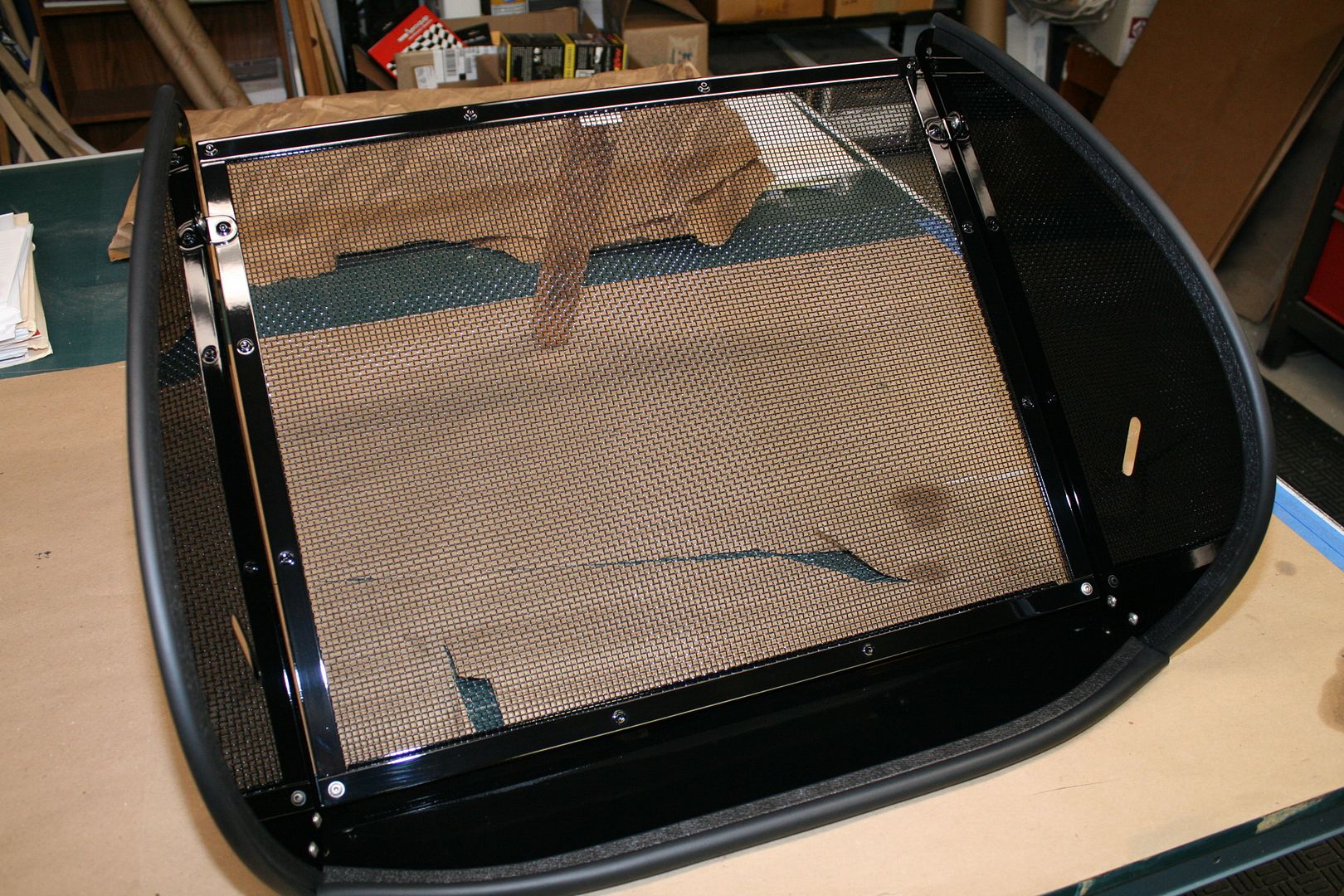

Used the Pegasus SS mesh, in a frame, then made new surround pieces replacing the FF supplied ones. These fit inside the QJ mounts and cover them completely. Four pieces: Two sides, bottom, and screen. Comes apart for installation through the front radiator opening.


After powder coat:

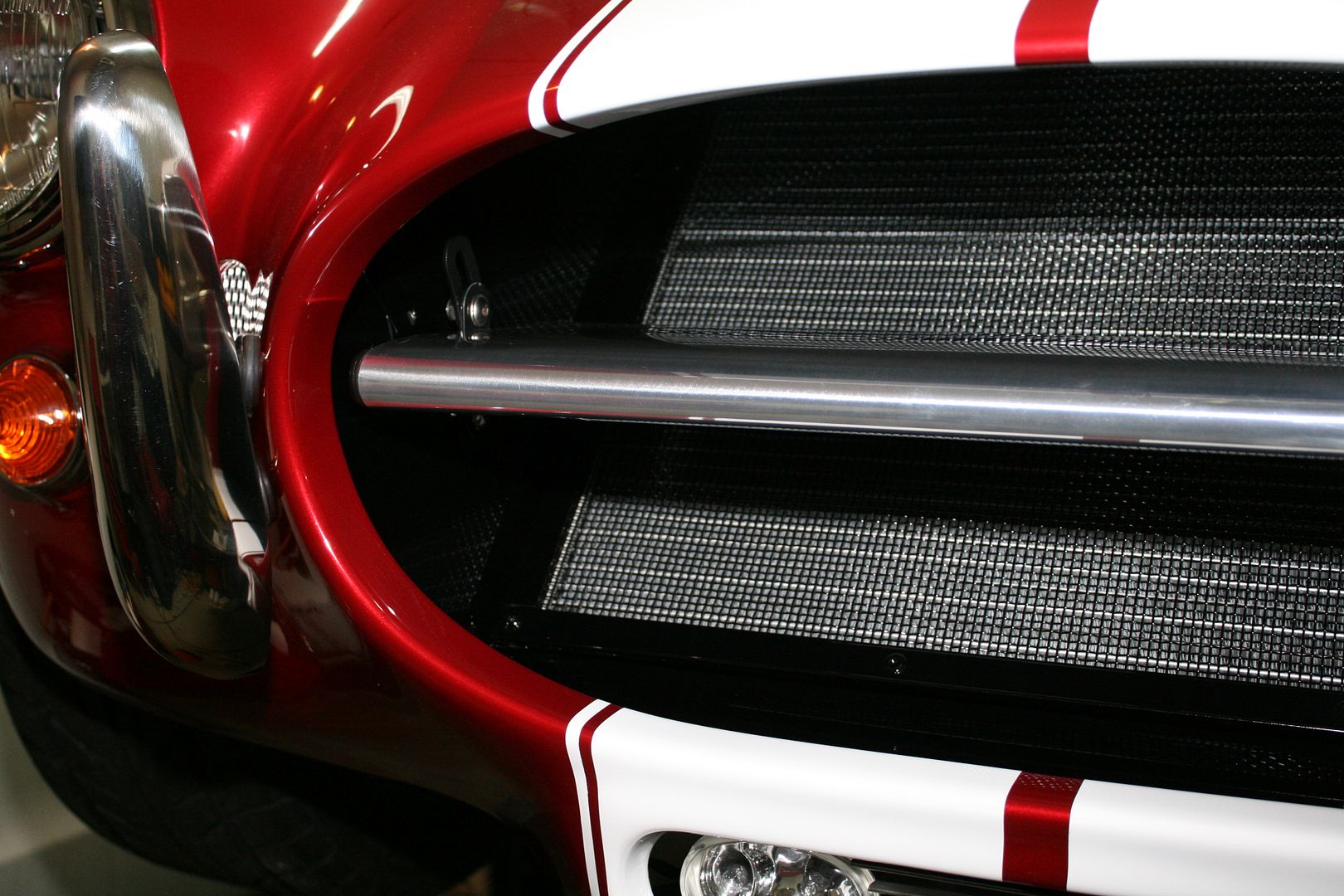

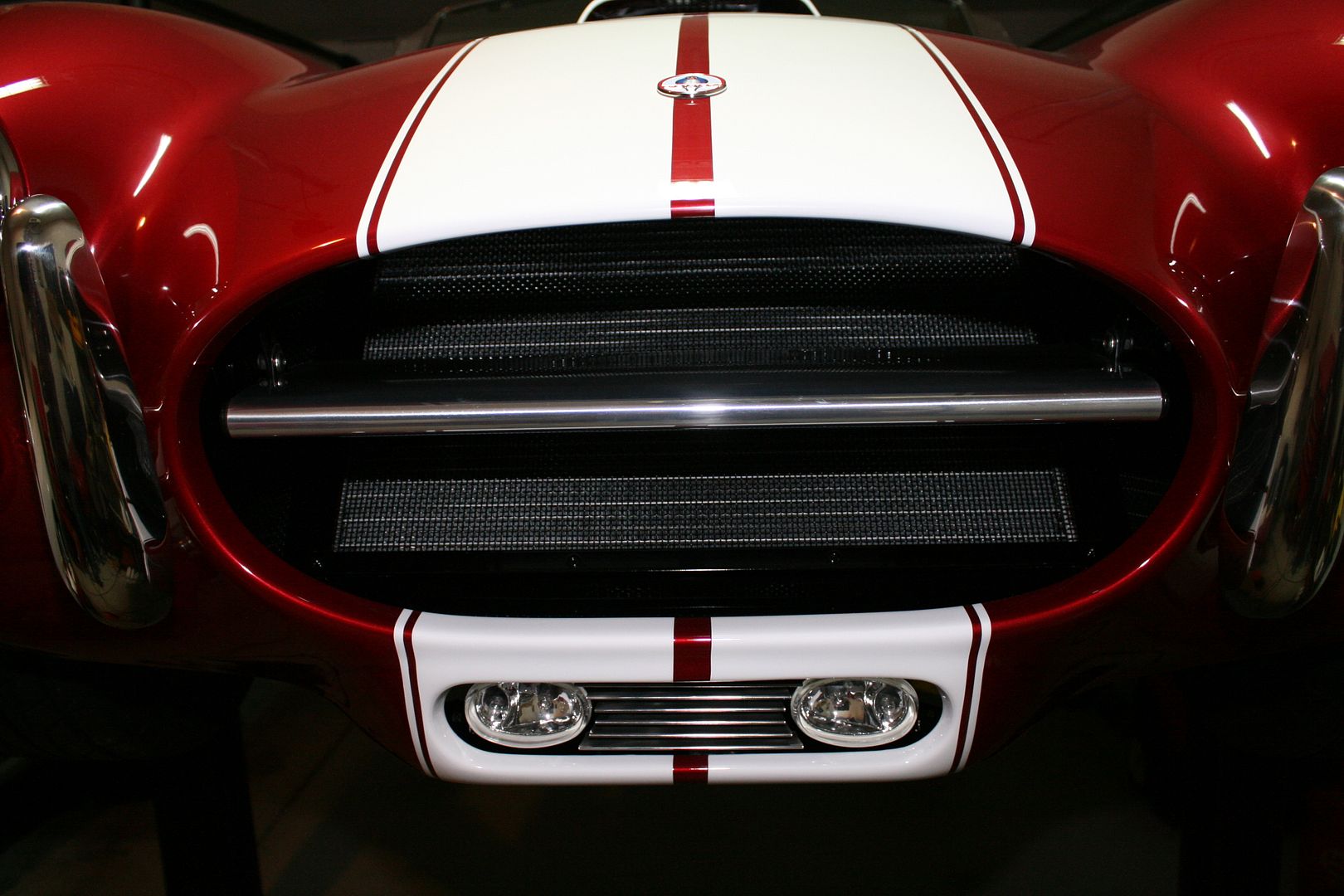

Installed with Dark Water splitter. The flash highlights the silver radiator a little more than what it looks like in person:



Build 1: Mk3 #5125. Sold 11/08/2014.
Build 2: Mk4 Roadster #7750. Sold 04/10/2017.
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Build 3: Mk4 Roadster 20th Anniversary #8674. 03 of 20. 2015 crate Coyote, 2015 IRS. Legal 04/18/2017.
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
and
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Build 4: Gen 3 Type 65 Coupe #59. Gen 3 crate Coyote. Delivered 12/2/2017.
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
edwardb is online now
post #17 of 18 (permalink) Old 05-27-2016, 06:17 PM
Senior Member

Steak's Avatar

Join Date: Apr 2007
Location: Raleigh, NC
Posts: 522
Used a screen door insert from Lowes. Less than $20 and works great. Cut a few inches off one end. Used Velcro to mount it. Did not change temperature reading at all. And it's easy to clean periodically
Steak is offline
post #18 of 18 (permalink) Old 05-27-2016, 06:24 PM
Not a waxer

JKleiner's Avatar

Join Date: Apr 2002
Location: Bloomington, Indiana
Posts: 11,483
I have photos and instructions on here somewhere detailing how I did mine (1/4" mesh) but it's much like some of the other have shown. One thing; mine stands forward of the radiator 1 1/2". I had the guy ahead of me go off during a track day and it kicked a big a$$ rock right into the roadster's mouth at about 100 mph. It bent the screen in but stopped it before it got to the radiator (barely!). Moral of the story...leave some deflection space between your guard and the radiator.

Jeff
Purple Venom thanked this.

Mk3 #5946 build pics w/text

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Mk4 #7276 "indy14" Build thread

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Mk4 Bodywork thread

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
JKleiner is online now
