Looking for Guidance on Door alignment

I got the doors on today and looks like I am going to put filler in more spots than I had hoped. The passenger door fit up quite well, except for one area. The point where the top of the door meets the top of the dash area is VERY low. There really is nothing I can do with the door, as all other parts fit just right. The top of body is fully rested on the dash hoop frame as well.

What do you guy think? Should I pull the boday and try to grind down the frame a bit or just fill it? It will be a lot of filler and change the shape. It is probably 3/8" low at the peak.

Here is a picture. Sorry for the quality. I couldn't find our nice camera.

Thanks,

Larry

Attached Images
File Type: jpg DSC01710.jpg (220.6 KB, 243 views)
lr172 is offline
Sponsored Links
Advertisement

post #2 of 22 (permalink) Old 03-09-2010, 01:19 AM
Junior Charter Member

Bigtim01's Avatar

Join Date: Jan 2006
Location: Warrington PA
Posts: 1,637
Icon21

Larry,
You might want to wait untill after you install the windshield. It applies pressure to the cowl and may help your miss alignment. Some times shimming the body at the lower mounting points helps. After I tried all of these I still made up most of the difference with Rage.
Tim


FFR#5435, 1991 Donor 5.0 EFI,345 HP T-5 WCZ, 3-Link, 3:55TL, Go Kart 02/15/09
Mods: Expanded foot boxes, Fwd Firewall, Expanded trunk, Foot box skid plates, Fwd Battery, Vented foot box's, Heater, Heated Seats, Dead Pedal,
Bigtim01 is offline
post #3 of 22 (permalink) Old 03-09-2010, 01:24 AM Thread Starter
Senior Member
FFCars Craftsman

Join Date: Dec 2009
Location: Schaumburg, IL
Posts: 585
Thanks tim. The top of body right near the door is resting on the very edge of the dash hoop, only a few inches from that spot of misalignment. Unfortunately it is not moving without grinding down that hoop / frame.

That is good advise, because that movement will affect my drivers side.

Larry
lr172 is offline
Sponsored Links
Advertisement

post #4 of 22 (permalink) Old 03-09-2010, 01:31 AM
Not a waxer

JKleiner's Avatar

Join Date: Apr 2002
Location: Bloomington, Indiana
Posts: 11,501
Another item that has an effect on cowl shape is the rearview mirror. It's mounting screws pass through the body, through the two white nylon spacers and then tighten into the dash hoop, pulling the center down. Even at that though I still had to build up the upper corners of the doors to meet the cowl, but not 3/8" worth.

Good luck,
Jeff

Mk3 #5946 build pics w/text

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Mk4 #7276 "indy14" Build thread

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Mk4 Bodywork thread

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
JKleiner is offline
post #5 of 22 (permalink) Old 03-09-2010, 01:44 AM
Junior Charter Member
FFCars Craftsman

Tatika's Avatar

Join Date: Mar 2007
Location: North Vancouver, BC
Posts: 984
Others can correct me if I'm wrong but the body must (underline "must") be mounted, with all mounting points done and with the windshield in place prior to doing any trimming and filling of the doors, hood or trunk. It is surprising how much slight movement in one area can impact another area of the body. For me that also included the mounting of the rear view mirror with the spacers as that can also change the panel alignment.

Now that said, some areas will not line up very well. On mine it was the curvature of the hood and trunk in a couple of places. That was where the rubber bumpers and foam seal came in. File the bumpers down if necessary to the right height, and placed in a couple of spots they help in the panel alignment.

Greg

June 07 Build School; FFR #5765 delivered Aug 27/07; Complete May 2009; 347 Levy all forged rotating assembly, Edelbrock E-Street heads, Explorer intake, 70mm TB, BBK 76mm Mass air, 30lb injectors, 255 fuel pump, Gas-N sidepipes, PS with Heidts valve, PB, FF5 heater, Team III wheels & BFG tires ....
Tatika is offline
post #6 of 22 (permalink) Old 03-09-2010, 02:05 AM
Senior Member
FFCars Craftsman

Join Date: Jun 2008
Location: Westminster, CO
Posts: 591
All,

Not meaning to hijack this thread but my drivers door lower front corner is about 3/16" too shallow (in, not out) with the other 3 corners pretty well lined up. Of course when I pull this corner out, my upper rear corner is now in too far causing the lower rear corner to come out too far... almost like the door is twisted or warped. I realize I can fill that corner in with Rage when the time comes but are there any other thoughts? Everything is mounted and like I said, it is just one corner, not the entire bottom of the door. Passenger side is almost perfect!

Chris

Basic Kit, IRS, LSx power, TKO600, under carriage exhaust, tilt front, E85.
ctcranor is offline
post #7 of 22 (permalink) Old 03-09-2010, 02:16 AM
Not a waxer

JKleiner's Avatar

Join Date: Apr 2002
Location: Bloomington, Indiana
Posts: 11,501
Chris,

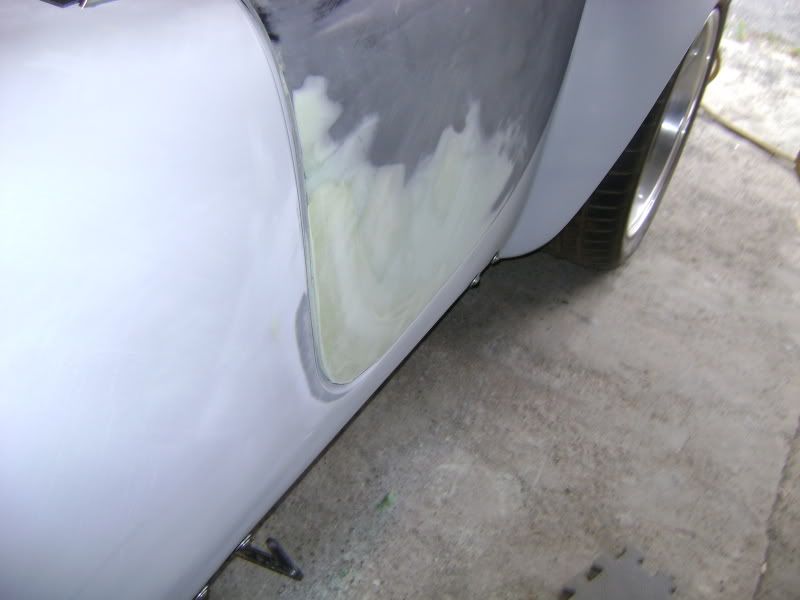

I had to build up that lower front corner of the driver's door---I think almost everyone does.

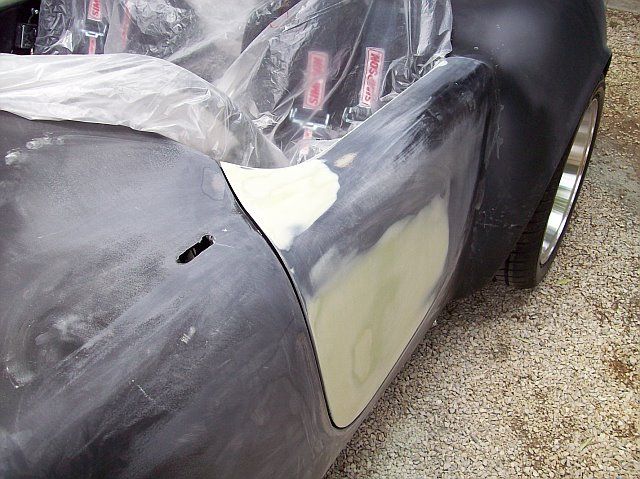

The photo also shows how the upper corners required filling to meet the cowl as I mentioned in reply #4.

Get it fitting as well as you can at the other points then start laying on the Rage...

Cheers,
Jeff

Mk3 #5946 build pics w/text

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Mk4 #7276 "indy14" Build thread

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Mk4 Bodywork thread

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
JKleiner is offline
post #8 of 22 (permalink) Old 03-09-2010, 02:19 AM
Senior Member
FFCars Craftsman

Join Date: Jun 2008
Location: Westminster, CO
Posts: 591
Jeff,

That is it!!!! That picture, minus the fill, is my door! Thanks, that makes me feel better about the entire process!

Chris

Basic Kit, IRS, LSx power, TKO600, under carriage exhaust, tilt front, E85.
ctcranor is offline
post #9 of 22 (permalink) Old 03-09-2010, 02:46 AM
Junior Charter Member
FFCars Craftsman

Tatika's Avatar

Join Date: Mar 2007
Location: North Vancouver, BC
Posts: 984
Chris:
Jeff's door looks exactly like mine did. As Jeff said this is pretty common. The filler even looks the same colour.

Greg

June 07 Build School; FFR #5765 delivered Aug 27/07; Complete May 2009; 347 Levy all forged rotating assembly, Edelbrock E-Street heads, Explorer intake, 70mm TB, BBK 76mm Mass air, 30lb injectors, 255 fuel pump, Gas-N sidepipes, PS with Heidts valve, PB, FF5 heater, Team III wheels & BFG tires ....
Tatika is offline
post #10 of 22 (permalink) Old 03-09-2010, 03:12 AM
Not a waxer

JKleiner's Avatar

Join Date: Apr 2002
Location: Bloomington, Indiana
Posts: 11,501
Quote:
Originally Posted by Tatika View Post

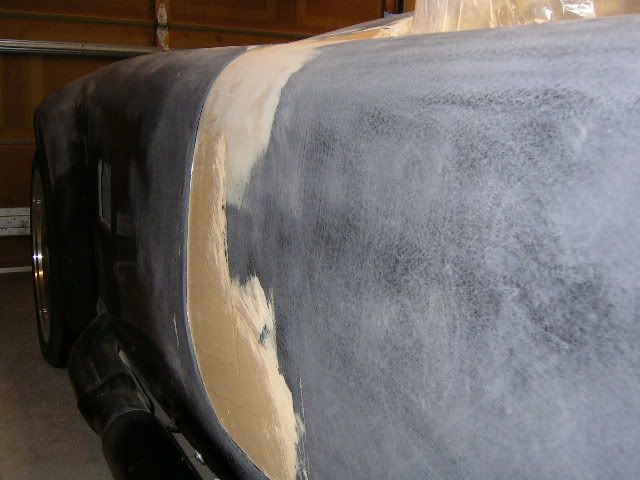

Jeff's door looks exactly like mine did. As Jeff said this is pretty common.
To say the least! These are just two that I knew of right away.

Jon A:


STL-Scott


There are lots of others that look exactly the same...
You've got plenty of company Chris

Jeff


Mk3 #5946 build pics w/text

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Mk4 #7276 "indy14" Build thread

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Mk4 Bodywork thread

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
JKleiner is offline
post #11 of 22 (permalink) Old 03-09-2010, 03:23 AM
1st RFM/FFR Legacy Winner

Greg_M's Avatar

Join Date: Jul 2004
Location: Knoxville, TN
Posts: 21,343
Greg_M:









Greg

FFR4373RD MK3, nondonor, DIY options/mods/paint, Lexus indigo/Viper silver, Hydroboost PS&PB/discs/ABS, AC/heat, 3-link/Konis, FMS302E, Holley 600DP/Airgap, 4X4 exhaust, Halibrand deep lip chrome CobraIII, TeamIII spinners, rollbars: chrome full & single


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Greg_M is offline
post #12 of 22 (permalink) Old 03-09-2010, 03:36 AM
1st RFM/FFR Legacy Winner

Greg_M's Avatar

Join Date: Jul 2004
Location: Knoxville, TN
Posts: 21,343
When fitting the doors you must have the body properly mounted and shimmed. The splash gaurds should be installed. I found 4 washers in back and 3 in front on the DS and one less at each point on the PS was the best compromise on the door fit. Also make sure when trimming the door edges you take material off evenly on the front/rear edge. You don't want to take too much off the rear especially or the edge that holds the weatherstrip will be too narrow.

Someone mentioned dash shape and the mirror. Take a look at this link on the buildsite and see if your cowl/body-dash edge is higher on the passenger side when viewed through the windshild.
http://www.worldisround.com/articles.../photo214.html
See the fix in this link: http://www.worldisround.com/articles.../photo216.html

and the results: http://www.worldisround.com/articles.../photo217.html

Greg

FFR4373RD MK3, nondonor, DIY options/mods/paint, Lexus indigo/Viper silver, Hydroboost PS&PB/discs/ABS, AC/heat, 3-link/Konis, FMS302E, Holley 600DP/Airgap, 4X4 exhaust, Halibrand deep lip chrome CobraIII, TeamIII spinners, rollbars: chrome full & single


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Last edited by Greg_M; 03-09-2010 at 03:42 AM.
Greg_M is offline
post #13 of 22 (permalink) Old 03-09-2010, 04:35 AM Thread Starter
Senior Member
FFCars Craftsman

Join Date: Dec 2009
Location: Schaumburg, IL
Posts: 585
Thanks for all the tips guys. I have done some shimming up front. I found later tonight that by shifting the body center to the PS (with all bolts in), it moved everything over about a quarter of an inch and really helped both doors. I still have the problem on the right, but it is down to a quarter of an inch at the worst spot and the overall area is less now. My challenge will be how to hold this side to side movement. It wants to move pretty easily. I am thnnking that a couple of screws into the rails in the hood gutter should hold it. the mirror screws should do it as well. I intend to shim under the mirror so that it doesn't press down on the body and change the shape. I have also pressed all across the area where the windshield goes without much deformation of the door area. I will get everything on before I start filling and sanding.

Greg, did you shim the bolts on the sides of the body? Is that what you were referring to? I didn't think of that, but is a good idea. I will try that tomorrow. Also, I reviewed your whole build site (great for us new guys). I looked very closely and cannot see what I saw in your pictures on the top of the dash. I did shim it up maybe a 1/4", but found the door fit better without it. We'll see if I notice it with the windshield on.

Larry
lr172 is offline
post #14 of 22 (permalink) Old 03-09-2010, 05:31 AM
1st RFM/FFR Legacy Winner

Greg_M's Avatar

Join Date: Jul 2004
Location: Knoxville, TN
Posts: 21,343
Greg, did you shim the bolts on the sides of the body?

Yes I found 4 washers on back two bolts (between frame and body) and 3 on front two bolts on the DS and one less at each point on the PS was the best compromise on the door fit.

Greg

FFR4373RD MK3, nondonor, DIY options/mods/paint, Lexus indigo/Viper silver, Hydroboost PS&PB/discs/ABS, AC/heat, 3-link/Konis, FMS302E, Holley 600DP/Airgap, 4X4 exhaust, Halibrand deep lip chrome CobraIII, TeamIII spinners, rollbars: chrome full & single


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Greg_M is offline
post #15 of 22 (permalink) Old 03-09-2010, 02:16 PM
Senior Member
FFCars Craftsman

Join Date: Jun 2008
Location: Westminster, CO
Posts: 591
I looked at my dash line through the windshield this morning and I have the same issue - my PS is about 1" higher than my drivers side....never noticed that before. I'll poke around a bit more to see how the other things (firewall, dash, windshield frame) are fitting before I decide to mess with that or let it go. I didn't think about removing a washer or two to see how that changes my door issue but I think that would help. Thanks for all the advice!

Chris

Basic Kit, IRS, LSx power, TKO600, under carriage exhaust, tilt front, E85.
ctcranor is offline
post #16 of 22 (permalink) Old 03-09-2010, 04:00 PM
Senior Member
FFCars Craftsman

Join Date: Jan 2009
Location: Lafayette, CO
Posts: 950
Larry, I've seen where some of the professional builders recommend screws in the hood side rail to tie things in place. I would think it would help getting things back in the same place after multiple removals of the body. And, I would think it would be important to get things back in the same place after all the filling and fitting one must do on the body.

Ralph.

Complete MK 3.1 #6890, ordered 1-20-09, delivered 3-5-09, Licensed 10-15-2011, 3 link w/Levy LRCA, 17" FF wheels, 3.73, T-5, T&L 347", carbed, Lexus Indigo pearl with Wimbledon stripe.
rponfick is offline
post #17 of 22 (permalink) Old 03-09-2010, 09:57 PM
Junior Charter Member

SC289FI's Avatar

Join Date: Mar 2005
Location: CHESAPEAKE VA
Posts: 465
Question

Hey guys I just ordered my kit and it will be a while before I get to the body work. I have never done any body work! What is the best type of filler to use on these fiberglass doors and trim?

My Mk3 Kit was ordered Online on February 10, 2010 at 12:35 pm!!!! Estimated Ship Date of 3/27/2010!!!! Delivered 4/11/2010 at 11:30 am!!!!!!!! Still no where close to being finished!!
SC289FI is offline
post #18 of 22 (permalink) Old 03-10-2010, 03:42 AM
DMW
FFCobra Master Craftsman

DMW's Avatar

Join Date: Jul 2004
Location: Davidson, NC
Posts: 8,694
Send a message via AIM to DMW
Direct answer: Rage and Rage Gold are the most commonly used fillers for FFRs. They cost a bit more but are easy to work and are worth the extra money.

Indirect answer: As you get closer to doing your bodywork, read every post of the "Ask Street Rod Painter" forum within the "Ask The Experts Forum". Take good notes, figure out the sequence, verify this with others. There are a lot of steps and you want to get them right from your initial washing of the body to remove mold wax to the final wet sanding and buffing.
DMW is offline
post #19 of 22 (permalink) Old 03-10-2010, 01:31 PM
1st RFM/FFR Legacy Winner

Greg_M's Avatar

Join Date: Jul 2004
Location: Knoxville, TN
Posts: 21,343
Adding to what DMW said, when you need to build thicker than 1/8", in areas of stress or to fill holes, use some high-strength filler. HS fillers contain fiberglass or kevlar strands. I used Evercoat's brand that came in a big sausage-like tube.

Greg

FFR4373RD MK3, nondonor, DIY options/mods/paint, Lexus indigo/Viper silver, Hydroboost PS&PB/discs/ABS, AC/heat, 3-link/Konis, FMS302E, Holley 600DP/Airgap, 4X4 exhaust, Halibrand deep lip chrome CobraIII, TeamIII spinners, rollbars: chrome full & single


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Last edited by Greg_M; 03-10-2010 at 02:09 PM.
Greg_M is offline
post #20 of 22 (permalink) Old Yesterday, 10:23 PM
Junior Charter Member

Big Boy's Avatar

Join Date: Jul 2006
Location: Oakville ONT. Canada
Posts: 146
FF5 Mk3.1 I took to much off door edge how do I fix. I need to add a good 1/8" do I use body filler or fiberglass filler. I just stared back on car after 2 years do to cancer I am right now cancer free. I hope I can finish the car by next spring.
Big Boy is online now
post #21 of 22 (permalink) Old Yesterday, 10:46 PM
Not a waxer

JKleiner's Avatar

Join Date: Apr 2002
Location: Bloomington, Indiana
Posts: 11,501
Quote:
Originally Posted by Big Boy View Post
FF5 Mk3.1 I took to much off door edge how do I fix. I need to add a good 1/8" do I use body filler or fiberglass filler. I just stared back on car after 2 years do to cancer I am right now cancer free. I hope I can finish the car by next spring.
First of all, it's good to hear that you have renewed health! Instead of making the door bigger just make the hole smaller. I build in the opening on virtually every car, not due to door size but rather to eliminate the exaggerated radius into the opening however the process and end result is the same:



Oh, and everything I said 10 years ago about building up the bottom corner of the door.... Forget that, there are better ways.

Jeff

Mk3 #5946 build pics w/text

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Mk4 #7276 "indy14" Build thread

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Mk4 Bodywork thread

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
JKleiner is offline
post #22 of 22 (permalink) Old Today, 09:42 AM
Junior Charter Member

Big Boy's Avatar

Join Date: Jul 2006
Location: Oakville ONT. Canada
Posts: 146
Jeff
The body work you've done looks awesome.

Thank you for your help
Big Boy is online now
Sponsored Links
Advertisement

Reply

Bookmarks

Quick Reply
Message:
Options

Register Now



In order to be able to post messages on the FFCars.com : Factory Five Racing Discussion Forum forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.

User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.

Password:


Confirm Password:
Email Address
Please enter a valid email address for yourself.

Email Address:
OR

Log-in











Currently Active Users Viewing This Thread: 3 (2 members and 1 guests)
Big Boy , Nigel Allen



Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


For the best viewing experience please update your browser to Google Chrome



Welcome to FFCars! The representations expressed are the representations and opinions of the FFCars.com forum members and do not necessarily reflect the opinions and viewpoints of the site owners, moderators, Factory Five Racing, Inc. or Ford Motor Company. This website has been planned and developed by FFCars.com and its forum members and should not be construed as being endorsed by Factory Five Racing, Inc. or Ford Motor Company for any purpose. "FFR", "Factory Five", "Factory Five Racing", and the Factory Five Racing logo are registered trademarks of Factory Five Racing, Inc. FFCars.com forum members agree not to post any copyrighted material unless the copyrighted material is owned by you. Although we do not and cannot review the messages posted and are not responsible for the content of any of these messages, we reserve the right to delete any message for any reason whatsoever. You remain solely responsible for the content of your messages, and you agree to indemnify and hold us harmless with respect to any claim based upon transmission of your message(s). Thank you for visiting the FFCars.com Forum dedicated to Factory Five.
