Anyone Using Hydroboost with SBF

Has anyone used the hydroboost power steering and power brakes with a SBF (302 or 351)?

Thanks.

Wade


FFR Roadster Mk 3.1, 2002 SOHC 4.6 with Edelbrock intake and 4 bbl carb, T45 trans, solid axle with FFR 3 Link, Yukon Axles, Levy Racing rear lower control arms, VPM 3 Link Brace, Fox length axles, 11.65" rear disks, Koni coilovers, stainless steel side pipes with Flowmaster Slimline Mufflers
Driver_WT is offline
Sponsored Links
Advertisement

post #2 of 13 (permalink) Old 03-20-2017, 08:15 PM
Senior Member

Clubcar's Avatar

Join Date: Feb 2015
Location: Portland, Maine
Posts: 256
yup....


Mklll, 363 Dart, 4-link, koni, T5-3.73.
Clubcar is offline
post #3 of 13 (permalink) Old 03-20-2017, 08:40 PM Thread Starter
Junior Charter Member
FFCars Craftsman

Join Date: Aug 2007
Location: Nova Scotia
Posts: 1,019
How did you make the pump bracket and the belts work?

FFR Roadster Mk 3.1, 2002 SOHC 4.6 with Edelbrock intake and 4 bbl carb, T45 trans, solid axle with FFR 3 Link, Yukon Axles, Levy Racing rear lower control arms, VPM 3 Link Brace, Fox length axles, 11.65" rear disks, Koni coilovers, stainless steel side pipes with Flowmaster Slimline Mufflers
Driver_WT is offline

post #4 of 13 (permalink) Old 03-20-2017, 09:15 PM
FFCobra Captain

Dan Babb's Avatar

Join Date: Mar 2003
Location: Chapel Hill, NC
Posts: 11,248
You buy a steering pump bracket that works with your current belt configuration. If you're using a serpentine belt, there are power steering pump brackets available. I think some guys use the CFR performance bracket. Breeze has a pump & bracket that works too.

The hose routing is a bit more cumbersome than using a vacuum setup, but it's workable. I ran my lines through a cooler using the oil cooler opening to help keep the fluid from frothing up.

I used brackets from Whitby, but I have AC in my car too and at the time, he sold a setup that worked for both the compressor and PS pump.

What pedal box do you have in your car? I have a fox pedal box and it was a bit of work to make it mount up to the hydroboost.

Dan


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

FFR5857
349cu.in with Mass-Flo EFI, Edelbrock Performer Alum. Heads and other go-fast goodies
PS/PB/AC
Dan Babb is online now
post #5 of 13 (permalink) Old 03-20-2017, 09:51 PM
Senior Member

canuck1's Avatar

Join Date: Dec 2004
Location: Victoria, BC CANADA
Posts: 5,677
Garage
I'm using March brackets for alternator and Mustang PS pump that work fine with serpentine belt & pulleys on a 351W. Fairly conventional, you can see the layout from March here:

March Performance - Ford 289, 302, 351W : Deluxe

There are many other possibilities, as the hydrobooster doesn't really care too much about which way your accessories are oriented. Are you working with OEM Ford hardware or something aftermarket?

Sean

MK 3.5 (MK IV body retrofit to MK III chassis) 351W stroked & poked to 396 c.i., custom EFI, 4 into 4's, 3link, 3.73, 15" Halibrand replicas, SAI mod, full bumpers, 2 X roll bars, IČ electronics, hydroboost, 5-lug, GT front, MK VIII/Cobra rear discs, painted by SRP (again!)
canuck1 is online now
post #6 of 13 (permalink) Old 03-21-2017, 01:11 AM
Senior Member

sejust2009's Avatar

Join Date: Jun 2009
Location: Fletcher, Ohio
Posts: 610
My solution

Hello Wade
I originally bought a March bracket and pulley and an OEM Mustang power steering pump. The problem that I had with this is as follows:
The fluid level in the attached reservoir on the OEM pump was about 8" below the top of the hydroboost mechanism. The power steering was constantly sucking air when you turn from rack to rack, because either there was unresolved air in the lines that could not be burped due to the configuration, or that the fluid finds its natural level and leaves air in the system. I then changed to the Breeze pump with the detached reservoir. Since I made the change, I have not had a problem with it.

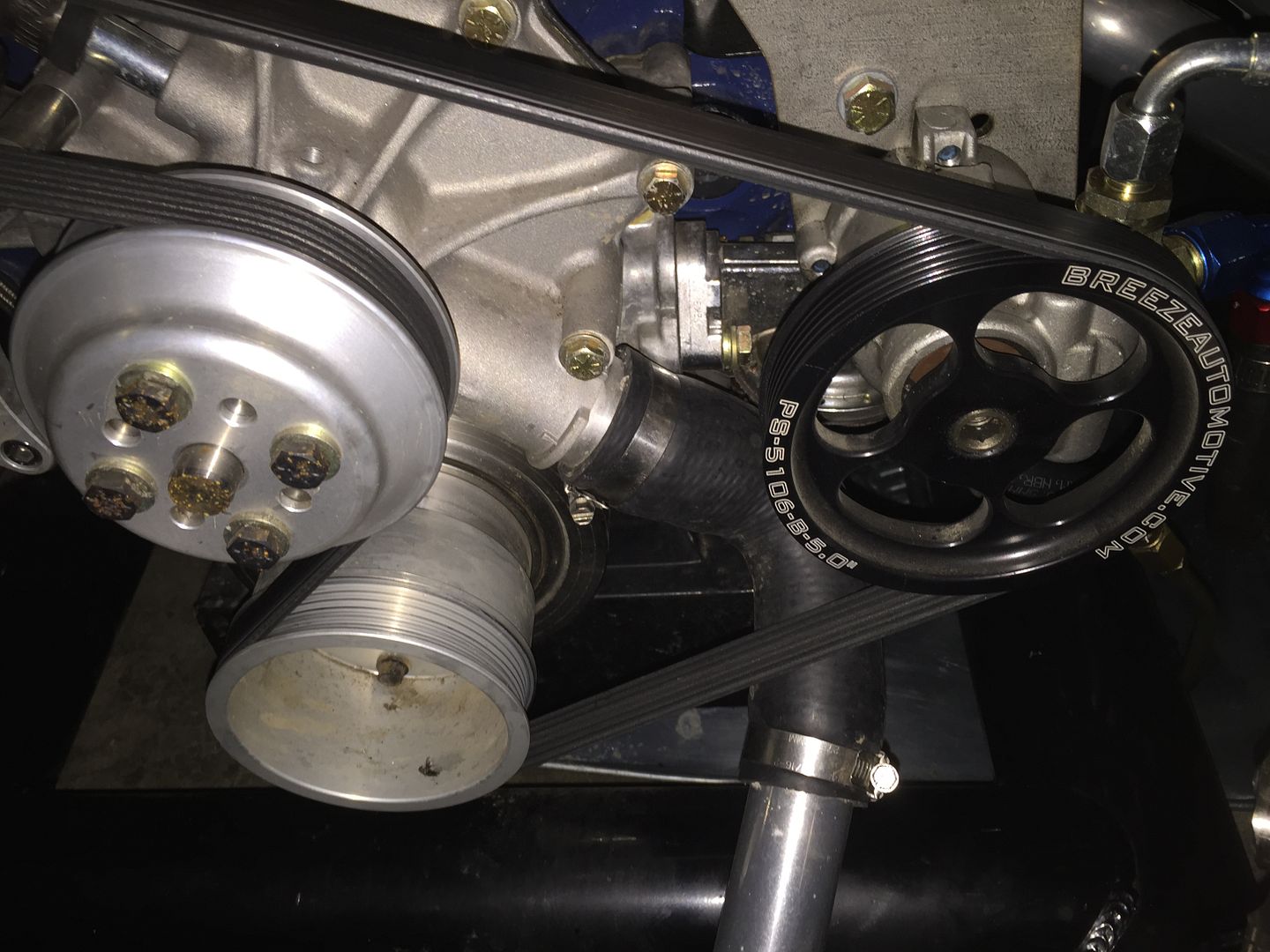

Hmm... looks like that radiator hose needs to be adjusted...

The reservoir with the red arrow is the power steering reservoir

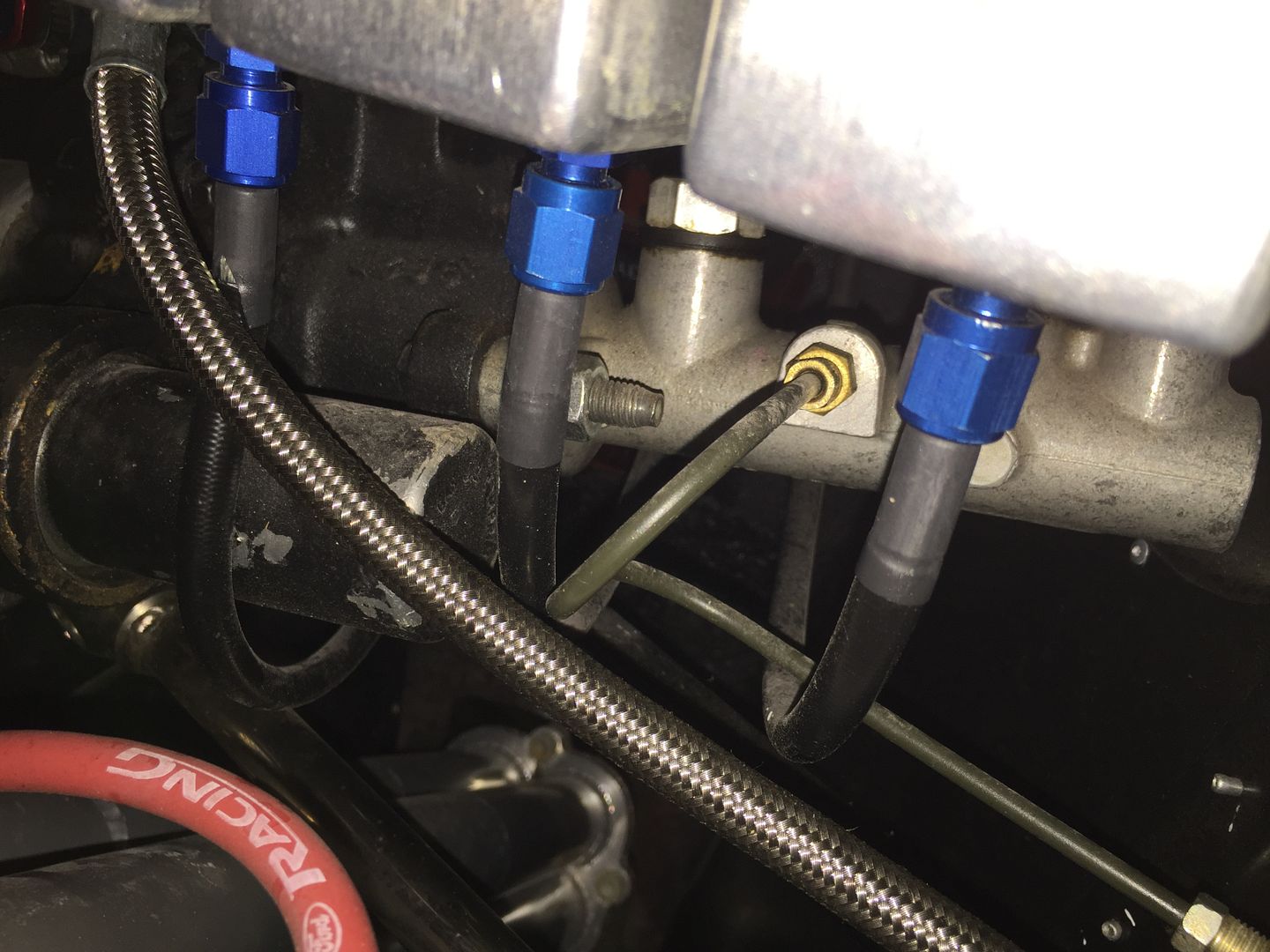

Hydroboost unit is under and behind the brake and clutch reservoirs.



Good Luck
Steve

Build thread:
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Graduation!:
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Registered and licensed 4/9/2015
Paint! 1/31/15 (PLB "Copper/Mango Tango", UH "Tuxedo Black" stripes)
Dyno Run
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

First Start 9/28/14
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Go cart
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Mk4 Roadster. FRPP 427W Z heads. Carb, PS/PB Hydroboost TKO 600 IRS 3.27. 9" and 10.5" Halibrands. Hidden stereo. Leather dash
Let the fun begin! 2/2/14
Picked up Kit 1/31/14 FFR #8243
MK4 kit ordered 12/05/2013
sejust2009 is online now
post #7 of 13 (permalink) Old 03-21-2017, 02:28 PM Thread Starter
Junior Charter Member
FFCars Craftsman

Join Date: Aug 2007
Location: Nova Scotia
Posts: 1,019
Thanks guys. I am using hydroboost, fluid lines and pedal box from a 1998 Mustang. Power steering pump is from a 2002 Mustang 4.6 sohc.

FFR Roadster Mk 3.1, 2002 SOHC 4.6 with Edelbrock intake and 4 bbl carb, T45 trans, solid axle with FFR 3 Link, Yukon Axles, Levy Racing rear lower control arms, VPM 3 Link Brace, Fox length axles, 11.65" rear disks, Koni coilovers, stainless steel side pipes with Flowmaster Slimline Mufflers
Driver_WT is offline
post #8 of 13 (permalink) Old 03-21-2017, 04:50 PM
Senior Member

Clubcar's Avatar

Join Date: Feb 2015
Location: Portland, Maine
Posts: 256
Driver;
My car is still in storage, plenty of snow still here in Maine. If needed, I will get you some photos of my setup in early April......

Mklll, 363 Dart, 4-link, koni, T5-3.73.
Clubcar is offline
post #9 of 13 (permalink) Old 03-21-2017, 06:54 PM
Senior Member

canuck1's Avatar

Join Date: Dec 2004
Location: Victoria, BC CANADA
Posts: 5,677
Garage
Wade,

Are you running a 302 (5.0) or a 351 engine? Your sig says 4.6 but your question was about 302 or 351? With a 302, there are factory accessory brackets and adapters that can help mount your alternator and OEM PS pump in a functional config. With 351, the taller deck generally means you need to be a little more creative and/or source aftermarket hardware to mount your alt. & PS pump etc. Serpentine belt is probably the most common option but people have configured v-belts to do the job as well. Steve's (sejust2009)setup is really cool but I've not experienced the low fluid volume problem he's described. I have plenty of driving miles on my car since 2007!

Sean

MK 3.5 (MK IV body retrofit to MK III chassis) 351W stroked & poked to 396 c.i., custom EFI, 4 into 4's, 3link, 3.73, 15" Halibrand replicas, SAI mod, full bumpers, 2 X roll bars, IČ electronics, hydroboost, 5-lug, GT front, MK VIII/Cobra rear discs, painted by SRP (again!)

Last edited by canuck1; 03-21-2017 at 07:16 PM.
canuck1 is online now
post #10 of 13 (permalink) Old 03-21-2017, 07:21 PM
FFCobra Craftsman

CraigS's Avatar

Join Date: Feb 2005
Location: Manassas, Va
Posts: 17,524
If you go w/ a Breeze mount that bolts to the head the only difference between a 302 and 351 is belt length.


FFR 5353K, 408W, TKO 500, 2015 IRS w/ 315 gear, Breeze QA1 DA coilovers front and rear, APE hardtop, Forte front swaybar
CraigS is online now
post #11 of 13 (permalink) Old 03-21-2017, 08:24 PM Thread Starter
Junior Charter Member
FFCars Craftsman

Join Date: Aug 2007
Location: Nova Scotia
Posts: 1,019
Quote:
Originally Posted by canuck1 View Post
Wade,

Are you running a 302 (5.0) or a 351 engine? Your sig says 4.6 but your question was about 302 or 351? With a 302, there are factory accessory brackets and adapters that can help mount your alternator and OEM PS pump in a functional config. With 351, the taller deck generally means you need to be a little more creative and/or source aftermarket hardware to mount your alt. & PS pump etc. Serpentine belt is probably the most common option but people have configured v-belts to do the job as well. Steve's (sejust2009)setup is really cool but I've not experienced the low fluid volume problem he's described. I have plenty of driving miles on my car since 2007!

Sean
I have a 4.6 sohc engine now, but just saw a pretty good deal on a 347 stroker and I am trying understand how painful it would be to switch to the 347. I would like to keep the hydroboost power brakes and steering setup and not get into changes in those areas. Buying and changing the engine, trans, clutch and driveshaft will be enough pain for me. LOL

Wade

FFR Roadster Mk 3.1, 2002 SOHC 4.6 with Edelbrock intake and 4 bbl carb, T45 trans, solid axle with FFR 3 Link, Yukon Axles, Levy Racing rear lower control arms, VPM 3 Link Brace, Fox length axles, 11.65" rear disks, Koni coilovers, stainless steel side pipes with Flowmaster Slimline Mufflers
Driver_WT is offline
post #12 of 13 (permalink) Old 03-21-2017, 09:38 PM
Senior Member

canuck1's Avatar

Join Date: Dec 2004
Location: Victoria, BC CANADA
Posts: 5,677
Garage
Quote:
Originally Posted by CraigS View Post
If you go w/ a Breeze mount that bolts to the head the only difference between a 302 and 351 is belt length.
You're right. I was just pointing out that the factory OEM hardware is designed to fit the 302 block size. Aftermarket options like Breeze offers, can incorporate the 351 as well.

Quote:
Originally Posted by Driver_WT View Post
I have a 4.6 sohc engine now, but just saw a pretty good deal on a 347 stroker and I am trying understand how painful it would be to switch to the 347. I would like to keep the hydroboost power brakes and steering setup and not get into changes in those areas. Buying and changing the engine, trans, clutch and driveshaft will be enough pain for me. LOL

Wade
Wow! Must be a heck of a deal!?

My personal experience is hydroboost is not that much more work than simply making the decision to keep or add PS. In your case, you will need a new PS pump and mounting hardware as I don't think I have seen a way to utilize the mod motor PS pump on a sbf. You will need to make the decision about serpentine vs. v-belt and also whether you want to modify your factory lines or make/purchase custom fit PS lines to suit. Other than tweaking them and tucking the extra length away as best you can, the factory lines can be made to work. Custom lines are just a bit tidier and, well, not nearly 20 years old!

Sean

MK 3.5 (MK IV body retrofit to MK III chassis) 351W stroked & poked to 396 c.i., custom EFI, 4 into 4's, 3link, 3.73, 15" Halibrand replicas, SAI mod, full bumpers, 2 X roll bars, IČ electronics, hydroboost, 5-lug, GT front, MK VIII/Cobra rear discs, painted by SRP (again!)
canuck1 is online now
post #13 of 13 (permalink) Old Today, 04:28 AM Thread Starter
Junior Charter Member
FFCars Craftsman

Join Date: Aug 2007
Location: Nova Scotia
Posts: 1,019
Thanks Sean. I have a local hydraulic shop that can modify the lines. And yes, I expected to have to buy a new PS pump.
