Upgrade to Gordon Levy front upper and lower control arms

Hopefully last step in my conversion to all rod end suspension. I already installed his rear lower control arms.
First step in Rod end conversions

Gordon's rear lower control arms good for 2 seconds off

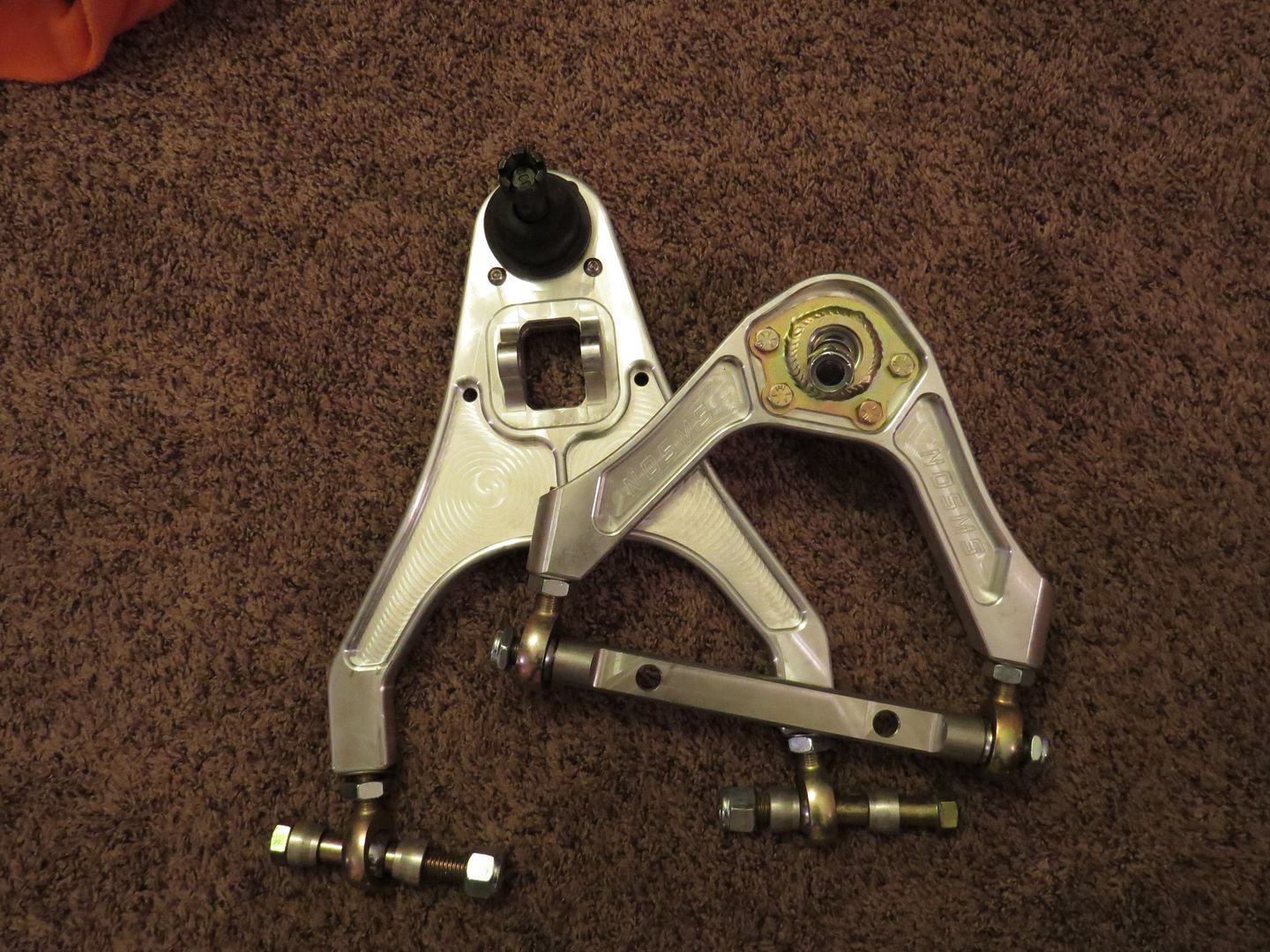

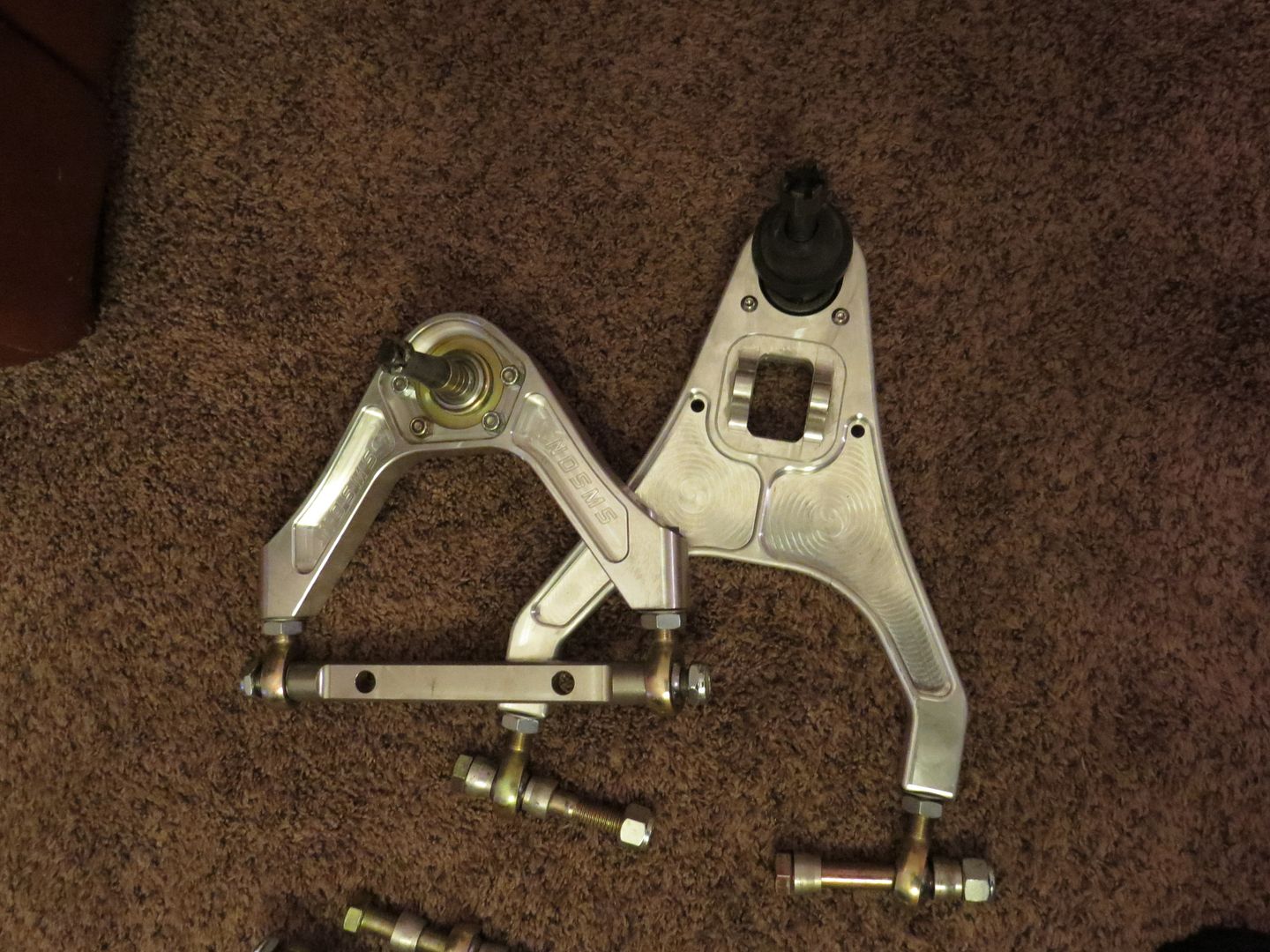

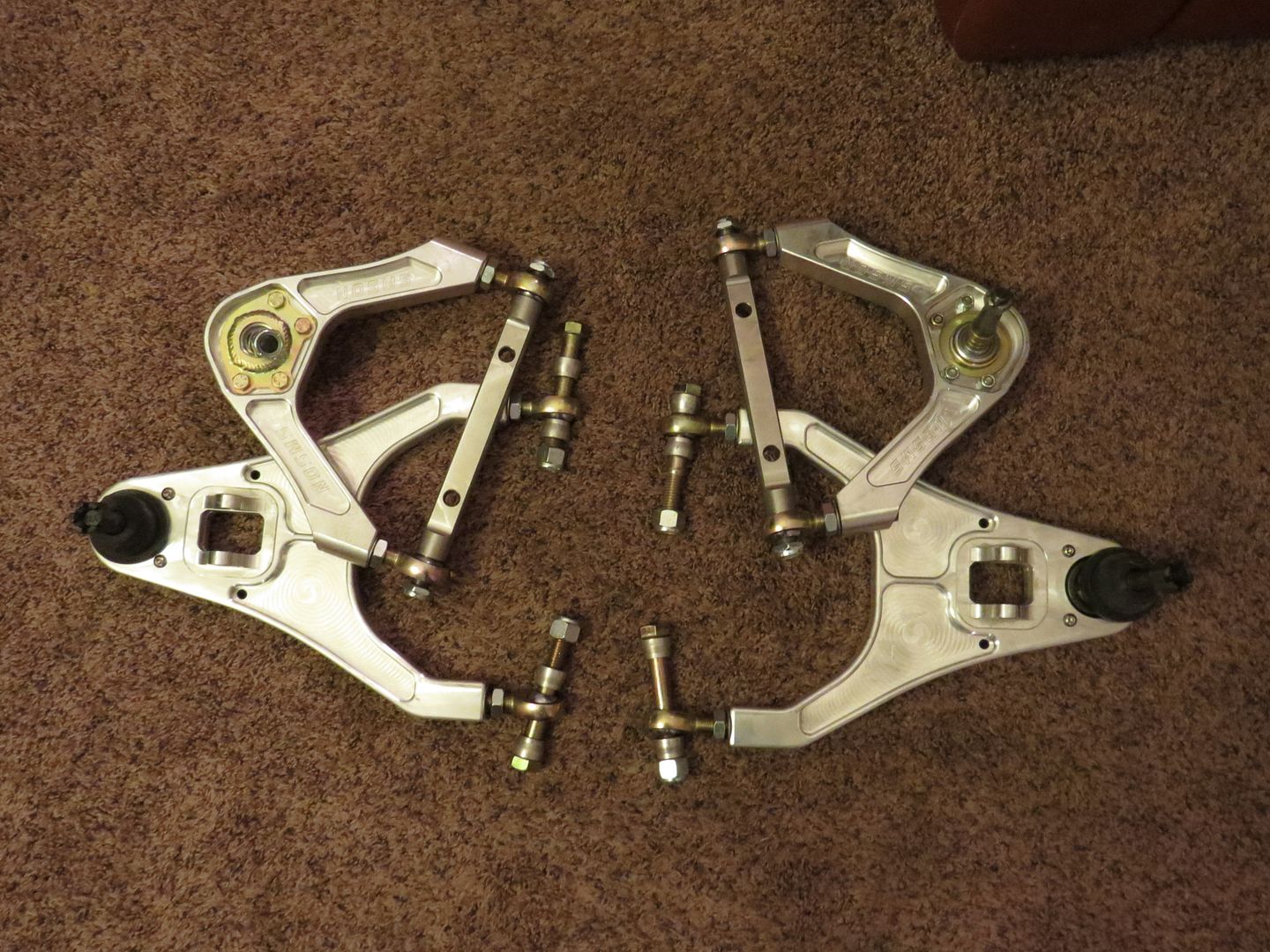

The box came today. Uppers and lowers with mono ball ball joints.





Donor $2,500 -Kit $18,000 -Extra "needs stuff" $100's -$1,000's
300+hp tagged race car PRICELESS !! Best ET 12.27 @ 113.49 mph N/A
Mk III #5294 -302 AFR 185 Heads, Levy Front and Rear control arms, 3-link, 3.55, 11" GT front and 11" Cobra rear brakes, SAI, UTC exhaust No More EFI: Now Quick Fuel 650

“It is not the giver of life that destroys human life. It is the receivers of life who do not live in the rational, honest way called for by the creator's behavioral law. Instead they live as they please and finally are forced to depart this life.” Richard W. Wetherill

YouTube Videos: AutoX
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Go Kart
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

My Pics:

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
JoeE is online now
Sponsored Links
Advertisement

post #2 of 38 (permalink) Old 11-02-2016, 01:18 AM
Member

Join Date: Sep 2015
Location: Rochester, NY
Posts: 54
Looks great! I have eyed them as an upgrade once I get it all together. Will you be able to get an rough idea of dropped times like you did for the rears?

How are you handling sway bars?


FFR #8758 Build Thread-
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
mk351 is offline
post #3 of 38 (permalink) Old 11-02-2016, 01:30 AM
Senior Member

toy4me's Avatar

Join Date: Oct 2005
Location: Voorhees NJ
Posts: 329
I have those on mine. Very nice and very adjustable. Took some time and a few calls to Gordon but I finally got them set.

408 ci Gordon Levy motor with his T5 trans and independent 3.55 rear. EZ EFI 2.0.
toy4me is offline

post #4 of 38 (permalink) Old 11-02-2016, 01:31 AM Thread Starter
Unconventional Builder

JoeE's Avatar

Join Date: Jun 2007
Location: Hatboro SE Pennsylvania
Posts: 5,142
Garage
Quote:
Originally Posted by mk351 View Post
Looks great! I have eyed them as an upgrade once I get it all together. Will you be able to get an rough idea of dropped times like you did for the rears?

How are you handling sway bars?
Times will be next season but I will be running against the same top drivers at same Pocono events.

I don't use sway bars yet. Just working with spring rate and tire pressure. It is really surprising how much a pound or so difference in tire pressure can change the whole performance of our cars. I run 20 up front and 21 in rear with 295 Hoosier A6's all around on 10.5 rims.

Donor $2,500 -Kit $18,000 -Extra "needs stuff" $100's -$1,000's
300+hp tagged race car PRICELESS !! Best ET 12.27 @ 113.49 mph N/A
Mk III #5294 -302 AFR 185 Heads, Levy Front and Rear control arms, 3-link, 3.55, 11" GT front and 11" Cobra rear brakes, SAI, UTC exhaust No More EFI: Now Quick Fuel 650

“It is not the giver of life that destroys human life. It is the receivers of life who do not live in the rational, honest way called for by the creator's behavioral law. Instead they live as they please and finally are forced to depart this life.” Richard W. Wetherill

YouTube Videos: AutoX
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Go Kart
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

My Pics:

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
JoeE is online now
post #5 of 38 (permalink) Old 11-03-2016, 06:57 PM Thread Starter
Unconventional Builder

JoeE's Avatar

Join Date: Jun 2007
Location: Hatboro SE Pennsylvania
Posts: 5,142
Garage
I am working out my challenge which will be drilling new lower mounting holes about an inch below the FFR holes.

Per Gordon:
Quote:
Originally Posted by Gordon Levy View Post
There are a couple of things that lowering the car does, specifically when running really low ride heights is it keeps the arms level and with the comp ball joints the neg camber gain is optimized.

Donor $2,500 -Kit $18,000 -Extra "needs stuff" $100's -$1,000's
300+hp tagged race car PRICELESS !! Best ET 12.27 @ 113.49 mph N/A
Mk III #5294 -302 AFR 185 Heads, Levy Front and Rear control arms, 3-link, 3.55, 11" GT front and 11" Cobra rear brakes, SAI, UTC exhaust No More EFI: Now Quick Fuel 650

“It is not the giver of life that destroys human life. It is the receivers of life who do not live in the rational, honest way called for by the creator's behavioral law. Instead they live as they please and finally are forced to depart this life.” Richard W. Wetherill

YouTube Videos: AutoX
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Go Kart
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

My Pics:

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
JoeE is online now
post #6 of 38 (permalink) Old 11-03-2016, 09:22 PM
Member

Join Date: Nov 2012
Location: San Jose
Posts: 66
That is art. Take down the painting of the fruit bowls and hang them to be displayed.
Brastic is offline
post #7 of 38 (permalink) Old 11-11-2016, 12:02 AM
Junior Charter Member
FFCars Craftsman

Join Date: Jun 2007
Location: Up North
Posts: 848
Quote:
Originally Posted by JoeE View Post
I am working out my challenge which will be drilling new lower mounting holes about an inch below the FFR holes.
Friend of mine made me a jig out of hardened steel. These holes were as low as I could go without the heim joint rubbing the frame.

With the frame perfectly level, the top of the jig is angled and level with the earth. Four perfect holes.

I used a high torque, low speed drill he loaned me for the job.
Attached Images
File Type: jpg P1050766.jpg (150.4 KB, 180 views)
File Type: jpg P1050765.jpg (189.4 KB, 173 views)
File Type: jpg P1050764.jpg (164.3 KB, 178 views)
File Type: jpg P1050763.jpg (145.1 KB, 166 views)
JoeE thanked this.

MKII Roadster
hacker-pschorr is offline
post #8 of 38 (permalink) Old 11-24-2016, 07:41 PM Thread Starter
Unconventional Builder

JoeE's Avatar

Join Date: Jun 2007
Location: Hatboro SE Pennsylvania
Posts: 5,142
Garage
Holes drilled, 8 hours later, I did the step method 3/32, 5/16. 7/16 ,1/2, 5/8. The biggest challenge for me, aside from my UTC in the way, was being able to drill a hole about 3/4 to 7/8 above rail. The front holes went relatively easy because you come in from front holding drill normally. The rearward holes not so much, steel is tough enough now lay the drill on its side. The most compact drill I was able to get my hands on was about 2 ¼ in thick so on its side the center of the hole was over an inch above frame tube. I filed the plastic case down to 1 3/4.




I also used a template to get my 3/32 holes all the same distance from upper holes. hacker-pschorr's template, above, looks to be ideal.

Needed to buy a long bit and then cut it down to about 4 1/2 inches. Most bits below 5/16 are less than 3" long and you need about 3 1/2" to drill from one tab through the other side.

Donor $2,500 -Kit $18,000 -Extra "needs stuff" $100's -$1,000's
300+hp tagged race car PRICELESS !! Best ET 12.27 @ 113.49 mph N/A
Mk III #5294 -302 AFR 185 Heads, Levy Front and Rear control arms, 3-link, 3.55, 11" GT front and 11" Cobra rear brakes, SAI, UTC exhaust No More EFI: Now Quick Fuel 650

“It is not the giver of life that destroys human life. It is the receivers of life who do not live in the rational, honest way called for by the creator's behavioral law. Instead they live as they please and finally are forced to depart this life.” Richard W. Wetherill

YouTube Videos: AutoX
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Go Kart
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

My Pics:

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Last edited by JoeE; 11-24-2016 at 10:10 PM.
JoeE is online now
post #9 of 38 (permalink) Old 11-24-2016, 07:44 PM Thread Starter
Unconventional Builder

JoeE's Avatar

Join Date: Jun 2007
Location: Hatboro SE Pennsylvania
Posts: 5,142
Garage
Next challenge making room to drill front holes, drain rad to get hose out of the way


I also had to take out the p/s side header and exhaust pipe. Then cut F panel, didnt feel like removing I will just rivet the bottom back in place.


Donor $2,500 -Kit $18,000 -Extra "needs stuff" $100's -$1,000's
300+hp tagged race car PRICELESS !! Best ET 12.27 @ 113.49 mph N/A
Mk III #5294 -302 AFR 185 Heads, Levy Front and Rear control arms, 3-link, 3.55, 11" GT front and 11" Cobra rear brakes, SAI, UTC exhaust No More EFI: Now Quick Fuel 650

“It is not the giver of life that destroys human life. It is the receivers of life who do not live in the rational, honest way called for by the creator's behavioral law. Instead they live as they please and finally are forced to depart this life.” Richard W. Wetherill

YouTube Videos: AutoX
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Go Kart
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

My Pics:

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Last edited by JoeE; 11-24-2016 at 10:12 PM.
JoeE is online now
post #10 of 38 (permalink) Old 11-24-2016, 07:47 PM Thread Starter
Unconventional Builder

JoeE's Avatar

Join Date: Jun 2007
Location: Hatboro SE Pennsylvania
Posts: 5,142
Garage
Then removed the elephant ears.


Then I got to work on drilling





Donor $2,500 -Kit $18,000 -Extra "needs stuff" $100's -$1,000's
300+hp tagged race car PRICELESS !! Best ET 12.27 @ 113.49 mph N/A
Mk III #5294 -302 AFR 185 Heads, Levy Front and Rear control arms, 3-link, 3.55, 11" GT front and 11" Cobra rear brakes, SAI, UTC exhaust No More EFI: Now Quick Fuel 650

“It is not the giver of life that destroys human life. It is the receivers of life who do not live in the rational, honest way called for by the creator's behavioral law. Instead they live as they please and finally are forced to depart this life.” Richard W. Wetherill

YouTube Videos: AutoX
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Go Kart
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

My Pics:

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Last edited by JoeE; 11-24-2016 at 10:12 PM.
JoeE is online now
post #11 of 38 (permalink) Old 11-24-2016, 07:54 PM Thread Starter
Unconventional Builder

JoeE's Avatar

Join Date: Jun 2007
Location: Hatboro SE Pennsylvania
Posts: 5,142
Garage
Today I got to test fit the lowers, love the look. I have about 1/4 inch clearance from bottom of rod end to frame tube. Another benefit of the arms is you can space them forward slightly increasing wheel base and giving you plenty of caster adjustment. I am going with washers instead of spacers to give me plenty of flexibility in my adjustments and tuning.


Next I need to clearance the washers for the welds so they line up straight.


Donor $2,500 -Kit $18,000 -Extra "needs stuff" $100's -$1,000's
300+hp tagged race car PRICELESS !! Best ET 12.27 @ 113.49 mph N/A
Mk III #5294 -302 AFR 185 Heads, Levy Front and Rear control arms, 3-link, 3.55, 11" GT front and 11" Cobra rear brakes, SAI, UTC exhaust No More EFI: Now Quick Fuel 650

“It is not the giver of life that destroys human life. It is the receivers of life who do not live in the rational, honest way called for by the creator's behavioral law. Instead they live as they please and finally are forced to depart this life.” Richard W. Wetherill

YouTube Videos: AutoX
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Go Kart
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

My Pics:

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Last edited by JoeE; 11-24-2016 at 10:04 PM.
JoeE is online now
post #12 of 38 (permalink) Old 11-24-2016, 07:56 PM Thread Starter
Unconventional Builder

JoeE's Avatar

Join Date: Jun 2007
Location: Hatboro SE Pennsylvania
Posts: 5,142
Garage
Remaining step before mounting the uppers; Last drilling will be to lean upper shock mounts in about an inch for full droop clearance. ***Do this after installing everything it may not be necessary depending on your setup Today I went back to original FFR holes not necessary to move the upper shock mounting points. (Added Jan 14, 2017) *****




Donor $2,500 -Kit $18,000 -Extra "needs stuff" $100's -$1,000's
300+hp tagged race car PRICELESS !! Best ET 12.27 @ 113.49 mph N/A
Mk III #5294 -302 AFR 185 Heads, Levy Front and Rear control arms, 3-link, 3.55, 11" GT front and 11" Cobra rear brakes, SAI, UTC exhaust No More EFI: Now Quick Fuel 650

“It is not the giver of life that destroys human life. It is the receivers of life who do not live in the rational, honest way called for by the creator's behavioral law. Instead they live as they please and finally are forced to depart this life.” Richard W. Wetherill

YouTube Videos: AutoX
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Go Kart
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

My Pics:

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Last edited by JoeE; 01-15-2017 at 01:05 AM.
JoeE is online now
post #13 of 38 (permalink) Old 11-24-2016, 11:59 PM Thread Starter
Unconventional Builder

JoeE's Avatar

Join Date: Jun 2007
Location: Hatboro SE Pennsylvania
Posts: 5,142
Garage
Test fit uppers, they have Gordon's optional Monoballs for upperball joints. The Monoballs are rod ends with a ball joint stud passing through the end. They are fully adjustable with respect to the distance between upper and lower arms. They are also nice bc you can remove the nut and remove the upper arm with out messing with the stud in spindle, what was the upper ball joint.



Donor $2,500 -Kit $18,000 -Extra "needs stuff" $100's -$1,000's
300+hp tagged race car PRICELESS !! Best ET 12.27 @ 113.49 mph N/A
Mk III #5294 -302 AFR 185 Heads, Levy Front and Rear control arms, 3-link, 3.55, 11" GT front and 11" Cobra rear brakes, SAI, UTC exhaust No More EFI: Now Quick Fuel 650

“It is not the giver of life that destroys human life. It is the receivers of life who do not live in the rational, honest way called for by the creator's behavioral law. Instead they live as they please and finally are forced to depart this life.” Richard W. Wetherill

YouTube Videos: AutoX
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Go Kart
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

My Pics:

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Last edited by JoeE; 01-16-2017 at 09:38 PM.
JoeE is online now
post #14 of 38 (permalink) Old 12-04-2016, 10:27 PM Thread Starter
Unconventional Builder

JoeE's Avatar

Join Date: Jun 2007
Location: Hatboro SE Pennsylvania
Posts: 5,142
Garage
Today I finished getting my aluminium panels back in place. I didn't like the way the stock boots looked on the lower ball joints so I found a set at Energy Suspension. Part # 9.13119R, they are actually tie rod end boots. These fit nicely, after expanding the holes with 1/2 dremmel sanding drum, into the recessed ball joint mount whereas the stock ones overlapped and did not fit in side the hole.

Will be doing final spacing fit of the arms this week.



Donor $2,500 -Kit $18,000 -Extra "needs stuff" $100's -$1,000's
300+hp tagged race car PRICELESS !! Best ET 12.27 @ 113.49 mph N/A
Mk III #5294 -302 AFR 185 Heads, Levy Front and Rear control arms, 3-link, 3.55, 11" GT front and 11" Cobra rear brakes, SAI, UTC exhaust No More EFI: Now Quick Fuel 650

“It is not the giver of life that destroys human life. It is the receivers of life who do not live in the rational, honest way called for by the creator's behavioral law. Instead they live as they please and finally are forced to depart this life.” Richard W. Wetherill

YouTube Videos: AutoX
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Go Kart
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

My Pics:

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
JoeE is online now
post #15 of 38 (permalink) Old 12-05-2016, 12:41 PM
FFCobra Craftsman

CraigS's Avatar

Join Date: Feb 2005
Location: Manassas, Va
Posts: 18,049
Those are beautiful for sure. One recommendation since you are autocrossing on R compound tires is to reinforce you SAI frame adapter. A couple of guys have ripped the angle iron piece out of the frame. See either the autocross forum or pics of the current FFR frame for ideas how to do the reinforcement.
JoeE thanked this.

FFR 5353K, 408W, TKO 500, 2015 IRS w/ 315 gear, Breeze QA1 DA coilovers front and rear, APE hardtop, Forte front swaybar
CraigS is online now
post #16 of 38 (permalink) Old 12-05-2016, 11:02 PM
Senior Member
FFCars Captain

Cone Basher's Avatar

Join Date: Jan 2005
Location: South Eastern Ohio
Posts: 3,613
Red face

X2 on what Craig said. I reinforced mine using a section of 1/4 x 2 angle trimmed and welded to the bottom of the mount angle for the UCA and bolted through the upright for future removal if needed.
HTH CB
Cone Basher is offline
post #17 of 38 (permalink) Old 12-05-2016, 11:32 PM
Junior Member

vette1972's Avatar

Join Date: Nov 2016
Location: Fayetteville WV
Posts: 19
This is great info for a new guy like me. Thanks to all.
vette1972 is offline
post #18 of 38 (permalink) Old 12-06-2016, 12:22 AM Thread Starter
Unconventional Builder

JoeE's Avatar

Join Date: Jun 2007
Location: Hatboro SE Pennsylvania
Posts: 5,142
Garage
Quote:
Originally Posted by Cone Basher View Post
X2 on what Craig said. I reinforced mine using a section of 1/4 x 2 angle trimmed and welded to the bottom of the mount angle for the UCA and bolted through the upright for future removal if needed.
HTH CB
By any chance do you have any pics?

Donor $2,500 -Kit $18,000 -Extra "needs stuff" $100's -$1,000's
300+hp tagged race car PRICELESS !! Best ET 12.27 @ 113.49 mph N/A
Mk III #5294 -302 AFR 185 Heads, Levy Front and Rear control arms, 3-link, 3.55, 11" GT front and 11" Cobra rear brakes, SAI, UTC exhaust No More EFI: Now Quick Fuel 650

“It is not the giver of life that destroys human life. It is the receivers of life who do not live in the rational, honest way called for by the creator's behavioral law. Instead they live as they please and finally are forced to depart this life.” Richard W. Wetherill

YouTube Videos: AutoX
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Go Kart
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

My Pics:

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
JoeE is online now
post #19 of 38 (permalink) Old 12-06-2016, 12:49 AM
FFCobra Fanatic
FFCars Captain

5.8Cobra's Avatar

Join Date: Aug 2002
Location: CT
Posts: 5,262
Here is what Wade did with his. Should give you an idea of what needs reinforcing.

Mike

JoeE thanked this.

FFR 2166: 383Windsor, Vortech YS, TFS box intake,Dynod 652 rwhp , 9/11" Team III's 255/315 NT-05 Nittos, Vintage Autometers, PS, Power M2300K 13"/11.65" brakes, Tremec TKO midshift, SAI Mod, LEVY 5 Link, Gas-N pipes, Konis

FFR 3107 Built & Sold
FFR 1990 Built & Sold
FFR 7330 Built & Sold

FFR 4948 purchased 2013 incomplete, IRS planned 351W,Tremec,3.27's
5.8Cobra is offline
post #20 of 38 (permalink) Old 12-06-2016, 11:32 PM
Senior Member
FFCars Captain

Cone Basher's Avatar

Join Date: Jan 2005
Location: South Eastern Ohio
Posts: 3,613
Red face

No pics of mine the 5.8 Cobra picture is almost exactly what I did except I use a section of 1/4 angle, either will work well. Well worth doing IMHO.
Good luck have fun Happy holidays
CB
Cone Basher is offline
post #21 of 38 (permalink) Old 12-12-2016, 01:15 AM
Certified Mad Scientist
FFCars Master Craftsman

TXBLU's Avatar

Join Date: Apr 2007
Location: Las Colinas,TX
Posts: 2,137
So, is the price on Gordon's website for the control arms for all 4? Seems like something I have to have...

Eric
TXBLU is offline
post #22 of 38 (permalink) Old 12-12-2016, 02:26 AM
Pro FFR Builder and Moderator


Gordon Levy's Avatar

Join Date: Jan 2002
Location: Maricopa AZ
Posts: 14,286
$1399 for a set of 4, $699 for ether uppers or lowers.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Pro Builder and Go Fast Specialist
99/2000 NASA PSO Champion in a FFR
2005 FFR Challenge West coast Champions
2nd 2005 Nationals
Sponsor for Tony B. ST-2 National Champion 2007
2009 TTC runner up-2010 TTB Runner up
Over 195 Turnkey FFR's in 21 years and still counting


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Gordon Levy is online now
post #23 of 38 (permalink) Old 12-17-2016, 11:20 PM Thread Starter
Unconventional Builder

JoeE's Avatar

Join Date: Jun 2007
Location: Hatboro SE Pennsylvania
Posts: 5,142
Garage
Got all spacing and shocks configured. In the process of cleaning up and mounting spindles



Donor $2,500 -Kit $18,000 -Extra "needs stuff" $100's -$1,000's
300+hp tagged race car PRICELESS !! Best ET 12.27 @ 113.49 mph N/A
Mk III #5294 -302 AFR 185 Heads, Levy Front and Rear control arms, 3-link, 3.55, 11" GT front and 11" Cobra rear brakes, SAI, UTC exhaust No More EFI: Now Quick Fuel 650

“It is not the giver of life that destroys human life. It is the receivers of life who do not live in the rational, honest way called for by the creator's behavioral law. Instead they live as they please and finally are forced to depart this life.” Richard W. Wetherill

YouTube Videos: AutoX
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Go Kart
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

My Pics:

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
JoeE is online now
post #24 of 38 (permalink) Old 12-31-2016, 10:24 PM Thread Starter
Unconventional Builder

JoeE's Avatar

Join Date: Jun 2007
Location: Hatboro SE Pennsylvania
Posts: 5,142
Garage
All was going great til I lined up the spindles. I could tell by eye they were wayyy off. Fortunately my brother has a REBCO gauge that mounts right to hub.


Without it I would have really had a hard time, my lower arms needed to be moved all the way forward and I am still reducing neg camber. When I first put gauge on I had -5 deg camber and -4 deg caster, yes neg caster. These adjustments could not have been rectified by driving to an alignment shop. Gordon did tell me that I needed to get my hands on a Fas Trax to get the car good enough to drive and I should then learn to do my own alignments. So now I am pretty comfortable with alignment settings. The setup rough is now -2 deg camber and +7 caster. The REBCO device is great for this job bc it goes on bare hub. I have the shocks out, frame on 4" blocks then I raise the lower arm up so that the lowest stud is same height off the ground as my mounted tire on wheel which is about 10".


Donor $2,500 -Kit $18,000 -Extra "needs stuff" $100's -$1,000's
300+hp tagged race car PRICELESS !! Best ET 12.27 @ 113.49 mph N/A
Mk III #5294 -302 AFR 185 Heads, Levy Front and Rear control arms, 3-link, 3.55, 11" GT front and 11" Cobra rear brakes, SAI, UTC exhaust No More EFI: Now Quick Fuel 650

“It is not the giver of life that destroys human life. It is the receivers of life who do not live in the rational, honest way called for by the creator's behavioral law. Instead they live as they please and finally are forced to depart this life.” Richard W. Wetherill

YouTube Videos: AutoX
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Go Kart
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

My Pics:

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
JoeE is online now
post #25 of 38 (permalink) Old 01-01-2017, 01:54 PM
Junior Charter Member
FFCars Craftsman

Join Date: Aug 2007
Location: Nova Scotia
Posts: 1,059
I need to do my initial front end alignment as well. Do you start with caster or camber as the first adjustment (or does it matter)? Thanks.

Wade

FFR Roadster Mk 3.1, 2002 SOHC 4.6 with Edelbrock intake and 4 bbl carb, T45 trans, solid axle with FFR 3 Link, Yukon Axles, Levy Racing rear lower control arms, VPM 3 Link Brace, Fox length axles, 11.65" rear disks, Koni coilovers, stainless steel side pipes with Flowmaster Slimline Mufflers
Driver_WT is offline
post #26 of 38 (permalink) Old 01-01-2017, 03:31 PM Thread Starter
Unconventional Builder

JoeE's Avatar

Join Date: Jun 2007
Location: Hatboro SE Pennsylvania
Posts: 5,142
Garage
Quote:
Originally Posted by Driver_WT View Post
I need to do my initial front end alignment as well. Do you start with caster or camber as the first adjustment (or does it matter)? Thanks.

Wade
I assume your ride height is set or its like mine blocks under frame and control arms to replicate ride height with out shocks. This makes it so much easier, no weight to contend with. I am finding start with camber get it close. Then when you adjust caster it will have a minor effect on camber. Go back to camber then check caster. Set toe with full weight on shocks and tires. Now go back and check camber I found it to be affected by the toe setting. Then recheck toe. I have settled at -1 3/4 camber 7 deg caster and some toe in 1/6th?, I have trouble getting toe right. Next trip to alignment shop with a flat rack and computer assist for fine tuning accuracy.

**Went to shop and put car on a Hunter alignment rack ***
My setup using REBCO tool was pretty close was -2 and -1 3/4 camber and 5.3 and 5.75 on caster. After some adjusting I am going with -2 camber 6 caster and neutral toe.
Driver_WT thanked this.

Donor $2,500 -Kit $18,000 -Extra "needs stuff" $100's -$1,000's
300+hp tagged race car PRICELESS !! Best ET 12.27 @ 113.49 mph N/A
Mk III #5294 -302 AFR 185 Heads, Levy Front and Rear control arms, 3-link, 3.55, 11" GT front and 11" Cobra rear brakes, SAI, UTC exhaust No More EFI: Now Quick Fuel 650

“It is not the giver of life that destroys human life. It is the receivers of life who do not live in the rational, honest way called for by the creator's behavioral law. Instead they live as they please and finally are forced to depart this life.” Richard W. Wetherill

YouTube Videos: AutoX
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Go Kart
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

My Pics:

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Last edited by JoeE; 05-02-2017 at 01:10 AM.
JoeE is online now
post #27 of 38 (permalink) Old 01-16-2017, 05:22 PM Thread Starter
Unconventional Builder

JoeE's Avatar

Join Date: Jun 2007
Location: Hatboro SE Pennsylvania
Posts: 5,142
Garage
I am calling my work done, it was work not an easy job when changing from FFR mounting holes. I will be going back through the thread and will be adding the how I would have done things differently.

I did an aggressive test ride yesterday, roads were cold, my initial feedback the car feels very precise and stable.

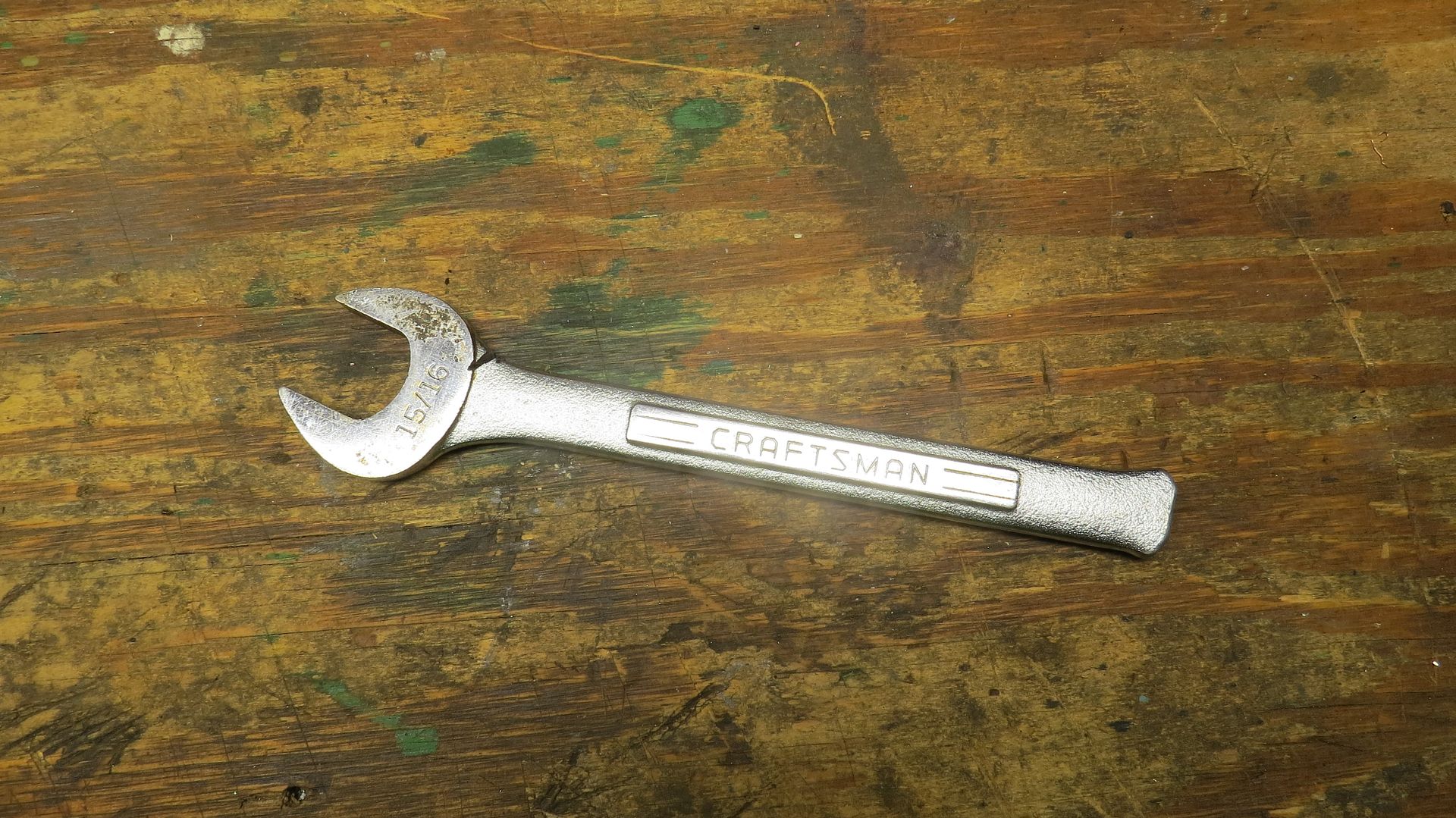

My custom 15/16 wrench was old and already beat up. I found that by cutting the 1" end off it made the job of turning the retaining nut on the arms so much easier. The original wrench is longer than the space between upper and lower arms and tight above lower arms.


Donor $2,500 -Kit $18,000 -Extra "needs stuff" $100's -$1,000's
300+hp tagged race car PRICELESS !! Best ET 12.27 @ 113.49 mph N/A
Mk III #5294 -302 AFR 185 Heads, Levy Front and Rear control arms, 3-link, 3.55, 11" GT front and 11" Cobra rear brakes, SAI, UTC exhaust No More EFI: Now Quick Fuel 650

“It is not the giver of life that destroys human life. It is the receivers of life who do not live in the rational, honest way called for by the creator's behavioral law. Instead they live as they please and finally are forced to depart this life.” Richard W. Wetherill

YouTube Videos: AutoX
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Go Kart
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

My Pics:

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Last edited by JoeE; 01-16-2017 at 09:14 PM.
JoeE is online now
post #28 of 38 (permalink) Old 01-16-2017, 06:18 PM
FFCobra Craftsman

CraigS's Avatar

Join Date: Feb 2005
Location: Manassas, Va
Posts: 18,049
I went back to the beginning of the thread and didn't see a reason. Why do you need to drill new holes for the LCAs?

FFR 5353K, 408W, TKO 500, 2015 IRS w/ 315 gear, Breeze QA1 DA coilovers front and rear, APE hardtop, Forte front swaybar
CraigS is online now
post #29 of 38 (permalink) Old 01-16-2017, 07:14 PM
Pro FFR Builder and Moderator


Gordon Levy's Avatar

Join Date: Jan 2002
Location: Maricopa AZ
Posts: 14,286
1 reason is I like the geometry better and the other is allows a little more droop with sn95 spindles.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Pro Builder and Go Fast Specialist
99/2000 NASA PSO Champion in a FFR
2005 FFR Challenge West coast Champions
2nd 2005 Nationals
Sponsor for Tony B. ST-2 National Champion 2007
2009 TTC runner up-2010 TTB Runner up
Over 195 Turnkey FFR's in 21 years and still counting


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Gordon Levy is online now
post #30 of 38 (permalink) Old 01-29-2017, 11:46 PM Thread Starter
Unconventional Builder

JoeE's Avatar

Join Date: Jun 2007
Location: Hatboro SE Pennsylvania
Posts: 5,142
Garage
I have had about 150 miles on the new setup and have had some time in open closed areas. I love the handling characteristics of the control arms. Even in my cold weather conditions (35 to 40 deg) they are so predictable. When I intentionally break all 4 wheels loose in turns the slide and the re hooking up are so smooth and precise.

I have a feeling I am going to have a blast this competitive driving season.

Donor $2,500 -Kit $18,000 -Extra "needs stuff" $100's -$1,000's
300+hp tagged race car PRICELESS !! Best ET 12.27 @ 113.49 mph N/A
Mk III #5294 -302 AFR 185 Heads, Levy Front and Rear control arms, 3-link, 3.55, 11" GT front and 11" Cobra rear brakes, SAI, UTC exhaust No More EFI: Now Quick Fuel 650

“It is not the giver of life that destroys human life. It is the receivers of life who do not live in the rational, honest way called for by the creator's behavioral law. Instead they live as they please and finally are forced to depart this life.” Richard W. Wetherill

YouTube Videos: AutoX
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Go Kart
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

My Pics:

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
JoeE is online now
Sponsored Links
Advertisement

Reply

Bookmarks

Quick Reply
Message:
Options

Register Now



In order to be able to post messages on the FFCars.com : Factory Five Racing Discussion Forum forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.

User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.

Password:


Confirm Password:
Email Address
Please enter a valid email address for yourself.

Email Address:
OR

Log-in









Human Verification

In order to verify that you are a human and not a spam bot, please enter the answer into the following box below based on the instructions contained in the graphic.




Currently Active Users Viewing This Thread: 1 (0 members and 1 guests)

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page
Display Modes
Linear Mode Linear Mode



Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


For the best viewing experience please update your browser to Google Chrome



Welcome to FFCars! The representations expressed are the representations and opinions of the FFCars.com forum members and do not necessarily reflect the opinions and viewpoints of the site owners, moderators, Factory Five Racing, Inc. or Ford Motor Company. This website has been planned and developed by FFCars.com and its forum members and should not be construed as being endorsed by Factory Five Racing, Inc. or Ford Motor Company for any purpose. "FFR", "Factory Five", "Factory Five Racing", and the Factory Five Racing logo are registered trademarks of Factory Five Racing, Inc. FFCars.com forum members agree not to post any copyrighted material unless the copyrighted material is owned by you. Although we do not and cannot review the messages posted and are not responsible for the content of any of these messages, we reserve the right to delete any message for any reason whatsoever. You remain solely responsible for the content of your messages, and you agree to indemnify and hold us harmless with respect to any claim based upon transmission of your message(s). Thank you for visiting the FFCars.com Forum dedicated to Factory Five.
