Question for those running CNC Dual Master Cylinders

I am installing a dual CNC Master Cylinder with a balance bar.

I spoke to CNC today and they tell me that the distance from the pivot point of the brake pedal (where it attaches to the pedal box) to the push rod must be exactly 2".

I have the stock Mustang pedal box (from 90 Mustang) with the modified pedal (as per manual from FFR) and my length is someplace between 2 1/2" to 2 5/8". I can remove the pedal, have it shorted and that is fine.

They are telling me that with the length I have now I will not be able to develop the pedal pressure to get the 1,000 psi or so pressure at the calipers.

Has anyone else run into this? Does this change in length cause a binding interference in the angle that the push rod enters the M/C (or balance bar in this case)?

I could really use some opinions from those that have actually done this modification before I go hacking away and find that the angle does not allow the push rod as above to correctly enter the hole on the balance bar. That is the only thing I can think of here that would be a problem. Is there anything else I am not thinking of?
__________________
Carbed 351W w/Richmond 5 speed, Levy 5-Link rear suspension w/ Street Bump Steer, powder coated frame and heated seats.
accobra66 is offline   Reply With Quote Quick reply to this message
Sponsored Links
Advertisement

Old 05-19-2011, 02:57 AM   #2 (permalink)
New
FFCars Craftsman

SeanHM's Avatar

Join Date: Aug 2006
Location: St.Johns,FL
Posts: 1,140
I'm not sure what the distance is on mine, but it's probably pretty close to yours. I modified the pedal like the manual explained and my pedal feels great. Night and day from the feel I had with the original master set up. The further the distance the harder you have to push to achieve the same pressure is the only real difference unless it puts you at an angle to bind as you mentioned.
SeanHM is offline   Reply With Quote Quick reply to this message
Old 05-19-2011, 03:50 AM   #3 (permalink)
Senior Member
FFCars Captain

Arch F's Avatar

Join Date: May 2003
Location: Redlands, CA
Posts: 3,216
Delete suggestion, I didn't realize this was a completed car.
Good luck,
Arch
__________________
FFR# 6530 non donor, IRS, small Block w/carb build.
Graduation POM 3000 Mile Trip
3500 Mile Trip
Built to be driven. The mission statement for the build was - build a comfortable and fun long distance driving machine that is capable of spirited street driving and the occasional track outing.

Last edited by Arch F; 05-25-2011 at 12:14 AM..
Arch F is offline   Reply With Quote Quick reply to this message
Old 05-19-2011, 12:09 PM   #4 (permalink)
Charter Member
FFCars Craftsman

accobra66's Avatar

Join Date: Sep 2002
Location: MI
Posts: 1,151
Because removing a pedal box that is in a completed car I do not even think would be possible.
__________________
Carbed 351W w/Richmond 5 speed, Levy 5-Link rear suspension w/ Street Bump Steer, powder coated frame and heated seats.
accobra66 is offline   Reply With Quote Quick reply to this message
Old 05-19-2011, 02:43 PM   #5 (permalink)
Senior Member
FFCars Craftsman

MikeKelly's Avatar

Join Date: Oct 2010
Posts: 1,216
I've been working on two of them lately - One was a retrofit to a Mustang II based kit from another manufacturer. The other is going on my Mk4 build.

I think the CNC unit is perfect for the application, but I don't think the people on the CNC tech line are familiar with what our specific application requires.

That said, 2" on the pedal is really close - what you need to accomplish is changing the (formerly power brake) pedal from about 3:1 leverage to somewhere between 6:1 and 7:1 leverage (needed for manual brakes).

In the Mustang II based pedal box, we originally had a 12" pedal with the pushrod mounted 4" from the pivot (3:1). We added a new mount for the pushrod at 2" from the pivot, mounted the new CNC unit 2" higher than the old booster / master cylinder assy, and it has worked very well. That car has never stopped like it does now.

In my Mk4, I'm working with a 94 pedal box and I'm pretty sure I'm going to end up moving the pivot point lower- I do not have room to mount the CNC unit 2" higher, so something else has got to move. It is a work in progress, I'm taking pictures for a "how to" post at a later date.

Anyway, the bottom line is you're going to need ~ 6.5:1 leverage, 2" puts you close to that. Once you have the leverage, you need to do whatever it takes to keep what you've moved from operating in a bind - I'm not sure what that requires on a 1990 pedal box.

HTH,

Mike

Last edited by MikeKelly; 05-19-2011 at 03:24 PM..
MikeKelly is online now   Reply With Quote Quick reply to this message
Old 05-19-2011, 03:02 PM   #6 (permalink)
Senior Member
FFCars Craftsman

MikeKelly's Avatar

Join Date: Oct 2010
Posts: 1,216
Quote:
Originally Posted by MikeKelly View Post
I do not have room to mount the CNC unit 2" higher, so something else has got to move.
Just to clarify on this - It was easy in the Mustang II footbox to move the CNC unit 2" higher to keep the pushrod straight, so that was what we did.

I'm still working on mocking up the Mk4, the pushrod may turn out to be "straight enough". If not, the easiest answer for me is to change the location of the pivot.

There's a pretty sizable slot where the balance bar / pushrod assembly comes through the mounting base, so you *may* be alright on that.

I'll take some measurements when I get home and report back.

Last edited by MikeKelly; 05-19-2011 at 05:22 PM..
MikeKelly is online now   Reply With Quote Quick reply to this message
Old 05-19-2011, 05:35 PM   #7 (permalink)
FFCobra Fanatic
FFCars Master Craftsman

cobramd's Avatar

Join Date: Jan 2002
Location: Seekonk, Mass
Posts: 2,407
I've been running a cnc for 5 or 6 yrs now. using the standard fox pedal box with the pedal mod as described in the build manual. I've never had any issues with not being able to lock my brakes. Well at least in the past the fronts have always been easily lockable the rears were a different issue which is due to caliper and weight issues. Now with wilwoods I can lock my fronts and rears at any time without issue.
__________________
"Adding power makes you faster on the straights, while subtracting weight makes you faster everywhere"
cobramd is offline   Reply With Quote Quick reply to this message
Old 05-19-2011, 09:59 PM   #8 (permalink)
Senior Member
FFCars Craftsman

MikeKelly's Avatar

Join Date: Oct 2010
Posts: 1,216
Ok, measurements taken - you could easily get into a binding issue on the pushrod angle. The good news is I *think* it's not too difficult to avoid, even on a retrofit (something I hadn't really been thinking about).

These are measurements off a CNC install on a Mk4 using a 94 pedal box (auto pedal box at that, manual pedal box is in transit).

I mounted the 94 pedal box in the holes FFR provided - perfect fit.

I mounted the CNC unit nearly horizontal side to side using the FFR provided hole on the drivers side (between the upper + lower pedal box bolts). I had to drill a new hole (in the Mk4) in the passenger side for the CNC unit. This new hole is just above (barely) an unused FFR provided hole (for the earlier pedal box?).

The CNC unit is mounted as straight and as high as possible without further modification of the FFR pedal box mounting plate.

Inserting a Craftsman 1/4" extension (which is a loose fit) in the back of the CNC balance bar (where the pushrod goes) - The closest you're going to get to the stock brake pedal pivot point without binding is about 3". You can't get to 6:1 like that.


Possible solutions (especially for retrofits)

1- I had to countersink the lower passenger side pedal box screw to get the CNC unit mounted flat without spacers. You could go up with the CNC unit about 3/8" before you have to countersink the upper pedal box mounting screws. Or, you could use spacers to mount the unit forward of the upper mounting screws. You probably need at least 1" up if you use this method, and you're going to have to open up (a lot) the FFR provided "center hole" for the master cylinder.

2- The pedal box mounting plate is about 10 degrees from vertical. You could mill the back of the CNC mount, or mill spacers to mount the master cylinders closer to level. Every little bit will help.

3- An offset push rod? I'm not sure that doesn't end up losing the leverage you're trying to gain?

4- The primo method (much easier for new construction) - move the pivot point closer (lower) to the master cylinder.

Any combination of these that gets you to not binding with 6:1 leverage should work pretty well.


Based on "feel" with the other retrofit install (and personal preference), I'm aiming for 7:1 (just for your information).

HTH,

Mike
MikeKelly is online now   Reply With Quote Quick reply to this message
Old 05-19-2011, 10:42 PM   #9 (permalink)
Senior Member

Bob Cowan's Avatar

Join Date: Jul 2002
Location: Colorado Springs, CO
Posts: 15,839

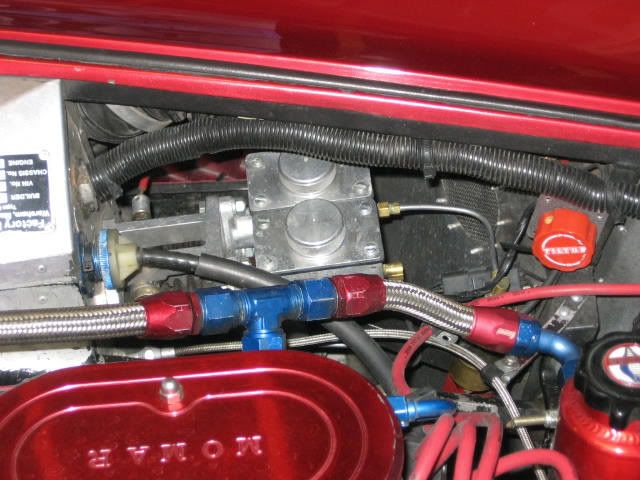

I assume you're talking about this MC:




If so, there is another option. The CNC people are right, you need to have the correct pedal ratio for manual brakes - 6-7:1. Otherwise you would need a really strong leg to produce enough pedal power to perate the brakes at the limit.

Brake Article© by Dean Oshiro

Second, the push rod has to stay aligned with the MC. The usualy problem is that the pivot point moves in an arc as you depress the pedal. By simply shortening the brake pedal, the pivot point ends up at the very bottom of the arc, at 6 o'clock in a side view. As the point moves through it's arc, it only moves up. That's where you lose the alignment.

When you shorten the pedal, place a 7* dog leg just below the pivot point. That puts the pivot at about the 4 o'clock position when released. As it moves though it's arc, if firts moves down, and then back up. The up and down range of motion is cut in half.

You will need an adjustable push rod to set the pedal height. You might also need to modify the portion of the frame the pedal box is bolted to; you need a return stop that will prevent the push rod from falling out. I made mine adjustable, but once set I'v never needed to adjust it.


There's another reason for the dog leg mod. On a straight pedal, the pivit is around 6 o'clock. When you depress the pedel the pivot moves through the arc, and strarts moveing upwards. By the time the point hits 7-8 o'clock, there is almost no foreward movement of the pivit. It's only moving upward. No matter how hard you press, you get no more foreward movement of the push rod. The 7* dog leg ensure that the pivit point moves foreward through it's entire range. I got this tip from Richard Oben many years ago.

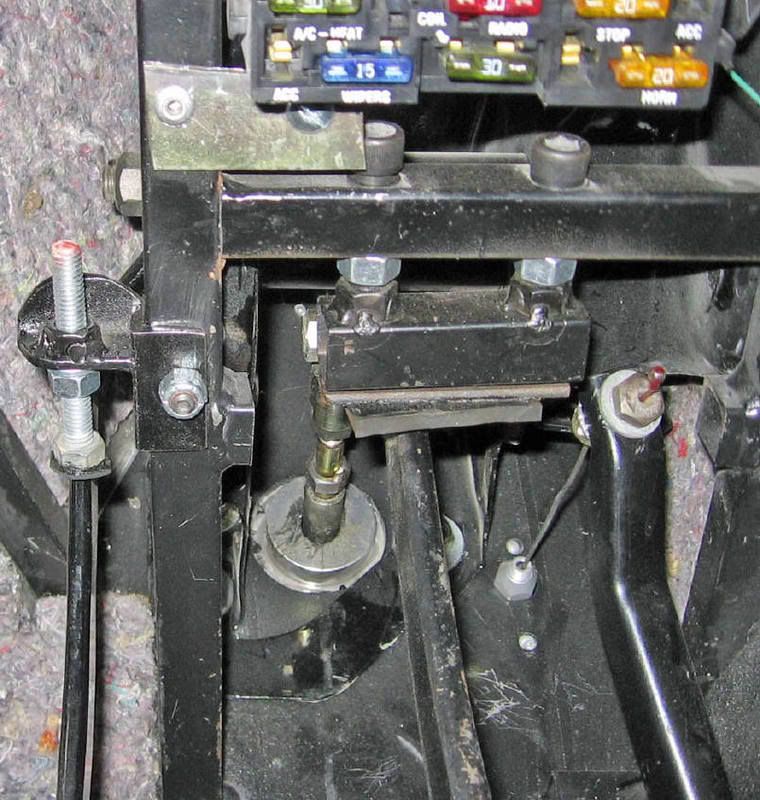

I set mine up this way from the beginning. I have never had a complaint about the stock brakes. They have always been excellent.
__________________
.boB "Iron Man"
NASA Rocky Mountain TTU #42
Dart 427W, Momar 8 Stack EFI, 600'ish hp, TKO, 3.55 TruTrac, Red with Ghost Flames. More fun than should legally be allowed.
Bob Cowan is online now   Reply With Quote Quick reply to this message
Old 05-19-2011, 11:58 PM   #10 (permalink)
FFCobra Craftsman

CraigS's Avatar

Join Date: Feb 2005
Location: Shadyside, Maryland
Posts: 10,995
When I installed my cnc's a few years ago i did the shortened pedal mod as described for manual brakes.Wasn't much fun on a completed car but done anyway.The brakes still required too much effort for me until I got Hawk HPS pads for the front and HP+ pads for the rear.Last mod i did was to drop the floor down to just 1/2 inch above the bottom of the 4 inch tubes.This allowed me to lengthen the bottom end of both clutch and brake pedals by maybe an inch.Helped a little too.
__________________
FFR 5353K,351/400hp,TKO 500, 3-link w/3.31 and Truetrac, Koni DA coilovers front and rear,APE hardtop,Forte front and VPM rear swaybars
CraigS is online now   Reply With Quote Quick reply to this message
Old 05-20-2011, 03:28 AM   #11 (permalink)
Senior Member
FFCars Craftsman

MikeKelly's Avatar

Join Date: Oct 2010
Posts: 1,216
Another good idea Bob, I forgot about the dog leg method.

Here is another post on that: Brake Pedal Modification

Another measurement - Looks like moving the pushrod mount point back 1" gains about 3/8" toward the pivot point on my mock up.
MikeKelly is online now   Reply With Quote Quick reply to this message
Old 05-22-2011, 02:14 AM   #12 (permalink)
Junior Charter Member

letsgosteelers's Avatar

Join Date: Dec 2005
Location: Inland Empire, CA
Posts: 2,053
Hi Mike,

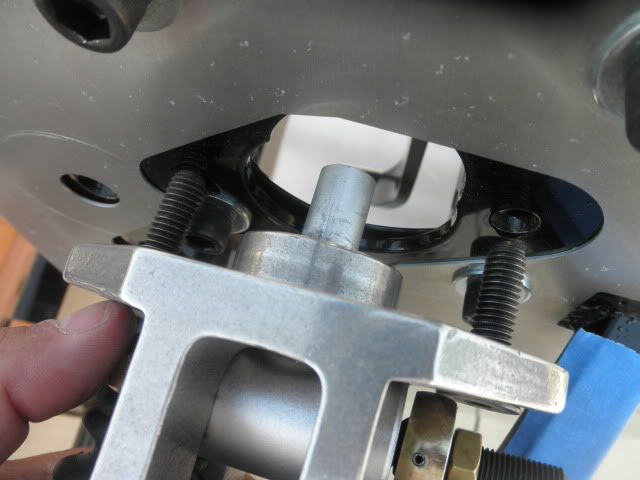

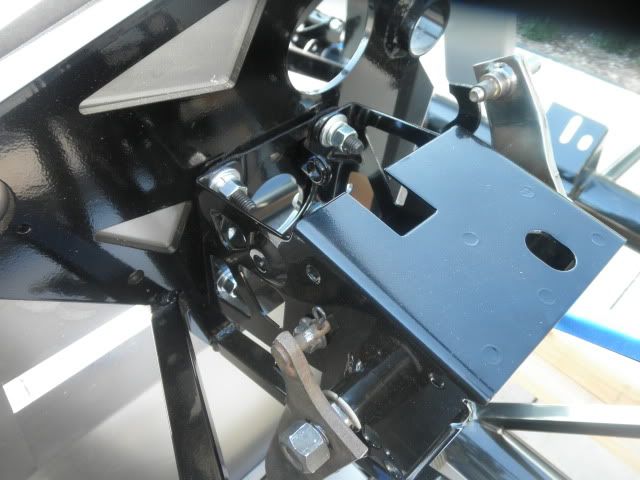

I bolted mine up today and it seems like both of these won't co-exist...is this the problem you ran into?

I have a Mk 3.1 - I thought I had seen a pic where someone had the four bolts in w/ washers and it was ok but you can see that lower bolt & washer cover up the hole





__________________
FFR 7058 - the madness begins...
Mk 3.1 base kit, 302 EFI, GT-40 Intake, T-5 (hopefully mid-shift), Manual Steering & Brakes, 8.8" Rear-End 3.27, Levy 5 Link, Wilwood 6/4 & KONI DA's, Fortes Dual CNC MC, Mike Everson's Brake Pedal Svc, SAI Mod, Frankeeski's F-Panels ...
Kit Delivered via FFREx, Donor
letsgosteelers is offline   Reply With Quote Quick reply to this message
Old 05-22-2011, 03:11 AM   #13 (permalink)
Senior Member

Bob Cowan's Avatar

Join Date: Jul 2002
Location: Colorado Springs, CO
Posts: 15,839
You have one bolt head in the way. Not a problem. Go down to Lowes and get another bolt with a head just like the ones that go through the MC mount.

If you can't find a bolt like that, get a button head, and fab a 1/4" spacer for MC mount, with a slight divit for the bolt head.
__________________
.boB "Iron Man"
NASA Rocky Mountain TTU #42
Dart 427W, Momar 8 Stack EFI, 600'ish hp, TKO, 3.55 TruTrac, Red with Ghost Flames. More fun than should legally be allowed.
Bob Cowan is online now   Reply With Quote Quick reply to this message
Old 05-24-2011, 06:20 PM   #14 (permalink)
Junior Charter Member

letsgosteelers's Avatar

Join Date: Dec 2005
Location: Inland Empire, CA
Posts: 2,053
Hi Bob, thanks.

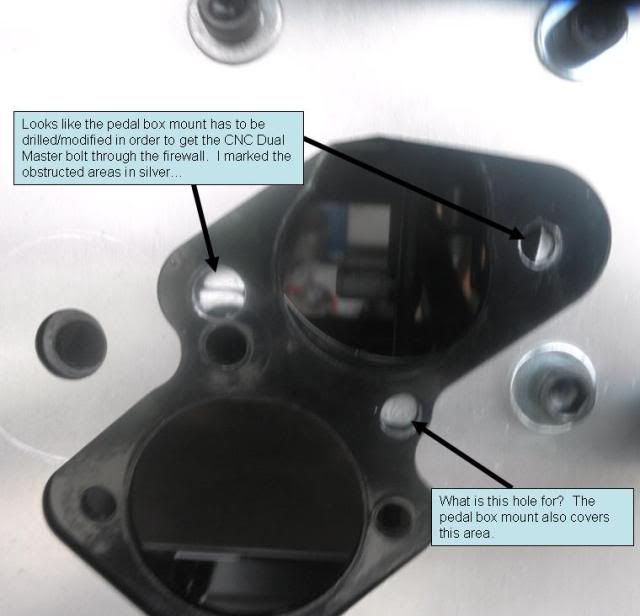

I took another pic which shows all the areas that seem to be blocked...I had never seen anything before that the 94' Pedal box needed to be modified, just always thought that it bolted right up.

I got a bolt similar to those on the CNC dual but the head extends out beyond the bolt hole and the two holes are so close together.

Bob, reading over your comments again I think the spacer idea might be the way to go, kinda like a half moon shape so that the bolt below for the pedal box can fit in there.

Kinda surprised noone else has run into this before or maybe its just everyone is using the pre-94 box w/ a CNC dual...

Mike, have you gotten any further on this?

__________________
FFR 7058 - the madness begins...
Mk 3.1 base kit, 302 EFI, GT-40 Intake, T-5 (hopefully mid-shift), Manual Steering & Brakes, 8.8" Rear-End 3.27, Levy 5 Link, Wilwood 6/4 & KONI DA's, Fortes Dual CNC MC, Mike Everson's Brake Pedal Svc, SAI Mod, Frankeeski's F-Panels ...
Kit Delivered via FFREx, Donor

Last edited by letsgosteelers; 05-24-2011 at 06:26 PM..
letsgosteelers is offline   Reply With Quote Quick reply to this message
Old 05-29-2011, 03:06 AM   #15 (permalink)
Senior Member
FFCars Craftsman

MikeKelly's Avatar

Join Date: Oct 2010
Posts: 1,216
Sorry Steelers, I've been out of town - just got back home tonight.

Looks very similar, if not identical to the Mk4.

The master cylinder mount hole on the drivers' side I had to open up a little.

For the mc mount hole on the passengers' side I drilled a new hole just above the existing hole above the lower passenger side foot box mount bolt (now there are three holes right there). I drilled this hole to level out the master cylinders side to side.

I countersunk the lower passenger side footbox hole, and actually cut off part of the head of the countersunk bolt so I could mount the CNC unit flush against the mounting plate.

I'll try to post some photos in the morning.

Mike
MikeKelly is online now   Reply With Quote Quick reply to this message
Old 05-29-2011, 01:23 PM   #16 (permalink)
Senior Member
FFCars Craftsman

MikeKelly's Avatar

Join Date: Oct 2010
Posts: 1,216
Let me start with compliments to Bob who did a very accurate job of explaining what I had done without actually seeing it, lol.

To avoid confusion about which pictures I'm writing about, I'll do several posts with limited attachments.

To clearance the bottom passenger side pedal box mount bolt, I countersunk the hole as far as I could without getting into the unused hole above it. This is in a Mk4 using a 1994 pedal box.

The Mk4 metal is not thick enough to countersink and get the bolt completely flush, so I used a lathe to cut part of the head of the screw off. The first two attachments are before + after pics of the bolt/screw.

Before anyone says I cut too much off the bolt, remember that there is very little stress on the bottom pedal box bolts. And, the passenger side MC bolt is going to capture that side of the pedal box too. This works for me, if you've got a better way - let's see it.


In the third attachment, you can see I had to enlarge the drivers' side MC mount hole (right side of image).

Also, I drilled a new hole in the passengers' side, just above an unused hole. I did this to mount the MC level side to side.

You can see the countersunk screw installed in the lower left just above the steering shaft.
Attached Images
File Type: jpg DSCN0225.JPG (174.6 KB, 18 views)
File Type: jpg DSCN0226.JPG (176.9 KB, 17 views)
File Type: jpg DSCN0213.JPG (176.4 KB, 35 views)
MikeKelly is online now   Reply With Quote Quick reply to this message
Old 05-29-2011, 01:34 PM   #17 (permalink)
Senior Member
FFCars Craftsman

MikeKelly's Avatar

Join Date: Oct 2010
Posts: 1,216
Here are some pics of the back side of the mounting.

I had to clearance the drivers' side (left side of picture) of the pedal box to get the nut + washer to fit flat (washer not installed in these pics). That hole just barely caught the edge of the 94 pedal box.

On the passengers side, the new hole for the MC captures the pedal box pretty well.

These pictures are taken using an automatic pedal box with the brake pedal removed so you can see the mounting detail. Hopefully, the manual pedal box is going in next week (it will have to be drilled, clearanced, painted, etc).
Attached Images
File Type: jpg DSCN0219.JPG (177.9 KB, 34 views)
File Type: jpg DSCN0221.JPG (176.7 KB, 31 views)
MikeKelly is online now   Reply With Quote Quick reply to this message
Old 05-29-2011, 01:38 PM   #18 (permalink)
Senior Member
FFCars Craftsman

MikeKelly's Avatar

Join Date: Oct 2010
Posts: 1,216
And finally, here are some pics of the MC bolted up.

HTH,

Mike
Attached Images
File Type: jpg DSCN0223.JPG (177.0 KB, 47 views)
File Type: jpg DSCN0216.JPG (176.1 KB, 43 views)
File Type: jpg DSCN0218.JPG (176.1 KB, 46 views)
MikeKelly is online now   Reply With Quote Quick reply to this message
Old 05-30-2011, 03:07 PM   #19 (permalink)
Senior Member
FFCars Craftsman

MikeKelly's Avatar

Join Date: Oct 2010
Posts: 1,216
A tale of two brake pedals

Attached is a pic of two Mustang brake pedals. The one on the left came out of a 1994 GT convertible w/ automatic trans. The one on the right came in from ebay, sold as part of a complete Mustang manual pedal box 1994 - 1998.

They both measure ~14" overall, but the auto trans pedal (left) measures ~3.75" from the pivot to the pushrod. This gives you an existing ratio of almost 4:1.

The manual trans pedal measures ~2.75" from pivot to pushrod. This gives you a ratio of ~5:1.


From page 55 of the Mk4 build manual (rev 3a) for the 94-04 pedal box (if used for manual brakes): measure down 1.5" from the stock pivot location and drill new holes for the new pivot location.

For the pedal : Cut 1.5" from between the pivot and pushrod and mig weld the pedal back together.


This is not a complaint about the build manual, just a heads up that you really need to understand what you're trying to accomplish (6-7:1 ratio).

Take 1.5" out of the pedal on the left and you get a ratio of ~7:1 (good to go).

Take 1.5" out of the pedal on the right and you get a ratio of ~10:1 (you just created scrap metal).


HTH,

Mike
Attached Images
File Type: jpg DSCN0227.JPG (172.2 KB, 41 views)

Last edited by MikeKelly; 05-30-2011 at 03:15 PM..
MikeKelly is online now   Reply With Quote Quick reply to this message
Old 05-30-2011, 06:46 PM   #20 (permalink)
Junior Charter Member

letsgosteelers's Avatar

Join Date: Dec 2005
Location: Inland Empire, CA
Posts: 2,053
Quote:
Originally Posted by MikeKelly View Post
And finally, here are some pics of the MC bolted up.

HTH,

Mike
Hey Mike,

Thanks for all the updates, looks great!!

I hadn't thought about leveling the holes but was wondering if they are placed at a slight angle for a reason? Does anyone know if that will affect the operation of the master cylinder?

In another thread, Bill (2Fast4u) built his own pedal box and the cylinders are also angled, not sure if that is for the lines to go in or for some other reason.

Ivan
__________________
FFR 7058 - the madness begins...
Mk 3.1 base kit, 302 EFI, GT-40 Intake, T-5 (hopefully mid-shift), Manual Steering & Brakes, 8.8" Rear-End 3.27, Levy 5 Link, Wilwood 6/4 & KONI DA's, Fortes Dual CNC MC, Mike Everson's Brake Pedal Svc, SAI Mod, Frankeeski's F-Panels ...
Kit Delivered via FFREx, Donor

Last edited by letsgosteelers; 05-30-2011 at 06:56 PM..
letsgosteelers is offline   Reply With Quote Quick reply to this message
Old 05-30-2011, 06:53 PM   #21 (permalink)
Junior Charter Member

letsgosteelers's Avatar

Join Date: Dec 2005
Location: Inland Empire, CA
Posts: 2,053
Quote:
Originally Posted by MikeKelly View Post
Attached is a pic of two Mustang brake pedals. The one on the left came out of a 1994 GT convertible w/ automatic trans. The one on the right came in from ebay, sold as part of a complete Mustang manual pedal box 1994 - 1998.

They both measure ~14" overall, but the auto trans pedal (left) measures ~3.75" from the pivot to the pushrod. This gives you an existing ratio of almost 4:1.

The manual trans pedal measures ~2.75" from pivot to pushrod. This gives you a ratio of ~5:1.


From page 55 of the Mk4 build manual (rev 3a) for the 94-04 pedal box (if used for manual brakes): measure down 1.5" from the stock pivot location and drill new holes for the new pivot location.

For the pedal : Cut 1.5" from between the pivot and pushrod and mig weld the pedal back together.


This is not a complaint about the build manual, just a heads up that you really need to understand what you're trying to accomplish (6-7:1 ratio).

Take 1.5" out of the pedal on the left and you get a ratio of ~7:1 (good to go).

Take 1.5" out of the pedal on the right and you get a ratio of ~10:1 (you just created scrap metal).


HTH,

Mike
I had my pedal modded and came up with the following...unfortunatley didn't take measurements before the mod. Is that 5.5?

__________________
FFR 7058 - the madness begins...
Mk 3.1 base kit, 302 EFI, GT-40 Intake, T-5 (hopefully mid-shift), Manual Steering & Brakes, 8.8" Rear-End 3.27, Levy 5 Link, Wilwood 6/4 & KONI DA's, Fortes Dual CNC MC, Mike Everson's Brake Pedal Svc, SAI Mod, Frankeeski's F-Panels ...
Kit Delivered via FFREx, Donor
letsgosteelers is offline   Reply With Quote Quick reply to this message
Old 05-31-2011, 02:50 AM   #22 (permalink)
Senior Member
FFCars Craftsman

MikeKelly's Avatar

Join Date: Oct 2010
Posts: 1,216
Quote:
Originally Posted by letsgosteelers View Post
Is that 5.5?
Yes, that is ~5.5:1. Which may work fine with the Wilwoods depending on the amount of piston area for the calipers vs the bore size of your CNC master cylinders.

I've (with a lot of help from this forum and experience on someone else's retrofit) got my math + developement worked out for stock GT front and stock Thunderbird rear. I'm using 5/8" MC for the rear, 3/4" MC for the front. I'm going to need close to 7:1 to make that work right (jerk your eyeballs out stopping power, but doesn't hold up for racing as well as the Wilwood option).

I don't really care to hazard a guess as to what exactly your Wilwoods will require. 5.5 may be fine, I think if you plan ahead you should be able to keep some options open.

For instance, make sure that the pivot holes you use will allow some future pedal ratio modification (without binding the MC).

Make sure you leave yourself a way to get the pivot bolt out if you decide later that you need to change the pedal design.

Just a few thoughts,

Mike

P.S. I *think* the extra holes are for the earlier pedal box (using the earlier pedal box probably leaves some of the 94-04 holes unused). I have seen the CNC MC installed on the slant (probably using existing holes), and they seemed to work alright. I wanted mine mounted level side to side.

Also, mounting on the slant is going to lower the pushrod entry vs. the pivot point, and we're already lowering the pivot point to avoid binding...
MikeKelly is online now   Reply With Quote Quick reply to this message
Old 08-18-2011, 08:50 PM   #23 (permalink)
Forte's Parts Connection

snakeboost's Avatar

Join Date: Oct 2007
Location: in the store @ the computer & phone
Posts: 2,928
bump
__________________
Paht time pahts guy!!!!!!!!!!
Engine & transmission packages starting at $8200.00 Brand New Rear Ends instock call for quote!!!!!!!!!!!!!!!!!!!!!
Your Solution Specialist!
SANITY - One of the few things we do not offer
I work for Mike @ Forte's [or against him depending on the day- just ask him!]
Call 508-875-0016 to order today
http://www.facebook.com/album.php?ai...axpipe=1&__a=3
2006 wrx t3/t4 turbo Front mount, has meth injection!
snakeboost is offline   Reply With Quote Quick reply to this message
Old 08-24-2011, 05:59 AM   #24 (permalink)
Senior Member
FFCars Captain

nc1mike's Avatar

Join Date: Apr 2004
Location: Granite Bay, CA
Posts: 3,277
bump2
__________________
Garage paint.. Ford 306: Demon 625,Weiand Stealth intake flowing thru Edelbrock RPM heads,1.7RR, New T-5,3.73:1,15" pse, 3 link ,FFR headers
nc1mike is offline   Reply With Quote Quick reply to this message
Sponsored Links
Advertisement

Reply

Bookmarks

Quick Reply
Message:
Options

Register Now

In order to be able to post messages on the FFCars.com : Factory Five Racing Discussion Forum forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.
User Name:
If you do not want to register, fill this field only and the name will be used as user name for your post.
Password
Please enter a password for your user account. Note that passwords are case-sensitive.
Password:
Confirm Password:
Email Address
Please enter a valid email address for yourself.
Email Address:

Log-in

Human Verification

In order to verify that you are a human and not a spam bot, please enter the answer into the following box below based on the instructions contained in the graphic.




Currently Active Users Viewing This Thread: 1 (0 members and 1 guests)

Thread Tools
Display Modes

Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On



All times are GMT. The time now is 09:47 PM.




The Tire Rack

Intercity Lines

Ford Cobra Engines

Team 3 Wheels:

Midwest Classic Insurance:

FACTORY FIVE ROADSTERS:

ROADSTERS
· Roadster Forum
· 4.6L Roadsters
· Big Block Roadsters
· Non-Ford Powered Roadsters

FACTORY FIVE COUPE/SPYDER:

TYPE 65 COUPES
SPYDER GT

FACTORY FIVE GTM:

GTM SUPERCAR
· GTM Forum
· GTM Classifieds
· GTM FAQ

FACTORY FIVE '33 HOT ROD:

· '33 Hot Rod Forum
· Hot Rod Classifieds

FACTORY FIVE COMPETITION:

· Challenge Cars
· Road Racing
· Autocross / Pro Solo
· Drag Racing

GENERAL FACTORY FIVE DISCUSSIONS:

· Free Photo Hosting
· Tires / Wheels
· Tops & Tonneaus
· Upholstery
· Gallery
· Audio / Electronics
· Car Care
· Insurance / Registration
· Brakes / Suspension
· Ford Big Block Tech
· Ford Small Block Tech
· Forced Induction / NOS
· Fuel Injection Tech

EVENTS:

· National Events
· Southwest
· Northwest
· NorCal
· SoCal
· Southcentral
· Midwest
· Southeast
· Northeast
· Canada

OFF TOPIC:

· Off Topic Discussions
· Other Car Discussions
· Smyth Performance G3F
· Automotive Photography Discussions

CLASSIFIEDS:

· Cobras and Replicas For Sale / Wanted
· Parts For Sale / Wanted
· Donor Cars For Sale / Wanted
· Other Vehicles For Sale / Wanted

NEWS / HELP:

· FFCars.com News
· Forum Help / Test




Powered by vBulletin® Copyright ©2000 - 2014, Jelsoft Enterprises Ltd.
SEO by vBSEO 3.5.1
Garage Plus vBulletin Plugins by Drive Thru Online, Inc.


© 2002 - 2010 FFCars.com




Welcome to FFCars! The representations expressed are the representations and opinions of the FFCars.com forum members and do not necessarily reflect the opinions and viewpoints of the site owners, moderators, Factory Five Racing, Inc. or Ford Motor Company. This website has been planned and developed by FFCars.com and its forum members and should not be construed as being endorsed by Factory Five Racing, Inc. or Ford Motor Company for any purpose. "FFR", "Factory Five", "Factory Five Racing", and the Factory Five Racing logo are registered trademarks of Factory Five Racing, Inc. FFCars.com forum members agree not to post any copyrighted material unless the copyrighted material is owned by you. Although we do not and cannot review the messages posted and are not responsible for the content of any of these messages, we reserve the right to delete any message for any reason whatsoever. You remain solely responsible for the content of your messages, and you agree to indemnify and hold us harmless with respect to any claim based upon transmission of your message(s). Thank you for visiting the FFCars.com Forum dedicated to Factory Five.
