Driveshaft Safety Loop

What is the best way to install the driveshaft safety loop? Should I use longer bolts and thread them right through the 4'' frame or use the shorter bolts and just tap into the 4"?
How do you guys do yours? Pictures would be helpful.
Clay
clays123 is offline   Reply With Quote Quick reply to this message
Sponsored Links
Advertisement

Old 09-11-2008, 01:54 AM   #2 (permalink)
Senior Member
FFCars Captain

Join Date: Dec 2002
Location: DC burbs - MD side
Posts: 3,670
There are lots of opinions. I threaded mine into the top of the 4" tubes as I am not a welder kind of person.
I believe it will hold in place in case of a catistrophic failure one time - that is what it would be needed for...
__________________
FFR4247K 306EFI, 75mm MAF, 70mm TB, Explorer Intake, 24# injectors, 1.7 rockers, 10:1 compression, T5, 8.8 3.08 3-Link, Coil overs, front & rear VPM bars, and 315 Mod

Last edited by StephenP; 09-11-2008 at 01:57 AM..
StephenP is offline   Reply With Quote Quick reply to this message
Old 09-11-2008, 01:55 AM   #3 (permalink)
Dark Side

ZanexGt's Avatar

Join Date: Mar 2008
Location: Fairfax Virginia
Posts: 314
Not meant to be a threadjack but ....

Has anyone received benefit from the safety loop directly on a FFR?

If the U joints on the driveshaft go, that driveshaft is Awfully close to the pelvis! I am thinking about installing one of these and just looking for opinions. I too am interested how you all installed your safety loops.
__________________
-Robert
FFR #6785 MK3.1 Complete Kit
Ordered: 08-27-08
Delivered: 10-19-08
Roller: 07-20-10
ZanexGt is offline   Reply With Quote Quick reply to this message
Old 09-11-2008, 02:10 AM   #4 (permalink)
Senior Member
FFCars Captain

Join Date: Dec 2002
Location: DC burbs - MD side
Posts: 3,670
One of the local guys had a U joint let go in his car. It chewed up the tranny tunnel pretty bad. Very lucky it was at low speed and very lucky that nobody was hurt.

Kind of started the trend locally that every car I know details on does have a loop.
__________________
FFR4247K 306EFI, 75mm MAF, 70mm TB, Explorer Intake, 24# injectors, 1.7 rockers, 10:1 compression, T5, 8.8 3.08 3-Link, Coil overs, front & rear VPM bars, and 315 Mod
StephenP is offline   Reply With Quote Quick reply to this message
Old 09-11-2008, 12:47 PM   #5 (permalink)
Junior Charter Member
FFCars Master Craftsman

Purple Venom's Avatar

Join Date: May 2006
Location: St. Charles, MO.
Posts: 1,522
Here's another thread with a few photo's and ideas on this:
Driveshaft safety loops?
__________________
MKII, 460, Edelbrock Torker II Intake(Port Matched), Quick Fuel 750 Carb, Tremec 5 speed, Bridgestone Potenza R760 Tires - 432 Rwhp; 460 Rwtq
http://www.gatewaycobraclub.com
Purple Venom is online now   Reply With Quote Quick reply to this message
Old 09-11-2008, 01:30 PM   #6 (permalink)
dug
Charter Member

dug's Avatar

Join Date: Feb 2003
Location: South Carolina
Posts: 201
this link shows Mustang Man's loop. I plan to use it on my build.
Bolt-In Driveshaft Safety Loop Found
dug is offline   Reply With Quote Quick reply to this message
Old 09-11-2008, 05:43 PM   #7 (permalink)
Senior Member

canuck1's Avatar

Join Date: Dec 2004
Location: Victoria, BC CANADA
Posts: 5,347
Garage
Quote:
Originally Posted by dug View Post
this link shows Mustang Man's loop. I plan to use it on my build.
Bolt-In Driveshaft Safety Loop Found
You might want to check with Mustang Man. I think he discarded that idea for his car(?). If I recall it did not provide enough clearance for driveshaft movement once he finally had all the parts together to check it.

It would probably work fine in an IRS car.

Sean
__________________
Mk III partial SN95 donor, 351W stroked & poked to 396 c.i., custom EFI, 4 into 4's, 3link, 3.73, chrome FR500's, full bumpers, 2 X roll bars, IČ electronics, hydroboost, 5-lug, GT front, MK VIII/Cobra rear discs, painted by SRP, (fully) legal and driving! Graduating...?
canuck1 is online now   Reply With Quote Quick reply to this message
Old 09-11-2008, 05:47 PM   #8 (permalink)
Moderator

Kouros's Avatar

Join Date: Nov 2002
Posts: 6,546
I went through the 4" and weled any spot I could. Yes over-kill on this one as I have seen pictures of one that came through the cock-pit aluminum. If there was a passenger, they'd be missing a lrg today. I bought it from Summitracing.com

-Kouros
Kouros is offline   Reply With Quote Quick reply to this message
Old 09-11-2008, 06:08 PM   #9 (permalink)
Senior Member

Brian F's Avatar

Join Date: Aug 2005
Location: Fall City, Washington
Posts: 4,818
I bought a universal loop from JEGS and welded it to the underside of the frame tubes.
__________________
Non-Donor MKIII Delivered Oct. 18, 2005
Complete June 21, 2006

351w 400hp, T5, 3-link, 3:55

My Picture Site
Brian F is offline   Reply With Quote Quick reply to this message
Old 09-12-2008, 06:50 PM   #10 (permalink)
New Member

clays123's Avatar

Join Date: Oct 2007
Location: South Orange NJ, State College PA
Posts: 285
Thanks very much guys, you all have been most helpful.
Clayton
clays123 is offline   Reply With Quote Quick reply to this message
Old 09-12-2008, 10:52 PM   #11 (permalink)
Daily Driver since 2/03

Join Date: Aug 2002
Location: vacaville, CA
Posts: 968
When I was considering this, I thought that I should put in 2 loops. One for the front and one for the back. The shaft seems too short for just one loop to do much good. If you put just 1 loop in the middle, it seems that it could still thrash around quite a bit.

Has anyone put 1 loop in the middle and checked where the shaft could go if something gave way (both front and back, u-joints, bolts, flange, and sleeve)?
__________________
blue/white, 302 w/mass-flo, 3.55 gears, 2 roll bars, PS Eng wheels, 275/40 zr 17, 245/45 zr 17, Ipod & cruise control on the tranny tunnel
dwheeler is offline   Reply With Quote Quick reply to this message
Old 09-13-2008, 12:46 PM   #12 (permalink)
FFCobra Fanatic
FFCars Captain

5.8Cobra's Avatar

Join Date: Aug 2002
Location: CT
Posts: 4,812
I believe in the NHRA rulebook it says to place the loop 6" behind the front U joint. That would put our loop at the pinion flange since the actual tube is only about 4" long! I would say right in the middle would be fine. Its more for driver/passenger safety rather than keeping the car from catapulting when the driveshaft hits the ground! Anywhere you put it will be better than not having one at all! HTH

Mike
__________________
FFR 2166: 383Windsor, Vortech YS, TFS box intake,Dynod 652 rwhp , 9/10.5" Bullitts 255/315 Sumitomos, Vintage Autometers, PS, Power M2300K 13"/11.65" brakes, Tremec TKO midshift, SAI Mod, LEVY 5 Link, Gas-N pipes

FFR 3107 Built & Sold
FFR 1990 Built & Sold
FFR 7330 Built & Sold

FFR 4948 purchased 2013 incomplete, IRS planned 351W,Tremec,3.27's
5.8Cobra is online now   Reply With Quote Quick reply to this message
Old 09-13-2008, 01:44 PM   #13 (permalink)
Senior Member

dv/dt's Avatar

Join Date: Aug 2003
Location: Ottawa, Canada
Posts: 15,283
Quote:
Originally Posted by dwheeler View Post
When I was considering this, I thought that I should put in 2 loops. One for the front and one for the back. The shaft seems too short for just one loop to do much good. If you put just 1 loop in the middle, it seems that it could still thrash around quite a bit.

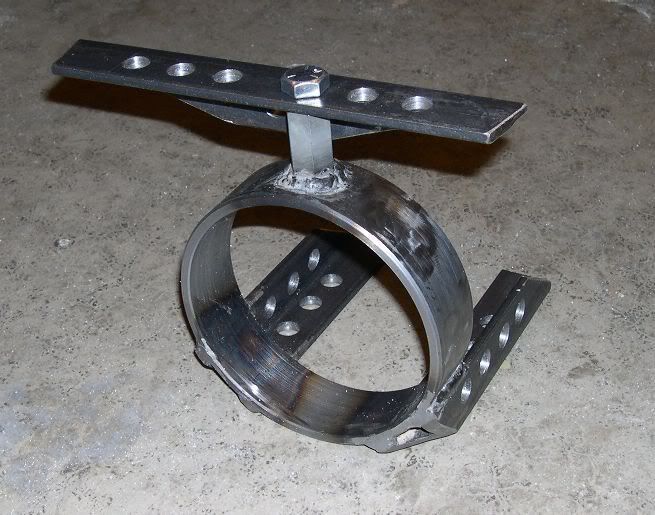

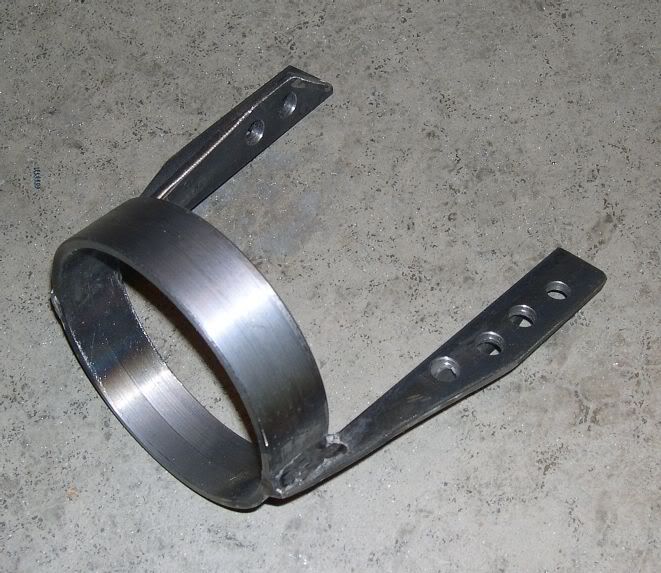

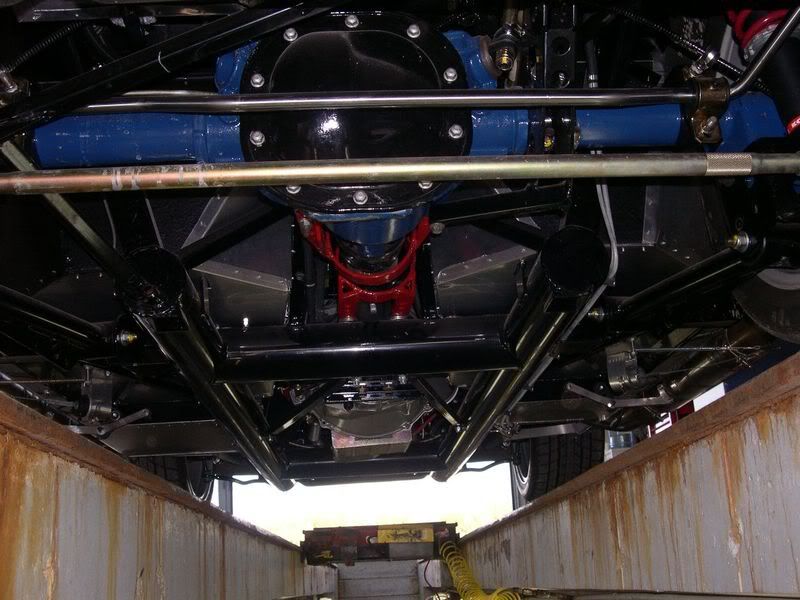

That's what I did and for that reason.







More pics and info here:
Driveshaft Hoop System - DRAWINGS ADDED 1

Cheers, Rod
dv/dt is online now   Reply With Quote Quick reply to this message
Old 09-13-2008, 03:28 PM   #14 (permalink)
Junior
FFCars Master Craftsman

03SC's Avatar

Join Date: Nov 2005
Location: Fleming Island, Fl
Posts: 1,517
I think there might be a market for those Rod.
__________________
FF6854 - Completed 7/12/12 SOLD 8/28/2012
Levy 5-link, Levy Billet LCA's, Willwood 6/4's, Levy DA Konis, SAI mod
LR narrowed 8.8, Comp Bumpsteer. Stage 5.5 408W, Super Alloy T-5+, Ron Davis Cooling System, LR Custom Headers and Sidepipes. Performance Automotive Paint.
Build pics below:
http://s239.photobucket.com/albums/ff187/03SC/
03SC is offline   Reply With Quote Quick reply to this message
Old 09-13-2008, 03:56 PM   #15 (permalink)
Blue Oval Scribe
FFCars Major

Mustang Man's Avatar

Join Date: Nov 2005
Location: Lakeland, FL
Posts: 8,718
Sorry I'm late to the party here, but yes, the loop provided with the TCP Mustang kit is too small and would touch the DS on full articulation. I also was planning to install from the top, which would not work with some that do not have a removable trans tunnel. I still have the parts and might try to figure something out in my "ample spare time" but I'm hoping the guys at Metco Motorsports (the ones building the Shelby GT500 5.4 modular Mk III) will come up with something since they have a full line of bolt in loops for classic and late-model Mustangs...

Mark
__________________
FFR5310RD
Modified Mustangs & Fords Project Snake Charmer

2006: 2/14 Delivery by Stewart Transport, 8/15 becomes a roller, 8/26 drivetrain installed, 10/15 first engine start, 12/23 wiring completed, 12/31 body test fit

2007: 2/25 first go-cart, 4/15 leaves for paint, 8/24 paint prep begins, 12/10 paint work completed

2008: 1/7 home from paint, 2/1 titled, tagged, and insured, 3/15 interior complete, 6/2 alignment, 6/4 Graduation
Mustang Man is offline   Reply With Quote Quick reply to this message
Old 09-13-2008, 04:19 PM   #16 (permalink)
NeeditBadWantitWorse

NBWW's Avatar

Join Date: Jul 2006
Posts: 4,503
Tapping the 4" tube will only make you feel good. It is only .125" thick. For that to be proper, it should be as thick as the diameter of the bolt used.
I also would not bolt through the tube as it could compress when tightened.

That only leaves welding tabs for attaching brackets in my opinion.
NBWW is offline   Reply With Quote Quick reply to this message
